PD10/11 Series

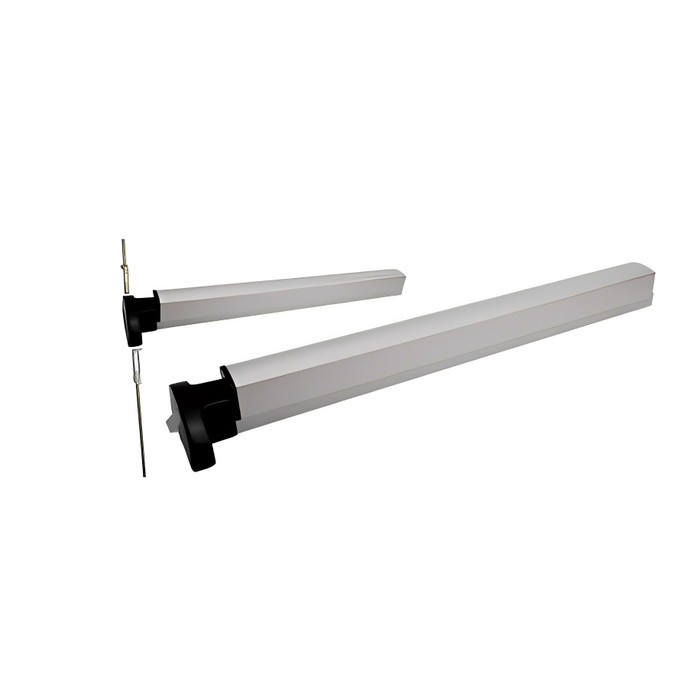

Complete Motorized Storefront Exit Device for First Choice 3600/3700 and Dor-0-matic 1600/1700 Retrofit
-The Command Access PD10-M series is a motorized latch pullback Grade 1 storefront exit device that refrofits First Choice 3600/3700 & Dor-o-matic 1600/1700 series. All PD10-M models are equipped with our PTS "push to set" technology. We know that door conditions change and in retrofit scenarios you never know exactly what you're walking into. But with our PTS adjustment your post installation adjustment is greatly simplified in 5 quick seconds. Install this device with the confidence of knowing that the PD10-M meets or exceeds the high standards of other grade 1 products and carries our 3-year "no hassle " warranty.
Features
- Next Generation MM4 Smart Module: On boarddiagnostics with audible feedback for adjustmentand power issues
- "PTS": 5 second electronic adjustment for easypost installation adjustment
- Electric dogging rated for continuous duty - Autore-engage if push pad is pulled from dogged position.
- Low Current Draw - Field switchable to a "LowCurrent" or "High Torque" mode.
- Up to 300' wire run with 2-18ga wire - Long wireruns provides installer with convenience of placingthe Command locking hardware power supply ina centralized location; i.e. the same closet as the access control panel.
- 8' cable with Quick Connect for MM4 module toeasily connect to power supply lead.
- UL listed
- 3 Year No Hassle Warranty
Specifications
Voltage
- Voltage range – 24 to 28 VDC
- System protection – unit shutdown when voltage exceeds 28VDC
- Standard - Average Current Peak: 1.3A, Average Current Hold: 180M
- High Torque - Average Current Peak: 2A, High Average Current Hold: 250mA
- PTS adjustment – approx. 1/4”
Wire Run
- 300' with 18ga wire
Product Details
- Weight: RIM 13 lbs, CVR 17 lbs
- Single Box: 47” x 8-1/8” x 8-1/8”
2 Master Pack
- Weight: RIM 26 lbs, CVR 34 lbs
- Dim: 12.75” x 11.75” x 11”
Device Cutdown Details
- 36" - 1-1/4"
- 48" - 1-1/4"
