Thomas & Betts BLB-1 Die Cast Aluminum Conduit Body 1/2" Trade Size with Covers & Gaskets

Thomas & Betts BLB-1 Die Cast Aluminum Conduit Body 1/2" Trade Size with Covers & Gaskets

Professional EMT Conduit Connection & Wire Management Solution

The Thomas & Betts BLB-1 conduit body delivers reliable electrical connections for EMT conduit systems with die cast aluminum construction and UL certification. This spacious wiring chamber provides convenient conductor pulling and splice access with smooth throats for easy wire installation and retained stainless steel cover screws for secure, long-lasting connections.

Professional Features & Benefits

• Die Cast Aluminum Construction: Provides durable, corrosion-resistant housing for long-term electrical system reliability in demanding applications.
• 1/2" Trade Size: Compatible with standard EMT conduit systems for versatile installation flexibility across residential and commercial projects.
• 4.3 Cu In Volume: Spacious wiring chamber accommodates multiple conductors and splice connections with ample working space for professional installations.
• Smooth Throats: Engineered wire entry points reduce conductor damage during pulling operations and ensure smooth cable installation.
• Retained Stainless Steel Cover Screws: Prevents screw loss during maintenance while providing secure, tamper-resistant closure for electrical safety.
• UL Certification: Meets rigorous safety and performance standards for code-compliant electrical installations and professional confidence.
• Multiple Cover & Gasket Options: Includes die cast and stamped aluminum covers with composition and neoprene gasket choices for application-specific sealing requirements.

Technical Specifications

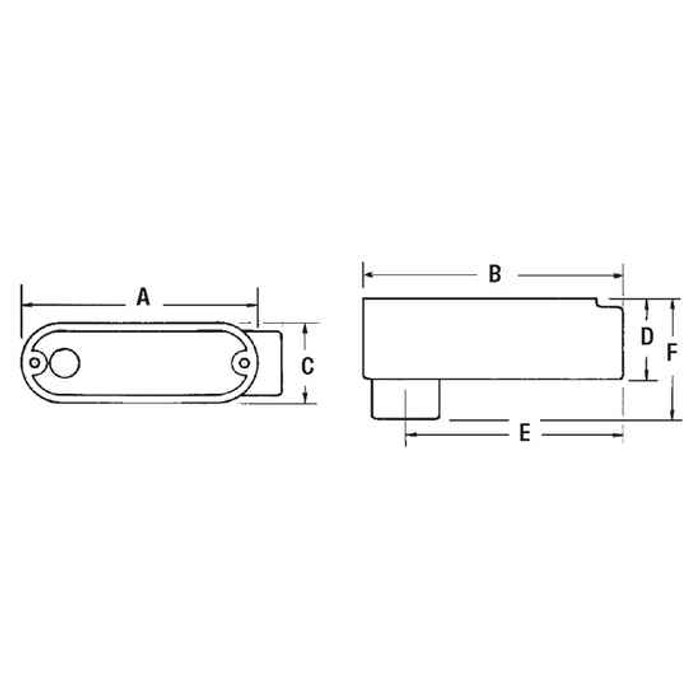

• A Inches: 3 7/8
• B Inches: 4 9/32
• C Inches: 1 5/16
• Cover Die Cast: CV-1
• Cover Stamped Aluminum: SCV-1
• D Inches: 1 5/16
• D Pak Catalog Number: DBLB-1-C
• Department: Electrical
• E Inches: 3 1/2
• F Inches: 2 1/16
• Gasket Composition: GKV-1
• Gasket Neoprene: GKN-1
• Inner Package: 10
• Material: Die Cast Aluminum
• Order Multiple: 10
• Outer Package: 50
• Package Height: 11
• Package Length: 14.75
• Package Width: 5.25
• Product Group: Electrical Boxes
• Product Subgroup: Box Covers
• Rohs Compliance: Yes
• T B Sold In Uom: Each
• T B Weight Per Uom: 0.25 lbs. Each
• Trade Size Inches: 2-Jan
• Volume Cu In: 4.3

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Electrical Systems
• Commercial Building Wiring
• Industrial Conduit Installations
• EMT Conduit Junction Points
• Electrical Panel Connections
• Wire Pulling & Splice Locations
• Code-Compliant Electrical Boxes

Why Choose Thomas & Betts Quality?

Thomas & Betts conduit bodies deliver proven reliability with UL certification, die cast aluminum construction, and RoHS compliance for professional electrical installations. The retained stainless steel hardware and multiple cover options ensure long-term performance and application flexibility for demanding electrical environments.
