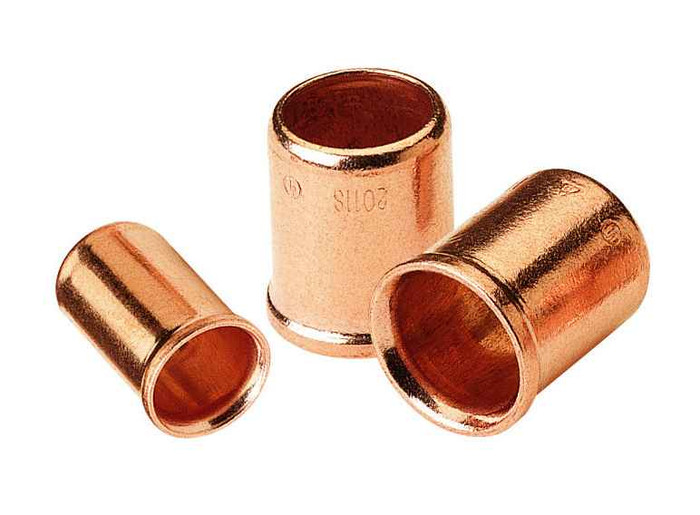

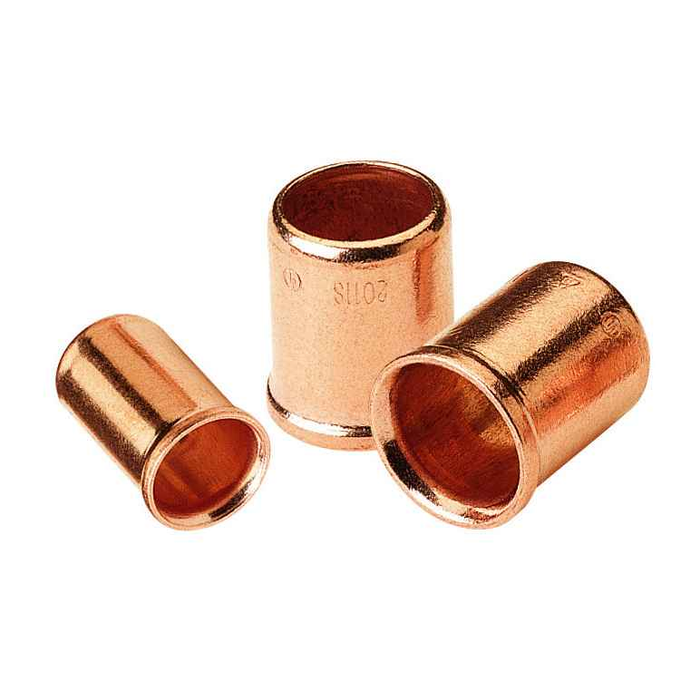

Ideal Industries Copper Crimp Connector 18-10 AWG UL Listed Pressure Connection, 100 Pack

Ideal Industries Copper Crimp Connector 18-10 AWG UL Listed Pressure Connection, 100 Pack

(No reviews yet) Write a Review

Model: 2006S
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.28
$21.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ideal Industries Copper Crimp Connector 18-10 AWG

Professional-Grade Electrical Connection Solution

The Ideal Industries Copper Crimp Connector delivers professional-grade electrical connection performance for 18-10 AWG wire applications. This solid copper construction connector features pressure-type connection technology designed for electricians, telecommunications professionals, and electrical contractors, providing the reliable performance and industry-leading quality that electrical professionals demand.

Professional Features & Benefits

Superior Connection Performance

  • Solid Copper Construction - Requires less crimping pressure while providing maximum conductivity and corrosion resistance
  • Pressure-Type Connection Design - Creates fast, permanent electrical connections with consistent contact pressure
  • 18-10 AWG Wire Range - Accommodates standard electrical wire sizes for versatile installation applications
  • Corrosion Resistant Materials - Withstands harsh environmental conditions for long-term reliability

Safety & Code Compliance

  • UL 486S Listed Certification - Meets rigorous safety standards for electrical connection applications
  • CSA C22.2 #188 Certified - Complies with Canadian electrical safety requirements for professional installations
  • Federal Specification W-S-61D Compliance - Meets government standards for electrical connection reliability and performance

Technical Specifications

Wire Range: 18-10 AWG, Construction: Solid copper sleeve design, Certifications: UL 486S Listed and CSA C22.2 #188 Certified, Compliance: Federal Specification W-S-61D, Connection Type: Pressure-type crimp connection, Application Temperature: Standard electrical operating range, Installation: Requires appropriate crimping tool for proper connection

Installation & Setup

  1. Strip wire insulation to proper length ensuring clean copper conductor exposure for optimal connection
  2. Select appropriate crimping tool designed for copper crimp connectors and wire gauge being used
  3. Insert stripped wire fully into connector sleeve ensuring complete conductor contact with copper sleeve
  4. Position crimping tool properly on connector and apply firm, consistent pressure to create permanent connection
  5. Verify connection integrity by gently tugging wire to ensure secure mechanical and electrical bond
  6. Apply appropriate insulation or protective covering as required by installation specifications and local codes

Professional Applications

Ideal for:

  • Residential Electrical Installation - Branch circuit connections, outlet wiring, and general electrical connections in homes
  • Commercial Construction Projects - Office building electrical systems, retail installations, and commercial facility wiring
  • Industrial Wiring Applications - Manufacturing facility electrical connections, control panel wiring, and industrial equipment connections
  • Telecommunications Infrastructure - Grounding connections, power distribution, and telecommunications equipment electrical connections
  • Electrical Panel Connections - Distribution panel wiring, sub-panel connections, and electrical service installations
  • Motor Control Applications - Motor starter connections, control circuit wiring, and electrical equipment terminations
  • Lighting System Installation - Commercial lighting connections, electrical fixture wiring, and lighting control systems
  • Electrical Maintenance Projects - Repair connections, electrical system upgrades, and maintenance electrical work

Solid Copper Technology Advantage

Ideal Industries solid copper crimp connector technology provides superior electrical conductivity and corrosion resistance compared to plated alternatives. The solid copper construction requires less crimping pressure while maintaining excellent connection integrity, reducing installation time and tool wear. This design ensures consistent electrical performance in harsh environmental conditions where moisture and corrosive elements can compromise connection reliability.

Why Choose Ideal Industries Quality?

Ideal Industries demonstrates unwavering commitment to electrical safety through UL 486S listing and CSA certification compliance, ensuring every copper crimp connector meets rigorous safety standards. Our pressure-type connection technology provides reliable performance that electrical professionals trust for code-compliant installations, backed by Federal Specification W-S-61D compliance for government and commercial applications requiring the highest reliability standards.

Manufacturer Resources

Product Specs

Product Group:
Wire Connectors & Terminals
Department:
Electrical
Product Subgroup:
Wire Connectors
Product Type:
Crimp Splice

Ideal Industries 2006S – Frequently Asked Questions

1) What wire sizes does the Ideal 2006S copper crimp connector take?
The Ideal 2006S copper crimp sleeve covers 18 through 10 AWG, so it handles everything from small control and fixture wire up through 10 AWG branch circuit conductors. One part number covers that whole range, which is why it works as a general splice sleeve on a truck or in a panel shop rather than stocking a separate sleeve per gauge.
2) Is the Ideal 2006S crimp connector insulated, or do I have to cover it myself?
It is a bare solid copper sleeve, not an insulated butt splice. After crimping you insulate it yourself, with heat shrink or tape as the installation and local code require. Plan that step into the job; if you want the insulation built into the connector, you want an insulated butt splice instead of a bare copper sleeve.
3) Can I crimp these copper sleeves with pliers, or do I need a proper crimp tool?
A crimping tool rated for copper crimp sleeves in the gauge you are working is required. Pliers will not produce the pressure connection this sleeve depends on. The solid copper construction does take less crimping pressure than plated alternatives, but the connection is still a mechanical pressure joint: full conductor insertion, a proper tool crimp, then a tug test to confirm the bond.
4) Are Ideal 2006S copper crimp connectors UL Listed for a permitted splice in a commercial job?
UL 486S Listed and CSA C22.2 No. 188 certified, and they also meet Federal Specification W-S-61D. That combination is what an institutional or government spec usually calls for on a pressure-type wire connector, and the CSA certification means the same part number works on Canadian jobs without a second SKU.
5) Can I splice two different wire gauges together with one of these copper sleeves?
Both conductors have to fall inside the 18 to 10 AWG range the sleeve is rated for, and both have to seat fully in the sleeve so the crimp bears on copper along the whole barrel. Mixing gauges inside that range is what the range is for, but a conductor that does not fill the barrel will not hold a pressure connection. Strip clean, insert fully, crimp, then tug.
6) Will a bare copper crimp sleeve hold up in a damp or corrosive location?
The sleeve is solid copper rather than plated, which is what gives it its corrosion resistance, and Ideal rates the construction for harsh environmental conditions where moisture can compromise a connection. The joint still has to be insulated and protected after crimping, and the enclosure or method has to suit the location per code.
7) Is a copper crimp sleeve a substitute for a wire nut on a branch circuit splice?
They solve the same problem differently. A twist-on wire connector is removable and reusable; the 2006S is a pressure crimp that makes a permanent joint and then needs insulating separately. Use the crimp sleeve where you want a joint that will not back off, such as motor control terminations, control panel wiring, grounding and telecom power connections. Use a wire nut where you expect to open the splice again.
8) How many crimp connectors come in a pack of Ideal 2006S?
The 2006S copper crimp connector ships 100 to a pack, which is the quantity that makes sense for a service van or an MRO crib rather than a single repair. One pack covers the full 18 to 10 AWG range, so it is a single line item on a stocking order.
9) What is the exact manufacturer part number for the Ideal copper crimp connector covering 18-10 AWG?
Ideal Industries part number 2006S. That is the number to order against for the solid copper, pressure-type crimp sleeve rated 18 to 10 AWG, UL 486S Listed and CSA certified.
