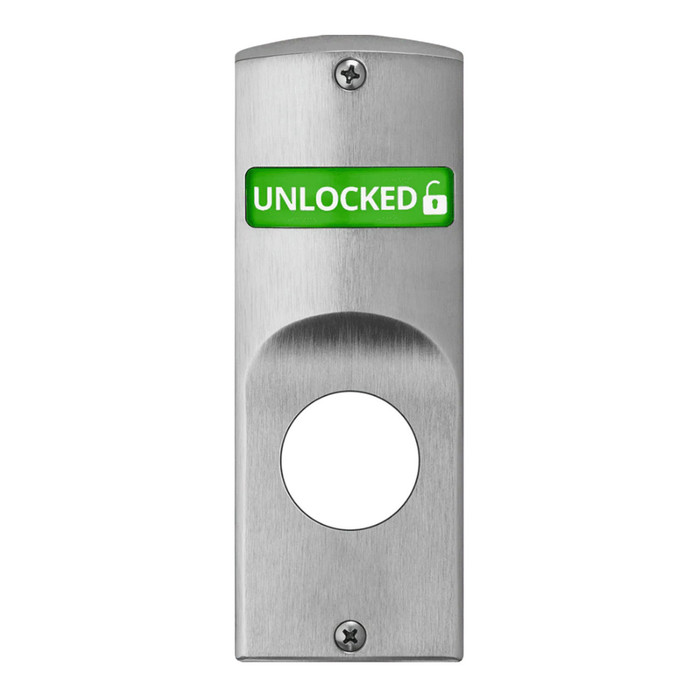

Accentra YA191 Series Indicator Kit for Yale 8800 Sectional Trim with Cylinder Prep - Inside Trim Indicator Codes

Accentra YA191 Series Indicator Kit for Yale 8800 Sectional Trim with Cylinder Prep - Inside Trim Indicator Codes

(No reviews yet) Write a Review

Model: YA191 RH 626 V01
$310.00
$182.81
Selected Finish is
Selected Inside Trim Indicators is
Selected Engraving is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$310.00
$182.81
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra YA191 Series Indicator Kit for Yale 8800 Sectional Trim with Cylinder Prep

The Accentra (formerly Yale) YA191 Series Indicator Kit is a high-performance retrofit solution designed specifically for 8800 Series Mortise Locks with Sectional Trim. This kit provides "at-a-glance" security by displaying the lock’s status through a large, highly visible window, making it an ideal upgrade for privacy and safety in commercial environments.

Product Features

  • 180° Visibility: Features a patented curved window design that allows the occupancy status to be seen from side angles, not just straight on.

  • Reflective Coating: The indicator panel is treated with a reflective material to ensure the status remains highly visible even in low-light conditions.

  • Largest Viewing Window: The status window is approximately 25% larger than standard industry competitors, providing maximum clarity from a distance.

  • Durable Sectional Trim: Specifically engineered for use with Yale’s sectional (rose) trim and includes a prep for a standard mortise cylinder.

  • Field Reversible: Ships as Right Hand (RH) but is easily field reversible to accommodate any door handing.

  • Greaseless & Reliable: Built to ANSI/BHMA Grade 1 standards for uncompromising strength in high-traffic areas.

Specifications

  • Model Number: YA191

  • Lock Compatibility: Yale 8800 Series Mortise Locks (specifically for sectional trim).

  • Preparation: Includes Cylinder Prep for keyed access functions.

  • Door Thickness: Standard for 1-3/4" (44mm) doors; kits for thicker doors available upon request.

  • ANSI/BHMA Rating: Grade 1 (Heavy Duty)

  • Materials: Fabricated from heavy-duty brass, bronze, or stainless steel depending on the finish ordered.

Each kit includes a single side indicator plate with mechanism, screw pack, plastic template, and instructions.

  • For use with function: 8812-2
  • Indicator location: Inside and/or Outside*
  • Largest viewing window available
  • Patented curved window design
  • Reflective coating on indicator panel
  • Provides a lower cost solution to upgrading security and privacy
  • Provides security and safety at a glance, visible at a distance
  • Status indicator window is 25% larger than competition
  • Ensures that the status indicator is clearly visible; Status indicator window has 180° viewing angle
  • Increases the visibility of the indicator in low light conditions
  • Suitable for multiple applications
  • Field adjustable handing
  • Exceeds strength and durability standards for high use and abuse applications
  • ANSI/BHMA Grade 1 certified

Notes: *When indicators are required on both sides of the door, 2 upgrade kits must be ordered, one kit for each side. Lock(s) and/or Cylinder (s) not included.

Typical Applications

  • Classroom doors
  • Privacy rooms
  • Nursing/new mother rooms
  • Patient rooms
  • Restrooms
  • Meeting rooms



Installation Sheet

Spec Sheet

Manufacturer Resources

Product Specs

Product Type:
Indicators
Commercial/Residential:
Commercial
Product Group:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Category:
Cylindrical Locks
Department:
Door Hardware
Series:
YA191
Indicators:
Inside Trim Indicator

Accentra YA191 RH 626 V01 – Frequently Asked Questions

1) Will the Accentra YA191 indicator kit work on my Yale 8800 mortise lock?
The YA191 indicator kit is built for Yale 8800 Series mortise locks with sectional (rose) trim, and it includes a cylinder prep for keyed functions. It is called out for function 8812-2. If your 8800 has escutcheon trim rather than sectional trim, this is not the kit for that opening. The lock itself and the cylinder are not part of the kit.
2) Do I need to order two YA191 indicator kits to get a locked/unlocked indicator on both sides of the door?
Yes. Each kit is a single side indicator plate with mechanism, screw pack, plastic template and instructions. For a door that needs status visible from inside and outside, order two kits, one per side. The inside-side kit uses the V-code indicators (V01, V03, V04, V06).
3) What door thickness does the Yale 8800 indicator retrofit kit fit?
Standard kits are made for 1-3/4 inch (44mm) doors, which covers most commercial openings. Thicker doors are handled by a different kit, so specify the door thickness up front if your leaf is heavier than standard.
4) Does the YA191 indicator kit have to be ordered handed, or can I flip it in the field?
Handing is selectable when ordering, left or right, and the kit is also field reversible. It ships set as right hand and the handing can be adjusted on site, so a wrong-hand door at install time is not a return.
5) Do I have to replace my Yale 8800 mortise locks to add locked/unlocked indicators?
No. The YA191 is a retrofit kit that upgrades existing 8800 sectional trim in place, so the mortise case stays in the door. That is the cheaper path to indicator status on classroom, restroom and privacy doors than swapping whole locks. You keep your existing cylinders and keying, since the kit is prepped for a mortise cylinder rather than supplying one.
6) What is the difference between the V01, V03, V04 and V06 indicator codes on the Yale 8800 inside trim?
Four inside-trim displays are offered. V01 and V04 read in words, Unlocked/Locked, in white and red. V03 and V06 use icons only, with V03 reading green/red and V06 white/red. Word versions suit facilities where staff and visitors need plain text; the icon versions are the choice where language neutrality matters, and the green/red V03 gives the strongest at-a-distance read.
7) Is the Yale 8800 sectional trim indicator kit ANSI/BHMA Grade 1?
Grade 1, heavy duty. That is the rating an institutional buyer needs for classroom, patient room and restroom doors that see constant use, and it means the indicator trim is not the weak point on an 8800 opening.
8) Can I get the YA191 indicator to match the 626 satin chrome trim already on my other doors?
Fourteen finishes are offered: 605 bright brass, 606 satin brass, 611 bright bronze, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 618 bright nickel, 619 satin nickel, 625 bright chrome, 626 satin chrome, 629 bright stainless, 630 satin stainless, 693 black painted, BSP black suede powder coat and WSP white suede powder coat. 626 is there, and it is the most common commercial standard, so a fleet of existing 8800 openings will usually match without a special order.
9) What does the engraving option on the Yale indicator kit do, and do I have to pick one?
Engraving is a required selection. You can take None, EMA which engraves "Lock" with an arrow on the outside, or EMB which engraves "Lock" with an arrow on the inside. The arrow tells an occupant which way to turn the thumbturn or key to secure the room, which is worth having on classroom and patient room doors where the user is not the person who installed it.
10) What do I need to specify when ordering the Accentra YA191 indicator kit?
Four things settle the order: finish, handing (left or right), the inside indicator code (V01, V03, V04 or V06), and the engraving choice (None, EMA or EMB). Door thickness matters too, since the standard kit is a 1-3/4 inch door kit. If both faces of the door need an indicator, that is two kits.
11) Can you see the lock status on this Yale indicator from down the corridor or only standing in front of it?
The curved window design gives a 180 degree viewing angle, so status reads from the side as well as head-on, and the panel carries a reflective coating so it stays legible in low light. The window is about 25 percent larger than competing indicators. For a classroom corridor or a hospital wing where someone needs to check a row of doors at a glance, that side-angle read is the point of the product.
12) What is the YA191 indicator plate made of?
Heavy-duty brass, bronze or stainless steel, depending on which finish is ordered. The stainless finishes (629 and 630) are the ones to specify for wet or high-abuse areas like restrooms and locker rooms.
