Accentra YA192 Series Indicato...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$310.00
$182.81

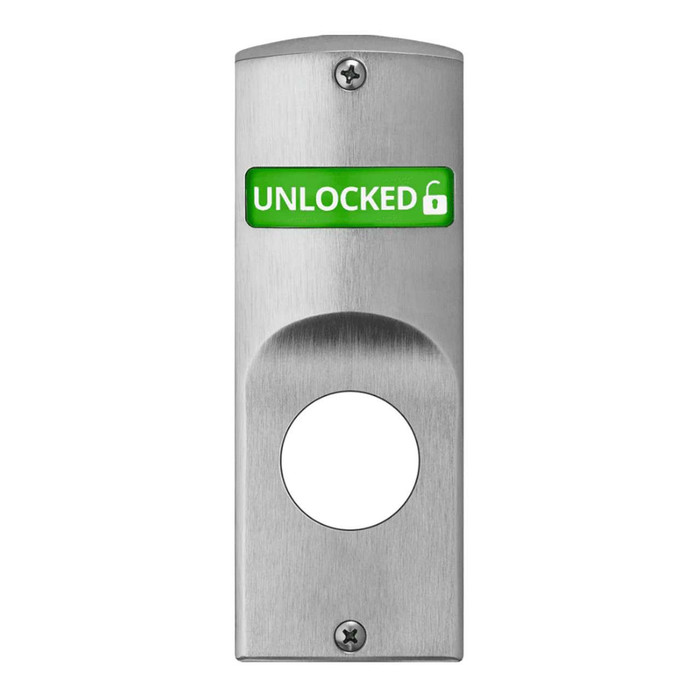

Accentra YA192 Series Indicator Kit for Yale 8800 Sectional Trim with Cylinder Prep - Inside Trim Indicator Codes

Accentra YA192 Series Indicator Kit for Yale 8800 Sectional Trim with Cylinder Prep - Inside Trim Indicator Codes

(No reviews yet) Write a Review

Model: YA192 RH 626 V01
$310.00
$182.81
Selected Finish is
Selected Inside Trim Indicators is
Selected Engraving is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$310.00
$182.81
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra YA192 Series Indicator Kit for Yale 8800 Sectional Trim with Cylinder Prep

The Accentra (formerly Yale) YA192 Series Indicator Kit is a high-performance retrofit solution designed specifically for 8800 Series Mortise Locks with Sectional Trim. This kit provides "at-a-glance" security by displaying the lock’s status through a large, highly visible window, making it an ideal upgrade for privacy and safety in commercial environments.

Product Features

  • 180° Visibility: Features a patented curved window design that allows the occupancy status to be seen from side angles, not just straight on.

  • Reflective Coating: The indicator panel is treated with a reflective material to ensure the status remains highly visible even in low-light conditions.

  • Largest Viewing Window: The status window is approximately 25% larger than standard industry competitors, providing maximum clarity from a distance.

  • Durable Sectional Trim: Specifically engineered for use with Yale’s sectional (rose) trim and includes a prep for a standard mortise cylinder.

  • Field Reversible: Ships as Right Hand (RH) but is easily field reversible to accommodate any door handing.

  • Greaseless & Reliable: Built to ANSI/BHMA Grade 1 standards for uncompromising strength in high-traffic areas.

Specifications

  • Model Number: YA192

  • Lock Compatibility: Yale 8800 Series Mortise Locks (specifically for sectional trim).

  • Preparation: Includes Cylinder Prep for keyed access functions.

  • Door Thickness: Standard for 1-3/4" (44mm) doors; kits for thicker doors available upon request.

  • ANSI/BHMA Rating: Grade 1 (Heavy Duty)

  • Materials: Fabricated from heavy-duty brass, bronze, or stainless steel depending on the finish ordered.

Each kit includes a single side indicator plate with mechanism, screw pack, plastic template, and instructions.

  • For use with functions: 8808, 8808-2, 8809
  • Indicator location: Inside and/or Outside*
  • Largest viewing window available
  • Patented curved window design
  • Reflective coating on indicator panel
  • Provides a lower cost solution to upgrading security and privacy
  • Provides security and safety at a glance, visible at a distance
  • Status indicator window is 25% larger than competition
  • Ensures that the status indicator is clearly visible; Status indicator window has 180° viewing angle
  • Increases the visibility of the indicator in low light conditions
  • Suitable for multiple applications
  • Field adjustable handing
  • Exceeds strength and durability standards for high use and abuse applications
  • ANSI/BHMA Grade 1 certified

Notes: *When indicators are required on both sides of the door, 2 upgrade kits must be ordered, one kit for each side. Lock(s) and/or Cylinder (s) not included.

Typical Applications

  • Classroom doors
  • Privacy rooms
  • Nursing/new mother rooms
  • Patient rooms
  • Restrooms
  • Meeting rooms

Installation Sheet

Spec Sheet

Manufacturer Resources

Product Specs

Product Type:
Indicators
Commercial/Residential:
Commercial
Product Group:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Category:
Cylindrical Locks
Department:
Door Hardware
Series:
YA192
Indicators:
Inside Trim Indicator

Accentra YA192 RH 626 V01 – Frequently Asked Questions

1) Will the Accentra YA192 indicator kit work on my Yale 8800 mortise lock?
The YA192 indicator kit is built for Yale 8800 Series mortise locks with sectional (rose) trim, and specifically for the 8808, 8808-2 and 8809 functions. If your 8800 lock is one of those functions and wears sectional trim rather than escutcheon trim, this kit retrofits it. The kit also carries a prep for a standard mortise cylinder, so it suits keyed access on those functions.
2) Do I need one YA192 kit or two to get an indicator on both sides of the door?
One kit covers one face of the door. Each YA192 kit contains a single side indicator plate with mechanism, a screw pack, a plastic template and instructions. If the room needs status shown from the corridor and from inside, order two kits, one per side. Locks and cylinders are not included in either case.
3) Does the YA192 indicator fit a 1-3/4 inch door?
Yes. The YA192 kit is standard for 1-3/4 inch (44mm) doors, which is the usual commercial door thickness. Kits for thicker doors are available on request.
4) Do I have to order the YA192 indicator kit by handing, or can I flip it in the field?
Handing is an order choice, left-hand or right-hand, but it is not a trap. The indicator ships right hand and is field reversible, so a kit can be adjusted on site to suit the door you are actually standing at. Useful when a punch list turns up an opening handed the other way.
5) What do the V01, V03, V04 and V06 inside indicator codes on the Accentra YA192 mean?
They set what the window actually shows on the room side. V01 and V04 read Unlocked/Locked in white and red text. V03 and V06 use icons only with no wording, V03 in green and red, V06 in white and red. Pick text where staff need it spelled out, icons where the door serves a mixed-language or multilingual population, or where a green/red read carries further down a corridor.
6) Do I need to replace the whole lock to add a locked/unlocked indicator to a classroom door?
No, and that is the point of the YA192. It is a retrofit kit for an existing Yale 8800 sectional trim lock in the 8808, 8808-2 or 8809 functions, so you keep the lock body and change the trim side to a plate with a status window. Full lock replacement is only needed if the existing lock is not an 8800 sectional trim in one of those functions.
7) Does the YA192 indicator kit include a mortise cylinder?
No cylinder and no lock come with the kit. The plate is prepped for a standard mortise cylinder, so on a keyed function you supply the cylinder in your own keyway and keying. Order the cylinder alongside the kit so the door is not sitting open waiting on it.
8) Is this indicator kit for sectional trim or escutcheon trim on the 8800 lock?
Sectional trim only. The YA192 is engineered for Yale's sectional (rose) trim, where the knob or lever rose and the cylinder sit as separate pieces. If your 8800 lock has a single long escutcheon plate covering both, this kit is the wrong part and you need the escutcheon version of the indicator instead.
9) What is the EMA / EMB engraving option on the YA192 indicator kit?
Engraving is a required selection when ordering. Choose None, EMA for outside engraving reading "Lock" with an arrow, or EMB for inside engraving of the same. The arrow tells an occupant which way to turn the thumbturn or key to throw the lock, which is the detail that matters on a classroom or patient room where the person using it is not trained on the hardware.
10) Is the Accentra YA192 indicator Grade 1?
ANSI/BHMA Grade 1, heavy duty. Grade 1 is the top commercial tier, so the kit is rated for the traffic on a school, hospital or public restroom door rather than light interior use.
11) Can I match the YA192 indicator to the finish on the rest of my Yale trim?
Fourteen finishes are offered: 605 bright brass, 606 satin brass, 611 bright bronze, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 618 bright nickel, 619 satin nickel, 625 bright chrome, 626 satin chrome, 629 bright stainless, 630 satin stainless, 693 black painted, plus black and white suede powder coat. 626 and 630 cover most existing commercial openings. The plate is brass, bronze or stainless steel depending which finish you order.
12) Can the indicator status be read from down the hall, or only standing in front of the door?
The window is curved by a patented design and gives a 180 degree viewing angle, so status reads from side angles along a corridor, not just head on. The panel carries a reflective coating for low light, and the window is about 25 percent larger than competing indicators. On a long hospital or school corridor that is the difference between checking a door from the nurse station and walking to it.
13) If I am standardizing indicators across a whole building, what do I have to specify per door?
Four things per door face: finish, handing, the indicator code (V01, V03, V04 or V06) and the engraving option (None, EMA or EMB). Doors needing the status on both faces take two kits. Fixing on one indicator code and one finish across the facility keeps spares interchangeable, and handing is field reversible so a spare kit fits either hand.
14) Where do these Yale indicator kits get used most?
Typical openings are classroom doors, privacy rooms, nursing and new mother rooms, patient rooms, restrooms and meeting rooms. Anywhere a person outside needs to know whether the room is secured or occupied without trying the lever. It is a commercial product, specified for those buildings rather than residential doors.
