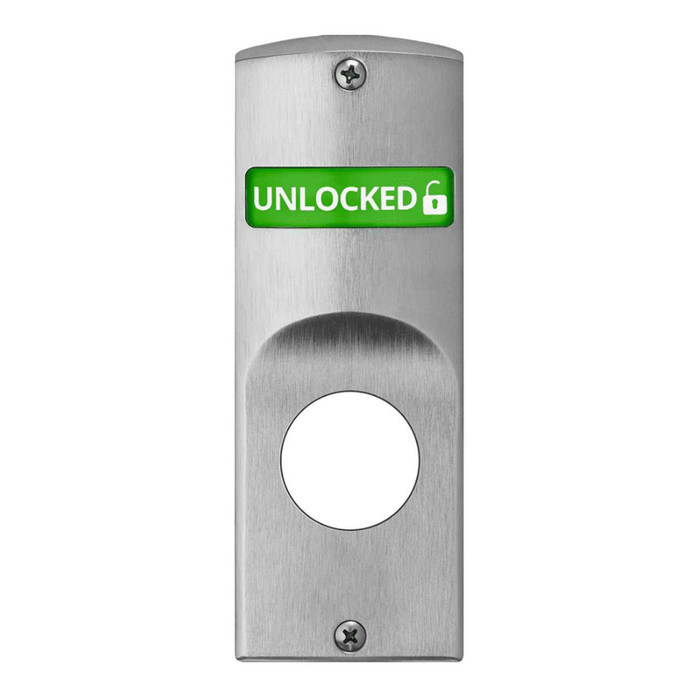

Accentra YA192 Series Indicator Kit for Yale 8800 Sectional Trim with Cylinder Prep - Outside Trim Indicator Codes

Accentra YA192 Series Indicator Kit for Yale 8800 Sectional Trim with Cylinder Prep - Outside Trim Indicator Codes

(No reviews yet) Write a Review

Model: YA192 RH 626 V10
$310.00
$195.04
Selected Finish is
Selected Outside Trim Indicators is
Selected Engraving is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$310.00
$195.04
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra YA192 Series Indicator Kit for Yale 8800 Sectional Trim with Cylinder Prep

The Accentra (formerly Yale) YA192 Series Indicator Kit is a high-performance retrofit solution designed specifically for 8800 Series Mortise Locks with Sectional Trim. This kit provides "at-a-glance" security by displaying the lock’s status through a large, highly visible window, making it an ideal upgrade for privacy and safety in commercial environments.

Product Features

  • 180° Visibility: Features a patented curved window design that allows the occupancy status to be seen from side angles, not just straight on.

  • Reflective Coating: The indicator panel is treated with a reflective material to ensure the status remains highly visible even in low-light conditions.

  • Largest Viewing Window: The status window is approximately 25% larger than standard industry competitors, providing maximum clarity from a distance.

  • Durable Sectional Trim: Specifically engineered for use with Yale’s sectional (rose) trim and includes a prep for a standard mortise cylinder.

  • Field Reversible: Ships as Right Hand (RH) but is easily field reversible to Left Hand (LH) to accommodate any door handing.

  • Greaseless & Reliable: Built to ANSI/BHMA Grade 1 standards for uncompromising strength in high-traffic areas.

Specifications

  • Model Number: YA192

  • Lock Compatibility: Yale 8800 Series Mortise Locks (specifically for sectional trim).

  • Preparation: Includes Cylinder Prep for keyed access functions.

  • Door Thickness: Standard for 1-3/4" (44mm) doors; kits for thicker doors available upon request.

  • ANSI/BHMA Rating: Grade 1 (Heavy Duty)

  • Materials: Fabricated from heavy-duty brass, bronze, or stainless steel depending on the finish ordered.

Each kit includes a single side indicator plate with mechanism, screw pack, plastic template, and instructions.

  • For use with functions: 8808, 8808-2, 8809
  • Indicator location: Inside and/or Outside*
  • Largest viewing window available
  • Patented curved window design
  • Reflective coating on indicator panel
  • Provides a lower cost solution to upgrading security and privacy
  • Provides security and safety at a glance, visible at a distance
  • Status indicator window is 25% larger than competition
  • Ensures that the status indicator is clearly visible; Status indicator window has 180° viewing angle
  • Increases the visibility of the indicator in low light conditions
  • Suitable for multiple applications
  • Field adjustable handing
  • Exceeds strength and durability standards for high use and abuse applications
  • ANSI/BHMA Grade 1 certified

Notes: *When indicators are required on both sides of the door, 2 upgrade kits must be ordered, one kit for each side. Lock(s) and/or Cylinder (s) not included.

Typical Applications

  • Classroom doors
  • Privacy rooms
  • Nursing/new mother rooms
  • Patient rooms
  • Restrooms
  • Meeting rooms

Installation Sheet

Spec Sheet

Manufacturer Resources

Product Specs

Product Type:
Indicators
Commercial/Residential:
Commercial
Product Group:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Category:
Cylindrical Locks
Department:
Door Hardware
Series:
YA192
Indicators:
Outside Trim Indicator

Accentra YA192 RH 626 V10 – Frequently Asked Questions

1) Will the Accentra YA192 indicator kit work on my Yale 8800 mortise lock?
The YA192 indicator kit is built for Yale 8800 Series mortise locks with sectional (rose) trim, and only for functions 8808, 8808-2, and 8809. If your 8800 has escutcheon trim rather than sectional trim, or a function outside those three, this is not the right kit. The lock itself is not included, so you are adding the indicator to a lock you already have or are ordering separately.
2) Does one YA192 kit put an indicator on both sides of the door?
No. Each YA192 kit is a single side indicator plate with mechanism, screw pack, plastic template, and instructions. If the room needs status visible from the corridor and from inside, order two kits, one for each side. The outside trim kit also comes with cylinder prep, so it accepts a keyed function on the exterior side.
3) What door thickness does the Yale YA192 indicator kit fit?
Standard kits are made for 1-3/4 inch (44mm) doors, which is the usual commercial door thickness. Kits for thicker doors are available on request, so if you are working a 2 inch or heavier leaf it has to be specified rather than pulled off the shelf.
4) Do I need to know the door handing before ordering a YA192 indicator?
Handing is an order choice, left-handed or right-handed, but it is not a trap. The kit ships right hand and is field reversible to left hand, so a locksmith can flip it on site if the door turns out the other way. Useful when you are ordering for a floor of doors and the handing schedule is not fully confirmed.
5) What do the V10 through V60 indicator codes on the Yale YA192 mean?
They set what the window says and what colors it uses. V10 reads Unlocked/Locked in green/red, V20 reads Vacant/Occupied in green/red, V30 is icons only in green/red. V40, V50 and V60 are the same three in white/red instead. Pick wording by room type: Vacant/Occupied for restrooms, patient rooms and nursing rooms, Unlocked/Locked for classroom and meeting room doors where staff are thinking about the lock state, icons only where you have multilingual traffic or want no text at all.
6) Can I add occupancy indicators to existing Yale mortise locks without replacing the locks?
That is exactly what the YA192 is for. It is a retrofit kit that adds a status indicator to 8800 Series mortise locks already hanging in the door, rather than a new lock. For a school or hospital standardizing on visible lock status across classroom or patient room doors, it upgrades the openings you already own instead of buying new mortise locks for each one.
7) Is a cylinder included with the YA192 outside trim indicator kit?
No cylinder ships with the kit. The outside plate comes prepped for a standard mortise cylinder so a keyed function works through the indicator, but you supply the cylinder, which is what you want anyway if the opening has to key into an existing facility system.
8) What is the Engraving option on the Yale YA192 indicator, and do I need it?
Engraving is a required selection with three choices: None, EMA for outside engraving reading "Lock" with an arrow, and EMB for inside engraving with the same marking. The arrow tells an occupant which way to turn the thumbturn or key to throw the lock, which matters on privacy and lockdown doors where the person using it is not trained staff. On an outside trim plate, EMA is the matching option. Choose None if you want a clean plate or your facility standard already has signage.
9) Is the Accentra YA192 indicator rated Grade 1 for a high traffic school or hospital door?
Grade 1 heavy duty under ANSI/BHMA, and certified as such. That is the rating you want on classroom, patient room and restroom doors where the indicator is being turned dozens of times a day and will take abuse.
10) Will the YA192 indicator finish match the rest of my Yale door hardware?
Fourteen finishes are offered, covering the standard BHMA numbers most commercial hardware schedules call out: 605 bright brass, 606 satin brass, 611 bright bronze, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 618 bright nickel, 619 satin nickel, 625 bright chrome, 626 satin chrome, 629 bright stainless, 630 satin stainless, 693 black painted, plus BSP black suede and WSP white suede powder coat. Match the number on your existing trim, 626 and 630 being the two most common in commercial buildings. The base metal is brass, bronze or stainless depending on which finish you order.
11) Can you read the Yale YA192 status window from down the hall or at an angle?
The curved window design gives a 180 degree viewing angle, so the status reads from the side of the door and not only head on, and the panel carries a reflective coating for low light. The window is about 25 percent larger than competing indicators. In practice that means staff walking a corridor can clear a row of restroom or patient doors without stopping at each one.
12) What comes in the box with the Accentra YA192 indicator kit?
One side's indicator plate with its mechanism, a screw pack, a plastic template for the trim prep, and instructions. The template is the part that matters for a contractor doing a run of doors, since the plate has to land on the sectional rose correctly. Lock and cylinder are separate.
