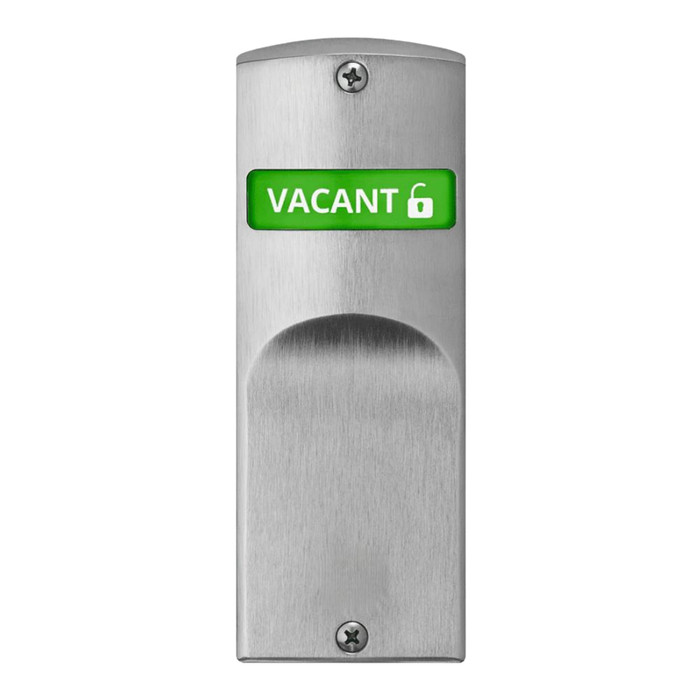

Accentra YA197 Series Indicator Kit for Yale 8800 Sectional Trim with Cylinder Prep - Inside Trim Indicator Codes

Accentra YA197 Series Indicator Kit for Yale 8800 Sectional Trim with Cylinder Prep - Inside Trim Indicator Codes

(No reviews yet) Write a Review

Model: YA197 RH 629 V01
$310.00
$182.81
Selected Finish is
Selected Inside Trim Indicators is
Selected Engraving is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$310.00
$182.81
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra YA197 Series Indicator Kit for Yale 8800 Sectional Trim with Cylinder Prep

The Accentra (formerly Yale) YA197 Series Indicator Kit is a high-performance retrofit solution designed specifically for 8800 Series Mortise Locks with Sectional Trim. This kit provides "at-a-glance" security by displaying the lock’s status through a large, highly visible window, making it an ideal upgrade for privacy and safety in commercial environments.

Product Features

  • 180° Visibility: Features a patented curved window design that allows the occupancy status to be seen from side angles, not just straight on.

  • Reflective Coating: The indicator panel is treated with a reflective material to ensure the status remains highly visible even in low-light conditions.

  • Largest Viewing Window: The status window is approximately 25% larger than standard industry competitors, providing maximum clarity from a distance.

  • Durable Sectional Trim: Specifically engineered for use with Yale’s sectional (rose) trim and includes a prep for a standard mortise cylinder.

  • Field Reversible: Ships as Right Hand (RH) but is easily field reversible to accommodate any door handing.

  • Greaseless & Reliable: Built to ANSI/BHMA Grade 1 standards for uncompromising strength in high-traffic areas.

Specifications

  • Model Number: YA197

  • Lock Compatibility: Yale 8800 Series Mortise Locks (specifically for sectional trim).

  • Preparation: Includes Cylinder Prep for keyed access functions.

  • Door Thickness: Standard for 1-3/4" (44mm) doors; kits for thicker doors available upon request.

  • ANSI/BHMA Rating: Grade 1 (Heavy Duty)

  • Materials: Fabricated from heavy-duty brass, bronze, or stainless steel depending on the finish ordered.

Each kit includes a single side indicator plate with mechanism, screw pack, plastic template, and instructions.

  • For use with function: 8866
  • Indicator location: Inside and/or Outside*
  • Largest viewing window available
  • Patented curved window design
  • Reflective coating on indicator panel
  • Provides a lower cost solution to upgrading security and privacy
  • Provides security and safety at a glance, visible at a distance
  • Status indicator window is 25% larger than competition
  • Ensures that the status indicator is clearly visible; Status indicator window has 180° viewing angle
  • Increases the visibility of the indicator in low light conditions
  • Suitable for multiple applications
  • Field adjustable handing
  • Exceeds strength and durability standards for high use and abuse applications
  • ANSI/BHMA Grade 1 certified

Notes: *When indicators are required on both sides of the door, 2 upgrade kits must be ordered, one kit for each side. Lock(s) and/or Cylinder (s) not included.

Typical Applications

  • Classroom doors
  • Privacy rooms
  • Nursing/new mother rooms
  • Patient rooms
  • Restrooms
  • Meeting rooms



Installation Sheet

Spec Sheet

Manufacturer Resources

Product Specs

Product Type:
Indicators
Commercial/Residential:
Commercial
Product Group:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Category:
Cylindrical Locks
Department:
Door Hardware
Series:
YA197
Indicators:
Inside Trim Indicator

Accentra YA197 RH 629 V01 – Frequently Asked Questions

1) Will the Accentra YA197 indicator kit work on my Yale 8800 mortise lock?
It fits Yale 8800 Series mortise locks that use sectional (rose) trim, and the kit is prepped for a standard mortise cylinder so it suits keyed functions. The described lock function is 8866. If your 8800 is running escutcheon trim rather than sectional rose trim, this is the wrong kit. The lock itself and the cylinder are not part of the kit.
2) Do I need one kit or two for an indicator on both sides of the door?
Each YA197 kit covers one side only. It ships as a single side indicator plate with mechanism, screw pack, plastic template, and instructions. If the opening needs status visible from the corridor and from inside the room, order two kits, one for each side.
3) What door thickness does the YA197 indicator kit fit?
Standard kits are built for 1-3/4 inch (44mm) doors, which is the usual commercial door thickness. Thicker doors are handled by a different kit, available on request.
4) What indicator display options are there on the inside trim, and which should I pick for a restroom?
Four inside displays: V01 Unlocked/Locked in white/red, V03 icons only in green/red, V04 Unlocked/Locked in white/red, and V06 icons only in white/red. Word-based V01 or V04 reads clearly for classroom and meeting room use; the icons-only V03 or V06 avoids English text entirely, which is the usual choice for restrooms, patient rooms, and nursing rooms in mixed-language facilities.
5) Do I have to replace the whole mortise lock to add a lock status indicator?
No. The YA197 is a retrofit upgrade to existing 8800 Series mortise locks with sectional trim, so you keep the lock body and cylinder already in the door and swap in the indicator plate and mechanism on one side. That is the lower cost route to adding privacy status to an existing opening compared with buying new indicator locks.
6) Does handing matter when I order this Yale indicator kit, or can I reverse it on site?
Handing is selectable at order, left or right, but it is not a dead end if you get it wrong. The kit ships right hand and is field reversible, so an installer can adjust handing on the door without a different part number.
7) Is this indicator rated tough enough for a school or hospital corridor?
The YA197 is ANSI/BHMA Grade 1 certified, the heavy duty commercial tier, and is described as exceeding strength and durability standards for high use and abuse applications. It is a commercial product, not residential grade.
8) Can I match the YA197 indicator to the finish of the lock trim already on my doors?
Fourteen finishes are offered: 605 bright brass, 606 satin brass, 611 bright bronze, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 618 bright nickel, 619 satin nickel, 625 bright chrome, 626 satin chrome, 629 bright stainless, 630 satin stainless, 693 black painted, BSP black suede powder coat, and WSP white suede powder coat. The base metal is brass, bronze, or stainless steel depending on which finish you order, so 626 and 630 (the two most common commercial specs) both have a match here.
9) What is the engraving option on the YA197 kit and do I need it?
Engraving is a required selection with three choices: None, EMA for outside engraving reading "Lock" with an arrow, or EMB for inside engraving with the same "Lock" and arrow marking. The arrow tells an occupant which way to turn the thumbturn or key to secure the door, which is worth specifying on classroom security and privacy openings where users are unfamiliar with the hardware. Pick EMB when the plate is going on the room side.
10) Will the indicator be readable from down the hall or at an angle?
The status window uses a patented curved design giving a 180 degree viewing angle, so it reads from the side and not just head on, and the panel carries a reflective coating for low light. The window is about 25 percent larger than competing indicators, which is what makes it legible at corridor distance.
