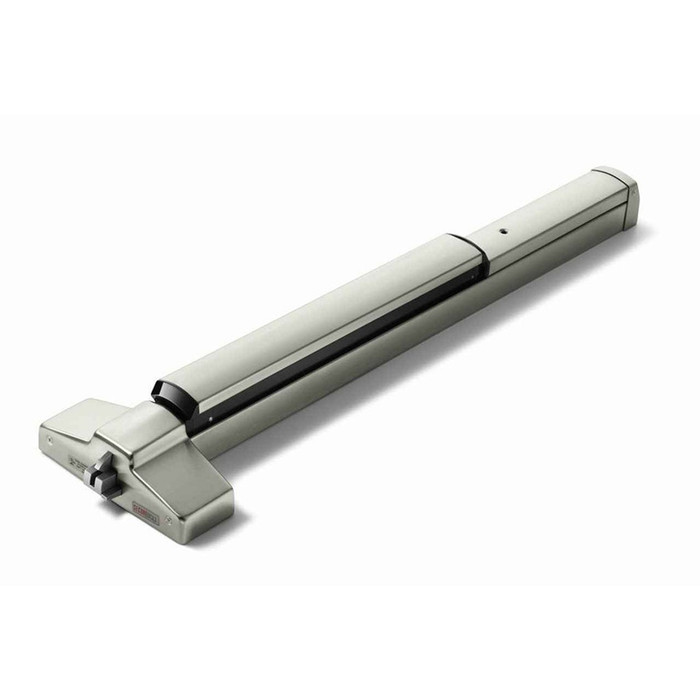

Corbin Russwin ED5200SA 36" SecureBolt Rim Exit Device, 3 Hours Fire Rated

Corbin Russwin ED5200SA Grade 1 36" SecureBolt Rim Exit Device, 3 Hours Fire Rated

(No reviews yet) Write a Review

Model: ED5200SA 630
$2,684.00
$1,621.09
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,684.00
$1,621.09
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin ED5200SA SecureBolt Rim Exit Device, 36" Wide Stile, 3-Hour Fire Rated, Grade 1

Commercial-Grade SecureBolt® Rim Exit Device with Deadbolt-Style Latchbolt and 3-Hour Fire Rating

The Corbin Russwin ED5200SA SecureBolt Rim Exit Device is a professional-grade, wide stile exit device engineered for demanding commercial life-safety applications. Featuring a deadbolt-style latchbolt that significantly resists pull from the exterior, the ED5200SA reduces door and frame separation and prevents the door from being forced open. The standard 36" (914mm) bar fits doors from 30" to 36" (762mm–914mm), with a minimum stile width of 4-1/2" (114mm) and a standard door thickness of 1-3/4" (44mm). Certified to BHMA A156.2, Series 4000, Grade 2 and UL Listed with a 3-Hour Fire Rating, this device is ideal for schools, factories, hotels, theaters, office buildings, retail complexes, and government facilities.

Professional Features & Benefits

  • Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
  • Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Non-handed device (except double cylinder and lever trim which are handed)
  • Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
  • Standard single-point 1/4-turn hex key dogging on panic devices
  • Free Wheeling levers for vandal resistance on trim
  • SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
  • Electrified options including delayed egress, electric latch retraction, and electric dogging
  • UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
  • Full range of trim with Muséo® and Vineyard™ collections
  • ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
  • PathLite™ photoluminescent touchpad cover option available
  • Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

  • Grade: ANSI/BHMA A156.3 Grade 1
  • Handing: Non-handed standard (lever trim and double cylinder devices are handed)
  • Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
  • Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
  • Minimum Stile Width: 4-1/2" (114mm)
  • Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
  • Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
  • Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
  • Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
  • Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
  • Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
  • Warranty: Five-year limited

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities and Schools
  • Healthcare Institutions
  • Retail Establishments and Shopping Complexes
  • Hotels and Hospitality Venues
  • Industrial Facilities, Factories, and Warehouses
  • Government and Municipal Buildings
  • Theaters and Assembly Occupancies

Vandal-Resistant Design

The Corbin Russwin ED5200SA features the SecureBolt® deadbolt-style latchbolt that significantly resists pull from the exterior, reducing door and frame separation and preventing the door from being forced open. Compatible with 900 series heavy-duty trim—including a thick 13/16" beveled escutcheon, Free Wheeling lever, and flush cylinder—the ED5200SA delivers a high-security solution for applications where vandal resistance is a priority. High security Pyramid cylinders are also available as an additional barrier against picking and drilling.

Why Choose Corbin Russwin Quality?

Corbin Russwin ED5000 Series exit devices are engineered to exceed industry standards, with the series proven through rigorous abuse and cycle testing—including certification of the ED5800 to 3.25 million successful cycles, more than 6 times the industry requirement. The ED5200SA is UL Listed with a 3-Hour Fire Rating and certified to BHMA A156.2, Series 4000, Grade 2, and is backed by a 5 Year Limited warranty. Engineered for demanding commercial applications where dependable life-safety performance and long-term reliability are essential.

Manufacturer Resources

Corbin Russwin Condensed Catalog

Product Specs

Series:
ED5000 Series
Grade:
Grade 1
Warranty:
5 Year Limited
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Rim Exit Devices
Stile Width:
4-1/2"
Commercial/Residential:
Commercial
UL Listing Type:
BHMA A156.2, Series 4000, Grade 2, UL Listed (3 Hour Fire Rating)
Stile Type:
Wide Stile
Lock Function:
Exit Only, Accepts Trim
Wood Door Compatible:
No
Product Model:
ED5200SA
Product Function:
Exit Only, Accepts Trim
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4"
Product Size:
36"
Dogging Configuration:
Hex Key Dogging
Fire Rating:
Yes
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Corbin Russwin ED5200SA 630 – Frequently Asked Questions

1) Can I put this exit device on a wood door?
No. The ED5200SA is not rated for wood door applications. If your fire rated opening is a wood leaf, this is the wrong device and you should source one specifically listed for wood doors, such as a narrow stile Adams Rite 3700 or 8700 Series.
2) Is the Corbin Russwin ED5200SA approved for a 3 hour fire door?
Yes. It is UL and cUL listed panic and fire exit hardware with a 3 hour fire rating, and it is NFPA 101 and NFPA 80 compliant plus California State Fire Marshal approved. One caution for fire openings: fire exit hardware cannot be dogged down, so the hex key dogging feature is not usable on a labeled fire door.
3) What door thickness does the ED5200SA come set up for?
Standard build is for a 1-3/4 inch (44mm) door, which is the usual commercial hollow metal thickness. Thicker doors are handled with a factory option: D200 for 2 inch and D214 for 2-1/4 inch. Specify that at order time, it is not a field adjustment.
4) Do I have to specify handing when I order the ED5200SA?
Not for the device itself, it ships non-handed. Handing only comes into play if you add lever trim or a double cylinder device, both of which are handed. Exit only with no trim means no handing call.
5) What does the SecureBolt latch on the ED5200SA actually do differently from a standard rim latch?
Standard ED5200 rim uses a stainless pullman latchbolt with 3/4 inch throw and a deadlocking auxiliary latch. The SecureBolt version swaps that for a deadbolt style bolt, 3/4 inch projection by 1 inch wide, positively deadlocked by an auxiliary bolt. The wider, squared bolt resists pull from the outside, so a pry attempt that separates door from frame is far less likely to release the latch. That is why it gets specified on schools, retail back doors and other openings that see abuse.
6) Will this latch into the strike already on my frame?
Plan on using the strike that comes with it. The ED5200SA is a rim device that uses a surface mounted 3/8 inch roller strike with a positive locking plate and shims, and the SecureBolt bolt is 1 inch wide rather than a conventional pullman profile, so an existing strike from another brand is unlikely to take it. The shims let you dial in alignment on the frame stop.
7) Is a rim device right for my pair of doors, or do I need vertical rods?
A rim device latches into a strike on the frame or a mullion, so on a pair it needs a removable mullion between the leaves. If you cannot have a mullion because of clear opening width or equipment moving through, go to a vertical rod device instead, which latches at head and threshold. Corbin Russwin covers that in the same family with the ED5400 surface vertical rod (3/4 inch top pullman, 5/8 inch bottom deadbolt) and the ED5800 concealed vertical rod.
8) What is a fire-rated 36 inch rim exit device equivalent to the Corbin Russwin ED5200SA?
For a fire-rated 36 inch rim device, the Marks USA M9900F-36 is a 36 inch fire rated rim exit device in exit only function, and the Orca Hardware OED85 is a 36 inch fire rated rim exit device, also exit only. The Corbin Russwin ED5200SA is Grade 1, non-handed, 36 inch, and UL Listed with a 3 hour fire rating. If Grade 1 plus fire rating both need to be on the submittal, the Dexter ED1000 Series fire rated rim device is Grade 1 and fire rated.
9) The opening is not fire rated - is there a simpler rim device than the Corbin Russwin ED5200SA?
Yes. The ED5200SA carries a UL Listed 3 hour fire rating, which is required hardware only on labeled openings. On a non-labeled 36 inch door, the Von Duprin 22-3FT is a Grade 1 wide stile pushpad rim device, 36 inch, non-handed, for 1-3/4 inch doors and not fire rated. The TownSteel ED1100 is a 36 inch Grade 1 heavy duty wide stile rim device, also not fire rated, and the Detex 10 Advantex is a 36 inch wide stile Grade 1 extra heavy duty rim device without a fire rating.
10) The door has a narrow aluminum stile - what do I use instead of the Corbin Russwin ED5200SA?
The ED5200SA is a wide stile device requiring a minimum 4-1/2 inch stile, so it will not land on a narrow aluminum stile. Narrow stile rim devices include the Adams Rite 3700 Series 30 inch, which is Grade 1 and fire rated, and the Adams Rite 8800 Series 30 inch, Grade 1 and not fire rated, for 1-3/4 inch to 2-1/4 inch doors. The TownSteel ED3700 and ED8900 are 36 inch Grade 1 narrow stile rim devices, and the Falcon 19-R is a 36 inch Grade 1 narrow stile exit only device for 1-3/4 inch doors.
11) The door leaf is 42 to 48 inches wide - what rim device covers it instead of the Corbin Russwin ED5200SA?
The ED5200SA ships with a 36 inch bar sized for 30 inch to 36 inch doors. For wider leaves, the Marks USA M9900F-48 is a 48 inch fire rated rim device in exit only function, and the Sargent 2828 and 3828 are Grade 1 reversible wide stile rim devices for a 48 inch minimum door width. The Dexter ED1000 Series is also offered in a 4FT Grade 1 rim device.
12) How does the Corbin Russwin ED5200SA compare to the Von Duprin 22 Series?
Both are Grade 1 wide stile rim devices with a 36 inch bar for 1-3/4 inch doors, and both are non-handed. The difference that usually decides it: the ED5200SA is UL Listed with a 3 hour fire rating, while the Von Duprin 22-3FT is not fire rated. The ED5200SA also uses a SecureBolt deadbolt-style latchbolt, 3/4 inch projection by 1 inch wide, and comes standard with single point 1/4 turn hex key dogging.
13) Is an SDC pressure sense bar or switch bar a substitute for the Corbin Russwin ED5200SA?
No, they are not interchangeable. The ED5200SA is a mechanical rim exit device with a pullman-style SecureBolt latchbolt and a surface mounted roller strike, carrying a 3 hour fire rating. The SDC PSB560 is a 36 inch pressure sense bar with tri-failsafe technology and the SDC MSB550 is a 36 inch mechanical switch bar that releases an electromagnetic lock; both are not fire rated and both depend on a separate locking device for security. Use them when an electromagnetic lock is doing the latching, not as a drop-in for a latching rim device.
14) How far does this exit device stick out from the face of the door?
Projection is 3-1/4 inches (83mm) with the bar active and 2-3/4 inches (70mm) when dogged. Worth checking against corridor clear width and any door swinging into it, since the pushpad depth is what usually creates the conflict, not the device length.
15) Is the ED5200SA ADA compliant for lever trim?
Yes, the lever trims and pulls in the ED5000 line comply with ADA. The device is exit only as supplied and accepts trim, so the outside lever is a separate order item. Free Wheeling levers are available if the opening takes abuse, and the 900 series heavy duty trim adds a 13/16 inch beveled escutcheon with flush cylinder.
16) What else could I use instead of the Corbin Russwin ED5200SA on a fire rated wide stile opening?
Wide stile fire rated alternatives include the Sargent 8800 Series and the Marks USA M9900F in 36 inch or 48 inch. The Dexter ED1000-R-F-EO is another Grade 1 fire rated rim device. None of those carry the SecureBolt deadbolt style latch, so if vandal resistance and pull resistance are why you are specifying, the ED5200SA is the one holding that feature.
17) Can I hold the door unlocked during business hours with this device?
On a non-fire opening, yes. Standard dogging is single point 1/4 turn hex key, which holds the pushpad depressed and the latch retracted. Cylinder dogging and electric dogging are available if you want key control or scheduled unlocking instead of a hex wrench. On a labeled fire door, dogging is not permitted.
18) Is the ED5200SA Grade 1?
Grade 1 under ANSI/BHMA A156.3, the heaviest commercial rating for exit devices, on a cold forged steel chassis with electroplated corrosion resistance. Grade 1 is what most institutional and government specs call for on egress doors, so it will meet a spec written that way.
19) The door is 2 or 2-1/4 inches thick - does the Corbin Russwin ED5200SA fit, and what else does?
The ED5200SA is built for 1-3/4 inch doors as standard, with D200 for 2 inch and D214 for 2-1/4 inch thickness. Peers that publish a thicker range include the DORMA 9300 Series 48 inch wide stile Grade 1 device at 1-3/4 inch to 2-1/4 inch, the Adams Rite 8800 Series at 1-3/4 inch to 2-1/4 inch, and the SDC S6136 wide stile electrified rim device at 1-3/4 inch to 2 inch. Of those, only the ED5200SA carries the 3 hour fire rating.
20) Is a Grade 2 rim device like the Cal-Royal 5000 an alternative to the Corbin Russwin ED5200SA?
They sit in different certification tiers. The ED5200SA is ANSI/BHMA Grade 1 and UL Listed with a 3 hour fire rating. The Cal-Royal 5000 is a 36 inch wide rim exit device with a Grade 2 heavy duty chassis and no fire rating, and the Cal-Royal 5500 is a 48 inch Grade 2 push bar device, also without a fire rating. If the spec calls Grade 1 or the opening is labeled, the Cal-Royal units will not satisfy it.
21) Is the Detex Advantex 00 Series dummy device a substitute for the Corbin Russwin ED5200SA?
No. The Detex 00 Series is a super heavy duty dummy exit device with wide stile design, meaning it matches the look of an exit device without latching the door. The ED5200SA is a working exit only rim device with a SecureBolt latchbolt and a 3 hour fire rating. Use the 00 Series only on the inactive leaf or where no latching is needed; it is not exit hardware for a labeled egress opening.
22) I need a night latch function with outside key access instead of the exit only Corbin Russwin ED5200SA - what is available?
The ED5200SA is exit only and accepts trim, so outside access is added through separate trim. If you would rather order the function built in, the Sargent 8504 is a Grade 1 narrow design rim exit device in night latch function, and the Detex V4003A/03AN is a Grade 1 wide stile rim exit device supplied with night latch trim. Note the Sargent 8504 is narrow stile, while the ED5200SA and the Detex V40 device are wide stile.
23) The frame has no room for a surface strike - what do I use in place of the rim-mounted Corbin Russwin ED5200SA?
The ED5200SA latches into a surface mounted 3/8 inch roller strike on the frame. Where that strike cannot be used, a concealed vertical rod device latches top and bottom instead: the Hager 4501 Series 36 inch is a Grade 1 CVR device with a wide stile pushpad, and the Hager 4601 Series 36 inch is a Grade 1 narrow stile CVR device. Both are not fire rated, so they do not cover a labeled opening.
24) What finishes does the ED5200SA come in?
Eleven: 605 bright brass, 606 satin brass, 611 bright bronze, 612 satin bronze, 613 satin bronze oil rubbed, 619 satin nickel, 625 bright chrome, 629 bright stainless, 630 satin stainless, 722 black oxidized bronze oil rubbed, and BSP black suede powder coat. For a building standardizing across openings, 630 satin stainless is the common commercial default and 626/630 tones match most existing lever and closer hardware.
25) I need a crossbar or paddle style device rather than the touchpad Corbin Russwin ED5200SA - what are the options?
The ED5200SA uses a touchpad bar, offered in an optional photoluminescent PathLite touchpad cover. For a different actuator style, the CRL Jackson 1095 Series 48 inch is a crossbar rim panic device in exit only function, wide stile, and the CRL Jackson 1095P is a paddle rim panic device, also wide stile exit only. Neither is fire rated, so keep them off labeled openings.
