Corbin Russwin ED5200SA Grade ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,737.00
$1,639.27

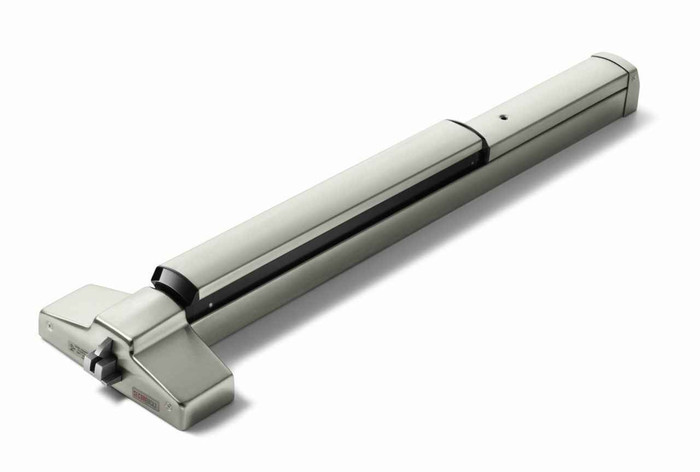

Corbin Russwin ED5200SA 48" SecureBolt Rim Exit Device, 3 Hours Fire Rated

Corbin Russwin ED5200SA Grade 1 48" SecureBolt Rim Exit Device, 3 Hours Fire Rated

(No reviews yet) Write a Review

Model: ED5200SA 630 W048
$2,737.00
$1,639.27
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,737.00
$1,639.27
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin ED5200SA WO48 48" SecureBolt Rim Exit Device, 3-Hour Fire Rated, Grade 1, Wide Stile

ED5000 Series SecureBolt® Rim Exit Device with Deadbolt-Style Latchbolt for High-Security Commercial Applications

The Corbin Russwin ED5200SA WO48 is a 48" SecureBolt® Rim Exit Device from the ED5000 Series, engineered for wide stile doors requiring a minimum stile width of 4-1/2" (114mm). This device features a deadbolt-style latchbolt that significantly resists pull from the exterior, reducing door and frame separation and preventing the door from being forced open. The 48" (1219mm) bar accommodates doors ranging from 36" to 48" (914mm to 1219mm) and is easily field cut to size. Rated to BHMA A156.2, Series 4000, Grade 2 and UL Listed with a 3-Hour Fire Rating, this rim exit device is built for demanding commercial environments including schools, factories, hotels, theaters, office buildings, retail complexes, and government facilities.

Professional Features & Benefits

  • Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
  • Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Non-handed device (except double cylinder and lever trim which are handed)
  • Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
  • Standard single-point 1/4-turn hex key dogging on panic devices
  • Free Wheeling levers for vandal resistance on trim
  • SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
  • Electrified options including delayed egress, electric latch retraction, and electric dogging
  • UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
  • Full range of trim with Muséo® and Vineyard™ collections
  • ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
  • PathLite™ photoluminescent touchpad cover option available
  • Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

  • Grade: ANSI/BHMA A156.3 Grade 1
  • Handing: Non-handed standard (lever trim and double cylinder devices are handed)
  • Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
  • Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
  • Minimum Stile Width: 4-1/2" (114mm)
  • Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
  • Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
  • Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
  • Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
  • Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
  • Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
  • Warranty: Five-year limited

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities and Schools
  • Healthcare Institutions
  • Retail Establishments and Shopping Complexes
  • Hotels and Hospitality Venues
  • Industrial Facilities, Factories, and Warehouses
  • Government and Municipal Buildings
  • Theaters and Assembly Occupancies

Vandal-Resistant Design

The ED5200SA SecureBolt® features a deadbolt-style latchbolt that significantly resists pull from the exterior, reducing door and frame separation and preventing the door from being forced open. Compatible 900 series heavy-duty trim deters vandals with a thick 13/16" beveled escutcheon, Free Wheeling lever (excluding mortise trim), and flush cylinder. High-security Pyramid cylinders offer an additional barrier against picking and drilling, making this device suitable for high-security commercial applications.

Why Choose Corbin Russwin Quality?

Corbin Russwin ED5000 Series exit devices undergo rigorous testing both in the lab and in the field, with procedures that go beyond industry standards — the ED5800 concealed vertical rod exit device was witnessed and certified to 3.25 million successful cycles, more than 6 times the industry requirement, demonstrating the durability of the entire ED5000 Series. The ED5200SA WO48 is backed by a 5-Year Limited warranty and carries a UL Listed 3-Hour Fire Rating certified to BHMA A156.2, Series 4000, Grade 2. Engineered for demanding commercial applications where dependable life-safety performance and long-term reliability are essential.

Manufacturer Resources

Corbin Russwin Condensed Catalog

Product Specs

Series:
ED5000 Series
Grade:
Grade 1
Warranty:
5 Year Limited
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Rim Exit Devices
Stile Width:
4-1/2"
Commercial/Residential:
Commercial
UL Listing Type:
BHMA A156.2, Series 4000, Grade 2, UL Listed (3 Hour Fire Rating)
Stile Type:
Wide Stile
Lock Function:
Exit Only, Accepts Trim
Wood Door Compatible:
No
Product Model:
ED5200SA
Product Function:
Exit Only, Accepts Trim
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4"
Product Size:
48"
Dogging Configuration:
Hex Key Dogging
Fire Rating:
Yes
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Corbin Russwin ED5200SA 630 W048 – Frequently Asked Questions

1) Is the Corbin Russwin ED5200SA approved for a 3 hour fire door, and can I still dog it down?
It is UL Listed as panic and 3 hour fire exit hardware, and compliant with NFPA 101 and NFPA 80. Important install note: mechanical dogging is not permitted on a fire rated opening. The device ships with single-point 1/4-turn hex key dogging, which you use on non-rated openings only. On the fire door the latch must remain free to latch on every closing.
2) Does the ED5200SA work on a 2 inch thick door?
Standard build is 1-3/4 inch (44mm). For thicker doors Corbin Russwin publishes a D200 option for 2 inch and D214 for 2-1/4 inch, so a 2 inch door means specifying D200 at the time of order rather than modifying the standard device in the field.
3) What makes the SecureBolt version different from a standard rim exit device?
Instead of a pullman latch, the SecureBolt carries a deadbolt-style latchbolt with 3/4 inch (19mm) projection, 1 inch wide, positively deadlocked by an auxiliary bolt. That geometry resists pull from the exterior and keeps the door and frame from separating enough to be pried open. The standard ED5200 rim latch is a stainless pullman with the same 3/4 inch throw and a deadlocking auxiliary latch. If the door is on a back alley, a loading dock, or anywhere you have had pry attacks, the SecureBolt is the reason to pick this model.
4) Is the ED5200SA handed, and does that change if I add lever trim?
The device itself is non-handed, so one part number covers left and right hand openings. Handing does come into play on two options: lever trim and double cylinder devices are handed and have to be specified for the door. Plan on determining hand before you order trim.
5) Will a rim exit device secure a pair of doors, or do I need vertical rods?
A rim device latches into a strike on the frame or, on a pair, into a mullion. The ED5200SA comes with a surface-mounted 3/8 inch roller strike with a positive locking plate and shims. On a pair with no mullion there is nothing for that strike to mount to, so you either add a removable mullion or move to a vertical rod device such as the ED5400 surface vertical rod, which latches at the head and the sill.
6) Does the ED5200SA include outside trim, or is it exit only?
As built it is exit only, and it accepts trim as a separate order. Outside lever or pull trim is added to get entry from the exterior. Corbin Russwin offers 900 series heavy duty trim with a 13/16 inch beveled escutcheon and a free wheeling lever that spins under attack rather than breaking the spindle, plus the Museo and Vineyard collections. The lever trims and pulls are ADA compliant.
7) My opening is a narrow stile aluminum door - what should I use instead of the ED5200SA?
The ED5200SA is a wide stile device requiring a minimum 4-1/2 inch stile, so it will not fit a narrow stile aluminum storefront. For a narrow stile opening with a fire rating, the Adams Rite 3700 Series is a Grade 1 narrow stile fire rated rim exit device. If fire rating is not required, the Adams Rite 8800 Series is a Grade 1 narrow stile rim device covering 1-3/4 inch to 2-1/4 inch door thickness.
8) How far does the ED5200SA stick out from the door face?
Projection is 3-1/4 inches (83mm) active and 2-3/4 inches (70mm) when dogged down. Worth checking against a vestibule, a corridor clear width requirement, or anywhere a second door swings past the face of this one.
9) What other fire rated wide stile rim exit devices could I use instead of the Corbin Russwin ED5200SA?
On the fire rated side, the Marks USA M9900F is offered in a 48 inch exit only version, and the Dexter ED1000-R-F is a Grade 1 fire rated rim device. Neither is listed with the deadbolt-style SecureBolt latch, so if pry resistance is the reason you are buying, the ED5200SA is the one holding that feature. For a non-rated wide stile 48 inch opening, the DORMA 9300 Series and the CRL Jackson 1095 crossbar are both 48 inch wide stile rim devices.
10) Is the Von Duprin 22 a substitute for the Corbin Russwin ED5200SA?
Not on a fire rated opening. The Von Duprin 22-3FT is a Grade 1 non-handed wide stile pushpad rim device for 1-3/4 inch doors, but it is not fire rated, and it is a 36 inch bar. The ED5200SA is a 48 inch device with a UL listed 3-hour fire rating and 1-3/4 inch standard door thickness, so the two are interchangeable only where no fire label is involved and the door width suits.
11) What is a lower-cost-tier alternative to the ED5200SA for a 48 inch door?
The Cal-Royal A9820 is a 48 inch exit only rim exit device with a Grade 2 heavy duty rating, and the Cal-Royal 5500 is a 48 inch wide push bar rim device, also Grade 2. Neither is fire rated. The ED5200SA is Grade 1 with a UL listed 3-hour fire rating, so the Cal-Royal devices suit only openings with no fire label and lighter grade requirements.
12) If I need concealed vertical rod instead of a rim device, what replaces the ED5200SA?
A rim device like the ED5200SA latches into a surface strike on the frame. For a concealed vertical rod application, the Hager 4501 Series is a Grade 1 wide stile pushpad CVR device in 36 inch, and the Hager 4601 Series is the narrow stile CVR equivalent. Both are Grade 1 and neither is fire rated, so verify the opening's label requirements before substituting.
13) What finishes does the Corbin Russwin ED5200SA 48 inch exit device come in?
Eleven finishes: 605 bright brass, 606 satin brass, 611 bright bronze, 612 satin bronze, 613 satin bronze oil-rubbed, 619 satin nickel, 625 bright chrome, 629 bright stainless, 630 satin stainless, 722 black oxidized bronze oil-rubbed, and BSP black suede powder coat. For a facility standardizing across openings, 630 satin stainless is the usual commercial default and BSP is the match for black storefront and dark anodized frames.
14) Is the Corbin Russwin ED5200SA heavy enough for a high-traffic school or transit entrance?
The chassis is cold-forged steel with electroplated corrosion resistance, and the device is ANSI/BHMA A156.3 Grade 1, the top commercial grade for exit hardware. Corbin Russwin cycle tested the ED5800 concealed vertical rod in the same ED5000 Series to 3.25 million cycles. Typical placements listed are schools, factories, hotels, theaters, retail, and government buildings.
15) Is there a photoluminescent or glow-in-the-dark touchpad option for egress marking?
Yes, Corbin Russwin offers a PathLite photoluminescent touchpad cover on the ED5000 Series. It is worth specifying where your AHJ wants the egress path marked in a power failure, such as stairwells and assembly occupancies. The device is also California State Fire Marshal approved.
16) Is the Sargent 12-8810-LTRIM an equivalent to the ED5200SA?
They differ in function. The Sargent 12-8810-LTRIM is a fire rated Grade 1 wide stile rim device supplied in a dummy function with RX and motorized latch retraction. The ED5200SA is an exit only device that accepts trim, and it can be ordered with motor latch retraction as well, so the Sargent is a match only if a dummy function with lever trim is what the opening calls for.
How fast can I get the Corbin Russwin ED5200SA 630 W048 delivered?
