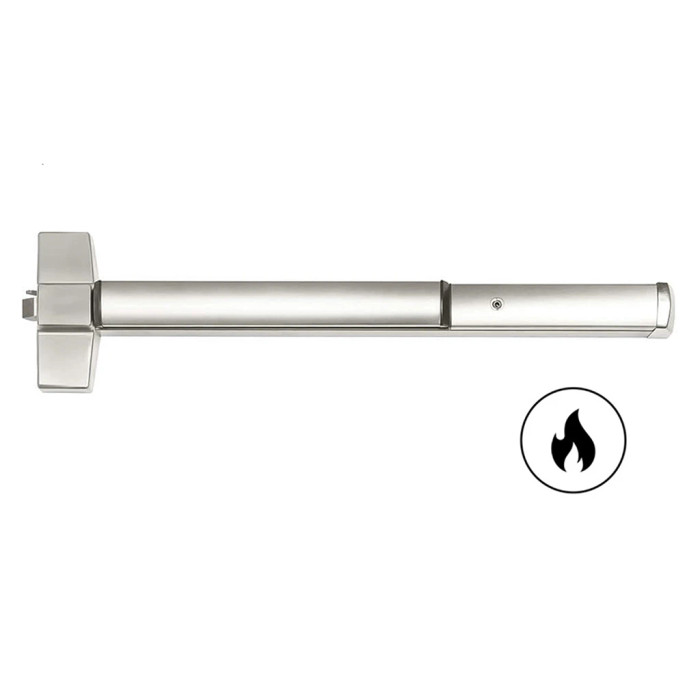

Corbin Russwin ED5200A 48" Rim Exit Device, 3 Hours Fire Rated

Corbin Russwin ED5200A Grade 1 48" Rim Exit Device, 3 Hours Fire Rated

(No reviews yet) Write a Review

Model: ED5200A 630 W048
$2,837.84
$1,457.88
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,837.84
$1,457.88
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin ED5200A WO48 48" Wide Stile Rim Exit Device, 3-Hour Fire Rated, Grade 1

ED5000 Series Commercial Rim Exit Device for Wide Stile Doors Up to 48"

The Corbin Russwin ED5200A WO48 is a professional-grade, wide stile rim exit device from the ED5000 Series, engineered for safe and reliable egress on doors up to 48" (1219mm). Featuring a 48" (1219mm) push bar that accommodates doors ranging from 36" to 48" (914mm–1219mm), this device is designed for a minimum stile width of 4-1/2" (114mm) and a standard door thickness of 1-3/4" (44mm), with optional configurations available for 2" (51mm) and 2-1/4" (57mm) doors. Certified to BHMA A156.2, Series 4000, Grade 2 and UL Listed with a 3-Hour Fire Rating, this rim exit device delivers the life-safety performance and durability demanded by commercial applications including schools, factories, hotels, theaters, office buildings, retail complexes, and government facilities.

Professional Features & Benefits

  • Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
  • Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Non-handed device (except double cylinder and lever trim which are handed)
  • Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
  • Standard single-point 1/4-turn hex key dogging on panic devices
  • Free Wheeling levers for vandal resistance on trim
  • SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
  • Electrified options including delayed egress, electric latch retraction, and electric dogging
  • UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
  • Full range of trim with Muséo® and Vineyard™ collections
  • ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
  • PathLite™ photoluminescent touchpad cover option available
  • Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

  • Grade: ANSI/BHMA A156.3 Grade 1
  • Handing: Non-handed standard (lever trim and double cylinder devices are handed)
  • Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
  • Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
  • Minimum Stile Width: 4-1/2" (114mm)
  • Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
  • Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
  • Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
  • Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
  • Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
  • Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
  • Warranty: Five-year limited

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities and Schools
  • Healthcare Institutions
  • Retail Establishments and Shopping Complexes
  • Hotels and Hospitality Venues
  • Industrial, Factory, and Warehouse Facilities
  • Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin ED5000 Series exit devices are engineered to exceed industry standards, with the ED5800 concealed vertical rod model independently certified to 3.25 million successful cycles—more than six times the industry requirement—demonstrating the exceptional durability built into every device in the series. The ED5200A WO48 is backed by a 5-Year Limited warranty and carries UL Listing with a 3-Hour Fire Rating and BHMA A156.2 certification, making it a trusted choice for demanding commercial life-safety applications where reliable egress performance is non-negotiable.

Manufacturer Resources

Corbin Russwin Condensed Catalog

Product Specs

Series:
ED5000 Series
Grade:
Grade 1
Warranty:
5 Year Limited
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Rim Exit Devices
Stile Width:
4-1/2"
Commercial/Residential:
Commercial
UL Listing Type:
BHMA A156.2, Series 4000, Grade 2, UL Listed (3 Hour Fire Rating)
Stile Type:
Wide Stile
Lock Function:
Exit Only, Accepts Trim
Wood Door Compatible:
No
Product Model:
ED5200A
Product Function:
Exit Only, Accepts Trim
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4"
Product Size:
48"
Dogging Configuration:
Hex Key Dogging
Fire Rating:
Yes
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Corbin Russwin ED5200A 630 W048 – Frequently Asked Questions

1) What door widths will the Corbin Russwin ED5200A WO48 rim exit device cover?
The WO48 comes with a 48 inch (1219mm) push bar, which covers doors from 36 inches up to 48 inches (914mm to 1219mm). If your openings are 30 to 36 inches, order the standard 36 inch bar instead, and there is a 24 inch bar for narrower leaves. The bar can also be field cut, so a 48 inch bar can be trimmed down on site rather than reordered.
2) Will the ED5200A fit my door stile and door thickness?
Minimum stile width is 4-1/2 inches (114mm), so this is a wide stile device and won't go on a narrow stile aluminum storefront leaf. Standard door thickness is 1-3/4 inches (44mm); 2 inch doors take the D200 option and 2-1/4 inch doors take D214. Note it is not rated for wood doors.
3) Can I use the ED5200A on a 3-hour fire door?
Yes. The ED5200A is UL/cUL listed panic and 3-hour fire exit hardware, certified to ANSI/BHMA A156.3 Grade 1, and compliant with NFPA 101 and NFPA 80. It's also California State Fire Marshal approved. One thing to watch on fire doors: fire exit hardware cannot be dogged down, so the hex key dogging feature is not usable in a fire-rated opening.
4) Do I have to specify handing for this Corbin Russwin exit device?
No, the ED5200A ships non-handed, so one device covers left and right hand openings across a building. Handing only enters the picture on the trim side: lever trim and double cylinder devices are handed and have to be ordered for the specific door swing.
5) Will this rim device latch into my existing strike, and what strike comes with it?
The ED5200A uses a stainless steel pullman latchbolt with a 3/4 inch (19mm) throw and a deadlocking auxiliary latch, and it ships with a surface-mounted 3/8 inch roller strike including a positive locking plate and shims. Because it is a rim device, the strike mounts on the face of the frame stop rather than into a mortise pocket, so the frame does not need latch prep. If you are replacing an existing rim device, plan on using the supplied roller strike rather than the old one.
6) Does the ED5200A come with outside trim, or do I order that separately?
The device is exit only as supplied but is built to accept trim, so outside lever or pull trim is a separate line on the order. Corbin Russwin offers Museo and Vineyard trim collections, and the levers are free wheeling for vandal resistance. Lever trims and pulls meet ADA requirements.
7) Should I use a rim device like the ED5200A or a vertical rod device on my opening?
A rim device latches into a strike on the frame stop, which makes it the straightforward pick for a single door in a frame, or for one leaf of a pair with a mullion. Where you have a pair with no mullion, the rim latch has nothing to catch, and you want vertical rod hardware instead: Corbin Russwin's ED5400 surface vertical rod latches top with a 3/4 inch pullman and bottom with a 5/8 inch throw deadbolt, and the ED5800 is the concealed vertical rod version. If you want the deadbolt-style latch on a rim device for added pry resistance, that's the ED5200S SecureBolt, 3/4 inch projection by 1 inch wide.
8) What other 48 inch fire rated rim exit devices could I use instead of the Corbin Russwin ED5200A?
The closest match in the same size and rating is the Marks USA M9900F 48 inch rim panic device, fire rated and exit only with a panic protector end cap. If the door is fire rated but narrower, the Marks M9900F is also made in 36 inch, and Dexter's ED1000-R-F-EO is a Grade 1 fire rated rim device. Non-rated 48 inch alternatives include the CRL Jackson 1095 crossbar, the Cal-Royal 5500, and the DORMA 9300A wide stile device (1-3/4 to 2-1/4 inch doors), but none of those carry a fire rating, so they are out on a labeled opening.
9) My doors are narrow stile aluminum storefront. Can I still use the ED5200A?
No. With a 4-1/2 inch minimum stile requirement, the ED5200A will not mount on a narrow stile aluminum leaf. For those doors look at narrow stile rim devices instead: the Adams Rite 3700 Series is a fire rated narrow stile rim device, and non-rated narrow stile options include the Adams Rite 8800 (1-3/4 to 2-1/4 inch doors), Falcon 19-R, and TownSteel ED3700.
10) I need a fire rated rim device but the door is only 36 inches wide - what should I order instead of the 48 inch Corbin Russwin?
The Corbin Russwin ED5200A WO48 carries a 48 inch bar sized for wide openings. For a 36 inch leaf, the Marks USA M9900F-36 is a 36 inch fire rated rim exit device in exit only function, and the Orca Hardware OED85 is a 36 inch fire rated rim exit device, also exit only.
11) How much does this exit device stick out into the corridor?
Projection is 3-1/4 inches (83mm) with the bar at rest and 2-3/4 inches (70mm) when dogged down. That matters where the door swings into a tight corridor or where an egress path width calculation is tight, and it's a number the AHJ may ask for.
12) Can I hold the door unlatched during business hours with the ED5200A?
The standard device has single-point 1/4-turn hex key dogging, so staff can dog the bar down to keep the latch retracted for daytime traffic. Cylinder dogging and electric dogging are optional if you don't want a loose hex key floating around the building. On fire-rated openings dogging is not permitted, so an electric latch retraction option is the route for hands-free operation there.
13) What 48 inch rim exit device should I use on a door that is not in a fire rated opening?
If the opening carries no fire label, several 48 inch wide stile rim devices apply: the DORMA 9300A is a Grade 1 heavy duty 48 inch wide stile rim device, exit only, for 1-3/4 inch to 2-1/4 inch doors; the CRL Jackson 1095 is a 48 inch crossbar rim panic device, exit only; and the Cal-Royal 5500 is a 48 inch push bar rim device. The Corbin Russwin ED5200A WO48 is the choice when the opening does require a fire rated device.
14) I want the Corbin Russwin ED5200A with electric latch retraction - is there a comparable device already built that way?
The ED5200A WO48 can be ordered with MELR motor latch retraction. If you prefer a peer already configured electrically, the Sargent 12-8810-LTRIM is a fire rated wide stile rim device supplied with RX and MELR, and the SDC S6136 is an electrified architectural rim exit device on a 4 inch wide stile for 1-3/4 inch to 2 inch doors, though the SDC unit is not fire rated.
15) What is a Grade 1 fire rated alternative to the Corbin Russwin ED5200A on a standard 1-3/4 inch metal door?
The Dexter ED1000-R-F-EO is a Grade 1 fire rated rim exit device for metal doors, which puts it in the same rating class as the ED5200A WO48. The Corbin Russwin unit differs in that it comes on a 48 inch bar for wide openings and offers hex key dogging as standard.
16) My door is 2-1/4 inch thick - does the Corbin Russwin ED5200A handle that or should I look elsewhere?
The ED5200A WO48 is catalogued at 1-3/4 inch door thickness. If you need a device already rated across thicker leaves, the DORMA 9300A covers 1-3/4 inch to 2-1/4 inch on a 48 inch wide stile bar, and the Adams Rite 8800 also covers 1-3/4 inch to 2-1/4 inch in a narrow stile format.
17) What should I use on a pair of doors where the ED5200A rim device will not work because of the astragal?
Rim devices like the Corbin Russwin ED5200A WO48 latch to a surface strike on the frame or an adjacent leaf, which can conflict on some pairs. Concealed vertical rod devices latch top and bottom instead: the Hager 4501 is a Grade 1 concealed vertical rod device with a wide stile pushpad, and the Hager 4601 is the narrow stile version.
18) Which 48 inch rim device fits a door that is at least 48 inches wide, and how does the Sargent 2828 compare?
The Sargent 2828 is a Grade 1 reversible wide stile rim exit device for a 48 inch minimum door width, exit only, and the Sargent 3828 is the standard push bar version for 48 inch doors. The Corbin Russwin ED5200A WO48 covers 36 inch to 48 inch openings on its 48 inch bar and is non-handed, and it is the fire rated option of the three.
19) What finishes does the Corbin Russwin ED5200A 48 inch rim device come in?
Eleven finishes: 605 bright brass, 606 satin brass, 611 bright bronze, 612 satin bronze, 613 satin bronze oil rubbed, 619 satin nickel, 625 bright chrome, 629 bright stainless, 630 satin stainless, 722 black oxidized bronze oil rubbed, and BSP black suede powder coat. For matching existing openings across a building, 630 satin stainless is the usual commercial standard, and BSP is the one to pick against dark bronze or black storefront.
20) Is the ED5200A tough enough for a school or high-traffic exit?
It's built for that duty. Grade 1 commercial hardware with a cold-forged steel chassis and electroplated corrosion resistance, aimed at schools, factories, hotels, theaters, offices, retail, and government buildings. Within the same ED5000 family, the ED5800 concealed vertical rod model was independently certified to 3.25 million cycles. A photoluminescent PathLite touchpad cover is available if you want the bar visible in a smoke or power-loss condition.
