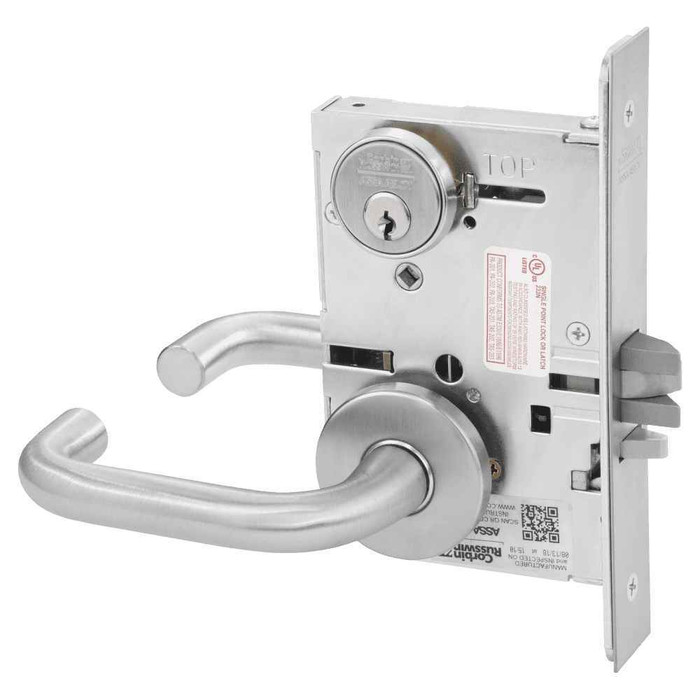

Corbin Russwin Single Cylinder Mortise Lock, LW-Lustra Lever, 626 Satin Chrome

Corbin Russwin Single Grade 1 Cylinder Mortise Lock, LW-Lustra Lever

(No reviews yet) Write a Review

Model: ML2053-LWA-626
$1,165.81
$676.36
Selected Finish is
Selected Lever Type is
Selected Rose/Escutcheon is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,165.81
$676.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin ML2053 Single Cylinder Mortise Lock with LW-Lustra Lever, 626 Satin Chrome, Grade 1

Commercial-Grade ML2000 Series Mortise Lock Trim for High-Traffic Applications

The Corbin Russwin ML2053 is a Grade 1 single cylinder mortise lock featuring the LW-Lustra lever in a 626 Satin Chrome finish, part of the trusted ML2000 Series. Engineered for demanding commercial, institutional, industrial, and government environments, this mortise lock delivers ANSI function F01 operation with latchbolt actuation by grip from either side and both grips always free. Constructed of heavy-gauge steel, the lockbody incorporates a patented Quick Reversible latchbolt and a 1" stainless steel deadbolt, providing life safety and security in a single door preparation. The ML2000 Series has been UL cycle tested above and beyond standard requirements, completing over 14.5 million cycles (Verification ID: V875753), making it an ideal choice for offices, schools, hospitals, hotels, and other high-use facilities.

Professional Features & Benefits

  • ANSI/BHMA Grade 1 mortise lock per A156.13 Series 1000, Operational and Security Grade 1
  • UL Cycle above and beyond: 14.5 Million Cycles (Verification ID: V875753)
  • Patented Quick Reversible latchbolt — reverse handing without disassembling the lock case
  • Multi-function capability: 12 functions configurable from one ML2054 lockbody
  • Heavy-gauge steel lockcase 5-7/8" x 4" x 15/16"; 1" stainless steel deadbolt, 1" throw
  • 3/4" (19mm) throw anti-friction two-piece latchbolt requires less force to close
  • Wide variety of trim designs including Muséo®, Vineyard™, Behavioral Health (BHSS/BLSS)
  • Status indicator options for locked/unlocked visibility (sectional and escutcheon trim)
  • Motorized Electric Latch Retraction (MELR) available for ML20900 series
  • Thru-bolted trim designs for proper alignment and increased security
  • Can be used with new or existing Corbin Russwin key systems; accepts most other manufacturers' cylinders
  • UL/cUL listed, UL10C positive pressure; 3-hour fire door up to 4' x 10' single or 8' x 10' pair
  • Ten-year mechanical warranty; five-year MELR; two-year electrical

Technical Specifications

  • Grade: ANSI/BHMA A156.13 Series 1000, Operational and Security Grade 1
  • Handing: Handed; quick reversible — re-handed without disassembling the lock case
  • Door Thickness: 1-3/4" (44mm) standard; optional thicknesses available
  • Backset: 2-3/4" (70mm)
  • Lockcase: Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm)
  • Armored Front: Wrought brass, bronze, or stainless steel, 8" x 1-1/4"
  • Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" x 1" x 3/4" (19mm) throw
  • Auxiliary Latchbolt: 9/16" (14mm) effective throw; deadlocking
  • Deadbolt: One-piece stainless steel, 19/32" x 1-1/4" x 1" (25mm) throw
  • Strike: Wrought brass, bronze, or stainless steel, ANSI straight lip, 4-7/8" x 1-1/4" x 1-1/8" lip to center
  • Cylinder: Brass, 6-pin L4 keyway, 0-bitted standard
  • Spacing: C. to c. knob/lever to cylinder: 3-5/8" (92mm); knob/lever to thumbturn: 2-7/16" (62mm)
  • Certifications: ANSI/BHMA A156.13 Grade 1; UL/cUL UL10C 3-hour positive pressure; ADA A117.1; California State Fire Marshal; Windstorm/Hurricane certified
  • Warranty: Ten-year mechanical; five-year MELR; two-year electrical

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities and Schools
  • Healthcare Institutions and Hospitals
  • Hotel and Hospitality Properties
  • Industrial and Government Facilities
  • Multi-Tenant Residential and Institutional Properties
  • High-Traffic Retail Establishments

Tamper-Resistant Design

The ML2000VR (Vandal Resistant) Series option features stainless steel escutcheons with tapered edges and Torx® pin tamper-resistant screws, providing a formidable barrier against vandalism and abuse. When paired with Corbin Russwin's patented high-security Pyramid or Access 3® cylinders, the ML2000 Series transforms any door into a robust deterrent against unauthorized entry.

Why Choose Corbin Russwin Quality?

Corbin Russwin ML2000 Series mortise lock products deliver professional-grade reliability built from heavy-gauge steel and rated for over 14.5 million UL-verified cycles (Verification ID: V875753), setting a benchmark for durability in high-traffic commercial applications. The ML2053 is backed by a 10-year warranty, providing long-term confidence for facility managers, contractors, and security professionals. Engineered with patented features like the Quick Reversible latchbolt and thru-bolted trim, Corbin Russwin delivers the performance and versatility demanded by offices, schools, hospitals, and government buildings worldwide.

Manufacturer Resources

Key Systems Catalog

Product Specs

Product Group:
Parts and Accessories
Series:
ML2000 Series
Grade:
Grade 1
Product Subgroup:
Parts and Accessories
Product Type:
Lock Trim
Commercial/Residential:
Commercial
Lock Type:
Mortise
Subcategory:
Parts and Accessories
Product Attribute:
Parts and Accessories
Door Hand Direction:
Field Reversible
Product Category:
Mechanical Locks
Department:
Door Hardware

Corbin Russwin ML2053-LWA-626 – Frequently Asked Questions

1) Will the Corbin Russwin ML2053 mortise lock fit a 1-3/4 inch door with a 2-3/4 inch backset prep?
That is exactly the prep it is built for. The ML2053 is a 2-3/4 inch backset mortise lock for 1-3/4 inch (44mm) doors as standard, with optional thicknesses available for thicker doors. The lockcase measures 5-7/8 x 4 x 15/16 inches, so the mortise pocket has to accept that case. If your existing door is already cut for a standard ANSI mortise lock at 2-3/4 backset, this drops into that pocket.
2) Do I have to order the ML2053 mortise lock handed, or can I reverse it in the field?
Handing is not a purchase decision here. The ML2053 uses Corbin Russwin's patented Quick Reversible latchbolt, so it is field reversible and re-handed without disassembling the lock case. That matters if you are stocking locks for a building with both left and right hand openings, since one part number covers both.
3) Will the ML2053 latch into the strike that is already in my frame?
Depends on what is in the frame now. The latchbolt is a 2-piece anti-friction unit with a 3/4 inch (19mm) throw, and the deadbolt throws 1 inch, so the strike has to have a lip and pocket deep enough for both. Corbin Russwin supplies it with an ANSI straight lip strike, 4-7/8 x 1-1/4 inches with 1-1/8 inch lip to center. An existing ANSI 4-7/8 inch frame cutout accepts that strike directly; a non-ANSI or T-strike prep will not, and you will be filling and re-prepping the jamb.
4) Can I use the ML2053 on a labeled fire door in a school or hospital corridor?
Yes. The ML2000 Series is UL/cUL listed and UL10C positive pressure rated, good for a 3-hour fire door up to 4' x 10' single or 8' x 10' pair. It is also ANSI/BHMA A156.13 Series 1000 Grade 1 for both operational and security grade, and complies with ADA A117.1, plus California State Fire Marshal and windstorm/hurricane certification. That combination is what institutional specs on corridor and stair doors normally call for.
5) Can I key a Corbin Russwin ML2053 into the master key system I already run in the building?
You can. The ML2000 Series works with new or existing Corbin Russwin key systems, and it accepts most other manufacturers' cylinders, so a building standardized on another brand's keyway can usually keep its own cylinders. As supplied, the cylinder is brass, 6-pin, L4 keyway, 0-bitted, which means it ships unkeyed for your locksmith to pin to your system. If you want high security, the same lock body takes Corbin Russwin's patented Pyramid or Access 3 cylinders.
6) Should I use a mortise lock like the ML2053 or a cylindrical lockset on a high traffic commercial door?
A mortise lock is the heavier answer, and the ML2053 shows why: a heavy-gauge steel case set into the door edge, a 1 inch stainless steel deadbolt and a 3/4 inch latchbolt working from one door preparation, with over 14.5 million UL verified cycles behind it (Verification ID V875753). A cylindrical lock is a simpler bore and a faster install, but it puts no deadbolt in the door. Where you want life safety and security in a single prep on offices, schools, hospitals and hotels, the mortise is the right call. Where the door sees light use and the budget and labor matter more, a cylindrical Grade 1 lockset does the job.
7) What lever, finish and rose does the Corbin Russwin ML2053 come with?
It is built as one configuration: the LW Lustra wrought lever on an A rose, 2-1/4 inch diameter, in 626 satin chrome, set up as an entrance function. Satin chrome on a round rose is the common institutional look, so it matches most existing commercial openings. If your building is standardized on escutcheon trim rather than roses, or on a decorative lever such as Museo or Vineyard, that is a different trim within the ML2000 Series, not this one.
8) Does the lever trim on the ML2053 mortise lock thru-bolt through the door?
It does. ML2000 Series trim is thru-bolted, which holds the two sides in alignment and makes the lever much harder to pull off the door than a screw-on rose. On abuse-prone openings you can also step up to the ML2000VR vandal resistant option, which uses stainless steel escutcheons with tapered edges and Torx pin tamper-resistant screws instead of this rose trim.
9) How much room does the ML2053 need between the lever and the cylinder when I lay out the door prep?
Center to center from the knob or lever to the cylinder is 3-5/8 inches (92mm), and lever to thumbturn is 2-7/16 inches (62mm). The armored front is 8 x 1-1/4 inches on the door edge. Those are the numbers to check against the template on the drawing before anyone cuts, especially on a narrow stile or a door with a glass light nearby.
10) Can one Corbin Russwin ML2000 lock body cover different lock functions across a building?
Within the series, yes: 12 functions are configurable from a single ML2054 multi-function lockbody, which is how facilities standardize their spare parts down to one case instead of stocking a separate lock for every function. The ML2053 itself is supplied as an entrance function. Where you need electrified operation, motorized electric latch retraction (MELR) is offered on the ML20900 series rather than on a mechanical body like this one.
11) Why does the ML2053 have a second small latch above the main latchbolt?
That is the auxiliary latchbolt, and it deadlocks the main latch when the door closes so the latch cannot be shimmed or carded. It has a 9/16 inch (14mm) effective throw, which means the door has to close tight enough against the stop for it to depress fully. If the door is warped or the stop is out, the auxiliary rides free and you lose the deadlocking, which is a common cause of a lock that appears fine but can be slipped.
12) Is there a way to tell from the corridor side whether a Corbin Russwin ML2000 lock is locked?
Status indicator options are offered in the ML2000 Series for locked/unlocked visibility, on both sectional and escutcheon trim. That is the option to specify for restrooms, exam rooms and classroom security doors where staff need to read the door's state without trying the lever. It is a trim selection, so it is decided when the trim is chosen rather than added to the lock later.
