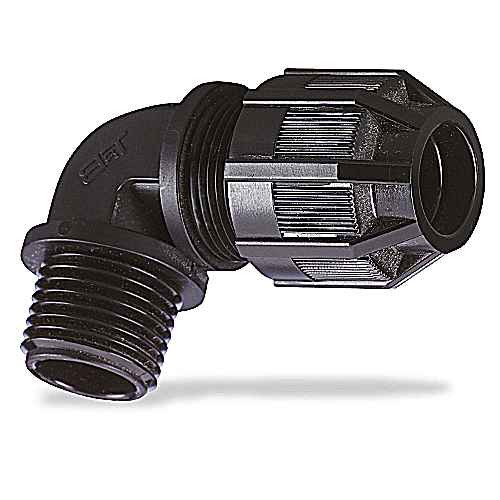

Cord Connectors-90 Degree
2681 - spec sheet
Features
- Segmented chuck provides high mechanical pullout performance, will not cut or damage cord jacket.
- Temperature Rating: -34 to +105 Degrees Celsius
- Meets Coast Guard CG293
- Suitable for use in hazardous locations where general purpose equipment is specifically permitted by NEC. Class I, Div 2; Class II, Div 1 & 2; Class III, Div 1 & 2; NEC 501-4(b), 502-4(a)(b), 503-3(a)(b)
2681 - spec sheet
Manufacturer Resources
Product Specs
- Color:
- Black
- Colour:
- Black
- Conductor Range:
- 0.250 to 0.400 Inch
- Etim:
- EC000441 Cable screw gland
- Inner Dimensions Inches :
- 8x5x4
- Inner Quantity:
- 25
- Material:
- Plastic
- Material Quality:
- Polyamide (PA)
- Model:
- 90°-elbow
- Nominal Thread Size Inch Gas Pipe Thread:
- 1/2 inch
- Operating Temperature:
- -34-+105°C
- Outer Dimensions Inches :
- 10.7x8.7x5.4
- Outer Quantity:
- 50
- Product Group:
- Connectors
- Standard:
- UL E13938, CSA
- Suitable For Cable Diameter:
- 6.35-10.16mm
- Temperature Rating:
- -34 to +105 Degrees C
- Thread Length:
- 15.49mm
- Thread Type:
- NPT
- Type:
- Cord Connectors-90 Degree
- Unspsc:
- 39121431 Cable gland connector
- Weight Uom:
- 7.5 lbs. per 100
- Department:
- Electrical
- Product Subgroup:
- Electrical Connectors
- Product Type:
- Cord Connectors-90 Degree
