Crouse-Hinds EYS29 Vertical Elbow Conduit Sealing Fitting, 3/4"

Crouse-Hinds EYS29 Vertical Elbow Conduit Sealing Fitting, 3/4"

(No reviews yet) Write a Review

Model: EYS29

In Stock (leaves warehouse same day if ordered before 3pm ET)

$42.72
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

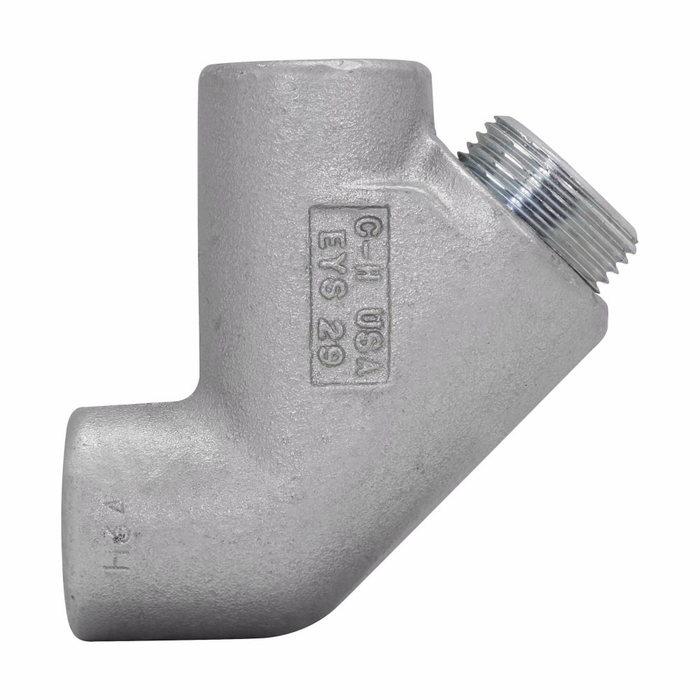

Crouse-Hinds EYS29 Vertical Elbow Conduit Sealing Fitting, 3/4"

The Crouse-Hinds EYS29 is a 3/4" conduit sealing fitting from the Eaton Crouse-Hinds series EYS line, engineered as a vertical-only elbow seal for hazardous location conduit systems. Constructed of Feraloy iron alloy and/or ductile iron, this fitting is built to hold the sealing compound that prevents the passage of gases, vapors, and flames along the conduit run at a code-required division point. As part of the widely specified EYS conduit sealing fitting family, the EYS29 provides a compact 90-degree elbow configuration that allows the seal to be installed where a straight run seal will not fit, while maintaining the mechanical integrity required in classified hazardous locations.

Key Features

  • Trade Size: 3/4" conduit connection sized for standard rigid and IMC conduit runs in hazardous and classified locations.
  • Durable Construction: Manufactured from Feraloy iron alloy and/or ductile iron for strength and corrosion resistance in demanding industrial environments.
  • Elbow Seal Configuration: 90-degree elbow body design allows installation in confined or angled conduit routing where a straight seal cannot be used.
  • Vertical Only Mounting: Designed specifically for vertical conduit orientation to ensure proper compound flow and seal integrity.
  • Series EYS Design: Part of the Eaton Crouse-Hinds EYS conduit sealing fitting series, a recognized standard for explosion-proof and hazardous location conduit seal applications.

Technical Specifications

  • Model: EYS29
  • Trade Size: 3/4"
  • Material: Feraloy Iron Alloy / Ductile Iron
  • Configuration: Elbow Seal, Vertical Only
  • Series: Crouse-Hinds EYS Series

Typical Applications

  • Hazardous and Classified Location Conduit Systems
  • Vertical Conduit Runs Requiring an Elbow Seal
  • Industrial and Petrochemical Facility Wiring
  • Explosion-Proof Conduit Installations
  • Division-Point Sealing for Rigid and IMC Conduit

Why Crouse-Hinds?

Crouse-Hinds, an Eaton brand, is a long-established name in hazardous location electrical products, and the EYS series sealing fittings reflect that focus on rugged, purpose-built construction. Made from Feraloy iron alloy and/or ductile iron, the EYS29 elbow seal is built to withstand demanding industrial conditions while providing the reliable, code-compliant sealing performance electrical professionals expect when working in classified hazardous locations.

Manufacturer Resources

Product Specs

list_batch:
CRS-20260929
Product Type:
Sealing Fitting
Configuration:
Elbow Seal, Vertical Only
Series:
EYS
Department:
Electrical
Product Subgroup:
Conduit Fittings
Product Material:
Feraloy Iron Alloy / Ductile Iron
Product Size:
3/4"
Product Group:
Conduit & Raceway
Product Width:
1.75 in
Product Height:
3.69 in
Product Weight:
1.5 lb
Product Length:
3.47 in

Crouse-Hinds EYS29 – Frequently Asked Questions

1) Can the Crouse-Hinds EYS29 sealing fitting be installed in a horizontal conduit run?
No. The EYS29 is an elbow seal rated vertical only, so it has to sit in a vertical section of the run. Mounting it horizontally defeats the way the sealing compound settles and cures in the body. If the seal location on your drawing falls in a horizontal run, you need a straight-through or horizontal-rated EYS seal instead, not this elbow.
2) Does the EYS29 come with the sealing compound, or do I order that separately?
The EYS29 is the fitting body only. It is built to hold sealing compound that blocks gases, vapors and flame from travelling along the conduit, but the compound and the fiber damming material are separate consumables you add to the order. Plan on those plus the conduit and any needed unions to finish the seal.
3) When would I use an elbow seal like the EYS29 instead of a straight conduit seal?
Use the elbow version when the seal has to land right where the conduit changes direction, or where there simply is not enough straight run left to fit an inline seal before the enclosure or the division boundary. The EYS29 is a 90 degree body, so it does the direction change and the seal in one fitting. Where you have clear vertical straight pipe, a straight EYS seal is the simpler choice.
4) Why does the EYS29 need to be installed at a specific point in the conduit run?
Because its job is boundary sealing. In a classified area the seal goes at the code-required division point, so gases or flame cannot migrate down the conduit from the hazardous side. Pick the location off the classification drawing first, then choose the seal body that physically fits there, which is where the vertical elbow EYS29 earns its place.
5) What is the Crouse-Hinds EYS29 made of, and will it hold up in a petrochemical plant?
Feraloy iron alloy and/or ductile iron. That is the standard Crouse-Hinds body material for industrial and petrochemical conduit work, chosen for mechanical strength and corrosion resistance rather than light weight. It is used in refinery, chemical and other classified-area conduit systems.
6) I need to match sealing fittings already installed across my facility. Is the EYS29 part of the standard EYS line?
Yes, it is a member of the Eaton Crouse-Hinds EYS conduit sealing fitting series, the same family used for explosion-proof and hazardous location seals. Standardizing on EYS across a site keeps one compound, one install method and one spare parts pool, with the part number changing by trade size and configuration. EYS29 is the 3/4 inch vertical elbow in that line.
