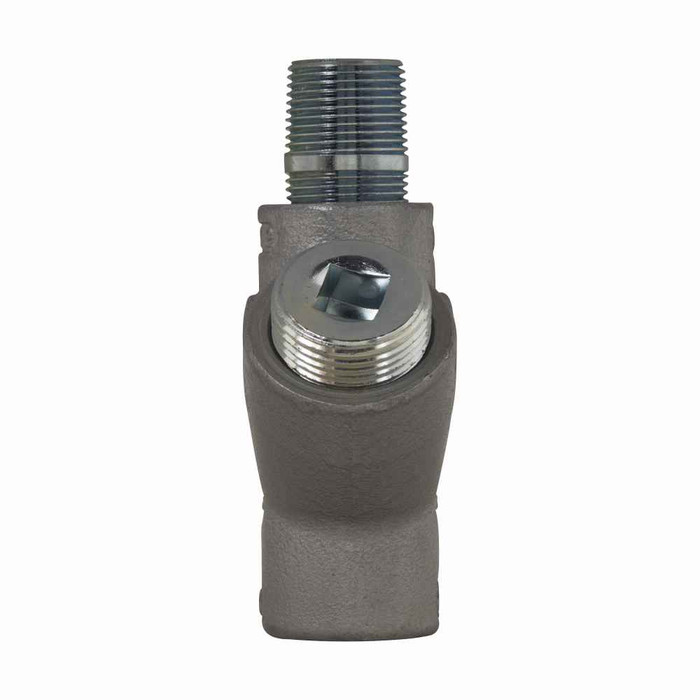

Eaton Crouse-Hinds EYS Explosion-Proof Conduit Sealing Fittings - Vertical Male/Female Hub Series

Crouse-Hinds EYS Explosion-Proof Conduit Sealing Fitting Class I Division 1 Vertical Male/Female Hub

(No reviews yet) Write a Review

Model: EYS26

In Stock (leaves warehouse same day if ordered before 3pm ET)

$105.34
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Crouse-Hinds EYS Explosion-Proof Conduit Sealing Fitting

Professional Class I Division 1 Hazardous Location Protection

The Crouse-Hinds EYS Explosion-Proof Conduit Sealing Fitting delivers critical safety protection for hazardous classified locations with Class I Division 1 rating. This vertical-only sealing fitting features male and female hub configuration with Group B rating for reliable containment and explosion-proof performance in demanding industrial environments.

Professional Features & Benefits

  • Class I Division 1 Rating: Provides essential explosion-proof protection for the most hazardous classified locations with flammable gases and vapors.
  • Group B Rated Design: Engineered for hydrogen and other highly volatile gas environments requiring the highest level of safety protection.
  • Vertical Sealing Position: Optimized mounting orientation ensures proper sealing compound flow and maximum containment effectiveness.
  • Male/Female Hub Configuration: Dual gender design provides versatile connection options for complex conduit routing requirements.
  • NEC/CEC Compliance: Meets stringent National Electrical Code and Canadian Electrical Code standards for hazardous location installations.
  • Compact Dimensions: 3.75" height with 1.5" width and depth provides space-efficient installation in confined areas.

Technical Specifications

  • Area Classification: Hazardous/Classified Locations
  • Gender: Male and female
  • Nec Hazardous Rating: Class I, Division 1
  • Product Height: 3.75 in
  • Product Length Depth: 1.5 in
  • Product Weight: 1.08 lb
  • Product Width: 1.5 in
  • Sealing Position: Vertical only
  • Special Features: Group B rated
  • Standards Type: NEC/CEC

Professional Applications

  • Chemical Processing Facilities
  • Petroleum Refineries
  • Gas Processing Plants
  • Pharmaceutical Manufacturing
  • Paint and Coating Operations
  • Hydrogen Production Facilities
  • Hazardous Material Storage Areas

Why Choose Crouse-Hinds Quality?

Crouse-Hinds explosion-proof sealing fittings deliver proven reliability in the most demanding hazardous environments. With NEC/CEC compliance and Group B rating, these fittings provide the critical safety protection required for Class I Division 1 applications where failure is not an option.

Manufacturer Resources

Product Specs

Area Classification:
Hazardous/Classified Locations
Gender:
Male and female
Nec Hazardous Rating:
Class I, Division 1
Product Height:
3.75 in
Product Length Depth:
1.5 in
Product Weight:
1.08 lb
Product Width:
1.5 in
Sealing Position:
Vertical only
Special Features:
Group B rated
Standards Type:
NEC/CEC
Department:
Electrical
Product Type:
Sealing Fitting
Product Subgroup:
Conduit Fittings
Product Group:
Conduit & Raceway

Crouse-Hinds EYS26 – Frequently Asked Questions

1) Can a Crouse-Hinds EYS sealing fitting be installed horizontally in a conduit run?
No. The EYS is a vertical-only sealing fitting, so it has to be mounted in a vertical section of conduit for the sealing compound to dam correctly. If your run needs a seal in a horizontal section or in any position, you need a fitting rated for horizontal or universal mounting instead, such as a Crouse-Hinds EYD or EZS style seal. Installing the EYS on its side defeats the seal.
2) Is the EYS seal approved for Class I Division 1 hydrogen areas?
Yes. The EYS carries a Class I, Division 1 NEC hazardous rating and is Group B rated, which is the group covering hydrogen. It is built to NEC/CEC standards, so it satisfies the seal requirements an inspector will look for in a Division 1 gas or vapor area, including hydrogen production and gas processing.
3) Does the EYS sealing fitting come with sealing compound and fiber?
The EYS is the fitting body only. The damming fiber and the sealing cement are ordered separately, so add compound (Crouse-Hinds Chico A) and damming fiber (Chico X) to the order or the seal cannot be poured on site. Plan one pour per fitting.
4) Is the male/female EYS the same as a female/female EYS seal?
No, and this is where the wrong part gets ordered. The EYS16, EYS26 and EYS36 have one male hub and one female hub, which lets the fitting thread straight into an enclosure hub or coupling. The female/female versions of the EYS line take conduit threads on both ends and need a nipple to land on an enclosure. Check which end your enclosure presents before you pick.
5) How much room do I need to fit an EYS seal into a tight conduit run?
Allow about 3.75 inches of vertical length and roughly 1.5 inches across in both directions for the body itself. On top of that you need working access to the filling hub to pour the sealing compound, so do not bury it tight against structure or behind other raceways. The unit weighs 1.08 lb, so no special support beyond normal conduit strapping.
6) Why do I need a sealing fitting at all instead of just running rigid conduit into the enclosure?
In a Class I Division 1 area the conduit itself becomes a path for flame and pressure to travel between enclosures. A seal like the EYS fills the raceway with compound around the conductors so an ignition inside an enclosure cannot propagate down the conduit. The NEC/CEC rules require seals at the boundary of the classified area and within a set distance of explosion-proof enclosures, which is why these show up at every device entry in refineries and chemical plants.
7) Will a Group B rated seal also cover Group C and D areas?
Yes. Group B is the more severe gas group, so a Group B rated Class I Division 1 fitting like the EYS is acceptable in the less severe Group C and Group D atmospheres as well. That makes it a reasonable standardization choice for an MRO stock room covering mixed process areas rather than carrying several group-specific seals.
