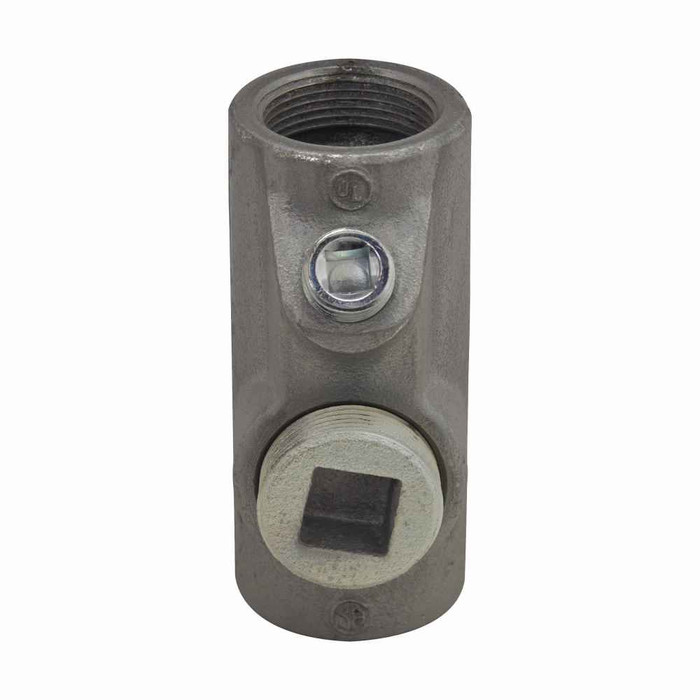

Eaton Crouse-Hinds EYS Series Conduit Sealing Fitting | Female Hubs, Feraloy Iron Alloy/Ductile Iron, Vertical or Horizontal Seals

Crouse-Hinds EYS Series Conduit Sealing Fitting with Female Hubs and Ductile Iron Construction for Hazardous Locations

(No reviews yet) Write a Review

Model: EYS014

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,000.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Crouse-Hinds EYS Series Conduit Sealing Fitting with Female Hubs and Ductile Iron Construction for Hazardous Locations

Professional hazardous location sealing solution for Class I, Division 1 applications

The Crouse-Hinds EYS Series Conduit Sealing Fitting delivers reliable explosion-proof protection in hazardous and classified locations. Engineered with durable ductile iron construction and female hub connections, this professional-grade sealing fitting provides versatile vertical or horizontal installation options while maintaining NEC/CEC compliance for critical safety applications.

Professional Features & Benefits

  • Class I, Division 1 Rating: Meets stringent hazardous location requirements for explosive atmosphere protection and regulatory compliance.
  • Ductile Iron Construction: Provides superior strength, corrosion resistance, and long-term durability in demanding industrial environments.
  • Female Hub Design: Ensures secure conduit connections with reliable sealing performance and professional installation compatibility.
  • Vertical or Horizontal Sealing: Offers flexible installation positioning to accommodate diverse conduit routing and space constraints.
  • NEC/CEC Standards Compliance: Meets National Electrical Code and Canadian Electrical Code requirements for hazardous location installations.
  • Hazardous Location Certified: Specifically designed and tested for safe operation in classified areas with explosive atmosphere potential.

Technical Specifications

  • Area Classification: Hazardous/Classified Locations
  • Gender: Female
  • Nec Hazardous Rating: Class I, Division 1
  • Product Material: Ductile iron
  • Sealing Position: Vertical or horizontal
  • Standards Type: NEC/CEC

Professional Applications

  • Petrochemical Processing Facilities
  • Oil and Gas Refineries
  • Chemical Manufacturing Plants
  • Paint and Solvent Storage Areas
  • Grain Handling and Processing
  • Aircraft Hangars and Fuel Systems
  • Hazardous Waste Treatment Facilities

Why Choose Crouse-Hinds Quality?

Crouse-Hinds delivers proven reliability in hazardous location electrical solutions with NEC/CEC compliant designs and robust ductile iron construction. The EYS Series represents professional-grade engineering specifically developed for critical safety applications where explosion-proof protection and long-term performance are essential.

Manufacturer Resources

Product Specs

Area Classification:
Hazardous/Classified Locations
Gender:
Female
Nec Hazardous Rating:
Class I, Division 1
Product Material:
Ductile iron
Sealing Position:
Vertical or horizontal
Standards Type:
NEC/CEC
Department:
Electrical
Product Type:
Sealing Fitting
Product Subgroup:
Conduit Fittings
Product Group:
Conduit & Raceway

Crouse-Hinds EYS014 – Frequently Asked Questions

1) What conduit sizes does the Crouse-Hinds EYS sealing fitting come in?
The EYS Series sealing fitting is offered in nine female hub sizes: 1-1/4 inch (EYS4), 1-1/2 inch (EYS5), 2 inch (EYS6), 2-1/2 inch (EYS7), 3 inch (EYS8), 3-1/2 inch (EYS9), 4 inch (EYS10), 5 inch (EYS012) and 6 inch (EYS014). Order the hub size to match the trade size of the rigid conduit run it is sealing.
2) Can an EYS seal be installed horizontally, or does it have to be vertical?
Either. The EYS is rated for vertical or horizontal sealing, so you can use the same fitting on a riser out of a motor connection or on a horizontal run into a classified room without switching to a different body style.
3) Is the Crouse-Hinds EYS fitting rated for Class I Division 1 areas?
Yes. The EYS Series conduit seal carries a Class I, Division 1 NEC hazardous rating and is built to NEC/CEC requirements, which is what you need for seals within 18 inches of an enclosure housing arcing devices in a Division 1 area.
4) Do I thread conduit directly into the EYS, or do I need couplings?
Both ends are female hubs, so threaded rigid conduit screws straight in with no coupling needed. If you are landing a male-threaded nipple or an enclosure hub, you would need an adapter instead.
5) What is an EYS sealing fitting actually for on a hazardous location job?
It is the poured seal in a rigid conduit run that stops flame, hot gas and vapor from travelling through the raceway between a classified area and the rest of the system. Conductors pass through the body, a fiber dam is packed, and sealing compound is poured through the opening. The EYS is the female hub version in ductile iron for Class I, Division 1 work in refineries, chemical plants, solvent storage, grain handling and aircraft hangars.
6) Will the EYS satisfy a Canadian inspector as well as NEC?
It is built to NEC/CEC standards, so the same fitting covers both National Electrical Code and Canadian Electrical Code hazardous location installations.
7) I need to standardize seals across a plant with conduit runs from 1-1/4 inch up to 6 inch. Can one series cover all of it?
Yes. The EYS line spans 1-1/4 inch through 6 inch female hubs in a single series and material, so a facility can stock one family across the whole range instead of mixing styles. Every size carries the same Class I, Division 1 rating and vertical or horizontal sealing capability, which keeps the install procedure identical for your crews.
8) Is ductile iron a problem for a corrosive outdoor refinery environment?
The EYS body is ductile iron, which Crouse-Hinds uses for strength and corrosion resistance in industrial service. For salt-air or heavily corrosive process areas, plant standards often call for an added protective coating on iron fittings, so confirm what your spec requires for the area.
