Eaton Crouse-Hinds EYS Series Conduit Sealing Fitting | Male/Female Hubs, Feraloy Iron Alloy/Ductile Iron, Vertical or Horizontal Seals

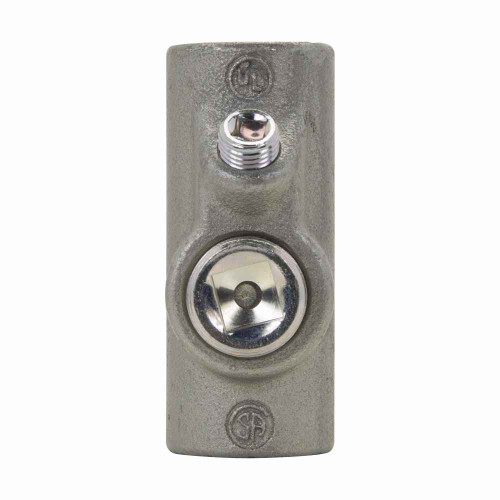

Crouse-Hinds EYS Series Conduit Sealing Fitting with Male/Female Hubs - Feraloy Iron Alloy/Ductile Iron Construction for Hazardous Locations

(No reviews yet) Write a Review

Model: EYS86

In Stock (leaves warehouse same day if ordered before 3pm ET)

$430.27
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Crouse-Hinds EYS Series Conduit Sealing Fitting with Male/Female Hubs

Professional hazardous location sealing solution for Class I, Division 1 applications

The Crouse-Hinds EYS Series Conduit Sealing Fitting delivers reliable containment and protection in hazardous classified locations with robust Feraloy Iron Alloy and Ductile Iron construction. Engineered for Class I, Division 1 environments, this professional-grade sealing fitting features male and female hubs for versatile installation configurations and supports both vertical and horizontal sealing positions to accommodate diverse conduit routing requirements.

Professional Features & Benefits

  • Class I, Division 1 Rating: Certified for the most demanding hazardous location applications where ignitable concentrations may be present during normal operations.
  • Feraloy Iron Alloy/Ductile Iron Construction: Superior material strength and corrosion resistance ensures long-term reliability in harsh industrial environments.
  • Male and Female Hub Configuration: Dual hub design provides maximum installation flexibility and secure conduit connections for complex routing scenarios.
  • Vertical or Horizontal Sealing: Adaptable mounting orientation accommodates various installation constraints and conduit pathway requirements.
  • NEC/CEC Standards Compliance: Meets rigorous electrical code requirements for hazardous location installations and professional safety standards.
  • Robust Physical Specifications: Substantial 20.95 LB construction with 9.75" height provides stable, secure installation in demanding industrial applications.

Technical Specifications

  • Area Classification: Hazardous/Classified Locations
  • Gender: Male and female
  • Nec Hazardous Rating: Class I, Division 1
  • Product Height: 9.75 IN
  • Product Length: 5.25 IN
  • Product Weight: 20.95 LB
  • Product Width: 5.25 IN
  • Sealing Position: Vertical or horizontal
  • Standards Type: NEC/CEC

Professional Applications

  • Petrochemical Processing Facilities
  • Oil and Gas Production Sites
  • Chemical Manufacturing Plants
  • Refineries and Tank Farms
  • Paint and Solvent Storage Areas
  • Grain Handling and Processing
  • Aircraft Hangars and Fuel Systems

Why Choose Crouse-Hinds Quality?

Crouse-Hinds EYS Series fittings represent decades of engineering excellence in hazardous location electrical solutions. The robust Feraloy Iron Alloy and Ductile Iron construction, combined with NEC/CEC standards compliance and Class I, Division 1 certification, ensures reliable performance and safety in the most demanding industrial environments where containment and explosion prevention are critical.

Manufacturer Resources

Product Specs

Area Classification:
Hazardous/Classified Locations
Gender:
Male and female
Nec Hazardous Rating:
Class I, Division 1
Product Height:
9.75 IN
Product Length:
5.25 IN
Product Weight:
20.95 LB
Product Width:
5.25 IN
Sealing Position:
Vertical or horizontal
Standards Type:
NEC/CEC
Department:
Electrical
Product Type:
Sealing Fitting
Product Subgroup:
Conduit Fittings
Product Group:
Conduit & Raceway

Crouse-Hinds EYS86 – Frequently Asked Questions

1) What conduit sizes does the Crouse-Hinds EYS sealing fitting come in?
Hub sizes run from 1-1/4 inch up through 5 inch: 1-1/4 (EYS46), 1-1/2 (EYS56), 2 (EYS66), 2-1/2 (EYS76), 3 (EYS86), 3-1/2 (EYS96), 4 (EYS106) and 5 inch (EYS0126). Pick the hub size to match the rigid conduit run it is being installed in.
2) Can an EYS seal be installed in a horizontal conduit run, or does it have to be vertical?
Either. The EYS Series is rated for vertical or horizontal sealing position, so the same fitting works on a riser or on a horizontal run between an enclosure and the conduit.
3) Is the Crouse-Hinds EYS fitting approved for Class I, Division 1 areas?
Yes. The EYS Series carries an NEC hazardous rating of Class I, Division 1 and is classified for hazardous/classified locations, with the fitting meeting NEC/CEC standards. That covers areas where ignitable vapor concentrations can be present in normal operation, such as refineries, tank farms and solvent storage.
4) Does the EYS seal thread straight into an enclosure hub, or do I need a nipple?
No nipple needed on one end. The EYS body has both a male and a female hub, so it threads directly into a female enclosure hub on the male end and takes conduit or a male-threaded fitting on the female end. That is what lets it sit tight against an explosionproof box without extra couplings.
5) How much clearance do I need to mount a Crouse-Hinds EYS sealing fitting?
Plan for a footprint of 5.25 by 5.25 inches and 9.75 inches of height around the fitting. That height matters where seals are stacked near a panel or in a congested rack, since you also need room to get the fiber dam and sealing compound in through the fill opening.
6) Is the EYS fitting heavy enough to need separate conduit support?
At 20.95 LB it is not a fitting you hang off an unsupported conduit stub. Feraloy iron alloy and ductile iron construction is what gives it that mass, so support the conduit on both sides of the seal rather than letting the fitting carry the run.
7) Does the EYS sealing fitting come with sealing compound and fiber?
The EYS is the fitting body only. Sealing compound and fiber dam are ordered separately, so add them to the same order if you do not already stock them. Also confirm the conductor fill in the raceway, since seal fittings have a limited percentage of conductor cross-section allowed through them.
8) Will a Feraloy iron EYS seal hold up in a corrosive refinery or chemical plant environment?
The body is Feraloy iron alloy with ductile iron, chosen for strength and corrosion resistance in harsh industrial service. It is the fitting Crouse-Hinds puts in petrochemical processing, oil and gas production, chemical plants, refineries and tank farms, plus grain handling and aircraft hangar fuel systems.
