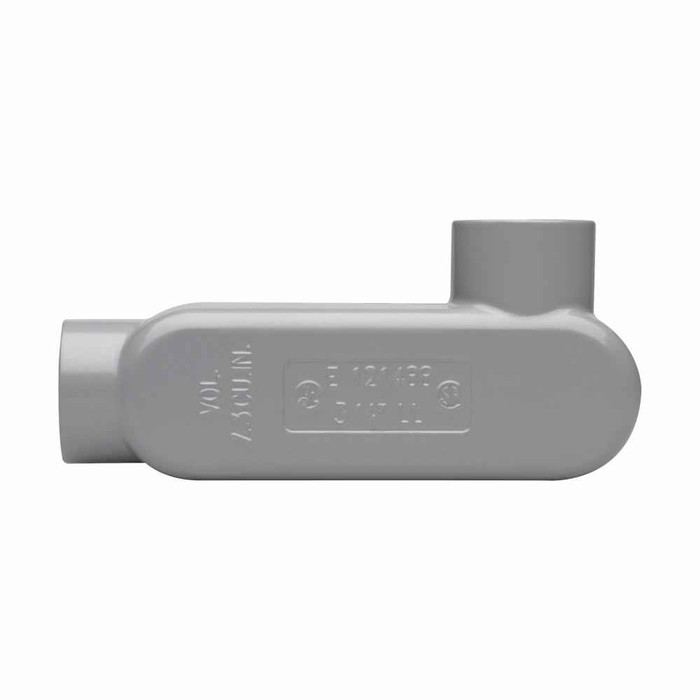

Eaton Crouse-Hinds 1-1/4" LL Condulet Series 5 Outlet Body
Premium Copper-Free Aluminum Construction for Superior Corrosion Resistance
The Eaton Crouse-Hinds 1-1/4" LL Condulet Series 5 Outlet Body is a professional-grade conduit fitting engineered for demanding electrical installations. This copper-free aluminum outlet body delivers exceptional corrosion resistance and lightweight performance for commercial and industrial rigid/IMC conduit systems.
Key Features & Benefits
Superior Material Construction
- Copper-Free Aluminum - Eliminates galvanic corrosion while providing excellent strength-to-weight ratio
- Corrosion Resistant Finish - Engineered for decades of reliable service in harsh environments
- Lightweight Design - Reduces installation fatigue and structural loading compared to iron alternatives
- Precision Cast Construction - Ensures consistent dimensional accuracy and smooth conduit connections
Professional Installation Features
- LL Shape Configuration - Provides 90-degree conduit routing with convenient access for wire pulling
- Rigid/IMC Compatibility - Designed specifically for heavy-duty conduit systems
- Removable Cover - Allows easy access for wire splicing and system maintenance
- NEC/CEC Compliant - Meets all applicable electrical code requirements
Code Compliance & Safety
- Ordinary Location Rated - Suitable for standard commercial and industrial environments
- Professional Grade Standards - Engineered to exceed industry requirements for long-term reliability
- Grounding Continuity - Maintains electrical system grounding integrity throughout the conduit run
Technical Specifications
This 1-1/4" trade size LL condulet measures 7.87" in length, 2.85" in width, and 3.5" in height, with a lightweight 1.4 lb construction. The copper-free aluminum material provides superior corrosion resistance while maintaining the strength required for rigid and IMC conduit systems. The LL shape configuration creates a 90-degree turn with accessible wire pulling points, making it ideal for conduit routing around obstacles or changing direction in electrical installations.
Installation Process
- Verify conduit alignment and measure required routing path for proper fit
- Thread rigid or IMC conduit into both hub openings using appropriate threading compound
- Tighten connections to manufacturer specifications ensuring proper grounding continuity
- Install conductors through the conduit system using the LL body as a pulling point
- Make necessary wire connections inside the outlet body following NEC/CEC requirements
- Secure the removable cover ensuring weather-tight seal and easy future access
Applications
Perfect for:
- Commercial Buildings - Office complexes, retail centers, and healthcare facilities
- Industrial Facilities - Manufacturing plants, processing centers, and distribution warehouses
- Municipal Infrastructure - Schools, government buildings, and public utilities
- Outdoor Installations - Where corrosion resistance and lightweight construction are critical
- Equipment Connections - Motor control centers, switchgear, and electrical panels
- Conduit Direction Changes - 90-degree turns in rigid conduit systems
- Wire Pulling Points - Strategic locations for conductor installation and maintenance
- Junction Applications - Where conductor splicing and connections are required
Condulet System Benefits
Condulet outlet bodies provide superior access and flexibility compared to standard conduit elbows and fittings. The removable cover design allows for easy wire pulling, splicing, and future system modifications without disturbing the entire conduit run. This accessibility reduces installation time and long-term maintenance costs while ensuring code compliance for conductor fill ratios and pulling point requirements.
Why Choose Copper-Free Aluminum?
Eaton Crouse-Hinds copper-free aluminum construction eliminates the galvanic corrosion issues that can occur when dissimilar metals are present in electrical systems. This advanced material provides the corrosion resistance of aluminum with enhanced compatibility for mixed-metal installations. The lightweight properties reduce structural loading and installation fatigue while maintaining the strength and durability required for professional electrical applications. Trusted by electrical contractors for over 100 years, Crouse-Hinds condulets deliver the reliability and performance that electrical professionals demand.
Manufacturer Resources
Product Specs
- Area Classification:
- Ordinary/Non-Hazardous Locations
- Conduit Type:
- Rigid/IMC
- Material:
- Copper-free aluminum
- Product Height:
- 3.5 in
- Product Length Depth:
- 7.87 in
- Product Weight:
- 1.4 lb
- Product Width:
- 2.85 in
- Shape:
- LL
- Standards Type:
- NEC/CEC
- Trade Size:
- 1-1/4"
- Product Type:
- Conduit Outlet Body
- Product Group:
- Electrical Fitting
- Department:
- Electrical
- Product Subgroup:
- Conduit Outlet Body
