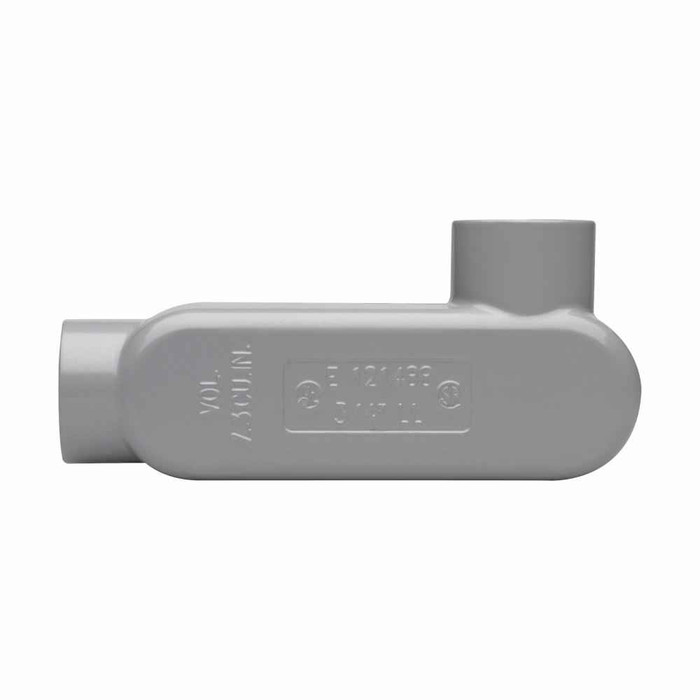

Eaton Crouse-Hinds 2-1/2" LL Condulet Outlet Body, Copper-Free Aluminum

Eaton Crouse-Hinds 2-1/2" LL Condulet Series 5 Outlet Body

Premium Copper-Free Aluminum Construction for Superior Corrosion Resistance

The Eaton Crouse-Hinds 2-1/2" LL Condulet Series 5 Outlet Body is a professional-grade conduit fitting engineered for demanding electrical installations. This copper-free aluminum outlet body delivers exceptional corrosion resistance and lightweight handling for commercial and industrial rigid/IMC conduit systems.

Key Features & Benefits

Superior Material Construction

• Copper-Free Aluminum Body - Provides excellent corrosion resistance while maintaining lightweight handling for easier installation
• Series 5 Design - Heavy-duty construction engineered for decades of reliable service in demanding environments
• Precision Cast Construction - Ensures dimensional accuracy and consistent threading for secure conduit connections
• Professional-Grade Finish - Resists environmental degradation and maintains appearance over time

Installation Efficiency

• LL Shape Configuration - Provides 90-degree conduit routing with access opening for wire pulling and splicing
• 2-1/2" Trade Size - Accommodates large conductor bundles for high-capacity electrical systems
• Rigid/IMC Compatibility - Works seamlessly with both rigid steel and intermediate metal conduit systems
• Removable Cover - Allows easy access for wire installation, maintenance, and system modifications

Code Compliance & Safety

• NEC/CEC Compliant - Meets all National Electrical Code and Canadian Electrical Code requirements
• Ordinary Location Rated - Suitable for standard commercial and industrial electrical environments
• Grounding Continuity - Maintains electrical grounding path through the conduit system
• Professional Installation - Designed for use by qualified electrical contractors and technicians

Technical Specifications

This 2-1/2" trade size LL condulet features copper-free aluminum construction with Series 5 heavy-duty design. The outlet body measures 13.14 inches in length, 6 inches in height, and 4 inches in width, weighing 5 pounds for manageable installation. The LL shape provides a 90-degree conduit turn with an access opening, making it ideal for wire pulling and junction applications in rigid and IMC conduit systems. NEC/CEC compliant construction ensures code compliance for ordinary location installations.

Installation Process

1. Verify conduit alignment and measure required offset distance for proper LL body positioning
2. Thread rigid or IMC conduit into both hub openings, ensuring full thread engagement
3. Apply appropriate thread sealant to maintain moisture resistance if required by installation conditions
4. Tighten connections using proper conduit wrenches to achieve secure mechanical and electrical connection
5. Install conductors through the conduit system, utilizing the LL body's access opening for wire pulling
6. Secure cover with appropriate gasket if environmental sealing is required for the application

Applications

Perfect for:

• Commercial Buildings - Office complexes, retail centers, and institutional facilities requiring large conduit systems
• Industrial Facilities - Manufacturing plants, processing facilities, and heavy industrial electrical installations
• Power Distribution Systems - Main electrical panels, switchgear connections, and distribution equipment
• Motor Control Centers - Large motor connections and industrial control system wiring
• Infrastructure Projects - Municipal buildings, schools, and government facility electrical systems
• Equipment Connections - Large machinery, HVAC systems, and industrial equipment wiring
• Conduit Direction Changes - 90-degree turns in rigid/IMC conduit runs with access requirements
• Junction Applications - Wire splicing and connection points in large conduit systems

Condulet Outlet Body System Benefits

Condulet outlet bodies provide superior access and flexibility compared to standard conduit elbows and fittings. The removable cover design allows for easy wire installation, system modifications, and maintenance access without disrupting the entire conduit run. This LL configuration combines a 90-degree directional change with convenient access, making it ideal for complex routing situations where standard fittings would require multiple components.

Why Choose Copper-Free Aluminum Construction?

Copper-free aluminum offers the perfect balance of strength, corrosion resistance, and weight savings for professional electrical installations. Unlike standard aluminum alloys, copper-free construction eliminates galvanic corrosion concerns while providing excellent resistance to environmental factors. The lightweight design reduces installation fatigue and shipping costs while maintaining the structural integrity required for heavy-duty conduit systems. Eaton Crouse-Hinds Series 5 construction ensures this outlet body will provide decades of reliable service in demanding commercial and industrial applications.
