CU TERM LUG 8STR-14SOL-2/BG
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Insulation Material:
- None
- Number Of Conductors:
- 1
- Product Group:
- Wire & Cable Management
- Product Type:
- Type L Copper Single Conductor
- Selling Unit Of Measure:
- each
- Type2:
- Wire connectors
- Wire Size:
- 14-8 AWG
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Installation Category:
- Screw
- Product Material:
- Copper

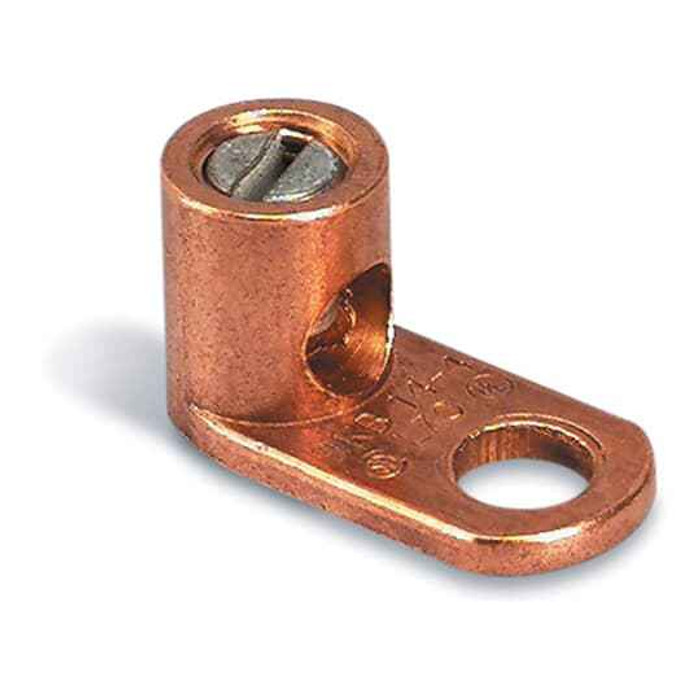

Blackburn L35-B2-5 – Frequently Asked Questions
1) What wire sizes does the Blackburn L35-B2-5 terminal lug accept?
The L35-B2-5 is rated for 14 through 8 AWG copper conductors, single conductor only. Within that range it takes 8 AWG stranded down to 14 AWG solid, so it covers typical branch circuit and equipment grounding conductor sizes. It is a one-wire lug, so don't double up two conductors in the barrel.
2) Is the Blackburn L35-B2-5 lug copper or aluminum, and can I use it on aluminum wire?
It's a copper-bodied lug, Type L copper single conductor. Use it with copper conductors. For aluminum or copper-clad aluminum runs you need a lug rated AL9CU or dual-rated, not this one.
3) How does the L35-B2-5 terminal lug attach, and do I need a crimping tool?
No crimper needed. The L35-B2-5 is a mechanical screw-type lug, so the conductor is clamped under a setscrew with a hand tool. That makes it usable in a panel or box where you can't get a hydraulic or battery crimper into position.
4) Is the Blackburn L35-B2-5 insulated?
Bare copper, no insulation on the lug body. If the termination needs covering for phase identification or clearance, plan on separate heat shrink or an insulating boot.
5) Can I use this Blackburn lug to land two conductors on one stud?
No. It's built as a single conductor lug, one wire per barrel. To combine conductors you need a two-conductor or multi-tap lug, or separate lugs landed per the equipment terminal listing.
6) Is the L35-B2-5 sold individually or in a bag quantity?
Selling unit is each, so you order the count you need rather than a fixed carton. For MRO stock or a panel build with multiple terminations, order one per conductor being landed.
7) What is the manufacturer part number and country of origin on this Blackburn copper lug?
Blackburn part number L35-B2-5, made in Mexico. That MPN is what to reference on a submittal or a distributor purchase order.
