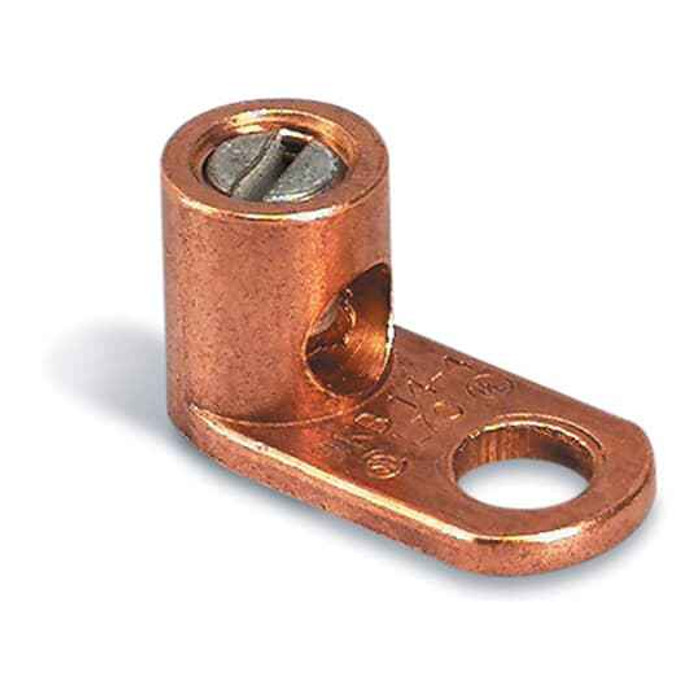

CU TERM LUG 4STR-14SOL-2/BG
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Number Of Conductors:
- 1
- Product Group:
- Wire & Cable Management
- Product Type:
- Type L Copper Single Conductor
- Selling Unit Of Measure:
- each
- Type2:
- Wire connectors
- Wire Size:
- 14-4 AWG
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Installation Category:
- Screw
- Product Material:
- Copper
Blackburn L70-B2-5 – Frequently Asked Questions
1) What wire sizes does the Blackburn L70-B2-5 terminal lug accept?
The L70-B2-5 copper terminal lug takes conductors from 14 AWG up to 4 AWG. It is a single-conductor lug, so one wire per lug, and the range covers both solid and stranded copper in that span.
2) Can I land two wires in one Blackburn L70-B2-5 lug?
No. The L70-B2-5 is rated for one conductor only. If you need to terminate two wires, use a two-conductor lug or a separate lug per wire on the pad.
3) Is the Blackburn L70-B2-5 lug copper or aluminum?
Solid copper body. That makes it a copper-only termination, so run it with copper conductors rather than aluminum, which needs an AL9CU dual-rated connector.
4) How does the L70-B2-5 terminal lug attach to the conductor and to the equipment?
It is a screw-type termination, so the conductor is clamped under a setscrew rather than crimped. No crimp tool or die set is needed, just a driver and a torque check.
5) What is a Type L copper terminal lug used for on a panel or ground bar?
A Type L copper single-conductor lug terminates one copper wire onto a bolted pad, bus, or enclosure, using a setscrew to grip the conductor. The Blackburn L70-B2-5 covers 14 AWG through 4 AWG, which is the usual range for branch circuit conductors and equipment grounding conductors in commercial panelboards and MRO repairs.
6) Is the Blackburn L70-B2-5 sold individually or in a bag?
It is sold each, so quantity one is a single lug. Order one per conductor you are landing.
7) Where is the Blackburn L70-B2-5 lug made?
Manufactured in Mexico. That matters on jobs with country-of-origin reporting requirements on submittals.
