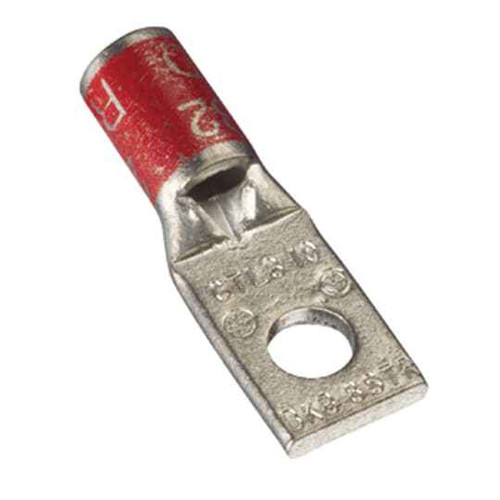

CU TP 2HL LUG LONG BRL 8 1/4B RED
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Group:
- Wire Termination
- Product Type:
- Long Barrel
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Stud Size:
- 1/4 in
- Sub Brand Label:
- Blackburn
- Type2:
- Cable or wire lug
- Voltage Rating:
- 35 kV
- Department:
- Electrical
- Product Subgroup:
- Lugs
- Product Color:
- Red
- Product Material:
- Copper
Blackburn LCN8-14 – Frequently Asked Questions
1) Will the Blackburn LCN8-14 lug bolt to a 1/4 inch stud landing pad?
Yes. The LCN8-14 is built for a 1/4 inch stud, and it is a two-hole tongue, so the pad needs two 1/4 inch studs or tapped holes at the lug's hole spacing. Two-hole terminations are what most switchgear, bus, and equipment ground pads call for when rotation of a single-bolt lug is not acceptable.
2) What wire does the LCN8-14 compression lug take, and is it copper only?
It is an 8 AWG copper compression lug (CU only, not dual-rated for aluminum). The barrel is copper and the die color code is red, which is how you pick the matching crimp die and confirm the right pass on the tool.
3) Is the LCN8-14 rated for medium voltage terminations?
It carries a 35 kV voltage rating, which covers 5 kV, 15 kV, 25 kV and 35 kV class cable terminations as well as any 600 V work. The 35 kV rating is about the lug's suitability in a medium-voltage termination assembly, not a claim about insulation on the lug itself.
4) Can I use this lug to terminate aluminum conductor if I add compound?
No. This is a copper-only compression lug, so it should not be crimped onto aluminum conductor even with inhibitor. For aluminum or stranded AL/CU work you need a lug marked AL9CU or dual-rated for that conductor size.
5) Is this Blackburn lug UL listed for inspection purposes?
Yes, it is covered under UL file E9809. That is the reference an inspector or a spec reviewer will want when the termination has to be a listed connector on the conductor size shown.
6) Does the LCN8-14 come as a single lug or in a bag?
It is sold each, one lug per unit, under manufacturer part number LCN8-14. Order one per conductor termination, plus the bolts, washers and any Belleville hardware separately since mounting hardware is not part of the lug.
7) Where is the Blackburn LCN8-14 made?
Manufactured in Mexico. That matters on jobs with country-of-origin reporting or Buy America style documentation requirements, so it is worth capturing on the submittal.
