OATEY A7225B Dearborn® Dblue Half Kit, Schedule 40 - ABS Uni-Lift Stopper with Chrome Finish Trim

OATEY A7225B Dearborn® Dblue Half Kit, Schedule 40 - ABS Uni-Lift Stopper with Chrome Finish Trim

(No reviews yet) Write a Review

Model: A7225B
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$91.43
$41.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Dearborn® Dblue Half Kit, Schedule 40 - ABS Uni-Lift Stopper with Chrome Finish Trim

  • Features

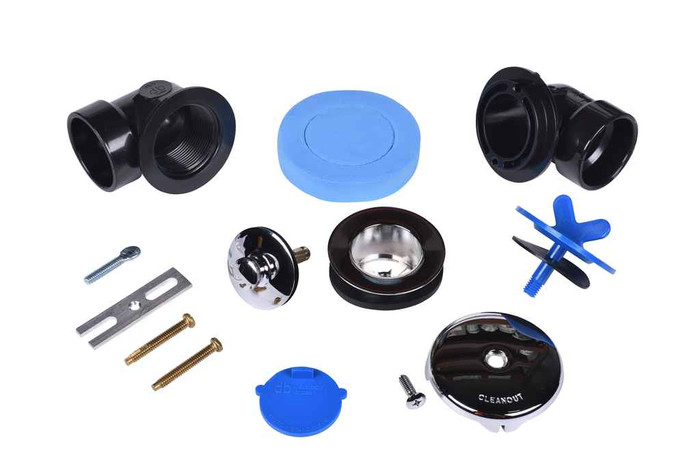

    • Kit includes Overflow Elbow, Overflow Gasket, Mounting Hardware, Faceplate, 2 Test Plugs, Drain Elbow, Drain Gasket, Drain Spud and Stopper
    • 1 Hole Faceplate
    • Chrome Finish
    • Universal design connects bath tub to DWV system
    • Brass Drain Spud
    • Foam Rubber Overflow Gasket
    • Uni-Lift Stopper

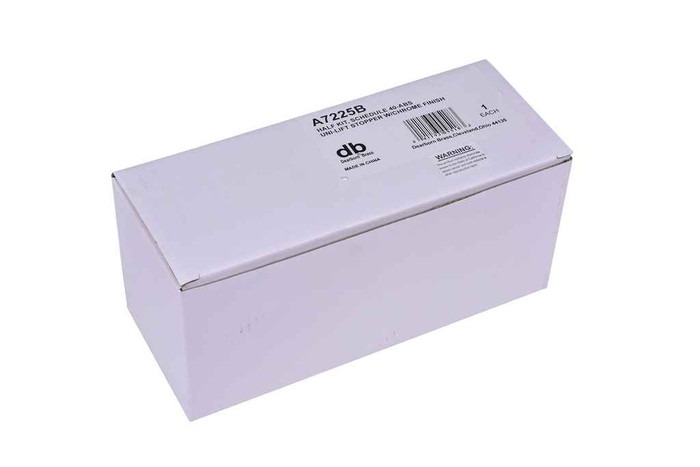

    • Boxed
    • ABS construction for solvent weld connections


A7225B - spec sheet

Manufacturer Resources

Product Specs

Connection Type:
Solvent Weld
Faceplate Style:
1 Hole
Gasket Type:
Foam Rubber
Kit Type:
Half Kit
Volume:
0.091
Department:
Plumbing
Product Group:
Plumbing
Product Subgroup:
Fittings
Product Type:
Plastic Fittings
Product Finish:
Chrome
Product Material:
ABS
Product Weight:
0.65

OATEY A7225B – Frequently Asked Questions

1) What exactly comes in the Oatey Dearborn A7225B half kit?
The A7225B ships with the overflow elbow, overflow gasket, mounting hardware, faceplate, two test plugs, drain elbow, drain gasket, brass drain spud and the Uni-Lift stopper. It is a half kit, so it covers the tub-side waste and overflow fittings only; the tubular drain line back to the trap is not part of it.
2) Is the A7225B waste and overflow glued or does it use slip nuts?
Solvent weld. The body is ABS, so the connections are cemented with ABS solvent cement rather than tightened with slip nuts. If your existing tub waste is PVC or brass tubular with compression nuts, you cannot cement ABS to it without the proper transition.
3) Will the one-hole faceplate work on a tub with a trip lever overflow?
No. The A7225B uses a 1-hole faceplate for the Uni-Lift stopper system, where the stopper itself seals the drain by hand. A trip lever (waste and overflow with a linkage) needs a two-hole plate and a lever assembly, so this kit will not cover or operate that tub.
4) Is the drain spud plastic or metal on the Oatey A7225B?
The drain spud is brass, even though the waste and overflow body is ABS. That puts metal threads at the shoe where the stopper threads in, which is the part that takes the wear from repeated use.
5) What are the two test plugs in the Dearborn Dblue kit for?
They let you cap the waste and overflow so the DWV rough-in can be pressure or water tested before the tub trim goes on. Both plugs are included with the A7225B, so you do not need to source them separately for inspection.
6) Can one tub waste kit be used on steel, cast iron and acrylic tubs?
Yes, the A7225B is a universal design meant to connect a bath tub to the DWV system regardless of tub material, with the gaskets doing the sealing at the overflow and drain openings.
7) Does the chrome trim on this Dearborn kit match other chrome tub drains in a building?
The visible trim, faceplate and stopper are chrome finish, which is the standard polished chrome used across most tub waste trim. For a multi-unit retrofit it will read the same as existing chrome overflow plates and stoppers.
8) What seals the overflow against the tub on this kit?
A foam rubber overflow gasket sits between the overflow elbow and the tub wall, with a separate drain gasket at the shoe. Foam rubber conforms better to the slight contour of a tub overflow boss than a flat hard washer.
9) What part number and weight should I use when ordering this Dearborn tub waste for a job?
Order it as Oatey Dearborn A7225B. It weighs 0.65 lb and ships boxed, which makes it easy to stage per unit on a multi-bath job.
