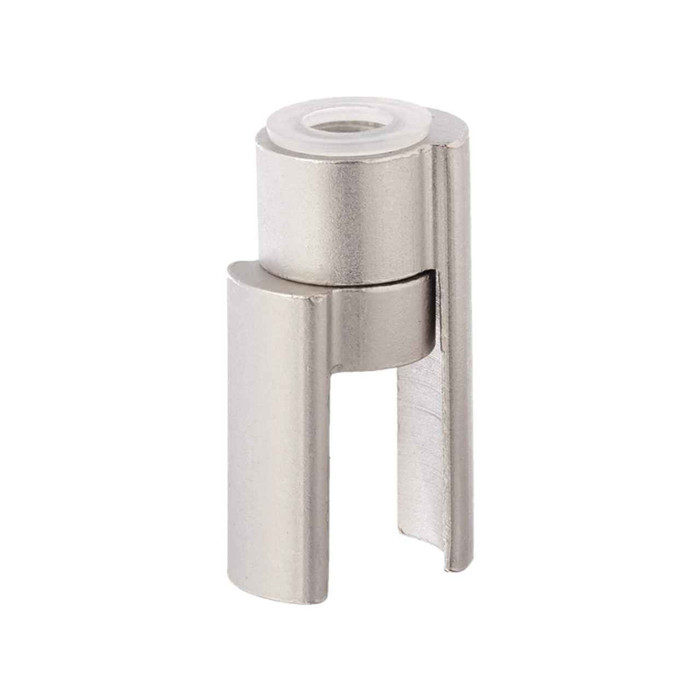

Delaney Door Saver III Hinge Pin Door Stop
The Door Saver III's ultra-low-profile design delivers bumperless protection for doors and trim — no rubber tip, no wall plate, nothing to catch paint or snag trim. It installs in seconds without tools by replacing the existing hinge pin, and a vinyl bushing accommodates varying pin diameters while preventing pin creep. Requires at least 0.25 in. of clearance between your trim and the hinge barrel. Both cams must contact the plate on each side for the stop to perform correctly.
Features:
- Bumperless design — no damage to doors or trim
- Maximum adjustable swing angle: 160°
- Installs in seconds — no tools required
- Hinge-mounted to fit all standard doors
- Uses the existing hinge pin — no new hardware needed
- Cam-lock mechanism won't walk up like conventional hinge-mounted stops
- Made from strong carbon steel
Manufacturer Resources
Product Specs
- Subcategory:
- Door Stops, Holders, Silencers & Bumpers
- Series:
- Door Saver Hinge Pin Door Stop
- Product Group:
- Door Trim and Accessories
- Product Subgroup:
- Door Stops, Holders, Silencers & Bumpers
- Product Type:
- Door Stops - Hinge Pin
- Product Category:
- Door Trim and Accessories
- Product Substrate:
- Carbon Steel
- Department:
- Door Hardware
- Model Number:
- DLY-4024
Delaney Hardware 402434 – Frequently Asked Questions
1) Do I need any new hardware or tools to install a hinge pin door stop like the Door Saver III?
No. The Door Saver III replaces the existing hinge pin, so nothing gets drilled, no baseboard is touched, and no tools are needed. Pull the pin, fit the stop, drop it back in. A vinyl bushing takes up the difference in pin diameters and keeps the pin from creeping back up over time. For a property manager doing a floor of units, that means no patching and no anchors.
2) Will the Door Saver III fit my door's hinges, or do I need a specific hinge size?
It is hinge mounted to fit standard doors and works off whatever pin is already in the hinge, with a vinyl bushing to take up varying pin diameters. So the hinge size itself is not the constraint; the trim clearance is. Confirm you have 0.25 inch between the casing and the barrel and that both cams can bear on the plate.
3) What is the closest hinge pin door stop to the Delaney Door Saver III DLY-4024?
The Orca Hardware HPDS Hinge Pin Door Stop is the nearest like-for-like swap. Both mount by replacing an existing hinge pin rather than by fastening to the wall or floor, and the Orca HPDS carries a door holder function, so a property manager standardizing across a set of doors can mix the two on the same openings without changing prep. The Delaney DLY-4024 is the one to reach for when the finish needs to match 625 Bright Chrome, 619 Satin Nickel, 613 Satin Bronze Oil-Rubbed or 622 Matte Black trim, and it is bumperless with a 160 degree maximum adjustable swing and a cam-lock mechanism that will not walk up the pin.
4) The Emtek 2241 came up next to the Delaney Door Saver III. Are they interchangeable?
No. The Emtek 2241 is a brass pivot stop in Emtek's Hinges Pivot Stop series, so it works with the pivot rather than substituting for a hinge pin the way the Delaney Door Saver III DLY-4024 does. The DLY-4024 installs in seconds with no tools by replacing the existing hinge pin, with a vinyl bushing that takes up varying pin diameters and prevents pin creep, and it needs at least 0.25 inch of clearance between the trim and the hinge barrel. A distributor quoting a hinge pin replacement should not swap one part number for the other; confirm which mount the door actually has first.
5) How far will the Door Saver III let a door open before it stops?
Up to 160 degrees, and it is adjustable, so you can set the stop anywhere short of that to suit the wall or furniture behind the door. That is close to full swing on a typical opening, which makes it useful when you only want to keep the lever off the drywall rather than restrict traffic.
6) Hinge pin stop or wall bumper: which should I use to protect the wall behind a door?
A wall or baseboard bumper takes the impact at the point of contact and needs solid blocking behind the drywall to survive real traffic. A hinge pin stop like the Door Saver III takes the load at the hinge instead, so there is nothing on the wall to hit, nothing to work loose out of a hollow wall, and nothing sticking out into the room. The Door Saver III goes further and drops the rubber tip entirely, so there is no bumper to mark the door face or catch trim. Where the door swings into a corner or against cabinetry rather than open wall, a floor stop or holder is still the better call.
7) Do hinge pin door stops slide up the pin and stop working? Does the Delaney one do that?
That is the usual failure with cheap hinge mounted stops, and it is what the Door Saver III's cam lock mechanism is built against: the cams grip rather than ride, so the stop does not walk up the pin in service. The vinyl bushing does the same job from the other direction by preventing pin creep. Body is carbon steel, not cast zinc.
8) Will a hinge pin stop hold a door open, or does it only stop it?
The Door Saver III is a stop, not a holder. It limits the swing at up to 160 degrees to keep the door and trim off the wall; it does not latch the door in the open position. If you need the door to stay open on its own, look at a hold-open type such as the Orca HPDS or HPHD, which are catalogued with a door holder function.
9) I'm ordering hinge pin stops for a whole building. How many per door do I need and what do I specify?
One stop per door does the job, fitted to a single hinge, usually the top one where it is out of reach. The only thing to specify is finish, by BHMA number: 625, 619, 613 or 622. Model is DLY-4024 across all four. Since it uses the existing pin, there is no need to order hinges, anchors or backing along with it.
10) Is there a heavier duty hinge pin stop than the Delaney Door Saver III for a high traffic commercial door?
The Orca Hardware HPHD HD Hinge Pin Stop is the heavy duty option in the same mounting style, and it also functions as a door holder. Contractors and MRO buyers working corridor and stairwell doors that see constant use often specify the HPHD for that reason. The Delaney Door Saver III DLY-4024 is made from carbon steel and stops the door without a rubber tip or wall plate, which keeps trim and painted walls clean in tenant units and offices where the swing simply needs to be limited to as much as 160 degrees.
11) What should I use instead of the Delaney Door Saver III if my trim sits tight against the hinge barrel?
The Door Saver III DLY-4024 requires at least 0.25 inch of clearance between the trim and the hinge barrel, and both of its cams have to contact the plate on each side to work, so a tight casing rules it out. In that case look at the Orca Hardware HPST Series Hinge Pin Stop or the Orca Hardware HPDS Hinge Pin Door Stop, both hinge pin mounted door holders that give you a second and third profile to try against the same opening before you move to a wall or floor mounted stop.
