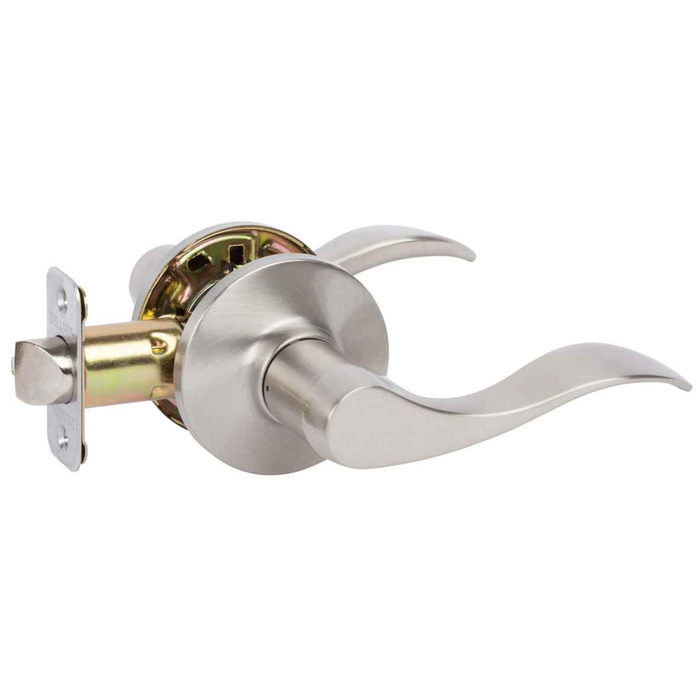

Delaney Logan Pushbutton Privacy (Panic Proof) Door Leverset
Latch bolt operated from either side at all times. Outside locks when inside push button is activated.
Features:
- Previously Under the Brand Ez-Set
- All Metal Construction
- Reversible Handing (Left or Right)
- KW1 Solid Brass 5 Pin Cylinder
- Cylinder can be Removed for Easy Re-keying
- Includes Round Corner Latch
- Combination Screws for Wood or Metal Door Mounting
- Concealed Screws
Specifications:
- Backset: 2-3/4", 2-3/8"
- Cross Bore: 2-1/8"
- Edge Bore: 1"
- Handle Style: Lever
- Latch Face: Round Corner
- Strikes: Full Lip Round Corner
- Door Thickness: Adjustable from 1-3/8" to 1-3/4"
- Lever Length: 4-1/8"
- Projection: 2-5/16"
Manufacturer Resources
Product Specs
- Subcategory:
- Bored Locksets
- Series:
- Logan
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Commercial/Residential:
- Residential
- Lock Function:
- Privacy
- Product Type:
- Leverset
- Grade:
- Grade 3
- Product Attribute:
- Cylindrical Locks
- Product Function:
- Privacy/Bed/Bath
- Product Category:
- Mechanical Locks
- Department:
- Door Hardware
Delaney Hardware D22820P – Frequently Asked Questions
1) Will the Delaney Logan privacy leverset fit my existing door prep, or do I need to redrill?
It drops into a standard bored prep: 2-1/8 inch cross bore, 1 inch edge bore, and it ships to cover both common backsets, 2-3/8 and 2-3/4 inches. Door thickness adjusts from 1-3/8 to 1-3/4 inches, so it covers both a lighter interior door and a standard 1-3/4 inch one. If your current knob or lever came out of a 2-1/8 inch bore, no new holes are needed.
2) Do I have to order a left hand or right hand version of the Logan lever?
No handing to specify. The Logan lever is reversible in the field for either a left or right hand door, so one part number covers both swings. That is why it works for a property manager buying a case of them for mixed openings without sorting by door.
3) What does a pushbutton privacy lever actually do, and can someone get in from the hallway in an emergency?
The latch retracts from both sides at all times, and pressing the inside button locks the outside lever. It is panic proof, so turning the inside lever releases the button on the way out, nobody gets trapped. There is no key on this function; it is meant for a bedroom or bathroom, not an entry or a closet you want secured.
4) Is a Grade 3 lever like the Delaney Logan good enough for an apartment building or an office?
Grade 3 is a residential duty rating, and Delaney lists the Logan as residential. That suits bedrooms and bathrooms in apartments, single family, and light multi-family. For a commercial corridor, a school, or anything taking real traffic, step up to a commercial duty privacy lever. ZenSupply carries the Cal-Royal INDLEV-20, a commercial grade privacy leverset with a red/green occupancy indicator that also fits 1-3/8 to 1-3/4 inch doors.
5) Will the latch on this Delaney lever line up with the strike already in my frame?
The Logan comes with a round corner latch face and a full lip round corner strike. If your frame is prepped for a square corner faceplate, the round corner latch will not sit flat in that mortise without rework. Most residential doors and hollow metal frames use round corner prep, so it usually matches. The strike is included, so you can swap it if the existing one does not.
6) I need an occupancy indicator on a restroom door. Does the Delaney Logan have one?
The Logan is a plain pushbutton privacy lever, locked or unlocked with no visual status from the outside. For a restroom where staff or the public need to see whether it is occupied, the Cal-Royal INDLEV-20 is a privacy leverset with a red/green occupancy indicator, offered in 2-3/8 and 2-3/4 inch backsets and adjustable for 1-3/8 to 1-3/4 inch doors.
7) What is a good alternative to the Delaney Logan privacy leverset for a restroom where staff need to see whether the room is occupied?
Use the Cal-Royal INDLEV-20 privacy indicator leverset. It carries a red/green occupancy indicator so the door reads occupied or vacant from the corridor without anyone trying the lever, which the Logan pushbutton privacy leverset does not provide - the Logan locks the outside lever when the inside pushbutton is pressed and gives no visual state. Both fit doors 1-3/8 inch to 1-3/4 inch thick and both are made for 2-3/8 inch and 2-3/4 inch backsets, so the door prep is the same either way. Common cases for the indicator version are single-occupancy restrooms, exam rooms, and lactation or wellness rooms in offices, schools, and clinics.
8) Can the Cal-Royal INDLEV-20 replace a Delaney Logan privacy leverset without redrilling the door?
In most cases yes. The Logan pushbutton privacy leverset uses a 2-1/8 inch cross bore, a 1 inch edge bore, and 2-3/8 inch or 2-3/4 inch backsets, and adjusts to doors 1-3/8 inch through 1-3/4 inch thick. The Cal-Royal INDLEV-20 is built for the same 2-3/8 inch and 2-3/4 inch backsets and the same 1-3/8 inch to 1-3/4 inch door thickness range, so an existing standard bored-door prep generally carries over. Confirm the strike prep matches - the Logan ships with a full lip round corner strike and a round corner latch face, so a door and jamb already cut for square corner hardware will need attention regardless of which lock goes in.
9) Will the Logan privacy lever work on a hollow metal door, or is it wood only?
Both. The Logan ships with combination screws that mount in a wood or a metal door, so the same box works on a hollow metal frame-and-door opening or a solid wood one. Screws are concealed once the trim is on.
10) How far does the Delaney Logan lever stick out from the door, and how long is the lever?
Projection is 2-5/16 inches off the door face and the lever measures 4-1/8 inches long. That matters where a door swings back against a wall, next to a cabinet run, or in a tight bathroom, since a lever catches a sleeve or a wall stop in a way a knob does not.
11) Is the Delaney Logan the same as the old Ez-Set lever I have on my other doors?
Delaney sold the Logan under the Ez-Set brand previously, so it is the same product line under the current name. If you are adding to a building already fitted with Ez-Set levers of this style, the Logan is the continuation of it.
12) Which privacy leverset should I standardize on for apartment bedrooms and baths versus a commercial building?
The Delaney Logan pushbutton privacy leverset is a Grade 3 residential-duty lock, which is the usual fit for apartment and single-family bedroom and bathroom doors where traffic is limited to the occupants. For a commercial building - office restrooms, clinics, schools - the Cal-Royal INDLEV-20 is rated standard duty commercial. Property managers running mixed portfolios often split the spec that way: Logan on the unit interiors, the commercial indicator lock on the shared and public rooms. Both are lever operated, so ADA-style lever actuation is available on either side of that split.
13) Does the Cal-Royal INDLEV-20 give me a keyed lever, and is it the same as a privacy lock?
No - the INDLEV-20 is a privacy function lock with an occupancy indicator, not a keyed entry lever, so it secures a room from the inside rather than controlling access from a corridor. The Delaney Logan is likewise privacy function: the latch bolt retracts from either side at all times and the outside lever locks only when the inside pushbutton is pressed. Neither is the right choice for an office, storage room, or unit entry door that has to be locked from the outside and opened with a key. For those openings you want an entry or storeroom function lever instead. Where the two privacy locks differ is the status display, not the security level.
14) What finishes does the Delaney Logan lever come in, so I can match the rest of my doors?
Four finishes: US15 Satin Nickel, US26 Polished Chrome, US12P Tuscany Bronze, and US19 Black. Those are the standard finish codes, so if the entry and passage levers on your other openings are called out by US number you can match them directly.
15) Is the Delaney Logan privacy lever plastic inside, or metal?
All metal construction through the chassis and trim. That is the difference worth checking on a residential grade lever, since the failure point on cheap privacy sets is a plastic button mechanism or spindle in a bathroom that gets used every day.
