Delaney LP250 - Electronic Key...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$280.00
$203.69

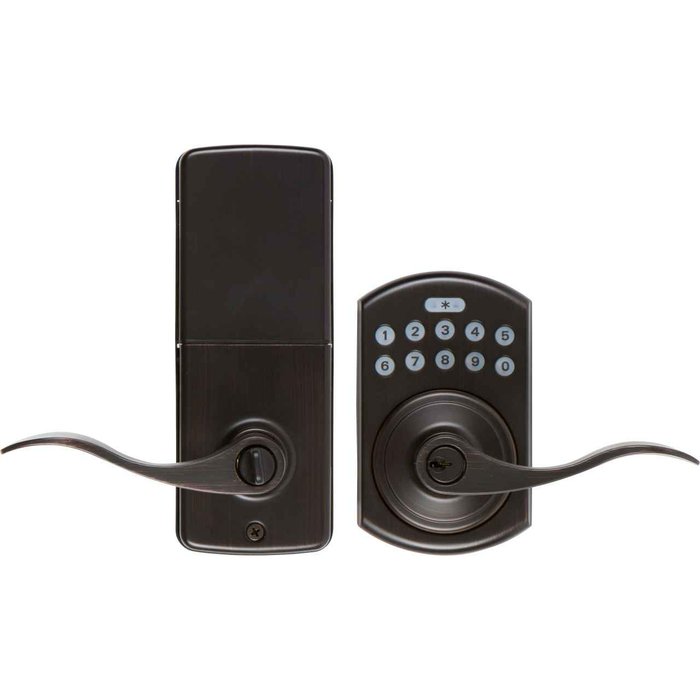

Delaney LP250 - Electronic Keypad Leverlock

Delaney LP250 - Electronic Keypad Leverlock

(No reviews yet) Write a Review

Model: 311805
$280.00
$203.69
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$280.00
$203.69
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

LP250 Electronic Keypad Leverlock

Features:

  • Panic Proof
  • Reversible

Specifications:

  • Backset: Fits 2-3/8” and 2-3/4”
  • Door Thickness: 1-3/8” ~ 2” door
  • Strike: 9103
  • Throwbolt: 1/2”
  • Power: 6V - 4 AA Batteries, Not Included. (Estimated battery life, 1-year)
  • Cylinder: KW1 5-pin cylinder Standard. SC1 optional Packed KD
  • Passcode: 4 to ten digits, Maximum of 6 Passcodes supported

Door Prep

  • Cross bore: 2-1/8”
  • Edge bore: 1”
  • Latch face: 1” x 2-1/4”

Dimensions

  • Exterior Unit: 5-1/8” x 3-1/8”
  • Interior Unit: 7-1/2” x 2-7/8” x 1-3/4” (H x W x D)

Manufacturer Resources

Product Specs

Subcategory:
Bored Locksets
Series:
LP250 Series
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Product Type:
Leversets
Reader Type:
Keypad
Battery Operated:
Yes
Grade:
Grade 2
Product Attribute:
Electronic Locks
Product Finish:
US12P Tuscany Bronze
Product Category:
Electronic Locks
Department:
Door Hardware

Delaney Hardware 311805 – Frequently Asked Questions

1) Will the Delaney LP250 keypad leverlock fit my door, and what backset does it need?
The LP250 fits doors from 1-3/8 inch up to 2 inch thick, and the latch handles both standard backsets, 2-3/8 inch and 2-3/4 inch, so you don't have to know which one your door was bored for before ordering. Those two are the only backsets used on residential bored doors, so if the door already has a knob or lever in it, the LP250 goes back in the same hole.
2) Do I have to order the Delaney LP250 for a left or right hand door?
No handing to specify. The LP250 is reversible, so one part number covers both swings and you set the handing at install. Useful if you are buying several for a building and don't want to survey every opening first.
3) Can I key the Delaney LP250 keypad lock to match the rest of my Kwikset or Schlage keys?
Yes, within those two keyways. The LP250 ships standard with a KW1 5-pin cylinder, and SC1 is available as an option, so it can be brought onto an existing Kwikset-keyed or Schlage-keyed system. Keying is a required choice at order: keyed different, or keyed alike if you want one key across several units. The cylinder is packed keyed different unless you specify otherwise.
4) How many user codes does the Delaney LP250 keypad support, and how long can they be?
Six passcodes maximum, each 4 to 10 digits. That's enough for a family, a cleaner and a contractor, but it's not a multi-family or short-term rental lock where you're issuing a code per guest. If you need dozens of rotating users, this is the wrong class of lock.
5) Is the Delaney LP250 keypad lock rated for a commercial building or an apartment corridor?
It's a Grade 2 residential lock. For houses, condo units and light-traffic interior openings that's the right duty level, but for a commercial corridor, a school or anything taking constant traffic, step up to a Grade 1 cylindrical lever such as the Falcon K101 or the Corbin Russwin CL3100 Series. The LP250 also has a 1/2 inch throwbolt, which is a latch, not a deadbolt, so it is not the lock for a primary entry you want dead-bolted.
6) I'm putting keypad locks on several rental units. Can I run one key across all of them and separate codes per unit?
Yes. Order the LP250 keyed alike and one key opens every unit for management, while each door gets its own set of up to six passcodes, 4 to 10 digits, for the tenant. Keep the keyway consistent across the order, KW1 or SC1, since the two will not interchange. Levers are reversible, so a mixed-swing building takes the same part number throughout.
7) What is the closest alternative to the Delaney LP250 keypad leverlock if I want a code-entry lever from a different brand?
The Emtek Classic Keypad Leverset is the other keypad-entry leverset in the same category. Both are lever sets operated by a code at the door rather than by key alone. The Delaney LP250 runs on 6V from 4 AA batteries, supports 4 to ten digit passcodes with a maximum of 6 passcodes, and ships with a KW1 5-pin cylinder standard with SC1 optional, so it can be keyed into an existing Kwikset or Schlage system as a mechanical override.
8) I want keypad entry without batteries at the door. What should I use instead of the LP250?
The Lockey 1150 is a mechanical keypad lever set with double combination in a passage function, and the Lockey 1150S is a mechanical keypad heavy duty lever set with adjustable backset. Both are mechanical code locks, so there is no battery to change; the LP250 is battery operated on 4 AA cells with an estimated battery life of one year. Both Lockey sets fit doors 1-1/8 inch to 2 inch thick, where the LP250 fits 1-3/8 inch to 2 inch.
9) The LP250 is rated for residential use. What do I use on a commercial opening that needs keypad or credential control?
For a commercial electrified opening, the Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever lock running on 12VAC/DC, with a keyed version also offered, and it fits doors 1-3/4 inch to 2 inch thick. That is an access-control-wired lock rather than a standalone keypad: the LP250 is a Grade 2 residential lock that carries its own 6V battery power and its own passcodes at the door.
10) I am standardizing an apartment building on one keyway. Can I mix the LP250 with other locks on the same key system?
The LP250 takes a KW1 5-pin cylinder as standard with SC1 5-pin as an option, and can be ordered keyed different or keyed alike. If the building is standardized on Schlage C, the Cal-Royal AG00 entrance lever and the Cal-Royal AG03 classroom lever both use a 6-pin Schlage C keyway keyed different, and the Arrow MK33-BD-CS asylum lock uses a Schlage C keyway as well. Cylinder pinning should be confirmed with the keying order before the units go on the doors.
11) My door is 1-1/4 inch thick. Does the LP250 fit, and what else works?
The LP250 covers 1-3/8 inch through 2 inch doors. For a thinner door, the Lockey 1150 and Lockey 1150S keypad lever sets both cover 1-1/8 inch to 2 inch, so they reach down below 1-3/8 inch. The Lockey 1150S also has an adjustable backset, where the LP250 fits 2-3/8 inch and 2-3/4 inch backsets.
12) The opening needs a fire rated lever. Does the LP250 suit it, and what does?
For a fire rated opening, the Falcon K101 is a Grade 1 heavy duty passage cylindrical lock with a fire rating that fits doors 1-3/8 inch to 2-1/4 inch, and the Corbin Russwin CL3110 is a Grade 1 vandal resistant passage/closet lever with a fire rating for 1-3/4 inch to 2 inch doors. The LP250 is a Grade 2 residential keypad lock, so it belongs on residential openings rather than on a rated door assembly.
13) What batteries does the Delaney LP250 keypad lever take, and are they in the box?
Four AA batteries, 6V total, and they are not included, so pick them up with the lock. Estimated life is about a year. There is also a keyed cylinder on the lock, so a dead battery is not a lockout as long as you carry the key.
14) Will the Delaney LP250 latch into the strike that's already in my jamb?
The throwbolt is 1/2 inch, which is the normal latch projection on a bored residential lockset, so it will engage a standard strike in an existing jamb. A 9103 strike is the matching one for the lock. If the existing strike is a round-corner or drive-in type in good alignment, you can generally leave it and just fit the latch.
15) Is the Delaney LP250 safe on a bedroom or exit door if someone needs to get out fast?
It's panic proof, meaning the inside lever releases the latch and lets a person out without entering a code or turning anything first. That matters on bedroom, basement and rear exit doors where an occupant has to leave in a hurry.
16) What's the difference between the Delaney LP250 keypad lever and a mechanical pushbutton lock like the Lockey 1150?
The LP250 is electronic, running on four AA batteries with up to six programmable codes of 4 to 10 digits, plus a KW1 or SC1 key cylinder as backup. The Lockey 1150 is a mechanical keypad lever set, no batteries to change, and it covers a wider door range at 1-1/8 to 2 inch against the LP250's 1-3/8 to 2 inch. Go mechanical for a gate, a shed or an unheated opening you'd rather not maintain batteries on; go electronic when you want multiple separate codes and the convenience of changing one without re-doing the lock.
17) If I do not need a code at all and just want a keyed entry lever on that door, what matches the LP250's door prep?
The Hager 2525 is a Grade 2 cylindrical entry lock with a lever handle that fits doors 1-3/8 inch to 2 inch thick, the same thickness range the LP250 covers. The Cal-Royal AG00 entrance lever is Grade 2 with a 6-pin Schlage C keyway keyed different on a 2-3/8 inch backset. The LP250 fits both 2-3/8 inch and 2-3/4 inch backsets and takes a standard 2-1/8 inch cross bore with a 1 inch edge bore.
18) Which levers look like substitutes for the LP250 but will not lock the door?
Passage and dummy levers share the lever appearance but have no locking function at all. The Falcon B101 is a Grade 2 cylindrical passage lever with a non-handed design, the Bravura Atlanta is a Grade 2 passage leverset, and the BEST 7KC Series 1DT is a Grade 2 non-keyed single dummy trim lever. None of those secure an opening. The LP250 is a keypad entry lock with a 1/2 inch throwbolt and a mechanical key cylinder.
19) What is the difference between the Delaney LP250 and a Grade 1 storeroom or classroom lever for a school or office corridor?
The Dexter C1000 Series classroom lever is Grade 1 with a clutching keyed classroom function for 1-3/8 inch to 1-3/4 inch doors, and the Cal-Royal AG05 is a Grade 2 storeroom lever with a deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch doors. Those are key-operated functions written into a hardware schedule. The LP250 is a Grade 2 residential keypad lock that stores up to 6 passcodes of 4 to ten digits, which suits openings managed by code rather than by a keyed function code.
20) I need a matching lever on a closet or double door next to an LP250 opening. What pairs with it?
A non-locking lever handles that opening. The Callan Bentley is a Grade 2 dummy lever, the BEST 7KC Series 1DT is a Grade 2 non-keyed single dummy trim lever, and the Accentra 5301LN Augusta is a Grade 2 passage/closet cylindrical lever. The LP250 comes in US15 Satin Nickel, US12P Tuscany Bronze and US19 Matte Black, so finish should be matched at the order.
21) Is the Delaney LP250 handed, and how does that compare to other levers I might spec alongside it?
The LP250 is reversible, so one unit covers either hand of door. The Falcon B101 Grade 2 passage lever and the Falcon K101 Grade 1 passage lock are both non-handed as well. By contrast the Baldwin Estate 5103 half dummy is ordered by hand, as a left hand or a right hand part, so the swing has to be confirmed before ordering that one.
22) What finishes does the Delaney LP250 keypad leverlock come in?
Three: US15 Satin Nickel, US12P Tuscany Bronze, and US19 Matte Black. That covers the usual pairings if you are matching existing trim, Tuscany Bronze against oil-rubbed and aged brass hardware, Matte Black against black, Satin Nickel against brushed chrome and nickel.
23) Is there another keypad leverset if I want a different look than the Delaney LP250?
The Emtek Classic Keypad Leverset is the other keypad lever option, from Emtek's Classic series, if the styling is what's driving the choice. On spec grounds the LP250 is the one with the published numbers: Grade 2, 1-3/8 to 2 inch door range, 2-3/8 and 2-3/4 backsets, KW1 or SC1 cylinder.
24) What is a simpler keyed lever to put on the interior units when only the exterior door gets an LP250 keypad?
The Hager 2510 Grade 2 passage lever and the Arrow GL01 Grade 2 passage lock with Sierra lever are both non-keyed passage functions, and the Kwikset 300BRNL Breton privacy lever is a Grade 3 privacy function for 1-3/8 inch to 1-3/4 inch doors on bed and bath openings. The LP250 handles the code-entry exterior opening with a 1/2 inch throwbolt and a 9103 strike.
