Delta Breez FRS200 [30-200] CF...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$280.50

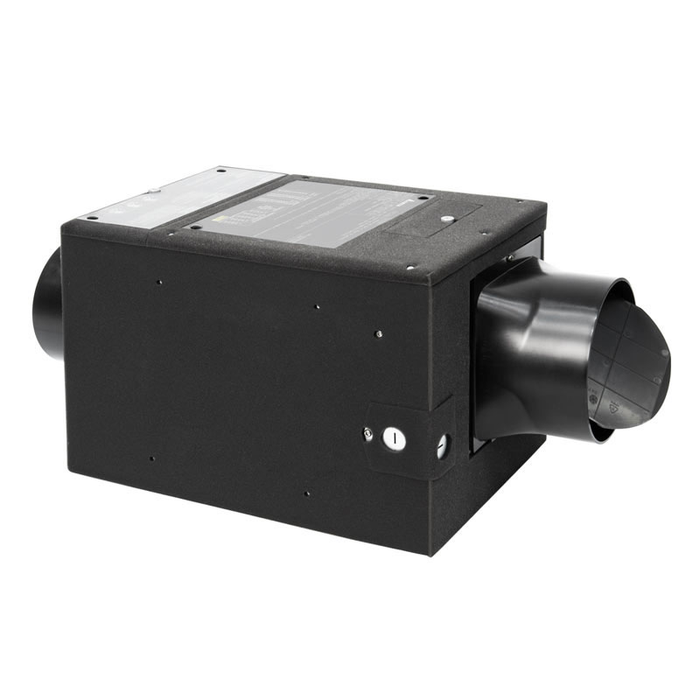

Delta Breez FRS200 [30-200] CFM - Delta BreezFresh Supply Fan

Delta Breez FRS200 [30-200] CFM - Delta BreezFresh Supply Fan

(No reviews yet) Write a Review

Model: VDBFRS200
From the BreezFresh Collection
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$280.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

The Delta BreezFresh FRS200 is a fresh air supply fan rated for 30 to 200 CFM, which offers quiet energy efficient operation. FRS200 is ENERGY STAR certified and is also uniquely designed to meet three ventilation functions, Supply, Balanced, and Filtration. When used as a Supply air fan combined with the optional MERV13 filter, the FRS200 removes pollutants, reducing allergens, odors and disease spread.
Part no. VDBFRS200.

Features

  • Five mounting installation possibilities: ceiling hung, under ceiling, wall mounted, attic mounted, and flush to ceiling
  • Easy installation with bracket
  • ECM motor engineered to run continuously for a minimum 70,000 hours
  • Insulated housing reduces noise and condensation
  • UL/cUL listed
  • Removable permanently lubricated motor
  • Built-in soft start function to increase bearing life
  • Automatically powers OFF when impeller is locked abnormally

Product Specs

Subcategory:
BreezFresh
Static Pressure:
0.2
Maximum CFM:
200
Product Group:
Washroom/Bath
Product Subgroup:
Supply Fans
Collection:
BreezFresh
Product Height:
10”
Product Category:
Supply Fans
Product Width:
10”
Department:
Plumbing
Product Wattage:
4.7 - 42.0

Delta Breez VDBFRS200 – Frequently Asked Questions

1) Will the Delta Breez FRS200 supply fan work for a whole-house fresh air intake, or is it just a bath fan?
The FRS200 is a fresh air supply fan, not an exhaust bath fan. It pulls outside air in and can be set up three ways: supply, balanced, or filtration. Rated 30 to 200 CFM, so it covers anything from a single trickle-rate dwelling-unit intake up to a whole small home. If what you need is to pull moisture out of a bathroom, this is the wrong device type, you want an exhaust fan instead.
2) How much space do I need to mount a Delta BreezFresh FRS200, and where can it go?
The FRS200 housing is 10 inches by 10 inches, and it mounts five ways: ceiling hung, under ceiling, wall mounted, attic mounted, or flush to ceiling. That gives you an out if the joist bay is tight, hang it in the attic or strap it to a wall instead of trying to flush it into a finished ceiling. A mounting bracket comes with it.
3) Is the FRS200 rated to run 24/7 in a rental or multi-family unit?
Yes. The ECM motor in the FRS200 is engineered for a minimum 70,000 hours of continuous run time, and it has a soft start built in to extend bearing life. It also shuts itself off automatically if the impeller is locked, which matters when nobody is checking on it. For a property manager standardizing continuous ventilation across units, that combination is the point of the fan.
4) Does the FRS200 filter the incoming outside air, or do I need to order the filter separately?
Filtration on the FRS200 comes from an optional MERV13 filter, ordered separately. With it fitted and the fan running in supply mode, it takes pollutants out of the incoming air. Without the filter you are still getting the supply and balanced ventilation functions, just unfiltered outside air. If the job spec calls for filtered makeup air, budget for the filter as a second line item.
5) What is the static pressure rating on the FRS200, and will it hold CFM through a long duct run?
The FRS200 is rated at 0.2 inches of static pressure. That is the condition its CFM range is stated against, so size your duct and keep elbows down if you are running a long intake path from an exterior hood. At 200 CFM on the top of the range you are asking the most of the fan, and a restrictive run will cost you flow before anything else does.
6) Is the Delta BreezFresh FRS200 UL listed and ENERGY STAR certified?
Both. The FRS200 is UL/cUL listed and carries ENERGY STAR certification. The cUL side matters if you are specifying into a Canadian project, and the ENERGY STAR listing is what gets it accepted on a lot of institutional and utility rebate specs.
7) Will condensation or fan noise be a problem with the FRS200 mounted in an attic?
The FRS200 housing is insulated, which does two jobs at once: it damps the noise so it does not telegraph down through the ceiling, and it cuts condensation on the housing when you are pulling cold outside air through a warm attic. That is the reason attic mounting is one of the five listed positions rather than a workaround.
8) What is the exact part number to order the Delta Breez FRS200 supply fan?
Order the Delta BreezFresh FRS200 as part number VDBFRS200. It ships as a single configuration, there are no finish or size options to specify, so the model number alone gets you the right fan. Filters and any controls are separate.
9) Can the motor on the FRS200 be serviced or replaced without pulling the whole housing out of the ceiling?
The motor on the FRS200 is removable and permanently lubricated, so there is no oiling schedule and a motor swap does not mean cutting the housing out of a finished ceiling. For an MRO crew maintaining a lot of units, that is the difference between a service call and a drywall repair.
