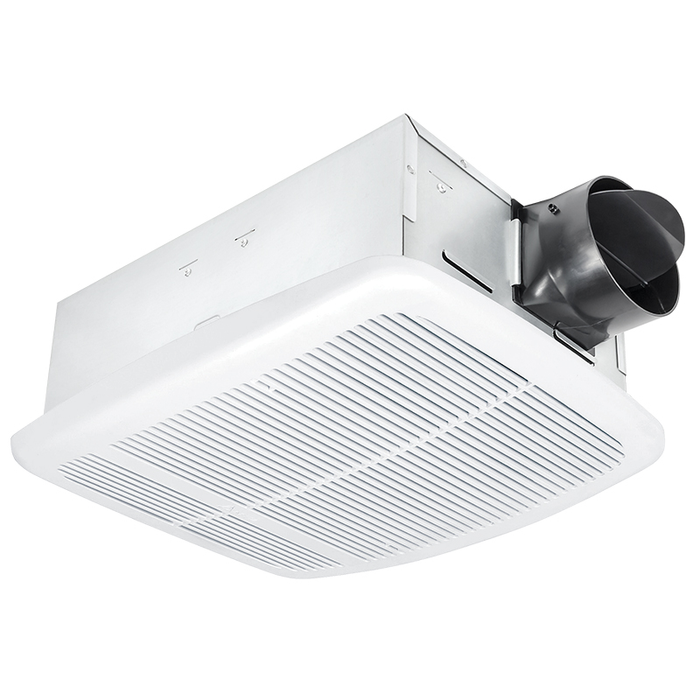

Delta Breez Radiance RAD80 - 80 CFM Fan with Heater

Delta Breez Radiance RAD80 - 80 CFM Fan with Heater

(No reviews yet) Write a Review

Model: RAD80
From the BreezRadiance Collection
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$135.07
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

The Delta BreezRadiance RAD80 combines a quiet bath fan and heater all in one with built-in thermostat and brushless DC motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 80 CFM (±10%) and 1.5 Sones is at 0.1 static pressure. Power consumption approximately 11.7 Watts with an efficiency rating approximately 7.0 CFM/Watt. Duct diameter is no less than 4” Built-in thermostat to regulate temperature. Metal guard to help prevent user contact with heating wire. Heater element with 1300W and conforms to cUL safety standards. Heater module equipped with thermal cutoff fuse and thermostat.

Features

  • Delta Breez Radiance RAD80 - 80 CFM Fan with Heater.
  • 80 CFM single speed fan for spaces up to 80 Sq. Ft.
  • Brushless DC Motor outlasts typical AC motors by 2-1/2.
  • Quiet at 1.5 sones.
  • 1300W heating element evaluated by cUL for safety standards quickly and evenly distributes warmth.
  • Heater module equipped with thermal cutoff fuse and thermostat.
  • Separate 15 amp circuit required.

Product Specs

Subcategory:
BreezRadiance
Static Pressure:
0.1 - 0.25
Maximum CFM:
80
Sones:
1.5
Current:
11
Heating Element (Watts):
1300
Duct Size:
4"
Duct Diameter:
4"
Energy Star:
Yes
Warranty:
3 Year Limited
Product Group:
Washroom/Bath
Product Subgroup:
Ventilation Fans
Collection:
BreezRadiance
Product Voltage:
120/60
Product Height:
5-1/2"
Product Category:
Ventilation Fans
Product Width:
16-13/16"
Department:
Plumbing
Product Wattage:
8.2 - 11.7
Product Depth:
10-11/16"

Delta Breez RAD80 – Frequently Asked Questions

1) How big a bathroom will an 80 CFM bath fan with heater cover?
The Radiance RAD80 is a single speed 80 CFM unit sized for spaces up to 80 square feet. That covers a typical full bath or a three quarter bath. For a larger master bath, or one with a separate enclosed water closet or steam shower, you want more air than this unit moves or a second exhaust point.
2) Does the RAD80 bath fan heater need its own circuit?
It does. The heater element draws 1300W, and the unit calls for a separate 15 amp circuit at 120V/60Hz. You cannot tap it off the lighting circuit or share it with receptacles. Plan a dedicated homerun before the drywall goes up, because retrofitting one into a finished ceiling is the expensive part of this install.
3) What size opening do I need to frame for a Delta Breez Radiance RAD80?
The housing measures 16-13/16 x 10-11/16 x 5-1/2 inches. That 5-1/2 inch figure is the one that decides the job: you need that much clear depth above the ceiling, which rules out a 2x6 joist bay and means you are framing between 2x8 or deeper joists, or dropping a soffit. Check the depth before you commit, not the footprint.
4) Can I leave the RAD80 running continuously for whole house ventilation?
Yes. The brushless DC motor is engineered for a minimum 70,000 hours of continuous run, which is roughly eight years of nonstop operation, and it draws only about 11.7 watts in fan mode at about 7.0 CFM per watt. That is what makes continuous exhaust practical here. The heater is a separate module on its own thermostat and is not part of that duty.
5) Is the Delta Breez Radiance RAD80 Energy Star rated?
Yes, the RAD80 carries an Energy Star rating. For multi-family or institutional work where the spec or a utility rebate program requires Energy Star exhaust, that qualifies it. Its rated draw runs 8.2 to 11.7 watts on the fan side.
6) Do I need a separate wall thermostat for the RAD80 heater?
No. The heater module has a thermostat built in, so it regulates temperature on its own without a separate wall stat. It also carries a thermal cutoff fuse, and a metal guard over the heating wire to keep fingers and lint off the element. The heating element has been evaluated by cUL for safety standards.
7) Should I buy a fan with a built-in heater or a plain exhaust fan plus a separate heater?
A combination unit like the Radiance RAD80 puts 80 CFM of exhaust and a 1300W heater in one ceiling opening on one 15 amp circuit, which is the reason to pick it: one rough-in, one cut, one circuit. Go with a plain exhaust fan instead when the bath is already served by the building's heat and you only need to clear moisture, since a fan-only unit needs no dedicated circuit and fits a shallower bay than this housing's 5-1/2 inch depth.
8) How loud is the Delta Breez RAD80 fan and heater?
1.5 sones at 0.1 static pressure. That is quiet enough for a hotel guest bath or a bedroom ensuite where a noisy fan generates complaints, but it is not one of the near silent sub 1.0 sone units. The brushless DC motor is a large part of why it holds that number.
9) Does the Delta Breez Radiance line come in more than one size?
The BreezRadiance RAD80 is sold as a single model, the 80 CFM fan with heater. There is no size or finish choice to specify when ordering it, so an order is just quantity. That makes it straightforward to standardize across a floor of identical baths.
