Delta Breez Radiance RAD80ELED...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$262.64

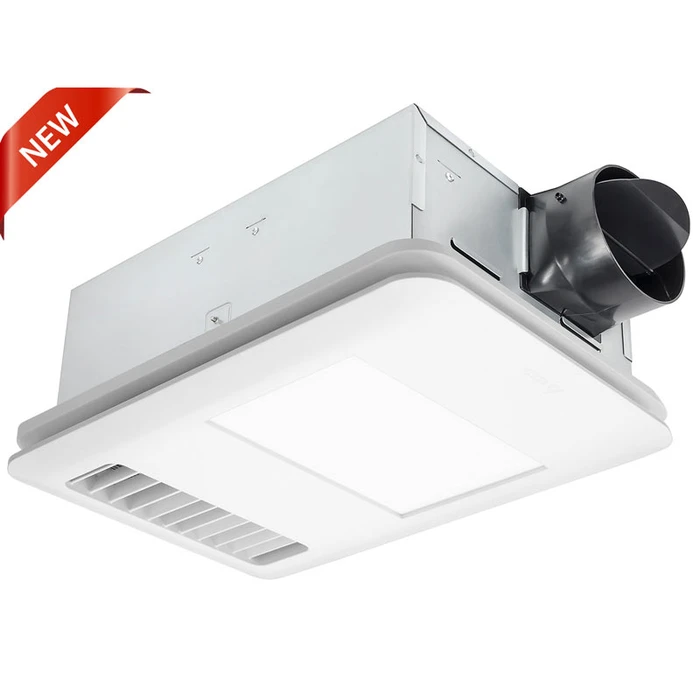

Delta Breez Radiance RAD80ELED - 80 CFM Fan/Edge-lit Dimmable LED light with Heater

Delta Breez Radiance RAD80ELED - 80 CFM Fan/Edge-lit Dimmable LED light with Heater

(No reviews yet) Write a Review

Model: RAD80ELED
From the BreezRadiance Collection
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$262.64
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ventilation fan shall be model RAD80ELED; brushless DC motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 80 CFM (±10%) and 1.5 Sones at 0.1 static pressure. Power consumption approximately 14.5 Watts with an efficiency rating approximately 5.5 CFM/Watt. Duct diameter no less than 4” built-in thermostat to regulate temperature. Metal guard to help prevent user contact with heating wire. Heater element with 1300W and conforms to cUL safety standards. Heater module equipped with thermal cutoff fuse and thermostat.

Product Specs

Subcategory:
BreezRadiance
Static Pressure:
0.1
Maximum CFM:
80
Sones:
1.5
Current:
11
Heating Element (Watts):
1300
LED Main Light (Watts):
13
Duct Size:
4"
Duct Diameter:
4"
Energy Star:
Yes
Warranty:
3 Year Limited
Product Group:
Washroom/Bath
Product Subgroup:
Ventilation Fans
Collection:
BreezRadiance
Product Voltage:
120 / 60
Product Height:
5/1/02
Product Category:
Ventilation Fans
Product Width:
16-13/16"
Department:
Plumbing
Product Wattage:
11.7
Product Depth:
10-11/16"

Delta Breez RAD80ELED – Frequently Asked Questions

1) How much ceiling space do I need to fit the Delta Breez Radiance fan/heater between joists?
The housing measures 16-13/16 inches wide by 10-11/16 inches deep, so it will not drop into a standard 14-1/2 inch joist bay without planning. On 16 inch on-center framing you'll typically be mounting it with the long dimension running parallel to the joists, or framing a header. Check the bay before you cut the ceiling.
2) Is 80 CFM enough ventilation for my bathroom?
The Radiance RAD80ELED moves 80 CFM. The common sizing rule for bathrooms under 100 square feet is 1 CFM per square foot with a 50 CFM minimum, so 80 CFM covers a typical full bath up to roughly 80 square feet. Larger baths, or ones with an enclosed toilet compartment or a separate tub and shower, need fixture-based sizing and often more than one unit.
3) Do I need a separate thermostat or timer to control the heater on this Delta Breez unit?
No separate thermostat is required. The RAD80ELED has a built-in thermostat regulating the heater, plus a thermal cutoff fuse in the heater module and a metal guard over the heating wire. What you do need is wall switching: the fan, the dimmable LED, and the 1300W heater are separate functions, so run enough conductors to switch them independently.
4) Is the Delta Breez Radiance RAD80ELED Energy Star rated?
Yes, it carries Energy Star. The fan side draws about 14.5 watts and runs roughly 5.5 CFM per watt, which is where that rating comes from. The heater element is a separate 1300W load and is not part of the fan efficiency number.
5) Will the LED light in the Radiance RAD80ELED work with the dimmer already in my wall?
The light is an edge-lit dimmable LED rated at 13 watts. Because it's a low-wattage LED load, pair it with an LED-rated (electronic low-voltage or LED-compatible forward phase) dimmer. An older incandescent dimmer with a high minimum load will flicker or refuse to start a 13 watt fixture.
6) Does the RAD80ELED heater carry a safety listing?
The heater element conforms to cUL safety standards, and the heater module includes a thermal cutoff fuse and thermostat. A metal guard covers the heating wire to keep hands and insulation off it.
7) Can this Delta Breez fan run continuously for whole-house or continuous bathroom ventilation?
Yes. The RAD80ELED uses a brushless DC motor rated for a minimum 70,000 hours of continuous operation, so leaving the fan on 24/7 for continuous ventilation is within what the motor is built for. Run the heater only on demand.
8) How loud is the Delta Breez RAD80ELED with the fan running?
1.5 sones at 0.1 inches static pressure. That's quiet enough for a hotel guest bath or a multi-family unit where noise complaints matter, and it's well under the 4.0 sone ceiling most residential codes set for intermittent bath exhaust.
9) Where do I find the installation instructions and submittal sheet for the RAD80ELED?
Delta publishes both for this model: an installation manual at zensupply.com/content/pdf/delta-breez/RAD80ELED_IM.pdf and a submittal sheet at zensupply.com/content/pdf/delta-breez/RAD80ELED_Submittal_Sheet_e.pdf. The submittal is what you hand an engineer or inspector for spec approval.
