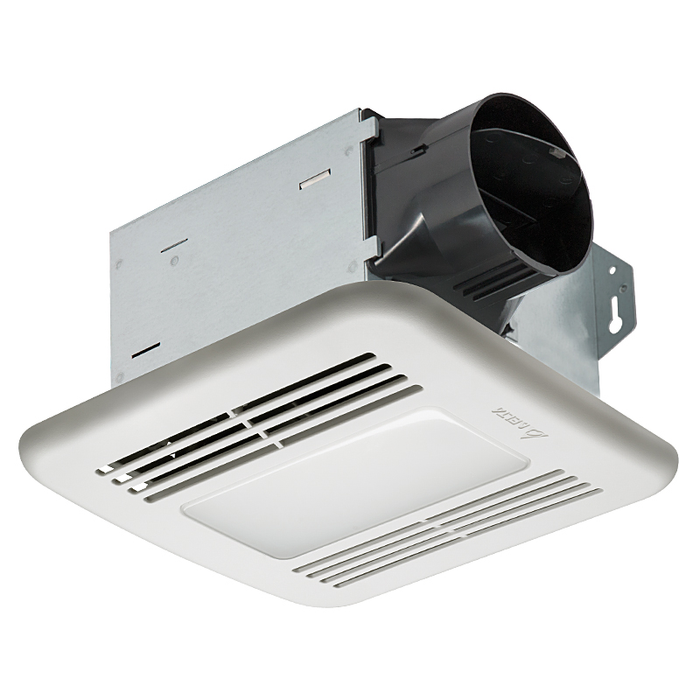

Delta Breez Integrity - ITG80LED - 80 CFM Fan/Dimmable LED Light

Delta Breez Integrity - ITG80LED - 80 CFM Fan/Dimmable LED Light

(No reviews yet) Write a Review

Model: ITG80LED
From the BreezIntegrity Collection
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$135.44
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

The Builder’s Choice for Green Construction.
Delta BreezIntegrity ITG80LED is ENERGY STAR® qualified with brushless DC motor engineered to run continuously for a minimum 70,000 hours. Airflow rating of 80 CFM and loudness rating of 1.3 Sone at 0.1 static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 11.3 Watts with eciency rating of 7.2 CFM/Watt at 0.1” static pressure; motor lock protection and self-compensating motor speed for intended airow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.

Features

  • 80 CFM single speed fan for spaces up to 80 Sq. Ft.
  • Brushless DC Motor outlasts typical AC motors by 2-1/2.
  • Quiet at 1.3 sones.
  • Energy star®-qualified.
  • 13-Watt Dimmable LED light included (equivalent to a 60-Watt incandescent bulb), Dimmer switch not included.
  • Main light output: 850 Lumens; 2700K; 80 CRI for high color accuracy.
  • Housing size 7-1/4" x 7-1/2" x 5-3/4".
  • 4" duct.
  • UL and uCL listed for ceiling mount installation.
  • UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.
  • 3 yr. limited warranty.

Manufacturer Resources

ITG50LED-Installation Manual

Product Specs

Subcategory:
BreezIntegrity
Fan Speed:
Continous Low Speed/Full Speed
Static Pressure:
0.1 - 0.25
Maximum CFM:
50 - 110
Sones:
0.3 - 1.5
Current:
0.6 Max
Energy Star:
Yes
Duct Diameter:
4"
Warranty:
3 Year Limited
Product Group:
Washroom/Bath
Product Subgroup:
Ventilation Fans
Collection:
BreezIntegrity
Product Voltage:
120/60
Product Height:
5-3/4"
Product Category:
Ventilation Fans
Product Width:
10-3/4"
Department:
Plumbing
Product Depth:
10-3/4"

Delta Breez ITG80LED – Frequently Asked Questions

1) What size bathroom will the Delta Breez Integrity ITG80LED cover?
The ITG80LED moves 80 CFM at single speed, which covers a bathroom up to 80 square feet. Past that, you either step up in CFM or run a second fan. It is quiet at 1.3 sones at 0.1 inch static pressure, so it is usable in a hotel or multi-family bath where noise complaints matter.
2) Will the ITG80LED fit in the ceiling joist bay where my old fan was?
The housing is 7-1/4 x 7-1/2 x 5-3/4 inches, so it drops between joists on standard 16 inch centers. The 5-3/4 inch height is the number to check first: you need that much clear depth above the ceiling, which rules it out under a shallow soffit or a 2x6 floor system without framing work.
3) Is a dimmer switch included with the Delta Breez ITG80LED?
No. The 13 watt LED is dimmable, but the dimmer switch is not in the box, so add one to the order if you want dimming. The fan is single speed, so the dimmer controls only the light, not the motor. Wire the fan and light as separate switched legs if the customer wants light without air.
4) Do I need a separate light fixture in the bathroom if I use the ITG80LED?
In a small bath, usually not. The integrated LED puts out 850 lumens at 2700K with 80 CRI, roughly a 60 watt incandescent, which handles general ceiling light over a tub or a compact powder room. It will not do the work of vanity lighting at the mirror.
5) Does the ITG80LED qualify for ENERGY STAR or green building credit?
The ITG80LED is ENERGY STAR qualified, which is what a LEED or green-build spec typically asks for on bath exhaust. The supporting numbers are 7.2 CFM per watt at 0.1 inch static pressure and an HVI certified 1.3 sone loudness rating, both of which are the values reviewers ask to see.
6) Will the Delta Breez ITG80LED still move air through a long duct run with elbows?
It holds up better than a typical AC fan. The brushless DC motor self compensates its speed to hold the intended airflow when it hits static pressure, and the fan is rated across a 0.1 to 0.25 inch static pressure range. That said, 4 inch duct on a long run with several elbows is where any 80 CFM fan loses ground, so keep the run as short and straight as the framing allows.
7) How long will the motor last in a rental or hotel bathroom that runs constantly?
The brushless DC motor is engineered for a minimum 70,000 hours of continuous run, which Delta puts at about 2-1/2 times a typical AC motor. There is motor lock protection built in. For a property manager standardizing across units, that is the number that decides whether you are back in the ceiling in three years.
8) Can I run the Delta Breez Integrity fan continuously for whole-house ventilation?
Yes. The Integrity runs a continuous low speed as well as full speed, so it can serve as the continuous exhaust point for an ASHRAE 62.2 style ventilation strategy and boost to full when the bath is in use. The motor is built for continuous duty at a minimum 70,000 hours.
9) What is the difference between the ITG80LED and the other BreezIntegrity LED models?
The BreezIntegrity LED family spans 50 to 110 CFM with sone ratings from 0.3 to 1.5. The ITG80LED is the 80 CFM step, rated 1.3 sones. Pick by room size: the smaller CFM model suits a powder room, the 80 covers up to 80 square feet, and larger baths or ones with a separate toilet compartment want the higher CFM model. All of them share the same 4 inch duct, so the rough-in does not change if you switch models mid job.
10) How much ceiling opening does the ITG80LED trim cover?
The grille covers a 10-3/4 by 10-3/4 inch footprint while the housing itself is 7-1/4 x 7-1/2 x 5-3/4 inches. That gap between housing and trim is what lets it hide a slightly ragged cut or a previous fan's opening, so long as the old hole is inside 10-3/4 inches square.
