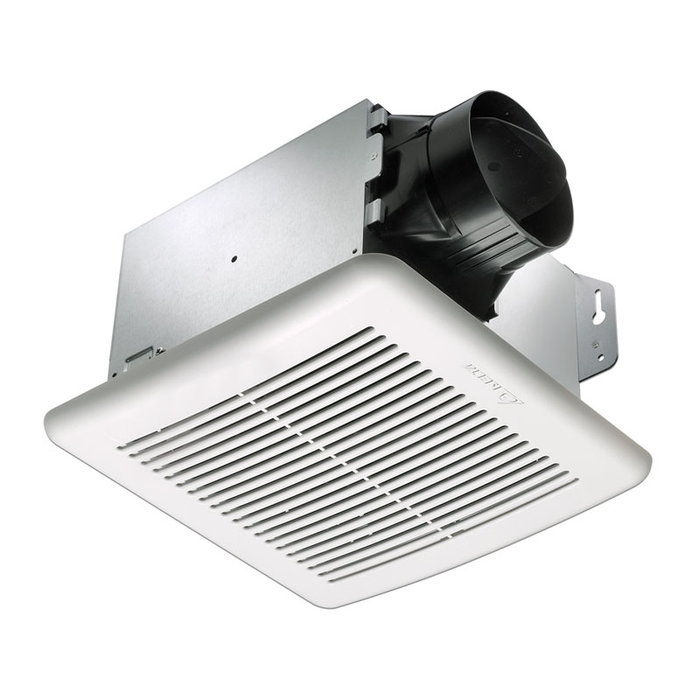

Delta Breez Green Builder Ventilation Fans - GBR100 - 100 CFM Single Speed

Delta Breez Green Builder Ventilation Fans - GBR100 - 100 CFM Single Speed

(No reviews yet) Write a Review

Model: GBR100
From the BreezGreenBuilder Collection
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$116.97
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

The Builder’s Choice for Green Construction.
Delta BreezGreenBuilder ventilation fans mark a new achievement in bathroom ventilation for green construction. Built upon market-leading energy efficiency, exceptionally low power consumption and quiet operation, the BreezGreenBuilder series offers a CFL or LED light option as well as humidity sensing option with continuous low speed control.

BreezGreenBuilder stays true to what has made the GreenBuilder series a winning value proposition for builders and contractors: a super reliable Delta DC brushless motor, a compact lightweight design for quick installation coupled with sound and flow ratings that far surpass building requirements...all at an affordable price.

Features

  • 100 CFM Single Speed Fan for spaces up to 100 sq. ft.
  • Brushless DC Motor outlasts typical AC motors by 2-1/2.
  • Quiet at 1.4 sones.
  • Energy star®-qualified.
  • Housing size 8-1/4" x 8" x 5-3/4".
  • 4" duct.
  • UL approved for ceiling and wall mount installations.

Product Specs

Subcategory:
BreezGreenBuilder
Static Pressure:
0.1 - 0.25
Maximum CFM:
100
Current:
0.22 Max
Duct Size:
4"
Duct Diameter:
4"
Energy Star:
Yes
Warranty:
3 Year Limited
Sones:
1.4- 1.5
Product Group:
Washroom/Bath
Product Subgroup:
Ventilation Fans
Collection:
BreezGreenBuilder
Product Voltage:
120/60
Product Height:
5-3/4"
Product Category:
Ventilation Fans
Product Width:
10-3/4"
Department:
Plumbing
Product Wattage:
12.6 - 13.5
Product Depth:
10-3/4"

Delta Breez GBR100 – Frequently Asked Questions

1) Will the Delta Breez GBR100 bath fan work with my existing 4 inch duct run?
Yes, the GBR100 has a 4 inch round duct connection, which is the standard size on most residential bath fan runs, so an existing 4 inch flex or rigid line ties straight in. Rated performance is 100 CFM at 0.1 to 0.25 inches of static pressure, so keep the run short and the elbows few if you want the full 100 CFM at the grille.
2) What size bathroom does a 100 CFM Delta Breez GBR100 fan cover?
The GBR100 moves 100 CFM and is sized for spaces up to 100 square feet. For a bathroom bigger than that, or one with a separate enclosed toilet room or steam shower, you want more than one fan or a higher CFM unit rather than stretching this one.
3) Can the Delta Breez GBR100 be mounted in a wall instead of a ceiling?
Both. The GBR100 is UL approved for ceiling and wall mount installations, so it works in a joist bay overhead or in a wall cavity where there is no attic above. Plan the 4 inch duct to exit outdoors either way.
4) What is the housing size on the Delta Breez GBR100, and will it fit between 16 inch on center joists?
Housing measures 8-1/4 x 8 x 5-3/4 inches. The 8-1/4 inch face dimension clears a 14-1/2 inch bay between 16 inch on center framing with room to spare, and the 5-3/4 inch depth fits inside a 2x8 joist. In a 2x6 wall or a 2x6 ceiling the 5-3/4 inch depth is the number to check first.
5) Does the GBR100 have a light, a humidity sensor, or continuous low speed?
No. The GBR100 is the plain single speed fan, no light and no sensor. Other models in the BreezGreenBuilder series carry the CFL or LED light option and the humidity sensing option with continuous low speed control, so if you need a light over the shower or a fan that runs low around the clock and boosts on humidity, order one of those instead of the GBR100.
6) How quiet is the Delta Breez GBR100 compared to a builder grade bath fan?
Rated 1.4 to 1.5 sones, which is quiet enough that you hear air movement more than motor noise. That matters on multifamily and hotel work where a loud fan is the thing tenants call about, and it is well under the 3 sone level that most codes accept for intermittent bath ventilation.
7) Is the Delta Breez GBR100 Energy Star qualified for a green build or rebate program?
Yes, the GBR100 is Energy Star qualified. Between that and the 12.6 to 13.5 watt draw at 100 CFM, it is the fan builders reach for on programs that score ventilation efficiency.
8) How much ceiling opening do I need for the Delta Breez GBR100 grille?
The grille footprint is 10-3/4 x 10-3/4 inches, so that is the visible square on the ceiling once it is trimmed out. The housing itself is smaller at 8-1/4 x 8 inches, which is the hole you frame to.
9) How long does the motor last in the Delta Breez GBR100 for a rental or apartment turn?
It uses a DC brushless motor, which Delta rates as outlasting typical AC motors by 2-1/2 times. On rental and multifamily work where the tenant leaves the fan running for hours, that is the difference between a fan you replace on turnover and one you leave alone.
