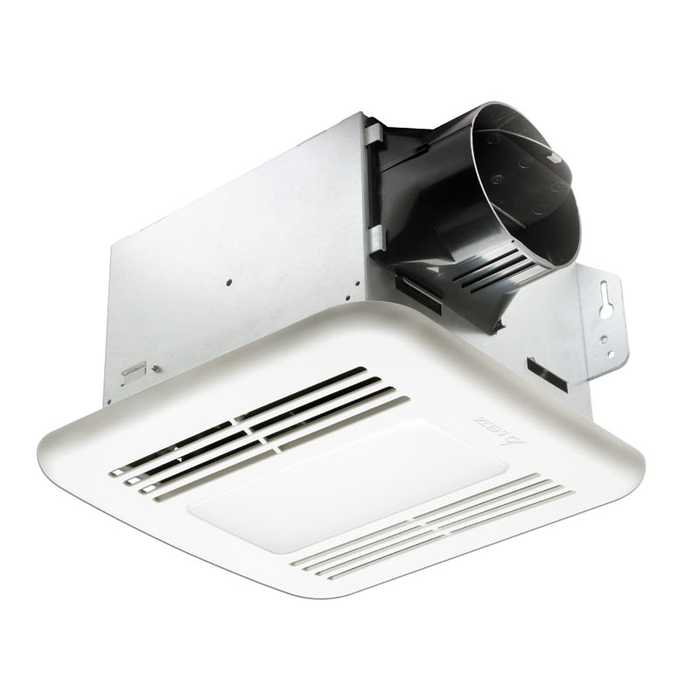

Delta Breez Green Builder Ventilation Fan - GBR100LED - 100 CFM Fan/Dimmable LED Light

Delta Breez Green Builder Ventilation Fan - GBR100LED - 100 CFM Fan/Dimmable LED Light

(No reviews yet) Write a Review

Model: GBR100LED
From the BreezGreenBuilder Collection
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$161.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Delta Breez model GBR100LED has been awarded ENERGY STAR qualified with brushless DC motor engineered to run continuously for a minimum 70,000 hours; dimmable led fan light, airflow rating of 100 CFM and loudness rating of 1.5 Sones at 0.1 static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 13 Watts with efficiency rating of 7.6 CFM/Watt at 0.1” static pressure; fan will feature LED indicator running light, motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring

Features

  • 100 CFM fan for spaces up to 100 sq. ft.
  • Brushless DC Motor outlasts typical AC motors by 2-1/2.
  • Quiet at 1.5 sones.
  • Energy star®-qualified.
  • Housing size 8-1/4" x 8" x 5-3/4".
  • 4" duct.
  • UL and cUL listed for ceiling mount installation.
  • UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.
  • 3 yr. limited warranty.

Product Specs

Subcategory:
BreezGreenBuilder
Static Pressure:
0.1 - 0.25
Sones:
1.5
Current:
0.35 Max
LED Module (Watts):
13
Duct Size:
4"
Duct Diameter:
4"
Maximum CFM:
100
Energy Star:
Yes
Warranty:
3 Year Limited
Product Group:
Washroom/Bath
Product Subgroup:
Ventilation Fans
Collection:
BreezGreenBuilder
Product Voltage:
120/60
Product Height:
5-3/4"
Product Category:
Ventilation Fans
Product Width:
10-3/4"
Department:
Plumbing
Product Wattage:
11.6 - 13.6
Product Depth:
10-3/4"

Delta Breez GBR100LED – Frequently Asked Questions

1) What size bathroom will a 100 CFM Delta Breez GBR100LED exhaust fan handle?
The GBR100LED moves 100 CFM, which covers bathrooms up to about 100 square feet. Its rated airflow holds at 0.1 inch static pressure, and the fan self-compensates on motor speed to keep the intended airflow when it hits duct resistance, so a long or elbowed duct run doesn't quietly drop you below code airflow.
2) Will the GBR100LED housing fit between my ceiling joists?
Housing measures 8-1/4 x 8 x 5-3/4 inches, so it drops between joists on standard 16 inch centers. The 5-3/4 inch height is the one to check first: you need that much clear depth above the ceiling, which rules out shallow 2x6 framing. Overall product footprint including the grille is 10-3/4 x 10-3/4 inches.
3) Can this Delta Breez fan be installed directly over a tub or shower?
Yes. The GBR100LED is UL and cUL listed for installation inside a tub or shower enclosure, but only when the branch circuit feeding it is GFCI protected. It's also UL and cUL listed for ceiling mount. Outside a wet location it does not need the GFCI.
4) How quiet is the Delta Breez GBR100LED, and is it quiet enough for a hotel or apartment bathroom?
Rated 1.5 sones at 0.1 inch static pressure, certified by the Home Ventilating Institute. That is quiet enough that guests in an adjacent room won't track it, and it clears the common 3.0 sone ceiling that hospitality and multi-family specs use for continuous-duty bath exhaust.
5) Can the GBR100LED bath fan run 24/7 for continuous ventilation?
It's built for it. The brushless DC motor is engineered for a minimum of 70,000 hours of continuous run time, which is roughly eight years nonstop, and Delta rates it at about 2-1/2 times the life of a typical AC motor. There's motor lock protection and an LED indicator light that confirms the fan is running, which matters when it's wired to a continuous or timer circuit and nobody hears it.
6) What are the electrical requirements for the Delta Breez GBR100LED fan light?
Standard 120V 60Hz, drawing 0.35 amps max. Total draw runs 11.6 to 13.6 watts for fan plus LED, so it's an easy add to an existing 15A bath circuit. For a tub or shower location the circuit has to be GFCI protected.
7) Is the LED light on the Delta Breez GBR100LED dimmable, and does it need a special switch?
The light is a dimmable 13 watt LED module. Run the light on its own switch leg to a dimmer and the fan on a separate switch or timer, the way you'd wire any two-function bath fan. Never put the fan motor itself on a dimmer.
8) Does the Delta Breez GBR100LED qualify for energy code or green building credit?
It's ENERGY STAR qualified. Efficiency is 7.6 CFM per watt at 0.1 inch static pressure on 13 watts of power, which is the number most utility rebate programs and green building checklists ask for on bath exhaust.
9) Will the GBR100LED still move enough air on a long duct run with a roof cap?
It's rated across 0.1 to 0.25 inch static pressure, and the motor compensates its own speed to hold the intended airflow as resistance climbs. Published performance numbers, 100 CFM and 1.5 sones, are at 0.1 inch. Keep the 4 inch duct as straight and as smooth-wall as the framing allows and you'll stay in that band.
10) Is there an 80 CFM version of the Delta Breez Green Builder LED fan?
Yes, the same Green Builder LED fan is offered as the GBR80LED for smaller baths. Pick 100 CFM for rooms up to 100 square feet; step down to 80 CFM on a powder room or small three-piece bath where you don't need the extra air.
