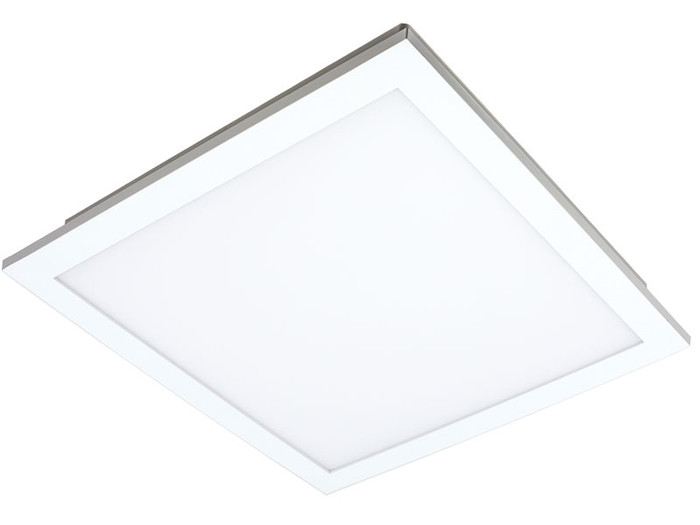

Delta Breez ITG100ELED Grille Assembly with Edge-Lit LED, 3000K
Features
- 100 CFM
- Comes with a 13W Dimmable LED Edge-Lit 1000LM 3000K Panel
- Ultra quiet producing only 1.5 sones
- The fan automatically locks when pressure builds from blockages in the duct
- 17 watts
- 4" Duct
- 11.75" x 11.75" faceplate cover
- Includes fan body, a suspension bracket, and grille
- Energy Star rated
- Title 24 compliant
- Exceeds Ashrae 62.2 requirements
- HVI Certified
Manufacturer Resources
Product Specs
- Subcategory:
- BreezIntegrity
- Duct Size:
- 4"
- Duct Diameter:
- 4"
- Energy Star:
- Yes
- Product Group:
- Washroom/Bath
- Product Subgroup:
- Ventilation Accessories
- Collection:
- BreezIntegrity
- Product Type:
- Grille
- Product Height:
- Height
- Product Category:
- Ventilation Accessories
- Department:
- Plumbing
- Parts and Accessories Type:
- Grille
- Application:
- Ventilation Fan
Delta Breez VFRU-19-16GA – Frequently Asked Questions
1) How much ceiling opening do I need for the Delta Breez ITG100ELED bath fan with edge-lit LED?
The faceplate cover measures 11.75 x 11.75 inches, so that is the finished footprint you see on the ceiling. Plan the framing and drywall cut for the fan body it ships with, and note that the assembly includes a suspension bracket for hanging between joists. Between standard 16 inch on center joists there is room for the housing without cutting structure.
2) Is 100 CFM enough for the bathrooms I manage?
100 CFM covers a bathroom up to roughly 100 square feet under the common 1 CFM per square foot rule of thumb, and the ITG100ELED exceeds ASHRAE 62.2 requirements. For larger master baths or rooms with a separate enclosed toilet compartment, you are usually looking at a second unit or a higher CFM model rather than stretching this one.
3) Do I need a separate light fixture with the Delta Breez ITG100ELED?
No. The unit ships with a 13W dimmable edge-lit LED panel rated 1000 lumens at 3000K, so the fan and the ceiling light are one device on one opening. 3000K is a warm white, which is what most residential and hospitality baths are specified at. Because the panel is dimmable, it needs a compatible LED dimmer if you want to control the level.
4) Does the Delta Breez ITG100ELED meet Title 24 for California work?
Yes, it is Title 24 compliant and Energy Star rated, and it is HVI Certified, so the airflow and sound numbers are third-party verified rather than manufacturer claims. It also exceeds ASHRAE 62.2. For institutional and multi-family specs that call out HVI listed airflow, this one carries it.
5) Is the Delta Breez ITG100ELED a complete fan or just a replacement grille?
It is a complete assembly. The box holds the fan body, a suspension bracket, and the grille with the integrated LED panel, so it is a full new-install or full-replacement unit, not a face-only grille swap. If you are only replacing a cracked cover on an existing fan, this is more than you need.
6) How loud is the Delta Breez ITG100ELED exhaust fan?
1.5 sones at 100 CFM. That is quiet enough for a hotel guest bath or a bedroom-adjacent bath where noise complaints matter, and well under the 3 sone ceiling that gets thrown around for builder-grade units. Sound at that level depends on a smooth duct run, so keep flex duct pulled tight and elbows to a minimum.
7) What happens if the duct gets blocked or crushed above the ceiling?
The fan automatically locks when pressure builds from a blockage in the duct. On a service call that means a unit that has stopped is often telling you the run is obstructed, kinked, or the exterior damper is stuck shut, rather than the motor being dead. Clear the duct before you condemn the fan.
