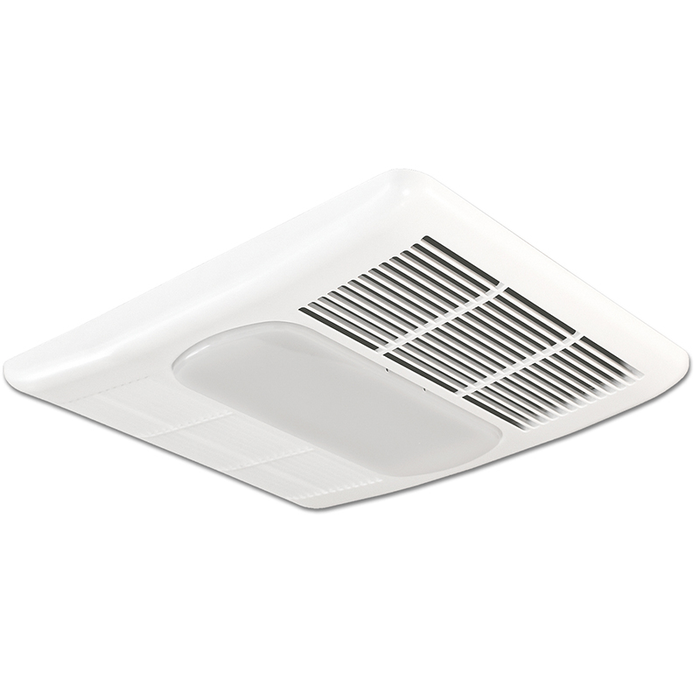

Delta Breez RAD80L Grille Assembly

Delta Breez RAD80L Grille Assembly

(No reviews yet) Write a Review

Model: VFRU-37-05GA
From the BreezRadiance Collection
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$49.39
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Delta Breez RAD80L Grille Assembly

The Delta BreezRadiance RAD80 combines a quiet bath fan and heater all in one with built-in thermostat and brushless DC motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 80 CFM (±10%) and 1.5 Sones is at 0.1 static pressure. Power consumption approximately 11.7 Watts with an efficiency rating approximately 7.0 CFM/Watt. Duct diameter is no less than 4” Built-in thermostat to regulate temperature. Metal guard to help prevent user contact with heating wire. Heater element with 1300W and conforms to cUL safety standards. Heater module equipped with thermal cutoff fuse and thermostat.

Features

  • Delta Breez Radiance RAD80 - 80 CFM Fan with Heater.
  • 80 CFM single speed fan for spaces up to 80 Sq. Ft.
  • Brushless DC Motor outlasts typical AC motors by 2-1/2.
  • Quiet at 1.5 sones.
  • 1300W heating element evaluated by cUL for safety standards quickly and evenly distributes warmth.
  • Heater module equipped with thermal cutoff fuse and thermostat.
  • Separate 15 amp circuit required.

Product Specs

Subcategory:
BreezRadiance
Energy Star:
Yes
Product Group:
Washroom/Bath
Product Subgroup:
Ventilation Accessories
Collection:
BreezRadiance
Product Type:
Grille
Product Size:
10-11/16" x 16-13/16"
Product Category:
Ventilation Accessories
Department:
Plumbing
Parts and Accessories Type:
Grille
Application:
Ventilation Fan

Delta Breez VFRU-37-05GA – Frequently Asked Questions

1) Is the Delta Breez RAD80L grille assembly the whole bath fan or just the cover?
Just the cover. The RAD80L grille assembly is the replacement face grille for the Delta Breez BreezRadiance RAD80 fan/heater, not the fan, motor or heater module. If the unit itself has failed, you need the complete RAD80 fan and heater; if the housing is fine and the grille is cracked, stained or missing, this is the part that puts it right.
2) What size opening does the Delta Breez RAD80L grille cover?
The grille measures 10-11/16 x 16-13/16 inches overall. That is the footprint it will hide on the ceiling, so measure the existing grille or the visible opening before you order. It is sized to the RAD80 housing, so a swap on an existing BreezRadiance RAD80 needs no drywall work.
3) I manage apartments and one bathroom heater fan grille is broken. Can I replace it without pulling the fan out of the ceiling?
On a BreezRadiance RAD80, the grille comes off the face of the housing, so the unit stays in the ceiling and the duct and wiring stay untouched. This is a maintenance-friendly repair for a turn or a punch list. The unit is fed from a separate 15 amp circuit, so kill that breaker before you put hands near the face of the fan.
4) How do I confirm the RAD80L grille is right for the unit I already have installed?
Two checks settle it. Pull the old grille and look for the RAD80 model marking on the housing, and confirm the duct collar is 4 inches, which is the minimum duct diameter the RAD80 uses. A RAD80 rated 80 CFM at 1.5 sones with a 1300W heating element is the unit this grille belongs to. Delta Breez publishes an installation manual and a submittal sheet for the RAD80 with the grille dimensions if you want to check against the ceiling before ordering.
5) Does swapping the grille change how the RAD80 bath fan performs?
No change to the airflow or the heat. The 80 CFM at 1.5 sones rating, the 11.7 watt draw and the roughly 7.0 CFM per watt efficiency all come from the fan and motor behind the grille. What a damaged or ill-fitting grille does cost you is a clean seal to the ceiling and the look of the room, which is usually why the part gets replaced in the first place.
6) What is the Delta Breez part number for the RAD80 grille assembly?
Order it as the Delta Breez RAD80L grille assembly, model VFRU-37-05GA, part of the BreezRadiance collection. That designation is what distinguishes it from grilles for the fan-only Delta Breez lines, which are a different size.
