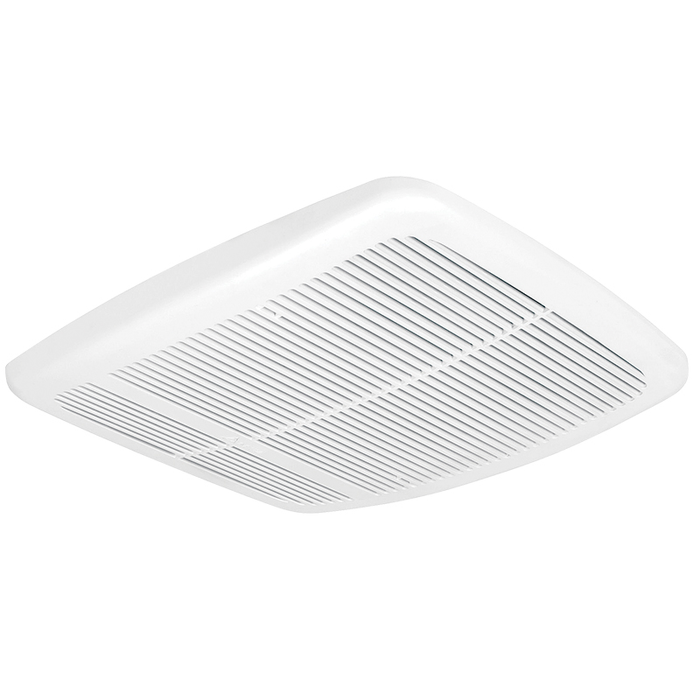

Delta Breez RAD80 Grille Assembly
e Delta BreezRadiance RAD80 combines a quiet bath fan and heater all in one with built-in thermostat and brushless DC motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 80 CFM (±10%) and 1.5 Sones is at 0.1 static pressure. Power consumption approximately 11.7 Watts with an efficiency rating approximately 7.0 CFM/Watt. Duct diameter is no less than 4” Built-in thermostat to regulate temperature. Metal guard to help prevent user contact with heating wire. Heater element with 1300W and conforms to cUL safety standards. Heater module equipped with thermal cutoff fuse and thermostat.
Features

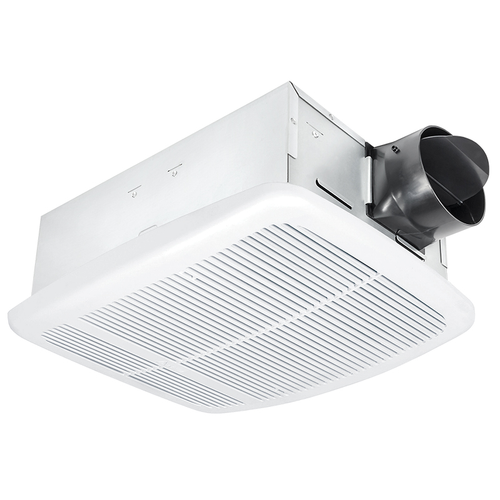

- Delta Breez Radiance RAD80 - 80 CFM Fan with Heater.
- 80 CFM single speed fan for spaces up to 80 Sq. Ft.
- Brushless DC Motor outlasts typical AC motors by 2-1/2.
- Quiet at 1.5 sones.
- 1300W heating element evaluated by cUL for safety standards quickly and evenly distributes warmth.
- Heater module equipped with thermal cutoff fuse and thermostat.
- Separate 15 amp circuit required.
Manufacturer Resources
VFRU-37-20GA-SpecsSheet
Product Specs
- Subcategory:
- BreezRadiance
- Energy Star:
- Yes
- Product Group:
- Washroom/Bath
- Product Subgroup:
- Ventilation Accessories
- Collection:
- BreezRadiance
- Product Type:
- Grille
- Product Size:
- 16-13/16" x 10-11/16"
- Product Category:
- Ventilation Accessories
- Department:
- Plumbing
- Parts and Accessories Type:
- Grille
- Application:
- Ventilation Fan
Delta Breez VFRU-37-20GA – Frequently Asked Questions
1) Is the Delta Breez RAD80 grille assembly just the cover, or does it include the fan and heater?
It's the grille assembly only, the front cover that mounts to an already installed BreezRadiance RAD80 fan/heater. The blower, motor and 1300W heating element stay in the housing in the ceiling. If you're replacing a cracked, painted over or missing cover, this is the right part. If you need the complete unit, order the RAD80 fan and heater itself.
2) What size opening does the Delta Breez RAD80 grille cover?
The grille measures 16-13/16 x 10-11/16 inches overall, so it covers a rectangular ceiling opening within that footprint. Measure your existing cover face to face before ordering: BreezRadiance fan/heater grilles are sized to their own housing and a bath fan grille off a different model won't sit flat or clip in.
3) Will this grille fit any Delta Breez bath fan, or only the RAD80?
Only the BreezRadiance RAD80. It's the grille assembly built for that fan/heater, and its 16-13/16 x 10-11/16 inch face is matched to the RAD80 housing. Delta's other Breez families use different housings and different covers, so check the model number stamped on your existing unit before ordering.
4) Does the RAD80 grille include the metal heater guard?
Yes. The RAD80 grille assembly carries the metal guard that keeps fingers and anything pushed through the louvers off the heating wire. That's why it's sold as an assembly rather than a plain louvered cover, and it's why a generic bath fan grille is not a substitute on a fan/heater.
5) Can I replace the RAD80 grille without pulling the fan housing out of the ceiling?
The grille is the serviceable face of the unit, so a cover swap is done from below with the housing left in place. Kill power at the breaker first. The RAD80 runs on its own dedicated 15 amp circuit, so the switch at the wall is not the only thing feeding it. Delta publishes the RAD80 installation manual if you want the exact sequence.
6) How do I confirm this is the right grille before I order? What part number should I be matching?
Match it to a Delta Breez BreezRadiance RAD80 fan/heater, the 80 CFM single speed model rated for spaces up to 80 square feet with the built in thermostat. If the unit in the ceiling is that model, this grille assembly is its cover. Delta's RAD80 submittal sheet gives the unit dimensions if you want to cross check against what's in the ceiling.
