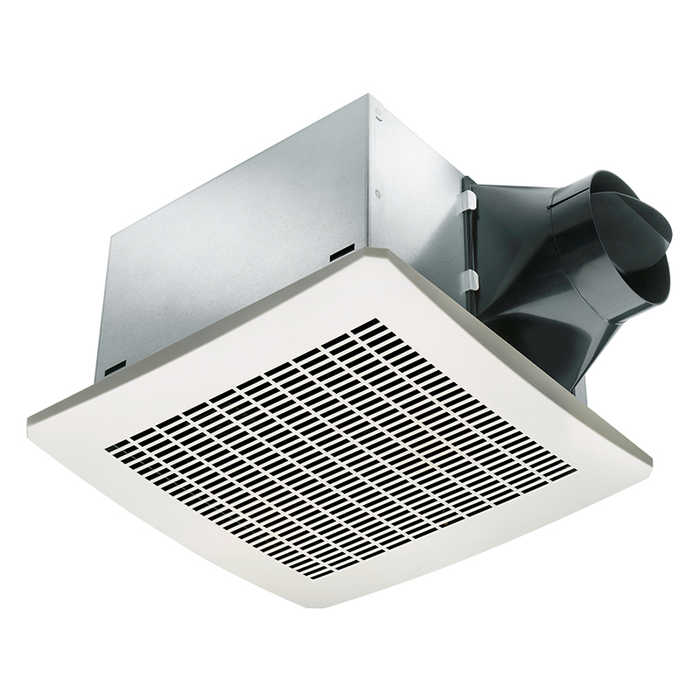

Delta Breez Signature VFB25AEH - 130 CFM with Humidity Sensor (LIMITED AVAILABILITY)

Delta Breez Signature VFB25AEH - 130 CFM with Humidity Sensor (LIMITED AVAILABILITY)

(No reviews yet) Write a Review

Model: VFB25AEH
From the BreezSignature Collection
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$170.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Innovative DC brushless motor design for long life, low noise, and low power consumption
Low noise ceiling mount ventilating fan with humidity sensor, rated for continuous running. ENERGY STAR qualified. Evaluated by Underwriter Laboratories and conforms to both UL and cUL safety standards.

Features

  • 130 CFM Single Speed Fan for spaces up to 130 sq. ft.
  • Brushless DC Motor outlasts typical AC motors by 2-1/2.
  • Energy star®-qualified.
  • Built in humidity sensor so that fan automatically starts when humidity is above 60% and shuts off when humidity falls below 60%.
  • Housing size 9-5/8" x 9-5/8" x 8".
  • 4" duct.
  • UL approved for ceiling mount installation.
  • UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.
  • 3 yr. limited warranty.

Product Specs

Subcategory:
BreezSignature
Static Pressure:
0.1 - 0.25
Maximum CFM:
130
Sones:
2
Current:
0.36 @ 110 Vac
Duct Size:
4"
Duct Diameter:
4"
Energy Star:
Yes
Warranty:
3 Year Limited
Product Group:
Washroom/Bath
Product Subgroup:
Ventilation Fans
Collection:
BreezSignature
Product Voltage:
110-220/50-60
Product Height:
8"
Product Category:
Ventilation Fans
Product Width:
12/3/08
Department:
Plumbing
Product Wattage:
22
Product Depth:
12/3/08

Delta Breez VFB25AEH – Frequently Asked Questions

1) Will a 130 CFM bathroom fan be enough for my bathroom, and what size room does the Delta Breez VFB25AEH cover?
The VFB25AEH is a single-speed 130 CFM fan sized for spaces up to 130 square feet. That covers most full baths including a tub and separate shower. For a small powder room or a half bath under about 50 square feet, 130 CFM is more air than the room needs and you'd be better off with a lower CFM Delta Breez model. Note it is single speed, so there is no low setting to dial it back.
2) What duct size does the Delta Breez VFB25AEH need, and can I put it on existing 4 inch duct?
It takes 4 inch duct. If the bathroom already has a 4 inch round run to the roof or soffit, the fan connects straight to it with no transition. On a 130 CFM fan a 4 inch duct wants to be kept short and straight; the fan is rated at 0.1 to 0.25 inches of static pressure, so long flex runs with multiple elbows will pull the delivered airflow down. Rigid or smooth flex, and as few bends as possible.
3) How much ceiling space do I need above the drywall for the VFB25AEH housing?
The housing measures 9-5/8 x 9-5/8 x 8 inches, and the 8 inch figure is the height. That 8 inches of depth is the number that decides the job: it will not fit between 2x8 joists in a shallow bay or under a low soffit without framing. Between standard joists with an open attic above, there is room. Measure the cavity depth before you cut the ceiling.
4) How does the humidity sensor on the Delta Breez VFB25AEH work, and does it need a wall switch?
The sensor is built into the fan and runs on a fixed threshold: the fan starts on its own when room humidity climbs above 60 percent and shuts off once it falls back below 60. There is no dial to set the trip point. For rental units and multi-family, that means the fan runs after a shower whether or not the tenant touches a switch, which is usually the reason to spec this version over a plain fan. It is also rated for continuous running if you want it wired to run full time for whole-house ventilation.
5) How loud is the VFB25AEH bath fan at 130 CFM?
2 sones. For a 130 CFM fan that is quiet enough for a hotel room, a bedroom ensuite, or an apartment where the fan may run continuously on the humidity sensor. The brushless DC motor is what gets it there, and Delta rates that motor to outlast a typical AC motor by 2-1/2 times.
6) Should I get the humidity sensing fan or just wire a plain exhaust fan to a timer switch?
The tradeoff is who controls it. The VFB25AEH senses humidity itself and cycles on above 60 percent and off below, so nothing depends on the occupant or on a timer being set long enough to actually dry the room. That is the case for rentals, hotels, and any bathroom where moisture damage keeps coming back. A plain fan on a switch or timer costs less at the wall and gives the occupant direct control, which some owner-occupied jobs prefer. One thing the sensor version does not do is let you set the trip point; 60 percent is fixed.
7) Where can I get the installation instructions and spec sheet for the Delta Breez VFB25AEH?
Delta publishes both for this model: the VFB25 installation manual at https://zensupply.com/content/pdf/delta-breez/VFB25Fan_IM.pdf and the VFB25AEH specification sheet at https://zensupply.com/content/pdf/delta-breez/VFB25AEH_Spec_Sheet_e.pdf. The spec sheet is the one to attach to a submittal package; the install manual has the rough-in and wiring detail for the 9-5/8 x 9-5/8 x 8 inch housing.
