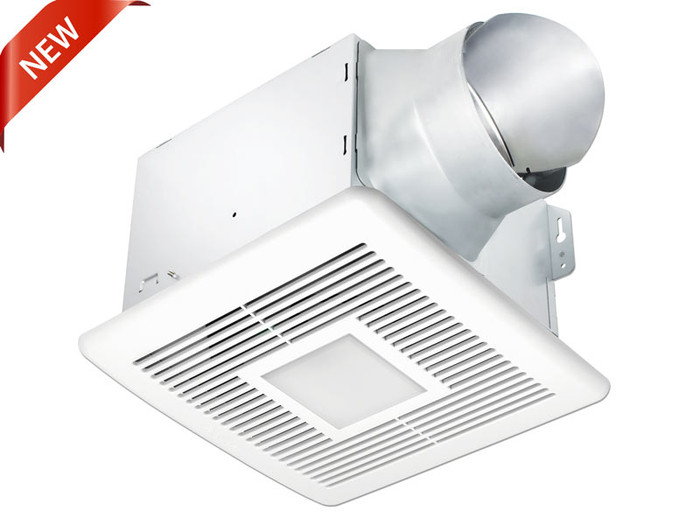

Delta Breez BreezSmart SMT150-200LED 150/200 CFM Bath Fan with Dimmable LED Light

Delta Breez BreezSmart SMT150-200LED 150/200 CFM Bath Fan with Dimmable LED Light

(No reviews yet) Write a Review

Model: SMT150-200LED
From the BreezSmart Collection
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$295.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Delta Breez BreezSmart SMT150-200LED: 150/200 CFM Bath Fan with Dimmable LED Light

The SMT150-200LED gives you a single ceiling-mount unit that handles ventilation and lighting in one, with the flexibility to run at 150 CFM for everyday use or switch to 200 CFM when you need maximum airflow. The 13-Watt dimmable LED (850 lumens, 90 CRI) replaces a 60-Watt incandescent and lets you dial in 3000K, 4000K, or 5000K color temperature to match the space. ENERGY STAR qualified, HVI certified, and UL listed for tub/shower enclosures on GFCI-protected circuits.

Key Features

  • Adjustable high speed: 150 CFM (0.6 sones) or 200 CFM (1.0 sone) - field-selectable
  • ENERGY STAR qualified with brushless DC motor rated for 70,000+ continuous hours
  • Energy efficiency: 10.0 CFM/Watt at 150 CFM; 8.0 CFM/Watt at 200 CFM
  • 13-Watt dimmable LED light included - equivalent to 60-Watt incandescent (dimmer switch sold separately)
  • 850 lumens output; 90 CRI for accurate color rendering
  • Adjustable color temperature: 3000K / 4000K / 5000K
  • Motor lock protection and self-compensating speed to maintain airflow against static pressure
  • UL/cUL listed for tub/shower enclosure with GFCI-protected branch circuit
  • Ceiling mount installation; 6" duct diameter

Electrical & Performance Specs

  • Voltage: 120V / 60Hz
  • Max current: 0.78A
  • Power consumption: 15.0-37.0 Watts (fan + light)
  • LED wattage: 13W
  • Sones: 0.6 (150 CFM) - 1.5 (200 CFM)
  • Static pressure range: 0.1"-0.25" w.g.
  • Annual energy cost (24/7): ~$26.99 at 200 CFM*

Dimensions & Installation

  • Unit dimensions: 13" W x 13" D x 7-11/16" H
  • Duct diameter: 6"
  • Ceiling mount; suitable for new construction and retrofit

Warranty

3-Year Limited Warranty.

*Energy cost estimate based on $0.12/kWh national average. Actual costs vary.

Product Specs

Subcategory:
BreezSmart
Static Pressure:
0.1 - 0.25
Maximum CFM:
200
Sones:
0.6 - 1.5
Current:
0.78 Max.
Dimmable LED Light (Watts):
13
Duct Size:
6"
Duct Diameter:
6"
Energy Star:
Yes
Warranty:
3 Year Limited
Product Group:
Washroom/Bath
Product Subgroup:
Ventilation Fans
Collection:
BreezSmart
Product Voltage:
120/60
Product Height:
7-11/16"
Product Category:
Ventilation Fans
Product Width:
13"
Department:
Plumbing
Product Wattage:
15.0 - 37.0
Product Depth:
13"

Delta Breez SMT150-200LED – Frequently Asked Questions

1) How much ceiling depth do I need to fit the SMT150-200LED between the joists?
The housing needs 7-11/16 inches of depth, so a 2x8 joist bay or deeper is the safe call; standard 2x6 framing won't swallow it. The visible grille covers a 13 by 13 inch square on the ceiling. Worth measuring before you cut, because the grille footprint is larger than the housing and will hide a rough opening but not a joist you had to notch.
2) What is the difference between the 150 CFM and 200 CFM settings on the SMT150-200LED, and which should I set it to?
It's one fan with a selector switch on the unit, set at install rather than by the user. At 150 CFM it runs 0.6 sones and 10.0 CFM per Watt; at 200 CFM it moves more air at 8.0 CFM per Watt and gets louder. Size it to the room: a typical full bath is fine on 150, while a large master bath, a room with a jetted tub, or a long duct run is where the 200 setting earns its noise. Overall sone range across the two settings is 0.6 to 1.5.
3) Does the Delta Breez SMT150-200LED come with a dimmer, or do I need to buy one?
The 13 Watt LED is dimmable but no dimmer is supplied. You'll need a separate LED-compatible dimmer switch at the wall. The light itself puts out 850 lumens at 90 CRI, roughly a 60 Watt incandescent, and has a selectable color temperature of 3000K, 4000K, or 5000K set at the unit, not at the switch.
4) What circuit and wiring does the SMT150-200LED need?
Standard 120V, 60Hz, drawing 0.78A maximum with fan and light together. Total power consumption runs 15.0 to 37.0 Watts depending on speed setting and whether the light is on. That load is small enough to share a 15A bathroom circuit in most cases, and the circuit has to be GFCI protected if the fan lands in a tub or shower enclosure.
5) Is this Delta Breez fan quiet enough to run continuously in an apartment or hotel bathroom?
At the 150 CFM setting it runs 0.6 sones, which is below the threshold most people notice over background noise, and the brushless DC motor is rated for 70,000-plus continuous hours. That combination is what makes it a candidate for continuous or timer-driven ventilation in multi-family and hospitality, rather than switch-on-when-occupied duty. Set to 200 CFM it climbs toward 1.5 sones and reads as audible.
6) Is the SMT150-200LED ENERGY STAR qualified for a rebate or a green building spec?
Yes, the SMT150-200LED is ENERGY STAR qualified and HVI certified. Efficiency is 10.0 CFM per Watt at the 150 CFM setting and 8.0 CFM per Watt at 200 CFM, and both the airflow and sone figures come from HVI certification, which is the ratings basis most green building and utility programs ask to see.
7) Can I standardize a whole building on the SMT150-200LED even though bathroom sizes vary?
That's the point of the field-selectable speed. One part number covers both 150 and 200 CFM, so a property can stock a single fan and set it per room at install instead of carrying two SKUs. The selectable 3000K, 4000K, and 5000K color temperature does the same job for lighting, letting one unit match warm-lamped units and cooler commercial spaces without a separate order.
8) Does the SMT150-200LED need a separate light fixture in the bathroom?
Not in a small or mid-size bath. The unit carries an 850 lumen LED at 90 CRI, equal to a 60 Watt incandescent, which handles general ceiling light on its own. In a larger bathroom, or where you want vanity light for grooming, treat it as the general ceiling source and keep separate vanity fixtures. The 90 CRI matters at the mirror, since low-CRI light is what makes people complain about how a bathroom reads.
9) Where can I get the installation instructions and submittal sheet for the Delta Breez SMT150-200LED?
Both documents are published for the SMT150-200LED: the installation manual at https://zensupply.com/content/pdf/delta-breez/SMT150-200-IM.pdf and the submittal sheet at https://zensupply.com/content/pdf/delta-breez/SMT150-200LED_Submittal_Sheet_e.pdf. The submittal sheet is the one to hand an engineer or inspector reviewing the ventilation spec.
