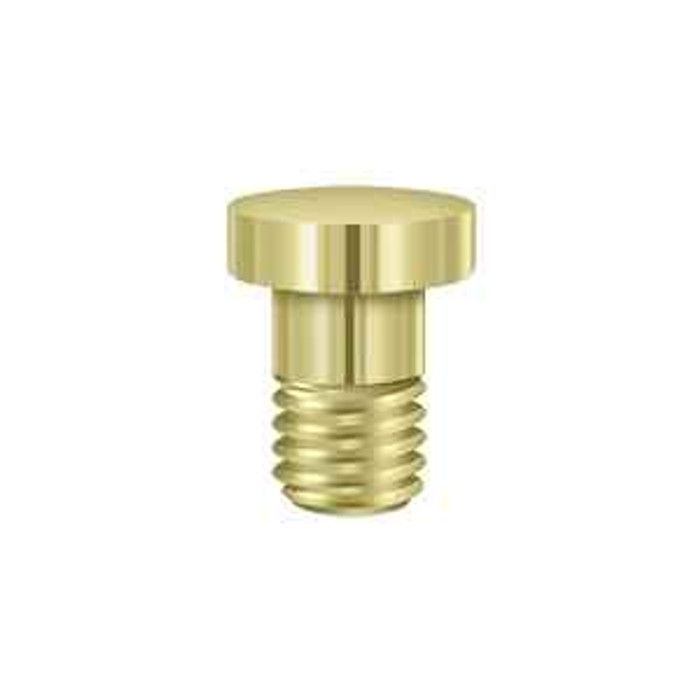

Deltana HPSS70 Extended Button Tip For Solid Brass Hinges

The HPSS70 is a replacement button tip for solid brass hinges with a longer neck than a standard tip. That extra neck length is the whole point: it leaves room on the hinge barrel to slip a hinge pin door stop in between the tip and the barrel. Standard button tips sit tight to the barrel and leave nowhere for the stop to seat. If you are adding a hinge pin stop to an existing brass hinge and it will not sit properly, this is the tip that makes it work.

Deltana classes the HPSS70 as residential. For a commercial door in a school, hospital, or office corridor, a heavy duty hinge pin stop like the Delaney Door Saver Commercial Hinge Pin Door Stop or the Orca Hardware HPHD HD Hinge Pin Stop is the right direction, since those are built as commercial-duty stops rather than a decorative brass tip.

The HPSS70 is the tip only. The stop itself is a separate part, and you have options: Delaney's Heavy Duty Hinge Pin Door Stop, Orca Hardware's HPDS Series or HPST Series hinge pin stops, or the Emtek 2241 brass hinge pivot stop if you are staying with brass trim. Order the tip and the stop together or the door goes back on with nothing holding it.

They are two different parts that work together on the same hinge. The Deltana HPSS70 is an extended button tip in solid brass, 5/8 inch high and 1/2 inch in diameter, with a longer neck so a hinge pin stop can be installed in between the tip and the hinge barrel. The Orca Hardware HPST Series Hinge Pin Stop is the stop itself, a door holder that mounts on the hinge pin and arrests the door swing. If your door is banging into a wall, the HPST is the part that stops it; the HPSS70 is the decorative tip that goes back on above it once the stop is in place.

No. The Deltana HPSS70 is a hinge tip, not a stop; its longer neck exists to make room for a hinge pin stop to sit under it. The part that actually arrests the swing is a hinge pin stop such as the Orca Hardware HPDS Hinge Pin Door Stop or the Delaney Heavy Duty Hinge Pin Door Stop, both of which mount on the hinge pin as door holders. Order the stop for the function and the HPSS70 if you also want a finished button tip above it.

Height is 5/8 and diameter is 1/2. Measure the tip you are pulling off the hinge before ordering, since brass hinge tips vary by hinge size and the tip has to match the barrel it threads into.

Solid brass, both the material and the substrate. That matters if you are matching it to solid brass hinges already on the door, because a plated steel tip next to a brass hinge shows the difference in wear over time on a high-traffic opening.

Twelve finishes: PVD Polished Brass, Polished Brass, Unlacquered Brass, Brushed Brass, Antique Brass, Polished Nickel, Brushed Nickel, Antique Nickel, Polished Chrome, Brushed Chrome, Oil Rubbed Bronze, and Paint Black. If you are matching hinges across a building, the PVD Polished Brass and the standard Polished Brass are not the same thing, and Unlacquered Brass will patina over time while the others hold their finish.

It is made for solid brass hinges, and the fit depends on the hinge pin and barrel it threads onto rather than the brand name on the box. Pull the existing tip, check it against the 5/8 height and 1/2 diameter, and match it there. On a hollow metal door with plain steel hinges and no removable tips, a hinge pin stop that clamps to the barrel is the better route than a tip swap.

That is exactly what a hinge pin stop does, and why the extended tip exists. The stop rides on the hinge itself and catches the door before it swings far enough to mark the wall, so nothing gets fastened to the floor or the baseboard. It is a common fix in apartments and rentals where you do not want holes in the trim. You need the extended tip to make room for the stop on a solid brass hinge, plus the stop.

The Deltana HPSS70 extended button tip is a residential solid brass trim piece. For commercial corridors and higher traffic, the Delaney Door Saver Commercial Hinge Pin Door Stop is built for commercial service, and the Orca Hardware HPHD HD Hinge Pin Stop is the heavy duty version of Orca's hinge pin door holder. Property managers standardizing a building often run the commercial stop on corridor and stair doors and keep the brass button tip for unit entries where the finish is on show.

They are not interchangeable. The Emtek 2241 is a brass hinges pivot stop - a stop that works off the hinge to limit the door's travel. The Deltana HPSS70 is a solid brass extended button tip, the finial that caps the hinge pin, offered in twelve finishes including oil rubbed bronze, polished nickel and unlacquered brass. If you are matching decorative hinge tips across a set of doors, the HPSS70 is the part; if you need the swing arrested, the Emtek 2241 is the stop.

Not with an extended tip. Standard hinge pin stops such as the Orca Hardware HPDS or the Delaney Heavy Duty Hinge Pin Door Stop occupy the top of the hinge pin, which is where a normal button tip sits. The Deltana HPSS70 is made for exactly that conflict: the longer neck leaves clearance for the stop underneath, so the door keeps a solid brass button tip in the same finish family as the rest of the trim - twelve finishes from polished brass to paint black.

One. The tip is sold each, and a hinge pin stop mounts on a single hinge, so you need one extended tip for each door getting a stop. Order per door, not per hinge.
