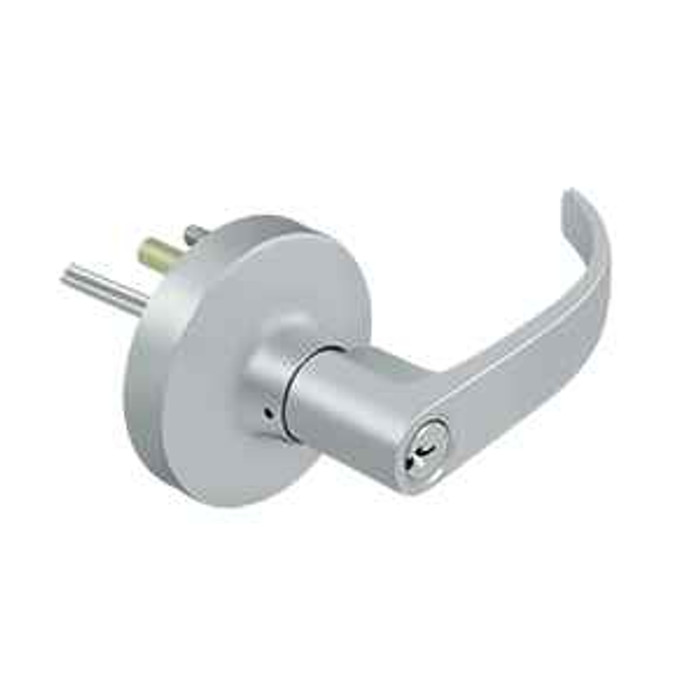

Deltana LTED60LST Lever Trim for Exit Device 60 Storeroom Function

Storeroom function means the outside lever is always locked. The key retracts the latch to let you in, but the lever never unlocks permanently, so the door relocks every time it closes. Free egress still comes from pushing the exit device on the inside. That makes the LTED60LST the right trim for stock rooms, mechanical rooms, and back-of-house exterior doors where you never want the outside lever left free.

Yes. The LTED60LST lever trim is cut to the Schlage C keyway, so a locksmith can key it into an existing Schlage C system or key it alike with other C keyway cylinders already in the building. If your facility runs a restricted or proprietary keyway instead, this trim will not take those keys.

Trim only. The LTED60LST is the outside lever and escutcheon that mounts on the pull side of a door and operates an exit device already on the opening. You still need the exit device itself, plus the through-bolts and prep that device specifies.

Function is the difference. The Deltana LTED60LST is a storeroom function lever trim, so the lever is always locked from the outside and the key retracts the latch for entry without leaving the lever unlocked. The Arrow SRX87 is a classroom function trim with a Sierra lever and rose for the S1150/S1250/ED910/PEC910 series, where the key locks and unlocks the outside lever so it can be left free for class hours. Choose storeroom for stock rooms, mechanical rooms and back-of-house doors that must relock every time; choose classroom where staff need to leave the lever unlocked for periods of the day. The LTED60LST is keyed Schlage C.

No. The Von Duprin 379L-BE blank escutcheon for 55 Series rim devices and the Sargent 802 blank plate with GTB design are exit-only trims - they cover the device mounting and give no outside operation at all. The Deltana LTED60LST is a storeroom function lever trim with a Schlage C keyway, so a key gets you back in through the door. Use a blank plate only where the opening is intended to be egress-only; if anyone needs keyed re-entry, the blank is the wrong part.

It is built for commercial use, with steel and zinc construction on the lever and escutcheon. That is a metal trim rather than a cast decorative one, which is what you want on a storeroom or service door getting daily keyed entry.

The LTED60LST is storeroom only, so the outside lever stays locked at all times. For classroom function, where a key can leave the outside lever free for a class period, look at the Arrow SRX87 Sierra lever trim for the S1150/S1250/ED910/PEC910 series, or the Detex classroom S-lever trim with mortise cylinder for the Value Series. Both are classroom function trims, but they fit their own manufacturers' devices, so match the trim to the device brand on the door.

Skip the LTED60LST if nobody needs keyed entry from outside. A blank escutcheon such as the Von Duprin 379L-BE for 55 Series rim devices, the Sargent 802 blank plate for PE80 Series, or the Detex A Series straight pull with blank escutcheon gives you a pull-only exterior. For a nightlatch pull that is keyed, the Sargent 814 PSB is the 80 Series option. Each is built for its own device series, so match it to the device you have.

Move to an electronic trim. The Dormakaba E-Plex E5010 is a Grade 1 electronic push button exit device lever trim with key override, fitting doors 1-3/8 inch to 2-1/4 inch thick, and the BEST EXZ is an EZ Series electronic keypad exit device trim, also with key override. Both give code-based entry on the outside while the device still gives free egress. The Deltana LTED60LST is the mechanical equivalent - storeroom function, Schlage C keyway - and is the simpler option where a keypad, batteries and code management are not wanted.

Drop the lever and go to a key-only or pull trim. The Corbin Russwin K157ET is a Grade 1 key only trim with rose for ED2200/ED2400 exit devices, and the Sargent 814 PSB is a heavy duty nightlatch pull trim in the 80 Series where a key retracts the latch and a pull opens the door. Both keep the door secure with no operating lever on the outside, which suits high-traffic service and delivery doors where a lever gets abused. The Deltana LTED60LST is the choice when you want a lever handle with storeroom function.

Use a dummy trim. The Corbin Russwin x650ET is a Grade 1 heavy duty dummy lever trim with rose for ED7000 Series exit devices - the lever is fixed and does nothing, which is what an inactive leaf or a pull-only side needs. The Deltana LTED60LST is a storeroom function trim with a Schlage C keyway and is meant for a door where a key has to retract the latch.

The Detex 08BN is a classroom S-lever exit device trim with a mortise cylinder for the Detex Value Series, so staff can key the outside lever unlocked during class periods and relock it at the end of the day. The Deltana LTED60LST is storeroom function - the outside lever stays locked at all times and the key only retracts the latch. For a corridor door that needs to be held unlocked during school hours, the classroom trim is the fit; for a storage, IT or custodial door off that corridor, the storeroom Deltana is the one. Note the 08BN takes a mortise cylinder while the LTED60LST is keyed Schlage C.

No - it is a keyed storeroom lever trim using a Schlage C keyway. For keyless mechanical operation, the Lockey 285P is a keyless mechanical panic trim with a lever handle and the Lockey 115P is a heavy duty keyless passage lever panic trim with a 1150 lock body; both fit doors 1 3/16 inch to 2 inch thick. Those suit gates, pool enclosures and shared doors where you do not want to cut keys. Where the facility is already on a Schlage C system and wants one key across doors, the Deltana LTED60LST keeps that standard.

No. The Deltana LTED60LST is outside trim only - a steel and zinc storeroom function lever that mounts to an exit device already on the door. The device is a separate item, for example the ACSI ED4200-W036 Corbin Russwin ED4000 Series Grade 1 wide stile rim exit device with 24 volt electric latch retraction. If you are also splitting a pair of doors, a mullion such as the Detex 90KR keyed removable mullion for rim exit devices is another separate part. Order the trim and the device together when the opening is new.

The Deltana LTED60LST is a Deltana storeroom lever trim keyed Schlage C and is intended for Deltana's exit device. If the opening is a Detex 10, 20, 21 or 27 Series device and all you need is a cylinder opening on the outside, the Detex 03WS trim plate with cylinder hole is the matching part for those series. Match the trim to the device series on the door rather than to the look of the plate.

Brushed Chrome is the finish offered on the LTED60LST. If the rest of your openings are running satin chrome or satin nickel pulls and closers, brushed chrome reads close; against oil-rubbed bronze or brass hardware it will not match.

Each. One LTED60LST covers one door leaf. On a pair of doors with exit devices on both leaves, you need two if both sides get keyed lever entry.

A pull trim. The Sargent 862 is a Grade 1 offset pull handle for exit devices in the P800 Series, and the Detex 0A is an A/AN Series straight pull trim with a blank escutcheon for Value Series exit devices. Neither locks or unlocks anything - they just give a grip on a door that is pulled open by a latch retracted elsewhere or held unlocked. Pick the Deltana LTED60LST when the door must stay secured and a key has to work it.
