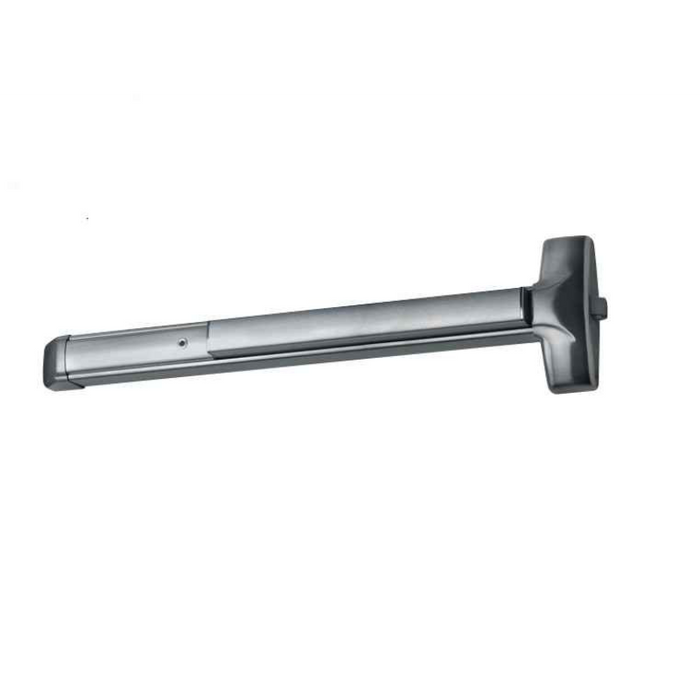

Detex 1003W Advantex 10 Series Wide Stile Rim Exit Device with Key Retracts Latch Cylinder Trim

Detex 1003W Advantex 10 Series Wide Stile Rim Exit Device with Key Retracts Latch Cylinder Trim

(No reviews yet) Write a Review

Model: 1003W-628-36
$1,984.36
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,984.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex Advantex 10 Series Wide Stile Rim Exit Device with Key Retracts Latch Cylinder Trim

Super-Heavy-Duty Panic and Fire Exit Hardware Solution

The Detex Advantex 10 Series rim exit device delivers super-heavy-duty panic and fire exit hardware designed for all types of single and double doors with mullions. This Grade 1 wide stile exit device features a patented mounting plate and strike locator system for precise installation, stainless steel deadlocking Pullman-type latch bolt, and field sizeable design. Tested beyond 1,000,000 cycles - twice the cycling required for Grade 1 UL testing - this non-handed device provides exceptional durability for high-use, high-abuse commercial environments.

Professional Features & Benefits

  • Super-Heavy-Duty Durability: Tested beyond 1,000,000 cycles - twice the cycling required for Grade 1 UL testing for exceptional longevity in demanding applications.
  • Wide Stile Compatibility: Specifically designed for wide stile door configurations with field sizeable design for versatile installation options.
  • Patented Installation System: Mounting plate and strike locator system replaces paper templates for the easiest and most accurate installation of panic hardware available.
  • Premium Construction: All exposed surfaces finished over stainless steel with PVD environmentally-friendly finishing process for superior durability and appearance.
  • Advanced Latch Design: Stainless steel deadlocking Pullman-type latch bolt provides secure latching with smooth operation.
  • Service-Friendly Design: Outside trims are easily changed or re-keyed without removing device from door, reducing maintenance time and costs.
  • Heavy-Duty Protection: Angled end cap deflects damage away from device in high-abuse environments.
  • Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Function: Key Retracts Latch Cylinder Trim
  • Product Group: Exit Devices and Trim
  • Product Model: 1003W
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Series: 10 Series
  • Stile: Wide
  • Stile Type: Wide Stile
  • Subcategory: Advantex Series
  • Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex exit devices deliver professional-grade reliability with stainless steel construction and PVD finishing rated for over 1,000,000 life cycles. The 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty provides comprehensive coverage for demanding commercial applications. Engineered for high-use, high-abuse environments where dependable panic hardware performance is essential for life safety compliance.



Resources

Installation Instructions
Parts List
Door Templates
Maintenance Manual
Installation Video
Specifications

Product Specs

Series:
10 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Advantex Series
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Grade:
Grade 1
Stile:
Wide
Stile Type:
Wide Stile
Wood Door Compatible:
No
Product Model:
1003W
Product Function:
Key Retracts Latch Cylinder Trim
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex 1003W-628-36 – Frequently Asked Questions

1) Will a rim exit device like the Detex 1003W work on a pair of doors?
Yes, on pairs that have a mullion. The Advantex 10 Series rim device is built for single doors and for double doors with mullions, because a rim device latches into a strike on the frame or mullion rather than at the head and sill. If you have a pair with no mullion and cannot add one, you need a vertical rod device instead, such as the Hager 4501 concealed vertical rod with a wide stile pushpad.
2) What do I have to specify when ordering the Detex 1003W?
Four choices are required on the order plus the main options. Dogging: hex dogging, cylinder dogging, or less/no dogging. Strike: 99 surface or 98 semi-mortise. Handing: right hand reverse or left hand reverse. Then device size 36 inch or 48 inch, the rating (non-rated, fire rated, hurricane rated, or hurricane and fire rated), finish, and any electrified option.
3) Can I get the Detex 1003W fire rated?
Yes. The 1003W can be ordered non-rated, fire rated, hurricane rated, or hurricane and fire rated. If the opening is a labeled fire door, order the fire rated build and skip dogging, since dogging is not permitted on fire doors.
4) How does the key retracts latch function on the 1003W work from the outside?
Outside access is by cylinder trim: turning the key retracts the latch so the door can be pulled open, and the pushpad always gives free egress from inside. Trims can be changed or re-keyed without pulling the device off the door, which saves a lot of time on a rekey across a building.
5) I need a rim exit device on a wood door - can I use the Detex 1003W?
The Detex 1003W Advantex is not wood door compatible. For a wood door, the Adams Rite 3700 Series 30 inch fire-rated narrow stile rim device and the Adams Rite 8700 Series 30 inch non-fire-rated narrow stile device are both listed as wood door compatible. Both are Grade 1 with starwheel interlocking, and both are narrow stile rather than wide stile.
6) My aluminum storefront has a narrow stile - what rim exit device should I use instead of the Detex 1003W?
The 1003W Advantex is a wide stile device and needs a wide stile rail. For narrow stile doors, options include the Corbin Russwin ED4200 Grade 1 36 inch narrow stile rim device for 1-3/4 inch doors, the Falcon 19-R 36 inch Grade 1 narrow stile exit only device, the TownSteel ED3700 36 inch Grade 1 narrow stile device, and the Adams Rite 8800 Series 30 inch narrow stile device rated for 1-3/4 inch to 2-1/4 inch doors.
7) What is the closest Grade 1 wide stile rim exit device to the Detex 1003W from another manufacturer?
The Von Duprin 22-3FT is the nearest peer: a 36 inch Grade 1 wide stile pushpad rim exit device, non-handed, for 1-3/4 inch doors and not wood door compatible. The Detex 1003W Advantex is also Grade 1 wide stile and comes in 36 inch and 48 inch sizes with key retracts latch cylinder trim. Other Grade 1 wide stile rim options include the Corbin Russwin ED5200 in 36 inch and the TownSteel ED9700 in 36 inch heavy duty.
8) I only need exit only with no outside trim - is the Detex 1003W the right choice?
The 1003W Advantex is configured with key retracts latch cylinder trim, so it includes outside key control. If you need a plain exit only device with no outside trim, the Corbin Russwin ED2200 is a 36 inch Grade 1 wide stile exit only rim device, the Sargent 2828 is a Grade 1 reversible wide stile exit only device for 48 inch minimum door width, and the Marks USA M9900 is a 36 inch exit only rim device with a panic protector end cap.
9) Is an SDC pressure sense bar or switch bar a substitute for the Detex 1003W rim exit device?
No. The SDC PSB560 36 inch pressure sense bar and the SDC MSB550 36 inch mechanical switch bar both fit narrow or wide stile doors, but they release an electromagnetic lock rather than throwing a mechanical latch bolt. The Detex 1003W Advantex is a mechanical rim exit device with a stainless steel deadlocking Pullman-type latch bolt and its own strike, so it latches the door on its own. The Securitron EMB electromechanical exit bar is likewise a bar-type device rather than a latching rim device.
10) I need a fire rated rim exit device for a 36 inch door - how does the Detex 1003W compare to other options?
The Detex 1003W Advantex is available in a Fire Rated configuration as well as Hurricane Rated, Hurricane and Fire Rated, and Non-Rated, in 36 inch and 48 inch sizes. Other fire rated rim devices include the Marks USA M9900F in 36 inch and 48 inch exit only, the Orca OED85 36 inch fire rated rim device, the Arrow FS1250 32 inch fire rated device for 1-3/4 inch doors, and the Sargent 12-8810 fire rated wide stile rim device with RX and MELR.
11) Which rim exit devices besides the Detex 1003W offer electrified functions like request to exit or electric dogging?
The Detex 1003W Advantex can be ordered with Delayed Egress, Electric Dogging, Hardwired Electric Alarm, or Request To Exit signal switch. Among other electrified rim devices, the SDC S6136 Spectra is a 36 inch electrified architectural rim device with a 4 inch wide stile for 1-3/4 inch to 2 inch doors, the Dormakaba E2103 is an electrified 36 inch rim device with 4908A classroom trim, and the Sargent 12-8810 fire rated wide stile device includes RX and MELR.
12) Does the Detex 1003W need to be handed?
Handing is specified on the order: right hand reverse or left hand reverse. The device itself is described as non-handed, but you still pick a hand so the trim and cylinder orientation match the door.
13) What electrified options can I get on the Detex Advantex 10 Series rim device?
Five choices: none, delayed egress, electric dogging, hardwired electric alarm, or request to exit signal switch. Delayed egress suits a controlled exit where you need the 15 second hold, electric dogging lets access control unlock the pushpad on a schedule, and the RX switch reports the pad being pushed back to the panel.
14) Which strike should I order, the 99 surface or the 98 semi-mortise?
Pick the 99 surface strike when you can mount flat on the frame face or mullion with no routing, which is the usual retrofit choice. The 98 semi-mortise strike sets partly into the frame for a cleaner, less exposed look and is the one to use when the frame is being prepped new or the surface strike would foul the stop.
15) Is the Detex 1003W heavy duty enough for a school or stadium exit?
It is Grade 1 and tested past 1,000,000 cycles, twice the cycling Grade 1 UL testing requires. The latch is a stainless steel deadlocking Pullman type, all exposed surfaces are finished over stainless with a PVD process, and the angled end cap pushes abuse away from the device. That is the spec for high-traffic, high-abuse openings.
16) How does the Detex 1003W compare to a Von Duprin 22 or a Sargent 8800 rim device?
All three are wide stile rim devices. The Von Duprin 22-3FT is a 36 inch non-handed Grade 1 pushpad device listed for 1-3/4 inch doors and non-fire-rated. The Sargent 12-8810-LTRIM is a Grade 1 fire rated wide stile rim device supplied with RX and motorized latch retraction. The Detex 1003W is the one that lets you pick fire, hurricane, or both plus the electrified option on the same order, with key retracts latch cylinder trim.
17) Is there a simpler wide stile rim device if I do not need the hurricane or electrified options?
Yes. If the opening just needs exit-only panic hardware, the Corbin Russwin ED2200 36 inch Grade 1 rim device or the BEST Precision 2101 36 inch wide stile rim device cover it without trim or electrification. The Detex 1003W is the pick when you need outside key access, an electrified function, or a hurricane rated build.
18) What is a lower-grade alternative to the Detex 1003W for a low-traffic wide door?
The Detex 1003W Advantex is Grade 1 and tested beyond 1,000,000 cycles. If the opening does not call for Grade 1, the Cal-Royal 5000 is a 36 inch wide rim exit device with a touch bar on a Grade 2 chassis, and the Cal-Royal 5500 is a 48 inch wide rim device with a push bar, also Grade 2. Both are heavy duty and not wood door compatible. The Design Hardware 2000R is a 33 inch standard duty wide stile rim device with hex key dogging.
19) Is a concealed vertical rod device the same as the Detex 1003W?
No. The 1003W Advantex is a rim device, latching into a surface or semi-mortise strike on the frame. The Hager 4501 is a 36 inch Grade 1 concealed vertical rod device with a wide stile pushpad and the Hager 4601 is a 36 inch Grade 1 concealed vertical rod narrow stile device - both latch top and bottom through rods concealed in the door, which requires a door prepped for that hardware.
20) Do I have to specify handing on the Detex 1003W, and are there non-handed alternatives?
The Detex 1003W Advantex device itself is non-handed, and it is ordered with a Right Hand Reverse or Left Hand Reverse selection along with dogging and strike type. If you prefer a device catalogued as universal out of the box, the BEST Precision 5101 is a non-handed universal rim exit device, the BEST 2401 is a non-handed narrow stile exit only device, and the Von Duprin 22-3FT is a non-handed 36 inch Grade 1 wide stile pushpad device.
21) Is a night latch device like the Sargent 8504 the same outside function as the Detex 1003W?
They differ. The Detex 1003W Advantex uses key retracts latch cylinder trim, where the key pulls the latch back. The Sargent 8504 is a Grade 1 narrow design rim exit device with night latch function, in narrow stile. Confirm which outside operation the opening calls for before substituting, and note the stile difference as well.
22) What finishes does the Detex Advantex 1003W come in to match existing hardware?
Ten finishes: 605 polished brass, 606 brushed brass, 611 polished bronze, 612 brushed bronze, 613 oil rubbed bronze, 628 brushed aluminum, 629 polished stainless, 630 brushed stainless, 693 black painted and 695 dark bronze painted. 630 and 628 are the usual matches for commercial aluminum and hollow metal openings.
23) Is installing the Detex 1003W a paper template job?
No. The Advantex 10 Series ships with a patented mounting plate and strike locator system that replaces the paper template, so the device and strike line up without measuring off a sheet. Detex door prep templates, installation instructions and a parts list are all published for the 10 Series if the door is being prepped in the shop.
