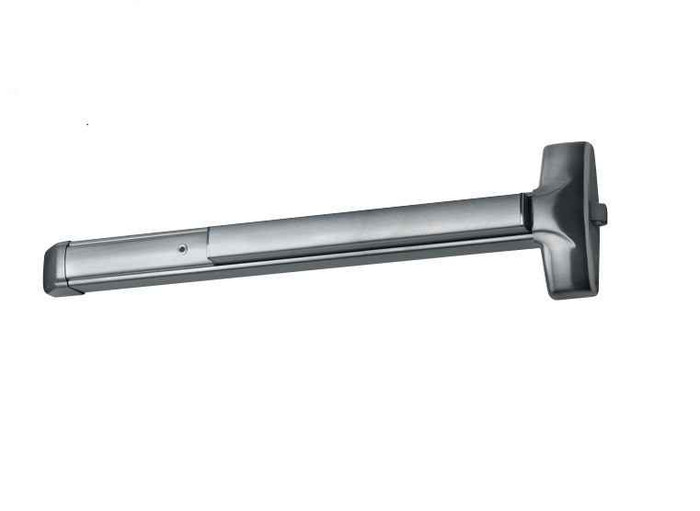

Detex 1003WS Advantex 10 Series Wide Stile Rim Exit Device with Key Retracts Latch Cylinder Trim

Detex 1003WS Advantex 10 Series Wide Stile Rim Exit Device with Key Retracts Latch Cylinder Trim

(No reviews yet) Write a Review

Model: 1003WS-628-36
$1,975.00
$1,957.69
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,975.00
$1,957.69
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex Advantex 10 Series Wide Stile Rim Exit Device with Key Retracts Latch Cylinder Trim

Super-Heavy-Duty Panic and Fire Exit Hardware Solution

The Detex Advantex 10 Series rim exit device delivers super-heavy-duty panic and fire exit hardware performance for single and double doors with mullions. This Grade 1 wide stile exit device features a patented mounting plate and strike locator system for precise installation, tested beyond 1,000,000 cycles for exceptional durability in high-use commercial environments. The stainless steel deadlocking Pullman-type latch bolt and PVD-finished surfaces over stainless steel provide long-lasting performance and corrosion resistance.

Professional Features & Benefits

  • Super-Heavy-Duty Durability: Tested beyond 1,000,000 cycles - twice the cycling required for Grade 1 UL testing for exceptional reliability in high-traffic applications.
  • Wide Stile Design: Engineered for doors requiring wide stile configuration with field-sizeable construction for versatile installation options.
  • Patented Installation System: Mounting plate and strike locator system replaces paper templates for the easiest and most accurate panic hardware installation available.
  • Premium Construction: All exposed surfaces finished over stainless steel with environmentally-friendly PVD process for superior durability and appearance.
  • Advanced Latch Design: Stainless steel deadlocking Pullman-type latch bolt provides secure latching with smooth operation.
  • Flexible Operation: Non-handed design with 1/8 turn hex or cylinder dogging options for operational versatility.
  • Service-Friendly Design: Outside trims can be easily changed or re-keyed without removing device from door for convenient maintenance.
  • Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Function: Key Retracts Latch Cylinder Trim
  • Product Group: Exit Devices and Trim
  • Product Model: 1003WS
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Series: 10 Series
  • Stile: Wide
  • Stile Type: Wide Stile
  • Subcategory: Advantex Series
  • Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex exit devices deliver professional-grade reliability with stainless steel construction and PVD finishing rated for over 1,000,000 life cycles. The 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty provides comprehensive coverage for demanding commercial applications. Engineered for high-use, high-abuse environments where dependable panic hardware performance is essential.



Resources

Installation Instructions
Parts List
Door Templates
Maintenance Manual
Installation Video
Specifications

Product Specs

Series:
10 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Advantex Series
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Grade:
Grade 1
Stile:
Wide
Stile Type:
Wide Stile
Wood Door Compatible:
No
Product Model:
1003WS
Product Function:
Key Retracts Latch Cylinder Trim
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex 1003WS-628-36 – Frequently Asked Questions

1) What does Key Retracts Latch trim do on the Detex 1003WS?
Turning the key in the outside cylinder trim pulls the latch back so the door can be opened from outside; the pushbar always releases from inside. It is the classic nightlatch-style arrangement for a service or back door where you do not want a lever on the outside. The trim can be swapped or re-keyed without pulling the device off the door.
2) Do I have to specify handing when ordering the Detex 1003WS?
Yes. Even though the device itself is non-handed, the order asks for Right Hand Reverse or Left Hand Reverse, which is how exit doors are designated (they swing out). Stand outside the door: if the hinges are on your right and it pulls toward you, it is right hand reverse. You also pick dogging (hex, cylinder, or none) and the strike (99 surface or 98 semi-mortise).
3) Is the Detex Advantex 1003WS fire rated?
It can be. Rating is an ordering choice: Non-Rated, Fire Rated, Hurricane Rated, or Hurricane and Fire Rated. On a labeled fire door you must order the fire rated version and skip dogging, since fire exit hardware cannot be held in the dogged position.
4) What electrified options can I get on the Detex Advantex 10 Series rim device?
Five choices at order time: None, Electric Dogging, Request To Exit (signal) switch, Hardwired Electric Alarm, and Delayed Egress. Electric dogging lets access control unlock the push bar on a schedule, RX reports the bar being pushed back to the panel, and delayed egress is the 15/30 second hold used on stairwells and retail exits where code permits.
5) The door is a narrow stile aluminum storefront - what should I use instead of the Detex 1003WS?
The 1003WS is built as a wide stile device, so a narrow stile aluminum storefront needs a narrow stile rim device instead. Options include the Adams Rite 8800 Series 30 inch narrow stile rim device, listed for 1-3/4 inch to 2-1/4 inch doors, the Corbin Russwin ED4200 Grade 1 narrow stile rim device in 36 inch, and the Falcon 19-R 36 inch narrow stile exit-only device for 1-3/4 inch doors. For a fire rated narrow stile opening, the Adams Rite 3700 Series 30 inch is fire rated and Grade 1.
6) I only need exit-only panic hardware, not key retracts latch trim - what is the alternative to the Detex 1003WS?
The Detex 1003WS is configured with key retracts latch cylinder trim, meaning a keyed cylinder on the outside retracts the latch for entry. If nobody needs to key in from outside, an exit only device covers it: the Corbin Russwin ED2200 is a Grade 1 wide stile rim device in 36 inch, exit only; the Sargent 2828 is a Grade 1 reversible wide stile rim device, exit only, for a 48 inch minimum door width; and the Marks USA M9900 36 inch is an exit only rim device with a panic protector end cap.
7) Is the SDC PSB560 pressure sense bar a substitute for the Detex 1003WS?
No. The SDC SureExit PSB560 Series 36 inch is a pressure sense bar for narrow or wide stile doors, and the SDC MSB550 Series 36 inch is a mechanical switch bar that releases an electromagnetic lock. Both are switch bars that signal a separate locking device; neither carries its own latch. The Detex 1003WS is a rim exit device with a stainless steel deadlocking Pullman-type latch bolt that latches into a strike on the frame. If the opening is secured by a maglock, a switch bar fits; if the door must latch on its own, use the rim device.
8) I need a fire rated wide stile rim exit device - what are my options besides the Detex 1003WS?
The Detex 1003WS can be ordered fire rated, and also in hurricane rated or hurricane and fire rated configurations. If you are comparing, the Sargent 12-8810-LTRIM is a fire rated Grade 1 wide stile rim device in the 8800 Series with RX and motorized electric latch retraction. The Marks USA M9900F is a fire rated rim exit device in 36 inch and 48 inch, exit only. The Dexter ED1000 Series is also offered as a Grade 1 fire rated rim device.
9) Which strike should I order with the Detex 1003WS, the 99 surface or the 98 semi-mortise?
The 99 surface strike screws to the face of the frame or mullion and is the simpler retrofit when you do not want to cut the frame. The 98 semi-mortise sets into the frame for a flatter, less exposed profile, and takes frame prep. On a replacement job where the old device left a surface strike pattern, the 99 is usually the quicker match.
10) Can I match the Detex 1003WS to the finishes on the rest of my building's doors?
Ten finishes are offered: 605 polished brass, 606 brushed brass, 611 polished bronze, 612 brushed bronze, 613 oil rubbed bronze, 628 brushed aluminum, 629 polished stainless, 630 brushed stainless, 693 black painted and 695 dark bronze painted. The plated finishes are applied by PVD over stainless steel, so they hold up outdoors and in coastal air better than a lacquered brass finish.
11) Should I order hex dogging or cylinder dogging on the Detex 1003WS?
Hex dogging uses a 1/8 turn allen key and is the cheaper, standard choice for staff-only control. Cylinder dogging takes a key cylinder so the same building key can hold the bar down, which suits schools and retail where whoever opens up carries keys, not tools. Order Less/No dogging on a fire rated opening.
12) Is a concealed vertical rod device like the Hager 4501 an alternative to the Detex 1003WS?
They solve different openings. The Hager 4501 Series 36 inch is a Grade 1 concealed vertical rod device with a wide stile pushpad, latching top and bottom into the frame head and floor, which suits pairs without a mullion. The Detex 1003WS is a rim device, latching into a strike on the frame or mullion, and is intended for single doors and double doors with mullions. Choose the rim device when a mullion is present and the vertical rod device when the pair must stay clear.
13) How does the Dormakaba 9300 compare with the Detex 1003WS for a 48 inch door?
Both cover a 48 inch wide stile opening. The DORMA 9300 Series 48 inch is a Grade 1 heavy duty wide stile panic rim device, exit only, listed for 1-3/4 inch to 2-1/4 inch doors. The Detex 1003WS is a Grade 1 wide stile rim device available in 36 inch and 48 inch and is configured with key retracts latch cylinder trim, so it takes a keyed cylinder for outside entry. If the 48 inch door needs outside key access, the trim function is the deciding difference.
14) Is there a less expensive alternative to the Detex 1003WS for a lower-traffic door?
If the opening does not require Grade 1, the Cal-Royal 5000 36 inch wide rim exit device with touch bar is a Grade 2 heavy duty device, and the Cal-Royal 5500 is the same Grade 2 heavy duty build in 48 inch with a push bar. The Design Hardware 2000R is a standard duty wide stile rim device in 33 inch with hex key dogging. The Detex 1003WS is Grade 1 and tested beyond 1,000,000 cycles, so for stairwells, main entries and other high-cycle doors the Grade 1 device is the one that matches the traffic.
15) What is the difference between the Detex 1003WS and a crossbar exit device like the Corbin Russwin ED3200?
The Corbin Russwin ED3200 is a Grade 1 wide stile crossbar rim exit device in 48 inch for 1-3/4 inch doors, where the operating bar is a horizontal crossbar spanning the door. The Detex 1003WS uses a push pad style touchbar in the Advantex 10 Series wide stile rim form. The CRL Jackson 1095 Series 48 inch is another crossbar wide stile rim device, exit only. Crossbar and touchbar devices prep differently, so match whichever the rest of the building already carries if you are standardizing.
16) What else can I use if I need an electrified wide stile rim exit device instead of the Detex 1003WS?
The Detex 1003WS can be configured with delayed egress, electric dogging, a hardwired electric alarm or a request to exit signal switch. Comparable electrified rim devices include the SDC Spectra S6136, a 36 inch electrified architectural rim device with a 4 inch wide stile for 1-3/4 inch to 2 inch doors, the Dormakaba E2103 electrified 36 inch rim device with 4908A classroom trim, and the Sargent 12-8810-LTRIM fire rated wide stile rim device with RX and motorized electric latch retraction.
17) Is there an easier install than paper templates for this Detex panic bar?
Yes. The Advantex 10 Series ships with a patented mounting plate and strike locator system that replaces the paper template, so the strike lands in line with the latch without transferring marks by hand. Detex also publishes door prep templates, installation instructions, a parts list and a maintenance manual for the series.
