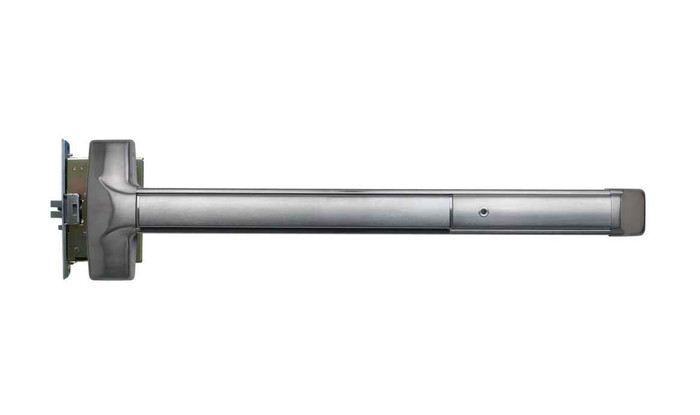

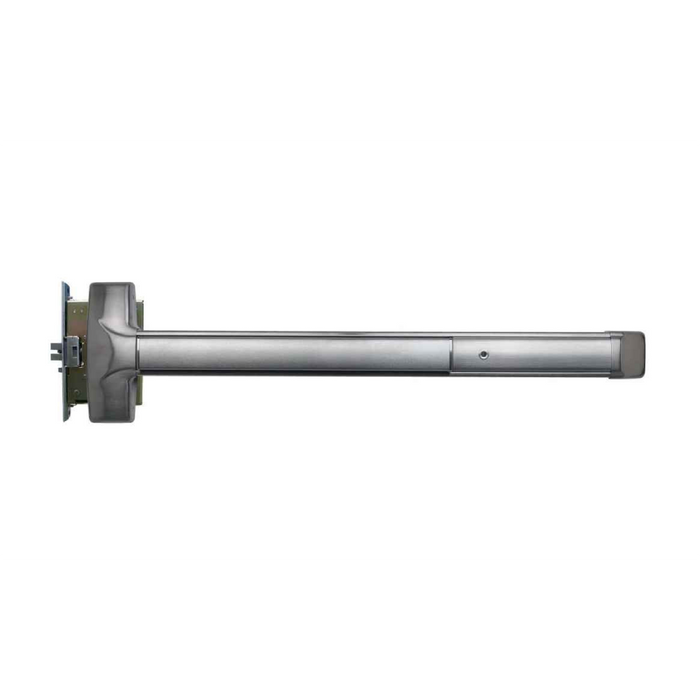

Detex Advantex 30 Series Mortise Lock Exit Device with Key Retracts Latch Cylinder Trim - Grade 1 Wide Stile

Detex Advantex 30 Series Mortise Lock Exit Device with Key Retracts Latch Cylinder Trim - Grade 1 Wide Stile

(No reviews yet) Write a Review

Model: 3003WM-628-90-36
$2,793.00
$2,768.53
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,793.00
$2,768.53
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex Advantex 30 Series Mortise Lock Exit Device with Key Retracts Latch Cylinder Trim - Grade 1 Wide Stile

Super-Heavy-Duty Panic and Fire Exit Hardware Solution

The Detex Advantex 30 Series mortise lock exit device delivers professional-grade panic and fire exit hardware engineered for demanding commercial applications. This Grade 1 rated device features a 3/4" projection stainless steel latch bolt with anti-friction, deadlocking design for reliable operation on single and double doors. The wide stile configuration accommodates various door preparations while the patented mounting plate and strike locator system ensures precise installation without traditional paper templates.

Professional Features & Benefits

  • Grade 1 Commercial Rating: BHMA Grade 1 certification ensures maximum durability and performance for high-traffic commercial applications.
  • Heavy-Duty Latch System: 3/4" projection stainless steel latch bolt with anti-friction, deadlocking mechanism provides secure latching and smooth operation.
  • Wide Stile Design: Wide stile configuration accommodates doors with generous stile dimensions for versatile installation options.
  • Super-Heavy-Duty Construction: Engineered for years of trouble-free service in high-use, high-abuse environments with heavy duty angled end cap that deflects damage away from device.
  • Advanced Surface Finishing: All exposed surfaces finished over stainless steel with PVD environmentally-friendly finishing process for superior corrosion resistance and appearance retention.
  • Patented Installation System: Mounting plate and strike locator system replaces paper templates for the easiest and most accurate installation of panic hardware available.
  • Field Serviceable Design: Outside trims are easily changed or re-keyed without removing device from door, and 1/8 turn dogging provides convenient maintenance access.
  • Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Function: Key Retracts Latch Cylinder Trim
  • Product Group: Exit Devices and Trim
  • Product Model: 3003WM
  • Product Subgroup: Exit Devices - Mortise
  • Product Type: Exit Devices - Mortise
  • Series: 30 Series
  • Stile: Wide
  • Stile Type: Wide Stile
  • Subcategory: Advantex Series
  • Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex Advantex 30 Series exit devices deliver professional-grade reliability with super-heavy-duty construction and Grade 1 commercial rating for demanding applications. The patented mounting system and stainless steel components with PVD finishing ensure long-term performance, backed by a comprehensive 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty. Engineered for high-use, high-abuse environments where dependable panic hardware performance is essential.



Resources

Installation Instructions
Catalog
Door Templates

Product Specs

Series:
30 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Mortise
Product Type:
Exit Devices - Mortise
Subcategory:
Advantex Series
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Grade:
Grade 1
Stile:
Wide
Stile Type:
Wide Stile
Wood Door Compatible:
No
Product Model:
3003WM
Product Function:
Key Retracts Latch Cylinder Trim
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex 3003WM-628-90-36 – Frequently Asked Questions

1) Does the Detex Advantex 3003WM allow key entry from the outside, or is it exit only?
It is a key retracts latch cylinder trim device, so a key in the outside cylinder pulls the latch back and lets you in. Exit only devices have no outside operation at all, like the Falcon 25-M-EO or the BEST Precision 2301 exit only mortise device. Outside trims on the Advantex can be changed or re-keyed without pulling the device off the door.
2) Do I have to specify handing when ordering the Detex Advantex 30 Series mortise device?
Yes, handing is a required choice: right hand reverse or left hand reverse. A mortise exit device is handed because the lock body latch has to face the correct way. If you would rather not hand it, several wide stile alternatives are non-handed, including the Von Duprin 8875 and 9875 crossbar and smooth case mortise devices.
3) Can I get the Detex 3003WM fire rated for a labeled door opening?
Yes. The 3003WM is offered in both fire rated and non-rated configurations, so pick fire rated for a labeled opening. Note that dogging is not usable on a fire rated device, so specify less/no dogging on those; the hex and cylinder dogging options belong on non-rated openings.
4) Which strike do I order for a pair of doors with the Detex Advantex 30 Series?
Four strikes are offered: 90 non-handed curved lip, 91 ANSI flat lip, 92 double door short open back, and 93 double door long open back. For a pair, use the 92 or 93 open back strike depending on how far the strike has to reach across; the 90 and 91 are for single door frame applications.
5) Which mortise exit devices are fire rated if the Detex 3003WM non-rated build will not pass inspection?
The Detex Advantex 3003WM is offered in both fire rated and non-rated builds, so the fire rated version is the direct answer. If you need another brand, the Adams Rite 3300 Series is a fire rated wide stile Grade 1 mortise device for wood and hollow metal doors, and the Corbin Russwin ED5600AL is a Grade 1 3 hour fire rated wide stile mortise device for 1-3/4 inch doors. The Von Duprin 9875-3FT, 8875-3FT, and 9475/9575 are non-fire-rated.
6) The Detex 3003WM will not fit my narrow stile aluminum door. What mortise exit device should I use instead?
The 3003WM is built for wide stile openings. For narrow stile doors, look at the Adams Rite 8400 Series life-safety narrow stile mortise exit device for aluminum doors, the Von Duprin 5575-3ft narrow stile crossbar mortise device, or the Sargent 8304 narrow stile mortise device in night latch function. All three are narrow stile mortise devices; the Adams Rite 8400 and Von Duprin 5575 are non-fire-rated.
7) What is a comparable Grade 1 wide stile mortise exit device to the Detex 3003WM?
The Detex Advantex 3003WM is a Grade 1 wide stile mortise exit device. Close wide stile mortise peers at the same grade include the Von Duprin 9875-3FT smooth case non-handed device in 3 ft, the Von Duprin 8875-3FT crossbar device in 36 inch, and the Adams Rite 8300 Series life-safety mortise device. The Detex is a push pad device offered in 36 inch and 48 inch with the Key Retracts Latch cylinder trim function, while the 8875 uses a crossbar actuator and the 9875 a smooth case push pad.
8) I need a mortise exit device that takes classroom or passage lever trim rather than key-retracts-latch. What should I order?
The Corbin Russwin ED5600AL is a Grade 1 wide stile mortise exit device for 1-3/4 inch doors that is 3 hour fire rated and set up for exit only or for use with classroom or passage lever trim, sold separately. The Detex Advantex 3003WM instead uses the Key Retracts Latch cylinder trim function and is offered in fire rated and non-rated builds.
9) What door widths does the Detex 3003WM exit device cover?
Two device lengths are offered, 36 inch and 48 inch. Size the device to the door leaf width, not the frame opening.
10) Is the Detex Advantex 3003WM heavy enough for a school or hospital main exit?
It is BHMA Grade 1, the top commercial rating, and built for high-use, high-abuse openings. The heavy duty angled end cap deflects cart and door swing damage away from the device, and all exposed surfaces are finished over stainless steel with a PVD process for corrosion resistance. The 3/4 inch stainless latch bolt is anti-friction and deadlocking.
11) Will the Detex 3003WM latch bolt work with my existing mortise strike?
The latch bolt has a 3/4 inch projection, stainless steel, anti-friction and deadlocking. Reusing an existing strike only works if the pocket depth accepts a 3/4 inch throw and the lip is on the correct side. Detex supplies four strikes with the device and includes a patented strike locator that replaces paper templates, so most installers cut fresh and set the supplied strike.
12) Can the Detex Advantex 3003WM be held in a pushed-in, unlocked state during business hours?
Yes, on non-rated openings. Order hex dogging or cylinder dogging and the 1/8 turn dogging holds the pad down so the door pushes free. Cylinder dogging keys it so only staff can dog it; hex needs an allen wrench. Fire rated versions must be ordered less/no dogging.
13) What is a simpler alternative to the Detex 3003WM if I do not need outside key access?
The 3003WM carries the Key Retracts Latch cylinder trim function, so a cylinder and outside trim are part of the opening. If the door only needs free egress with no outside operation, the Falcon 25-M-EO is a Grade 1 wide stile mortise exit device in exit only function at 36 inch for 1-3/4 inch doors, and the BEST Precision 2301 is an exit only mortise device with heavy wrought construction.
14) How does the Detex 3003WM compare to a night latch mortise exit device like the Sargent 8904?
Both are Grade 1 wide stile mortise exit devices. The Detex 3003WM uses the Key Retracts Latch cylinder trim function, where the outside key pulls the latch back. The Sargent 8904 is a night latch function device with 24VAC/DC operation. If the spec calls for night latch on a narrow stile door instead, the Sargent 8304 is the narrow stile night latch equivalent.
15) What wide stile mortise exit device holds up best on an abuse-prone opening compared with the Detex 3003WM?
The Detex Advantex 3003WM uses a heavy duty angled end cap that deflects damage away from the device and finishes all exposed surfaces over stainless steel with a PVD process. Among wide stile Grade 1 peers, the Von Duprin 9475/9575 Impact Series mortise lock exit device uses a recessed push pad for wide stile doors and is non-fire-rated, while the BEST Precision 2301 is described as heavy wrought construction in exit only function.
16) My other doors have crossbar exit devices. Will the Detex 3003WM match them?
No. The Detex Advantex 3003WM is a push pad style mortise exit device with 1/8 turn dogging. If you are matching existing crossbar hardware on wide stile doors, the Von Duprin 8875-3FT is a wide stile crossbar mortise exit device at 36 inch, Grade 1 and non-handed for 1-3/4 inch doors; on narrow stile doors the Von Duprin 5575-3ft is a Grade 1 narrow stile crossbar mortise device, field reversible.
17) What finishes does the Detex Advantex 30 Series mortise exit device come in?
Ten: 605 polished brass, 606 brushed brass, 611 polished bronze, 612 brushed bronze, 613 oil rubbed bronze, 628 brushed aluminum, 629 polished stainless, 630 brushed stainless, 693 black painted and 695 dark bronze painted. If you are standardizing across a building, 630 brushed stainless and 628 brushed aluminum are the usual matches to existing commercial door hardware.
