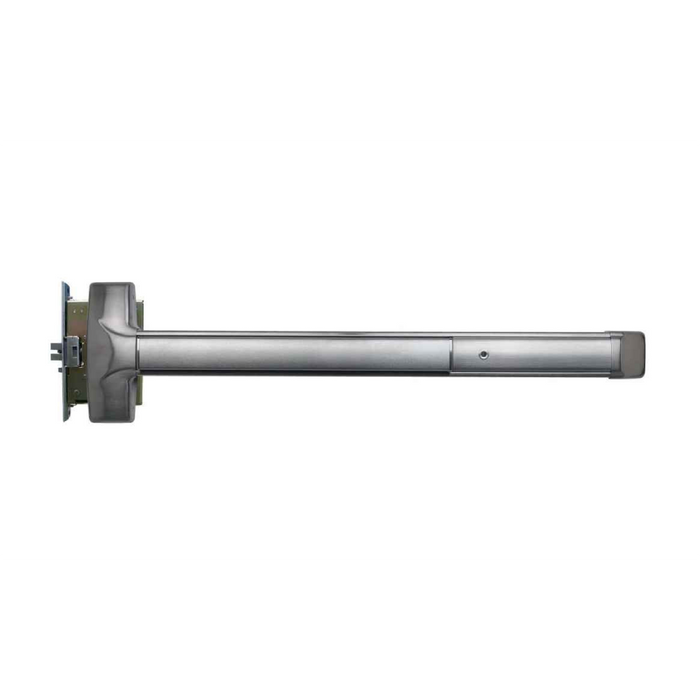

Detex Advantex 30 Series Mortise Lock Exit Device with Wide Stile Design and Grade 1 Rating

Detex Advantex 30 Series Mortise Lock Exit Device with Wide Stile Design and Grade 1 Rating

(No reviews yet) Write a Review

Model: 3001WM-628-90-36
$2,793.00
$2,768.53
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,793.00
$2,768.53
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

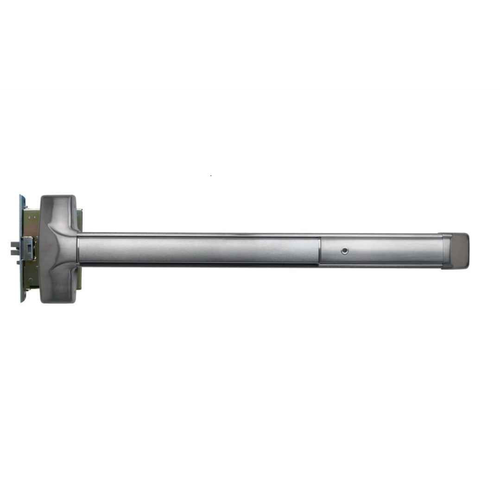

Detex Advantex 30 Series Mortise Lock Exit Device with Wide Stile Design and Grade 1 Rating

Super-Heavy-Duty Panic and Fire Exit Hardware Solution

The Detex Advantex 30 Series mortise lock exit device delivers super-heavy-duty panic and fire exit hardware performance for single and double door applications. This Grade 1 rated device features wide stile compatibility and a patented mounting plate system with strike locator for precise installation. Built with a 3/4" projection stainless steel latch bolt and anti-friction deadlocking mechanism, this exit-only device with cover plate provides reliable egress control in demanding commercial environments.

Professional Features & Benefits

  • Grade 1 Heavy-Duty Construction: Super-heavy-duty design engineered for years of trouble-free service in high-use, high-abuse commercial environments.
  • Precision Latch System: 3/4" projection stainless steel latch bolt with anti-friction, deadlocking mechanism ensures reliable latching and smooth operation.
  • Wide Stile Compatibility: Designed for wide stile door applications with field-sizeable, non-handed configuration for versatile installation options.
  • Patented Installation System: Mounting plate and strike locator system replaces paper templates for the easiest and most accurate panic hardware installation available.
  • Durable Surface Protection: All exposed surfaces finished over stainless steel with environmentally-friendly PVD coating for long-lasting appearance and corrosion resistance.
  • Damage-Resistant Design: Heavy-duty angled end cap deflects damage away from device, protecting critical components in high-traffic applications.
  • Flexible Operation: 1/8 turn dogging feature allows for convenient hold-open functionality when required by application.
  • Comprehensive Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty provides added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Function: Exit Only, Cover Plate
  • Product Group: Exit Devices and Trim
  • Product Model: 3001WM
  • Product Subgroup: Exit Devices - Mortise
  • Product Type: Exit Devices - Mortise
  • Series: 30 Series
  • Stile: Wide
  • Stile Type: Wide Stile
  • Subcategory: Advantex Series
  • Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, wide stile dimensions, and mortise pocket specifications for this device.
  2. Use the patented mounting plate and strike locator system to mark mounting hole locations accurately on door and frame surfaces, eliminating the need for paper templates.
  3. Prepare door and frame by drilling required holes and cutting mortise pockets as specified in manufacturer instructions for mortise lock configuration.
  4. Install the mounting plate system and secure the device to door and frame per manufacturer torque specifications, ensuring proper alignment with strike.
  5. Adjust the 3/4" projection latch bolt and anti-friction deadlocking mechanism for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation including panic bar function, latch engagement, and 1/8 turn dogging feature to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex Advantex 30 Series exit devices deliver professional-grade reliability with super-heavy-duty construction and Grade 1 rating for demanding commercial applications. The patented mounting plate and strike locator system ensures precise installation while the stainless steel latch bolt with PVD coating provides long-term durability. Backed by a comprehensive 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty, this device is engineered for dependable performance where reliable egress control is essential.



Resources

Installation Instructions
Catalog
Door Templates

Product Specs

Series:
30 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Mortise
Product Type:
Exit Devices - Mortise
Subcategory:
Advantex Series
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Grade:
Grade 1
Stile:
Wide
Stile Type:
Wide Stile
Wood Door Compatible:
No
Product Model:
3001WM
Product Function:
Exit Only, Cover Plate
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex 3001WM-628-90-36 – Frequently Asked Questions

1) Can the Detex 3001WM mortise exit device go on a wood door?
No. The Advantex 3001WM is not wood door compatible, so it's for hollow metal and other non-wood wide stile openings. If the opening is a wood door, look at the Adams Rite 3300 Series fire-rated mortise device, which is listed for wood and hollow metal doors, or the non-rated Adams Rite 8300 Series for the same door types.
2) Do I have to specify handing when ordering the Detex 3001WM?
Yes. The 3001WM is ordered either Right Hand Reverse or Left Hand Reverse, so you need the swing of the door before you order. The device itself is described as field-sizeable and non-handed in construction, but the order still carries a handing selection.
3) Which Detex 3001WM strike do I order for a pair of doors versus a single door with a frame stop?
Four strikes are offered. For a single door, the 90 non-handed curved lip or the 91 ANSI flat lip covers standard frame prep. For a pair of doors, order the 92 double door short open back or the 93 double door long open back, the difference being how far the open back reaches on the inactive leaf prep.
4) Is the Detex Advantex 30 Series mortise device available fire rated?
Both fire rated and non-rated versions of the 3001WM are built. Pick the fire rated version for a labeled opening; dogging is not permitted on fire doors, so a fire rated order should be specified less dogging.
5) Will the Detex 3001WM latch into my existing mortise strike?
The latch bolt projects 3/4 inch and is stainless steel with an anti-friction deadlocking mechanism. If your existing frame prep was cut for another mortise exit device, the supplied strike locator is the safer route, and the 90, 91, 92 or 93 strike choice lets you match ANSI flat lip or curved lip frame prep.
6) What electrified options can I get on the Detex Advantex 3001WM?
Four: EA hardwired electric alarm, EB electric alarm with battery, EX request-to-exit signal switch, and EE delayed egress. EB is the one to use where there is no power at the door, EX is for tying the exit into an access control or alarm panel, and EE for delayed egress where the authority having jurisdiction permits it.
7) The door is a narrow stile aluminum storefront - what mortise exit device should be used instead of the Detex 3001WM?
The Detex Advantex 3001WM is built for wide stile doors and will not suit a narrow stile aluminum storefront. For that opening, the Adams Rite 8400 Series is a Grade 1 narrow stile mortise exit device made for aluminum doors, and the Von Duprin 5575-3ft is a Grade 1 narrow stile crossbar mortise device at 3 ft for 1-3/4 inch doors and is field reversible. The Sargent 8304 is a narrow stile mortise device in night latch function if outside key access is needed.
8) I need outside lever trim on the door - is the Detex 3001WM the right device?
The Detex Advantex 3001WM is configured exit only with a cover plate, so there is no outside trim operation. If the opening needs keyed or passage entry from the outside, the Corbin Russwin ED5600AL is a Grade 1 3 hour fire rated wide stile mortise exit device for 1-3/4 inch doors that accepts passage or classroom lever trim (trim ordered separately). For keyed outside access without a lever, the Sargent 8904 is a Grade 1 wide stile mortise device in night latch function.
9) What is the closest equivalent to the Detex 3001WM mortise exit device from another manufacturer?
The Detex Advantex 3001WM is a Grade 1 wide stile mortise exit device in exit-only function. The Falcon 25-M-EO is the nearest straight equivalent: a Grade 1 wide stile mortise exit device, exit only, in a 36 inch size for 1-3/4 inch doors. The Von Duprin 9875-3FT is another wide stile Grade 1 mortise device at 3 ft with a smooth case and non-handed build, though it is non-fire-rated, while the 3001WM is offered in both fire rated and non-rated configurations.
10) For a fire rated wide stile opening, which devices besides the Detex 3001WM are fire rated?
The Detex Advantex 3001WM is available in a fire rated configuration. Among other wide stile mortise devices, the Adams Rite 3300 Series is fire rated, and the Corbin Russwin ED5600AL is a Grade 1 3 hour fire rated mortise exit device for 1-3/4 inch doors. The Adams Rite 8300, Von Duprin 8875-3FT, Von Duprin 9875-3FT and Von Duprin 9475/9575 are non-fire-rated, so they are not substitutes on a labeled opening.
11) Can I hold the door unlatched for business hours with this Detex exit device?
Yes, if you order it with dogging. The 3001WM offers hex dogging or cylinder dogging, both operating on a 1/8 turn to hold the push pad depressed and the latch retracted. Cylinder dogging is the choice where you don't want staff using a hex key, and less dogging is required for fire rated openings.
12) Is the Detex Advantex 3001WM Grade 1, and what else in the same wide stile mortise class is Grade 1?
Grade 1, commercial duty. Wide stile Grade 1 mortise alternatives we carry include the Falcon 25-M-EO exit-only in 36 inch, the Von Duprin 9875 smooth case non-handed device, the Von Duprin 8875 crossbar, and the Von Duprin 9475/9575 Impact Series with a recessed push pad for high abuse openings.
13) Is a mortise exit device the right choice, or should I use a rim or vertical rod device?
A mortise device like the 3001WM latches into the frame jamb from a pocket cut into the door edge, which gives a cleaner look and good security on a single door or on the active leaf of a pair. It requires mortising the door, so it is not a quick swap onto a door with no pocket. For a pair of doors with no mullion where you want to latch at head and threshold instead, a surface vertical rod device such as the Sargent 1256NB-8710G is the type to look at, and that one also offers electric latch retraction.
14) How does the Detex 3001WM push pad differ from a crossbar mortise exit device?
The Detex Advantex 3001WM uses a push pad style device with an angled end cap and a 1/8 turn dogging feature, in 36 inch and 48 inch sizes. The Von Duprin 8875-3FT is a wide stile crossbar mortise exit device at 36 inch, Grade 1 and non-handed, where the actuator is a horizontal bar rather than a pad. The Von Duprin 9475/9575 Impact Series is another wide stile Grade 1 mortise device using a recessed push pad. All three are wide stile mortise devices; the difference is the actuator style and appearance on the door face.
15) Is the Sargent 810 an alternative to the Detex 3001WM exit device?
No. The Sargent 810 is dummy pull exit device trim in dummy function - it is a pull with no latching mechanism. The Detex Advantex 3001WM is a full Grade 1 mortise exit device with a 3/4 inch projection stainless steel latch bolt and anti-friction deadlocking mechanism. The 810 is used on an inactive leaf or as a matching pull, not to provide code egress.
16) The opening needs a vertical rod device rather than a mortise lock - what replaces the Detex 3001WM?
The Detex Advantex 3001WM is a mortise lock exit device, which requires a mortise pocket in the door edge and a strike in the frame. If the opening calls for a vertical rod instead, the Sargent 1256NB-8710G is a Grade 1 fire rated surface mount vertical rod exit device at 84 inches with electric latch retraction. That is a different door prep entirely, so the choice has to be made before the door is cut.
17) What is a simpler mortise exit device than the Detex 3001WM if the electrified options are not needed?
The Detex Advantex 3001WM is offered with hardwired electric alarm, request to exit switch, delayed egress and battery alarm options, plus hex or cylinder dogging. If the opening only needs plain mechanical egress, the BEST Precision 2301 Series is a mortise exit device in exit only function with heavy wrought construction, and the Falcon 25-M-EO is a Grade 1 wide stile exit only mortise device for 1-3/4 inch doors.
18) I need to match finishes across a building. What finishes does the Detex 30 Series mortise device come in?
Ten: 605 polished brass, 606 brushed brass, 611 polished bronze, 612 brushed bronze, 613 oil rubbed bronze, 628 brushed aluminum, 629 polished stainless, 630 brushed stainless, 693 black painted and 695 dark bronze painted. Exposed surfaces are finished over stainless steel with a PVD coating, which holds up better than plated finishes on exterior and high-traffic doors.
19) Do I need paper templates to prep the door for the Detex Advantex 30 Series?
No. The Advantex uses a patented mounting plate and strike locator instead of paper templates, which is what makes it faster to hang accurately on a retrofit where the old holes are already there. Detex also publishes door prep templates and full installation instructions for the 30 Series if your shop preps doors off site.
