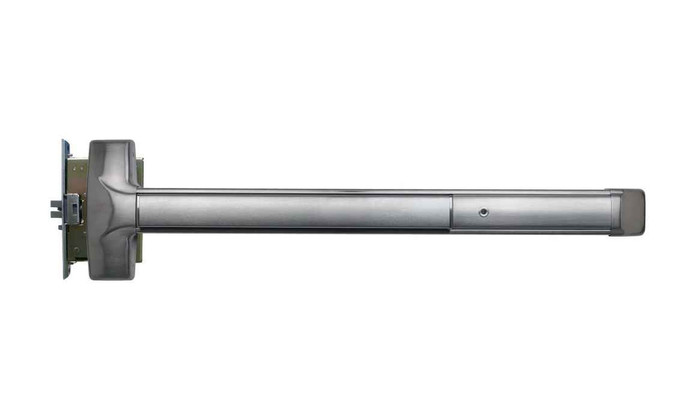

Detex Advantex 30 Series Mortise Lock Exit Device with Double Cylinder and Wide Stile Design

Detex Advantex 30 Series Mortise Lock Exit Device with Double Cylinder and Wide Stile Design

(No reviews yet) Write a Review

Model: 3010DM-628-90-36
$3,616.00
$3,584.32
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,616.00
$3,584.32
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex Advantex 30 Series Mortise Lock Exit Device with Double Cylinder and Wide Stile Design

Super-Heavy-Duty Panic and Fire Exit Hardware Solution

The Detex Advantex 30 Series mortise lock exit device delivers super-heavy-duty panic and fire exit hardware engineered for all types of single and double doors. This Grade 1 commercial exit device features a 3/4" projection stainless steel latch bolt with anti-friction, deadlocking design and wide stile compatibility. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available, while all exposed surfaces are finished over stainless steel with environmentally-friendly PVD coating.

Professional Features & Benefits

  • Super-Heavy-Duty Construction: Grade 1 commercial rating with tough and durable design engineered for years of trouble-free service in high-use, high-abuse environments.
  • Advanced Latch System: 3/4" projection stainless steel latch bolt with anti-friction, deadlocking mechanism provides secure and reliable operation.
  • Wide Stile Compatibility: Designed for wide stile applications with field-sizeable, non-handed configuration for versatile installation options.
  • Patented Installation System: Mounting plate and strike locator system replaces paper templates for the easiest and most accurate installation available.
  • Damage-Resistant Design: Heavy duty angled end cap deflects damage away from device for enhanced durability in demanding environments.
  • Easy Retrofit Capability: Minimal door preparation saves time and money while enabling easy retrofit to other manufacturers’ hardware.
  • Environmentally-Friendly Finish: All exposed surfaces finished over stainless steel with PVD coating, an environmentally-friendly finishing process.
  • Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer’s Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Function: Double Cylinder
  • Product Group: Exit Devices and Trim
  • Product Model: 3010DM
  • Product Subgroup: Exit Devices - Mortise
  • Product Type: Exit Devices - Mortise
  • Series: 30 Series
  • Stile: Wide
  • Stile Type: Wide Stile
  • Subcategory: Advantex Series
  • Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer’s Warranty
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use the patented mounting plate and strike locator system to mark mounting hole locations accurately on door and frame surfaces, eliminating the need for paper templates.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion, utilizing the 1/8 turn dogging feature as needed.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex Advantex 30 Series exit devices deliver professional-grade reliability with Grade 1 commercial construction and patented installation technology. The 10 Year Mechanical/3 year Electrical Limited Manufacturer’s Warranty demonstrates confidence in long-term performance. Engineered for demanding commercial applications where dependable panic hardware performance and easy installation are essential.



Resources

Installation Instructions
Catalog
Door Templates

Product Specs

Series:
30 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Mortise
Product Type:
Exit Devices - Mortise
Subcategory:
Advantex Series
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Grade:
Grade 1
Stile:
Wide
Stile Type:
Wide Stile
Wood Door Compatible:
No
Product Model:
3010DM
Product Function:
Double Cylinder
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex 3010DM-628-90-36 – Frequently Asked Questions

1) Is the Detex 3010DM available fire rated for a labeled opening?
Yes, the 3010DM is ordered as either Fire Rated or Non-Rated, so specify the fire rated version for a labeled door. Keep in mind fire rated exit devices must not be dogged down, so on a labeled opening choose the Less/No dogging option rather than hex or cylinder dogging.
2) What do I have to specify when ordering a Detex Advantex 3010DM?
Six choices decide the part: device length (36 inch or 48 inch), fire rated or non-rated, finish (605, 606, 611, 612, 613, 628, 629, 630, 693 or 695), strike (90 non-handed curved lip, 91 ANSI flat lip, 92 double door short open back, or 93 double door long open back), dogging (hex, cylinder, or less dogging), and electrified option (none, EA hardwired electric alarm, EX request to exit switch, EE delayed egress, or EB electric alarm with battery). Handing is also called out as right hand reverse or left hand reverse.
3) Which strike do I order for the Detex 3010DM on a pair of doors?
For a pair, use one of the double door strikes: 92 short open back or 93 long open back, chosen to suit how much the inactive leaf edge needs cleared. On a single door into a frame, the 90 non-handed curved lip or the 91 ANSI flat lip strike is the normal pick, with 91 where the frame is already ANSI prepped.
4) Will the Detex Advantex 3010DM latch into my existing strike prep?
The latch bolt is stainless steel with 3/4 inch projection and an anti-friction, deadlocking design, so it needs a strike pocket that accepts that throw. Detex supplies the strike with the device (90, 91, 92 or 93), and the patented strike locator sets its position off the mounting plate instead of a paper template, so in practice you're locating a new strike rather than reusing an old one. Detex does state minimal door prep and easy retrofit to other manufacturers' hardware.
5) Can I get the Detex 30 Series mortise exit device with delayed egress or an alarm?
Yes. Electrified options on the 3010DM are EE delayed egress, EA hardwired electric alarm, EB electric alarm with battery, and EX request to exit signal switch, or none for a straight mechanical device. Delayed egress and local alarm choices are the ones facilities use on controlled exits in schools, healthcare and retail.
6) I need a fire rated mortise exit device. Which options cover that?
The Detex Advantex 3010DM is ordered in either a Fire Rated or Non-Rated configuration, so specify the fire rated build for a labeled opening. Among the alternatives, the Adams Rite 3300 Series is a fire rated Grade 1 wide stile mortise device and the Corbin Russwin ED5600AL is a Grade 1 3 hour fire rated wide stile mortise device. The Adams Rite 8300, Von Duprin 8875, 9875, 9475/9575 and 5575 are all listed as not fire rated.
7) I have an aluminum storefront with a narrow stile. Can I use the Detex 3010DM?
No. The Detex Advantex 3010DM is built for wide stile doors. For a narrow stile opening, use a narrow stile mortise device instead: the Adams Rite 8400 Series is a Grade 1 narrow stile mortise exit device for aluminum doors, and the Von Duprin 5575 is a Grade 1 narrow stile crossbar mortise device, field reversible, for 1-3/4 inch doors. Both 8400 and 5575 are listed non fire rated.
8) What is the closest wide stile mortise exit device to the Detex 3010DM from another manufacturer?
The Detex Advantex 3010DM is a Grade 1 wide stile mortise exit device offered in 36 inch and 48 inch sizes. The closest peers are the Von Duprin 9875-3FT, a 3 ft smooth case wide stile mortise exit device rated Grade 1 and non-handed, and the Falcon 25-M-EO, a Grade 1 wide stile mortise device in a 36 inch length. Both Von Duprin options list a 1-3/4 inch door thickness. The difference is function: the 3010DM is a double cylinder device, while the Falcon 25-M-EO is exit only with no outside key access.
9) What does the double cylinder function on the Detex 3010DM mean?
Double cylinder means the mortise lock body takes a cylinder on each side, so the device is keyed from the outside and also from the inside of the lock case rather than being exit-only. Cylinders are specified separately from the device itself. If you only need free egress with no outside key access, an exit-only mortise device like the Falcon 25-M-EO or BEST Precision 2301 is the simpler order.
10) Do I need to order the Detex 3010DM handed?
The device itself is non-handed and field sizeable, and the 90 strike is non-handed, so the case doesn't have to be dedicated to one swing. The order does still call out right hand reverse or left hand reverse, which is how an outswinging exit door is designated, so pick the one matching your leaf.
11) Is the Detex Advantex 30 Series Grade 1?
Yes, the 3010DM is a Grade 1 commercial device, rated for high-use, high-abuse openings, with a heavy duty angled end cap that deflects impact away from the case. For standardizing a facility, Grade 1 wide stile mortise alternatives we carry include the Von Duprin 9875, the Von Duprin 8875 crossbar, the Corbin Russwin ED5600AL, and the Falcon 25-M-EO.
12) Should I use a mortise exit device or a rim device on my opening?
A mortise device like the 3010DM puts the lock case inside the door edge, which means the door has to be mortised but you get a clean edge with no surface rim strike on the frame. It suits wide stile metal doors being prepped or already prepped for a mortise lock. A rim or surface vertical rod device is the better choice when you can't mortise the leaf, and a surface vertical rod is what you use on a pair with no mullion, latching at head and threshold, such as the Sargent 1256NB-8710G surface vertical rod device.
13) Can the Detex 3010DM be dogged so the door pushes free during business hours?
Yes on a non-rated device. Order hex dogging for a simple allen-key hold-down, or cylinder dogging when you want the dogging controlled by a keyed cylinder so tenants or staff can't dog the door at will. The device uses a 1/8 turn dogging feature. Skip dogging entirely (Less/No dogging) on fire rated openings.
14) Is the Detex 3010DM a touchpad or crossbar device, and what if I need crossbar to match my other doors?
The Advantex 3010DM uses a push pad with a heavy duty angled end cap that deflects damage away from the device. If the rest of your openings are crossbar, the Von Duprin 8875-3FT is a wide stile crossbar mortise exit device, 36 inch, Grade 1 and non-handed, and the Von Duprin 5575 is the narrow stile crossbar mortise version. If you want a recessed push pad instead, the Von Duprin 9475/9575 Impact Series is a Grade 1 wide stile mortise device with a recessed pad.
15) I only need free egress with no key cylinder. Is there a simpler option than the Detex 3010DM?
Yes. The 3010DM is a double cylinder device, which is more hardware than an exit only opening needs. The Falcon 25-M-EO is a Grade 1 wide stile mortise exit device in exit only function at 36 inches, and the BEST Precision 2301 Series is an exit only mortise device with heavy wrought construction. The Corbin Russwin ED5600AL is another route, a Grade 1 3 hour fire rated wide stile mortise device usable exit only or with classroom or passage lever trim ordered separately, for 1-3/4 inch doors.
16) What is the difference between the Detex 3010DM double cylinder and a night latch mortise exit device?
The Advantex 3010DM is a double cylinder function device. A night latch device such as the Sargent 8904, a Grade 1 wide stile mortise exit device with 24VAC/DC operation, uses a key cylinder outside to retract the latch for entry. The narrow stile counterpart is the Sargent 8304, Grade 1 night latch mortise. If your outside trim needs to be a keyed pull rather than two cylinders, the night latch devices are the ones to look at, with the 8904 for wide stile and the 8304 for narrow stile.
17) Can I use the Sargent 810 or the Sargent 1256NB-8710G in place of the Detex 3010DM?
Neither is a substitute. The Sargent 810 is a dummy pull exit device trim in dummy function, so it is trim only and does not latch. The Sargent 1256NB-8710G is an 84 inch fire rated surface mount vertical rod device with electric latch retraction in narrow stile, a different device type and door configuration. The Advantex 3010DM is a wide stile mortise lock exit device with a double cylinder function.
18) I am standardizing a facility on one mortise exit device. Does the Detex 3010DM cover more openings than the alternatives?
The Advantex 3010DM is a single Grade 1 wide stile platform ordered in 36 inch or 48 inch length, fire rated or non-rated, with strike choices including non-handed curved lip, ANSI flat lip, and short or long open back for double doors, plus electrified options such as request to exit, delayed egress, and electric alarm. The wide stile peers are each narrower in scope: the Falcon 25-M-EO is exit only, the Von Duprin 8875-3FT and 9875-3FT are listed non fire rated, and the Adams Rite 3300 and 8300 split fire rated and non fire rated across two series. For narrow stile openings in the same facility you would still add a device such as the Adams Rite 8400.
19) I am replacing another brand's mortise exit device. Will the Detex 3010DM retrofit, and which finishes match?
The Advantex 3010DM is designed with minimal door preparation and a patented mounting plate and strike locator system, which supports retrofit to other manufacturers' hardware, and it is field-sizeable and non-handed. Finishes run 605 polished brass, 606 brushed brass, 611 polished bronze, 612 brushed bronze, 613 oil rubbed bronze, 628 brushed aluminum, 629 polished stainless, 630 brushed stainless, 693 black painted, and 695 dark bronze painted, so it can be matched to existing wide stile devices such as the Von Duprin 9875-3FT or Falcon 25-M-EO by BHMA finish number.
