Detex DDH-2250 Double Door Holder with Exit Control Lock Integration

Detex DDH-2250 Double Door Holder with Exit Control Lock Integration

(No reviews yet) Write a Review

Model: DDH-2250

In Stock (leaves warehouse same day if ordered before 3pm ET)

$211.00
$172.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex DDH-2250 Double Door Holder with Exit Control Lock Integration

Professional Double Door Security Solution

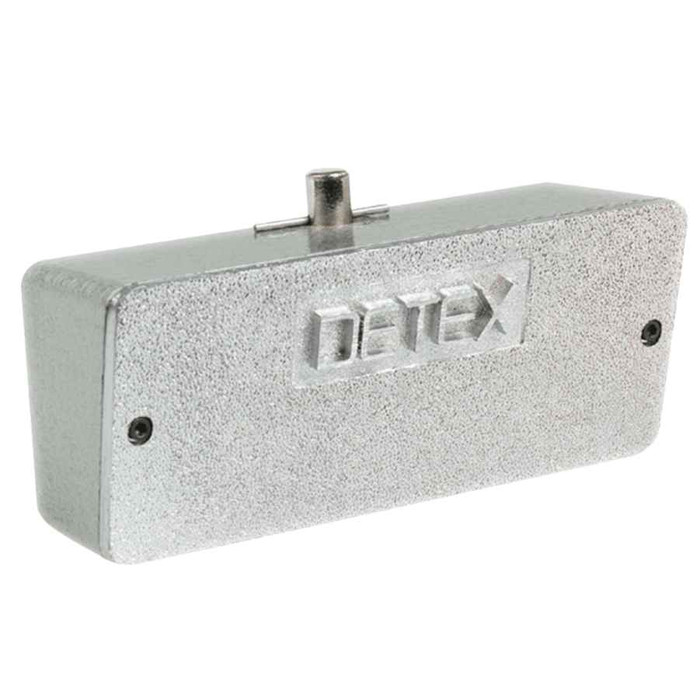

The Detex DDH-2250 Double Door Holder is engineered for seamless integration with Detex Exit Control Locks to provide secure locking of the inactive leaf on outswinging double doors. This professional-grade hardware features a case hardened steel locking bolt with 3/16" durable zinc alloy cast housing and 1/4" thick face plate construction. The reversible design accommodates both right and left hand door configurations, while the stainless steel spring mechanism provides instant release when the active leaf is opened.

Professional Features & Benefits

  • Universal Door Compatibility: Designed for use with any wood, metal, or glass double outswinging exit doors for maximum installation flexibility.
  • Heavy-Duty Construction: Case hardened steel locking bolt with 3/16" durable zinc alloy cast housing and 1/4" thick face plate for long-term commercial durability.
  • Reversible Installation: Flexible mounting configuration for either left or right door applications without additional hardware requirements.
  • Instant Emergency Release: Stainless steel spring mechanism automatically disengages the DDH-2250 when the active leaf is opened, providing immediate emergency exit access through both doors.
  • Simple Installation: No mortise required for installation, reducing preparation time and complexity while maintaining security performance.
  • Exit Control Lock Integration: Specifically designed to work with Detex Exit Control Locks for coordinated double door security systems.
  • Complete Mounting Kit: Includes screws, allen wrench, strike plate, door protection plate, and templates for professional installation.
  • Interchangeable Components: Features interchangeable pin design for service flexibility and long-term maintenance.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex double door hardware delivers professional-grade reliability with case hardened steel construction and durable zinc alloy housing engineered for demanding commercial applications. The interchangeable pin design and complete mounting kit ensure long-term serviceability and professional installation results. Engineered for demanding commercial applications where dependable double door coordination and emergency egress performance are essential.

Product Specs

Department:
Door Hardware

Detex DDH-2250 – Frequently Asked Questions

1) How do you lock the inactive leaf on a pair of outswinging exit doors without a mullion?
That's what the Detex DDH-2250 double door holder does. It mounts on the inactive leaf of a pair of outswinging doors and holds that leaf secure, so the active leaf carries the exit device and the pair still opens fully when needed. When the active leaf is opened, a stainless steel spring mechanism releases the holder so both leaves swing free. It's for outswinging doors only, so an inswinging pair needs a different approach.
2) Will the Detex DDH-2250 work on aluminum and glass doors, or is it wood and steel only?
Any wood, metal, or glass outswinging double exit door. Installation needs no mortise, so there's no routing into the leaf, which is what makes it workable on doors you can't cut into. Mounting is surface, using the supplied templates to lay out the holes.
3) Do I have to specify handing when I order a DDH-2250 double door holder?
No handing to call out. The DDH-2250 is reversible in the field and mounts for either a left or right hand door with no extra parts. One part number covers both configurations, which is useful if you're stocking for a building with pairs swinging both ways.
4) Does the Detex DDH-2250 hold the inactive leaf shut during a fire drill, or does it let both doors open?
Both doors open. The holder is released automatically by a stainless steel spring the moment the active leaf is opened, so egress through the full opening isn't blocked by the inactive leaf. That's the difference between this and a flush bolt an occupant would have to reach down and throw.
5) What comes in the box with the Detex DDH-2250, and do I need to buy anything else to install it?
The kit covers the install: screws, allen wrench, strike plate, door protection plate, and templates. Nothing else is needed for the mounting itself. What it doesn't include is the exit device for the active leaf, so budget the Detex Exit Control Lock separately.
6) Do I need a Detex exit device on the active leaf to use the DDH-2250 holder?
The DDH-2250 is built to pair with Detex Exit Control Locks on the active leaf, and that's the combination the release is coordinated with. If you're specifying a pair of doors from scratch, order the two together as one system rather than mixing the holder into an unrelated exit device.
7) Is the Detex DDH-2250 heavy enough for a warehouse or school back door that gets abused?
The locking bolt is case hardened steel, the housing is 3/16 inch cast zinc alloy, and the face plate is 1/4 inch thick. It also uses an interchangeable pin, so the wear item can be swapped instead of replacing the whole unit, which matters on a fire exit that gets pushed daily in a school, warehouse, or multi-tenant building.
8) How much door prep does the DDH-2250 double door holder need compared to a flush bolt?
None of the mortising a flush bolt needs. The DDH-2250 installs without a mortise, and templates are supplied for marking the mounting holes, so the leaf only gets drilled for fasteners. On existing doors, especially glass or aluminum leaves you can't cut, that's the practical reason to choose it.
9) Is the Detex DDH-2250 available in more than one size or model?
One model, DDH-2250. There aren't size or hand variations to pick from, since the unit is reversible for either hand. Finish on the unit is a silver aluminum housing.
