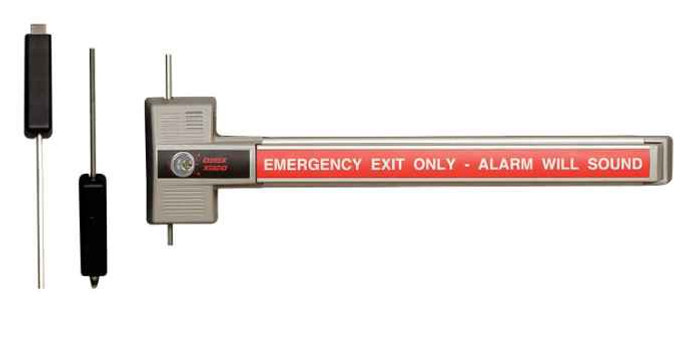

Detex ECL-230X-TB Alarmed Panic Exit Control Device with Two Point Top and Bottom Bolt

Detex ECL-230X-TB Alarmed Panic Exit Control Device with Two Point Top and Bottom Bolt

(No reviews yet) Write a Review

Model: ECL-230X-TB 84
$1,603.33

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,603.33
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex ECL-230X-TB Alarmed Panic Exit Control Device with Two Point Top and Bottom Bolt

Code Compliant Battery Alarmed Exit Control Solution

The Detex ECL-230X-TB is a rugged 2-point panic exit control device designed for maximum security at secondary exits. This code compliant device features a 100 decibel alarm system with photo-luminescent signage and attack-resistant construction. The low profile design meets International Building Code requirements with 4" maximum projection off the door face, while the surface/flush reversible strike provides installation flexibility.

Professional Features & Benefits

  • Maximum Security Design: Two-point top and bottom bolt configuration provides maximum holding force for enhanced security applications.
  • High-Decibel Alarm System: 100 decibel battery-powered alarm provides immediate audible notification for unauthorized exit attempts.
  • Attack-Resistant Construction: Time-tested design resists attack from the inside while maintaining code-compliant emergency egress functionality.
  • Photo-Luminescent Signage: Durable sign absorbs ambient light to glow in the dark when lights are dimmed, ensuring visibility during emergencies.
  • Code Compliant Profile: Low profile design meets International Building Code requirement with 4" maximum projection off face of door.
  • Flexible Strike Configuration: Surface/flush reversible strike accommodates various door and frame configurations for versatile installation.
  • Weatherized Option Available: Optional weatherized construction extends application to exterior and exposed installations.
  • Proven Durability: Time-tested construction delivers reliable performance at a reasonable price point for commercial applications.

Technical Specifications

  • Commercial/Residential: Commercial
  • Product Category: Exit Devices and Trim
  • Product Finish: Gray
  • Product Group: Electronic Access Controls
  • Product Model: ECL-230X-TB
  • Product Subgroup: Exit Control Locks and Alarms
  • Product Type: Exit Control Locks - Rim Pushbar
  • Series: ECL-230X Series
  • Subcategory: Exit Control Locks

Installation & Operation

  1. Verify electrical requirements for battery-powered alarm system and confirm door preparation requirements including door thickness and frame compatibility.
  2. Disconnect any existing power sources and follow all applicable electrical codes and safety procedures during installation.
  3. Mount the exit control device in the specified location ensuring proper clearance for two-point bolt operation and alarm component access.
  4. Install top and bottom bolt assemblies according to manufacturer specifications, ensuring proper alignment with strike plates.
  5. Configure surface or flush strike mounting based on door and frame requirements using the reversible strike design.
  6. Test alarm system operation, bolt engagement/disengagement, and emergency egress functionality under various conditions.
  7. Complete final inspection and verify 4" maximum projection compliance. Refer to manufacturer documentation for complete installation instructions and alarm system programming.

Professional Applications

  • Secondary Exit Security in Commercial Buildings
  • Emergency Exit Compliance with Alarm Notification
  • Retail Loss Prevention at Service Exits
  • Educational Facility Perimeter Security
  • Healthcare Institution Controlled Access Points
  • Industrial Facility Emergency Egress Monitoring
  • Government Building Secondary Exit Control

Why Choose Detex Quality?

Detex ECL-230X Series exit control devices deliver professional-grade security with attack-resistant construction and proven durability. The time-tested design provides reliable performance at a reasonable price point, while the 100 decibel alarm system and photo-luminescent signage ensure code compliance and emergency visibility. Engineered for demanding commercial applications where dependable exit control and security monitoring are essential.



Resources

Installation Instructions (English)
Installation Instructions (Español)
Parts List
Installation Video (With 03PP Trim)
Installation Video (With DX Bolts)

Product Specs

Subcategory:
Exit Control Locks
Series:
ECL-230X Series
Product Group:
Electronic Access Controls
Product Subgroup:
Exit Control Locks and Alarms
Product Type:
Exit Control Locks - Rim Pushbar
Commercial/Residential:
Commercial
Product Model:
ECL-230X-TB
Product Finish:
Gray
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex ECL-230X-TB 84 – Frequently Asked Questions

1) Will the Detex ECL-230X-TB work on a 10 foot tall door?
Yes. The ECL-230X-TB two point exit control device is built for door heights from 80 inches all the way to 120 inches, ordered in three bands: 80 to 84 inches, 84 to 96 inches, and 96 to 120 inches. You pick the band that covers your leaf so the top and bottom bolt rods come the right length. Get the height band wrong and the rods will not reach the strikes, so measure the actual door leaf, not the frame opening, before you order.
2) What door widths does the Detex ECL-230X-TB exit control device cover?
Two width options cover the range: a 30 inch device, and one sized for 36 to 48 inch doors. That spans the usual 36 inch commercial leaf and wider service or dock doors, plus the narrower 30 inch openings you find on older back-of-house exits.
3) Can I put an alarmed exit device like this on an exterior door that gets rain and snow?
Order it with the weatherized option. The ECL-230X-TB is available weatherized or standard, and the weatherized build is what takes an exterior or exposed installation, dock doors, stairwell discharge, an unconditioned warehouse exit. The standard build is meant for protected interior openings. This is an order-time choice, not a field add-on, so specify it up front.
4) Does the Detex ECL-230X-TB two point bolt hold better than a single rim latch?
That is the whole reason for the TB version. It throws a bolt into the head and another into the threshold, so pull force on the door is resisted at two points instead of one at the lock edge. On a secondary exit that gets pried or shouldered, that is meaningfully more holding force than a single point rim latch, and the construction is built to resist attack from the inside while still releasing for egress.
5) Do I need to order a cylinder with the Detex ECL-230X exit control device, and can it go on my existing key system?
Cylinder is a separate choice and you can order it three ways or skip it entirely. If your facility runs small format interchangeable core, take the IC7R rim cylinder in SFIC housing and drop your own core in. InstaKey shops take the IK7R housing. If you have no keying program, the RC65 is a 6 pin rim cylinder keyed to 5 pins. Choosing None means the device ships without a cylinder, which only makes sense if you already have a rim cylinder on the shelf.
6) How do I stop someone from pulling the hinge pins on an outswing door with an exit alarm?
Add hinge bolts. The ECL-230X-TB can be ordered with DX1 single, DX2 double, or DX3 triple hinge bolts, which engage the frame on the hinge side so the leaf stays captured even if the pins are defeated. On an outswing exterior door with exposed hinges that is the standard countermeasure, and on a tall or heavy leaf the double or triple set spreads it out. Order None only if the hinge side is already secured.
7) Can people get out from the inside if the Detex ECL-230X-TB alarm is armed?
Always. It is a panic exit control device, so pushing the bar retracts both bolts and the door opens, the alarm just sounds when it happens. That is the point of the product: it does not lock anyone in, it makes unauthorized use of the exit loud and obvious. It is code compliant for egress while still resisting attack from the inside.
8) How much does the Detex ECL-230X-TB stick out from the door face?
Four inches maximum off the face of the door. That low profile is what keeps it inside the International Building Code projection limit, which matters in a corridor or a stair where anything protruding further eats into the required clear egress width.
9) What trim plate should I order with a Detex ECL-230X, and what is OKC?
Four trim choices plus none. OKC means outside key control, the cylinder prep that lets authorized staff key the device from the outside. Take 03T if you want a trim plate with OKC, or 03PP for a pull plate with OKC when people need to pull the door open from the outside as well as key it. If nobody comes in this way, the blank versions, 01T trim plate and 01PP pull plate, cover the prep without a cylinder hole. The pull plate versions are the ones to pick on a door that also serves as a controlled entry.
10) Will the strike on the Detex ECL-230X mount on my frame, and what if the threshold gets dirty?
The strike is surface and flush reversible, so it handles either a surface applied condition or a mortised flush condition without ordering a different part. For the bottom bolt on a floor that collects grit, sweepings, or standing water, add the 96B dustproof strike so debris does not pack the floor socket and block the bolt from throwing. That is the one to specify on dock, shop, and kitchen exits.
11) Do the exposed rods on a two point exit control device get damaged or vandalized?
That is what the cover options are for. RG rod covers shield the vertical rods, BG guards the bottom bolt, and RC-BG gives you both. On a school corridor, a gym, a warehouse where pallet jacks and carts come near the door, or any high traffic secondary exit, the combined set is the one to order. On a low traffic office exit you can skip them.
12) How loud is the Detex ECL-230X alarm and does it need to be wired?
100 decibels, battery powered. No conduit, no power run, no low voltage tie-in to install it, which is why these go on secondary exits where getting power to the door would be the expensive part of the job. The sign is photo-luminescent, so it charges off ambient light and stays readable when the lights are down or out.
13) My building is not English speaking. Can I get the exit alarm signage in Spanish or Chinese?
Yes. Signage ships in English by default, with RWS for a Spanish sign and RWC for Chinese. Pick the language your occupants read, since the sign is what warns them the door is alarmed before they push it.
14) Is the Detex ECL-230X-TB rated for commercial use, and what finish does it come in?
Commercial duty, finished in gray. It is a single finish device, so if you are standardizing exit alarms across a portfolio every opening will match without a finish decision on each order.
15) Can I add an inside pull to the Detex ECL-230X exit control device?
Yes, inside pull is an orderable option on the ECL-230X-TB. It is worth specifying on doors staff legitimately use to re-enter or reposition, or where the leaf needs to be pulled closed behind them. Leave it off on a pure emergency exit that should only ever be pushed.
