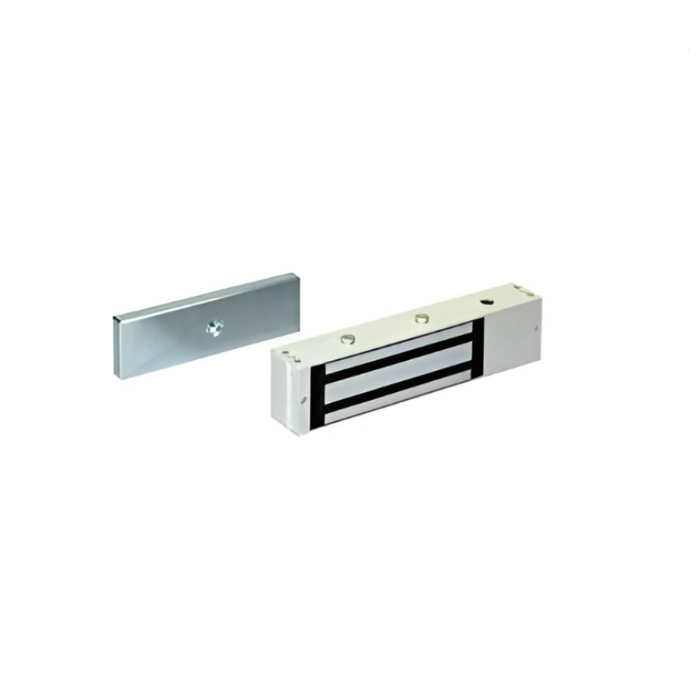

Detex ML-1548 Electromagnetic Lock 1500 Lb Holding Force 12/24 VDC

Detex ML-1548 Electromagnetic Lock 1500 Lb Holding Force 12/24 VDC

Professional Grade 1 Magnetic Lock Solution

The Detex ML-1548 Electromagnetic Lock delivers powerful 1500+ lbs of holding force with Grade 1 performance for commercial door security applications. This failsafe magnetic lock features 12/24 VDC voltage sensing input with built-in spike protection and all steel magnetic core construction. The non-handed design with aluminum finish provides maintenance-free operation with no moving parts to bind or wear.

Professional Features & Benefits

• Powerful Holding Force: 1500+ lbs of holding force deters forced entry and exceeds Grade 1 requirements for commercial applications.
• Dual Voltage Operation: 12/24 VDC voltage sensing input with built-in spike protection for flexible system integration.
• Maintenance-Free Design: No moving parts to bind or wear ensures reliable long-term operation with minimal service requirements.
• Easy Installation: Interlocking slide mounting plate and peel-n-stick paper template enable time-saving installation before or after wiring.
• Professional Construction: All steel magnetic core with plated and anodized aluminum surfaces for durability and corrosion resistance.
• Failsafe Operation: Positive, instantaneous release when de-energized by Fire Life Safety System or remote controls.
• Universal Application: Non-handed design matches any application or décor with professional aluminum finish.
• Manufacturer Warranty: 3 Year Limited Manufacturers Warranty for added confidence and protection.

Technical Specifications

• ADA Compliant: Yes
• Armature: 7.4375" L x 2.375" H x .625" D
• Commercial/Residential: Commercial
• Door Hand Direction: Non-handed
• Holding Force: 1500 lbs.
• Product Category: Electromagnetic Locks
• Product Dimension: 10.5" L x 2.875" H x 1.625" D
• Product Finish: Aluminum
• Product Group: Door Controls
• Product Model: ML-1548
• Product Subgroup: Magnetic Locks
• Product Type: Electromagnetic Locks
• Product Voltage: 12/24 VDC
• Series: ML-1548
• Subcategory: Electromagnetic Locks
• Warranty: 3 Year Limited Manufacturers Warranty

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm 12/24 VDC voltage and current capacity before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including failsafe operation per application requirements.
6. Restore power and test all functions including normal operation, holding force verification, and integration with Fire Life Safety System.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Retail Loss Prevention
• Healthcare Facility Access Control
• Educational Institution Safety Systems
• Industrial Facility Monitoring
• Emergency Exit Compliance
• Government and Municipal Buildings

Why Choose Detex Quality?

Detex electromagnetic lock products deliver professional-grade reliability with all steel magnetic core construction and Grade 1 performance ratings. The 3 Year Limited Manufacturers Warranty provides added confidence for demanding commercial applications. Engineered for demanding commercial applications where dependable performance and powerful holding force are essential.
