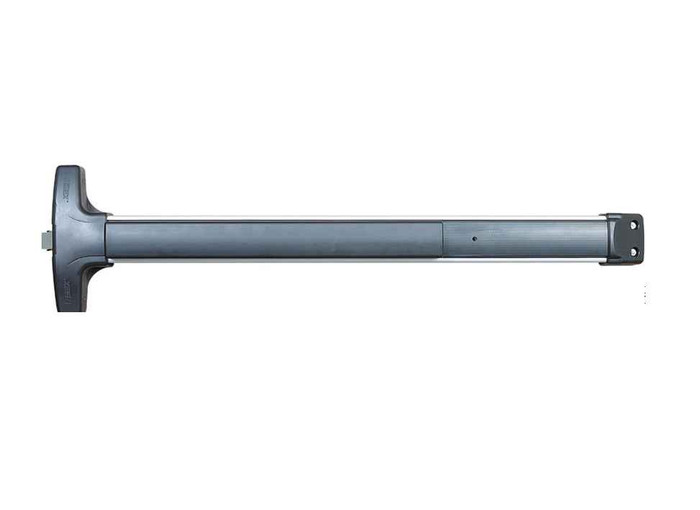

Detex V4001P Series Wide Stile Rim Exit Device with Cover Plate

Detex V4001P Series Wide Stile Rim Exit Device with Cover Plate

(No reviews yet) Write a Review

Model: V4001P-628-36
$650.09
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$650.09
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex V40 Series Wide Stile Rim Exit Device with Cover Plate

Grade 1 Commercial Exit Hardware Solution

The Detex V40 Series Wide Stile Rim Exit Device delivers Grade 1 panic and fire exit hardware performance at an economical price point. Designed for single and double doors with mullions, this device features a stainless steel 3/4" deadlocking Pullman-type latch bolt and withstands over 1400 pounds of static pull force for enhanced security. The patented mounting plate and strike locator system ensures accurate installation while the heavy-duty ribbed aluminum rail extrusion provides long-term durability.

Professional Features & Benefits

  • Heavy-Duty Construction: Ribbed aluminum rail extrusion with high impact ABS and anodized surfaces for commercial-grade durability.
  • Superior Security Performance: Withstands over 1400 pounds of static pull force with stainless steel 3/4" deadlocking Pullman-type latch bolt.
  • Grade 1 Certification: BHMA Grade 1 rated panic and fire exit hardware for code compliance and reliability.
  • Patented Installation System: Mounting plate and strike locator system replaces paper templates for fastest and most accurate installation available.
  • Wide Door Compatibility: Covers 161 door prep and fits wide stile applications with field sizeable design.
  • Modular Flexibility: Accepts variety of outside trims and functions with easily changeable or rekeyable outside trims without device removal.
  • Damage Protection: Angled end cap deflects damage away from device for extended service life.
  • Manufacturer Warranty: 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Function: Cover Plate
  • Product Group: Exit Devices and Trim
  • Product Model: V4001P
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Series: V40 Series
  • Stile: Wide
  • Stile Type: Wide Stile
  • Subcategory: Value Series
  • Warranty: 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex V40 Series exit devices deliver professional-grade reliability with heavy-duty ribbed aluminum construction and stainless steel latch components rated to withstand over 1400 pounds of static pull force. The 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty provides comprehensive coverage for demanding commercial applications. Engineered for demanding commercial applications where dependable performance and code compliance are essential.



Resources

Installation Instructions
Parts List
Door Templates
Maintenance Manual
Installation Video

Product Specs

Subcategory:
Value Series
Series:
V40 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Grade:
Grade 1
Stile:
Wide
Stile Type:
Wide Stile
Wood Door Compatible:
No
Product Model:
V4001P
Product Function:
Cover Plate
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex V4001P-628-36 – Frequently Asked Questions

1) Can the Detex V40 rim exit device be used on a wood door?
No. The V4001P is not wood door compatible, so plan on hollow metal or aluminum openings. If the opening is a wood door, look at a narrow stile Adams Rite device instead: both the 3700 Series and 8700 Series rim devices are listed as wood door compatible, with the 3700 also carrying a fire rating.
2) Will a Detex V4001P work on a pair of doors?
Yes, on a pair with a mullion. The V40 is a rim device, so it latches into a strike on the frame or mullion, not at the head and threshold. On a pair, you need a mullion between the leaves for the device to latch into. For a pair with no mullion and a clear opening, a vertical rod device is what you want, such as the Hager 4501 Series concealed vertical rod with wide stile pushpad.
3) What door widths does the Detex V40 exit device cover?
Two rail lengths are offered, 36 inch and 48 inch, and the device is field sizeable so the rail can be cut down to suit the door width within the range of the bar you pick.
4) Will the Detex V4001P drop into an existing 161 door prep?
Yes. The V40 covers the 161 prep, which is the standard cylindrical lock prep on hollow metal doors, so it mounts over an existing 161 cutout without patching. The patented mounting plate and strike locator take the place of a paper template for locating the strike.
5) Do I have to specify handing on a Detex V40 rim device?
Yes, this one is handed. Order it either Right Hand Reverse or Left Hand Reverse. Exit devices are called out in reverse bevel handing because the door swings out of the egress space. If you would rather not track handing across a building, non-handed rim devices exist, such as the BEST Precision 5101 Series or the Von Duprin 22 Series wide stile pushpad device.
6) Can I hold the door in a push-pull state during business hours with the Detex V40?
Yes, if you order it with dogging. Three choices: hex key dogging, cylinder dogging (keyed, so staff do not need a hex wrench), or less/no dogging. Note that dogging is a non-fire feature. If you are ordering the fire rated version, specify less/no dogging or electric latch retraction, since fire doors have to latch on every cycle. Electric dogging is on the electrified option list for that reason.
7) Is the Detex V40 available fire rated or hurricane rated?
Both, and in combination. The rating option is chosen at order time: Non-Rated, Fire Rated, Hurricane Rated, or Hurricane and Fire Rated. That is worth flagging on coastal work, since most rim devices in this class are offered fire rated only.
8) The V4001P will not fit my narrow stile aluminum storefront door. What rim device should I use instead?
The Detex V4001P is built for wide stile applications, so on a narrow stile aluminum door you want a narrow stile rim device. Grade 1 narrow stile options include the Corbin Russwin ED4200 at 36 inch, the Falcon 19-R at 36 inch exit only, the TownSteel ED8900 at 36 inch, and the Adams Rite 8800 Series 30 inch, which lists a 1-3/4 inch to 2-1/4 inch door thickness range.
9) What is the closest Grade 1 wide stile rim exit device to the Detex V4001P from another manufacturer?
The Von Duprin 22-3FT is the nearest straight equivalent: a 36 inch wide stile pushpad rim exit device rated Grade 1, non-handed, for 1-3/4 inch doors and not wood door compatible. The Detex V4001P is also a Grade 1 wide stile rim device and is offered in 36 inch and 48 inch sizes. Other Grade 1 wide stile alternates include the Corbin Russwin ED5200 at 36 inch and the TownSteel ED9700 at 36 inch heavy duty.
10) Which fire rated rim exit devices compare to the fire rated Detex V4001P?
The Detex V4001P is available in fire rated, hurricane rated, hurricane and fire rated, and non-rated configurations. Comparable fire rated rim devices include the Sargent 12-8810-LTRIM, a Grade 1 fire rated wide stile rim device, the Dexter ED1000 Series Grade 1 fire rated rim device, the Marks USA M9900F in 36 inch and 48 inch exit only versions, and the Orca OED85 Series 36 inch fire rated rim device.
11) I need an electrified exit bar for access control - how does the Detex V4001P compare to a switch bar?
The Detex V4001P can be ordered with delayed egress, electric dogging, a hardwired electric alarm, or a request to exit signal switch, while still being a mechanical Grade 1 latching rim device. The SDC MSB550 Series 36 inch is a mechanical switch bar that releases an electromagnetic lock rather than throwing its own latch, and the SDC SureExit PSB560 Series 36 inch is a pressure sense bar with tri-failsafe technology; both suit narrow or wide stile. The SDC S6136 Spectra is an electrified architectural rim exit device for 4 inch wide stile and 1-3/4 inch to 2 inch doors.
12) Do I need to specify handing like on the Detex V4001P, or is there a non-handed rim device?
The Detex V4001P is ordered by handing, right hand reverse or left hand reverse. If you would rather stock one non-handed device, the BEST 2401 Series narrow stile rim device is exit only and non-handed, the BEST Precision 5101 Series is a non-handed universal design, the CRL Jackson 1295 Series is a non-handed push pad wide stile rim panic device for 1-3/4 inch doors, and the Von Duprin 22-3FT is a 36 inch non-handed Grade 1 wide stile device.
13) Which strike do I order with a Detex V40 rim exit device, 98 or 99?
Two strike choices, and it depends on the frame. The 99 is a surface strike, mounted on the face of the stop, which is the simpler retrofit on an existing frame. The 98 is a semi-mortise strike, which cuts into the stop for a lower profile. Strike selection is a required order option, so pick one.
14) What electrified options can I get on the Detex V40 exit device?
Four, beyond the plain mechanical version: delayed egress, electric dogging, hardwired electric alarm, and a request-to-exit signal switch. The RX switch is the one to specify when the device needs to talk to an access control panel or shunt an alarm; delayed egress is for controlled perimeter doors; electric dogging lets the door go push-pull on a schedule instead of by key or hex wrench.
15) Will the Detex V40 latch into the strike I already have on the frame?
Plan on using the supplied strike. The V40 uses a stainless steel 3/4 inch deadlocking Pullman-type latch bolt and comes with a matched strike, either the 99 surface or the 98 semi-mortise, located by Detex's strike locator rather than a paper template. Mixing a Pullman latch with another maker's rim strike is not something to assume will line up.
16) Is the Detex V40 heavy duty enough for a school or high-traffic exterior door?
It is BHMA Grade 1 panic and fire exit hardware, the top commercial rating, built on a ribbed aluminum rail extrusion with high impact ABS and anodized surfaces, and rated to withstand over 1400 pounds of static pull force. The angled end cap pushes cart and door damage away from the device. That is the specification for school, healthcare, retail and municipal egress doors.
17) Can I add a lever or pull trim later, and rekey it without taking the device off?
Yes. The V40 accepts a variety of outside trims and functions, and the outside trim can be changed or rekeyed without removing the device from the door. For a property manager rekeying a building, that means the door stays hung and the rail stays put.
18) How does the Detex V40 compare to a Von Duprin 22 or a Corbin Russwin ED5200?
All three are Grade 1 wide stile rim devices. The Detex V40 is Detex's Value Series and is handed, ordered left or right hand reverse, and is the only one of the three offered with a hurricane rating and with delayed egress, electric dogging, alarm, or RX built in as an order option. The Von Duprin 22-3FT is a non-handed 36 inch wide stile pushpad device for 1-3/4 inch doors. The Corbin Russwin ED5200 is a 36 inch wide stile device for 1-3/4 inch doors, exit only or accepting trim. None of the three is wood door compatible.
19) What is a lighter-duty alternative if I do not need Grade 1 on this opening?
The Detex V4001P is a Grade 1 device. If the opening does not require Grade 1, the Cal-Royal 5000 is a 36 inch wide rim exit device with a touch bar and a Grade 2 chassis, and the Cal-Royal 5500 is a 48 inch wide rim device with a push bar, also Grade 2. Both are listed as heavy duty and neither is wood door compatible. The Design Hardware 2000R is a 33 inch standard duty wide stile rim device with hex key dogging.
20) Is a crossbar rim device like the CRL Jackson 1095 a substitute for the Detex V4001P?
They serve the same opening but the actuator differs. The Detex V4001P uses a pushpad rail with a Pullman-type latch bolt. The CRL Jackson 1095 Series 48 inch is a crossbar rim panic device, exit only, wide stile, and the Corbin Russwin ED3200 is a Grade 1 48 inch crossbar rim device for 1-3/4 inch doors, panic device only. If your spec calls out a touchbar or pushpad rail, a crossbar device will not match it, and exit only versions do not accept outside trim the way the V4001P does.
21) The V4001P is a rim device - what do I order if the opening needs concealed vertical rods instead?
A rim device like the Detex V4001P latches to a strike at the frame head or jamb and will not work where the drawing calls for top and bottom latching. For that, the Hager 4501 Series 36 inch is a Grade 1 concealed vertical rod exit device with a wide stile pushpad, and the Hager 4601 Series 36 inch is the Grade 1 narrow stile concealed vertical rod version.
22) My opening needs a nightlatch function with key retraction - is the Detex V4001P right?
The Detex V4001P accepts a variety of outside trims and functions, and outside trim can be changed or rekeyed without removing the device. If you want a device catalogued with the nightlatch function built in, the Sargent 8504 is a Grade 1 narrow stile rim device in nightlatch function. Note that the 8504 is a narrow stile design while the V4001P is wide stile, so the two are not interchangeable in the same door.
23) I only need exit only with no outside trim - what is simpler than the Detex V4001P?
The Detex V4001P is built to accept a variety of outside trims and functions. If the door never needs outside entry, exit only devices include the Corbin Russwin ED2200 36 inch Grade 1 wide stile, the Imperial USA ED-501 36 inch Grade 1 wide stile rim panic device, the Marks USA M9900 36 inch, and the Orca OED55 36 inch. All are configured exit only.
24) Is the Securitron EMB exit bar an equivalent to the Detex V4001P?
No. The Detex V4001P is a Grade 1 mechanical rim exit device with a stainless steel 3/4 inch deadlocking Pullman latch bolt that latches into a 99 surface or 98 semi-mortise strike. The Securitron EMB is an electromechanical exit bar listed for 2-1/4 inch door thickness; it is not a latching rim device and will not drop into a 161 door prep the way the V4001P does.
25) I want hex key dogging like the Detex V4001P offers - which other devices list it?
The Detex V4001P can be ordered with hex dogging, cylinder dogging, or less dogging. Other rim devices listing hex key dogging are the Design Hardware 1000R 33 inch heavy duty rim device, the Design Hardware 2000R 33 inch standard duty rim device, and the Stanley Security QED200 Series Grade 1 heavy-duty narrow stile rim device with hex-key dogging.
26) What finishes does the Detex V40 exit device come in, and will it match my storefront?
Two anodized finishes: 628 brushed aluminum (clear anodized, the usual match for mill-finish aluminum storefront) and 711 black aluminum for dark bronze or black frames. Both are anodized surfaces on the aluminum rail.
27) Where do I get the door prep template and parts breakdown for the Detex V4001P?
Detex publishes installation instructions, a Value Series V40 parts list, and a maintenance manual, and all three are linked in the product resources. The patented mounting plate and strike locator replace the paper template for locating the device and strike on the door.
