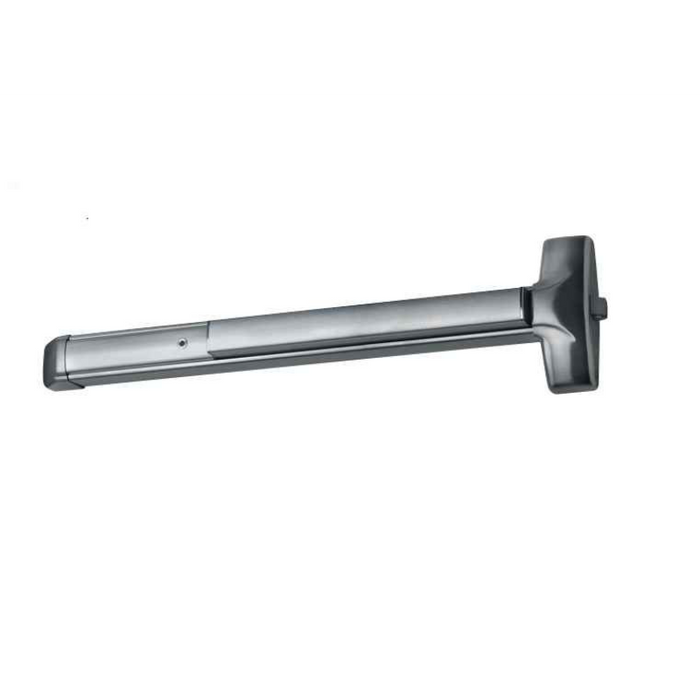

Detex Advantex 10 Series Super-Heavy-Duty Wide Stile Rim Exit Device with Cover Plate

Detex Advantex 10 Series Super-Heavy-Duty Wide Stile Rim Exit Device with Cover Plate

(No reviews yet) Write a Review

Model: 1001C-630-36
$2,311.00
$1,537.18
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,311.00
$1,537.18
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex Advantex 10 Series Super-Heavy-Duty Wide Stile Rim Exit Device with Cover Plate

Professional Grade Panic Hardware for High-Traffic Commercial Applications

The Detex Advantex 10 Series rim exit device delivers super-heavy-duty panic and fire exit hardware engineered for demanding commercial environments. This Grade 1 wide stile exit device features a patented mounting plate and strike locator system for precise installation, tested beyond 1,000,000 cycles for exceptional durability. The stainless steel deadlocking Pullman-type latch bolt and PVD-finished surfaces provide long-term reliability in high-use, high-abuse applications.

Professional Features & Benefits

  • Super-Heavy-Duty Construction: Tested beyond 1,000,000 cycles - twice the cycling required for Grade 1 UL testing for exceptional longevity in high-traffic environments.
  • Wide Stile Compatibility: Designed specifically for wide stile door applications with field-sizeable configuration for versatile installation options.
  • Patented Installation System: Mounting plate and strike locator system replaces paper templates for the easiest and most accurate panic hardware installation available.
  • Durable Surface Protection: All exposed surfaces finished over stainless steel with environmentally-friendly PVD coating for superior corrosion resistance and appearance retention.
  • Heavy-Duty Latch Mechanism: Stainless steel deadlocking Pullman-type latch bolt provides secure latching with smooth operation throughout the device lifecycle.
  • Vandal-Resistant Design: Heavy duty angled end cap deflects damage away from device for enhanced durability in high-abuse environments.
  • Flexible Operation: Non-handed design with 1/8 turn hex or cylinder dogging options for adaptable security configurations.
  • Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Function: Exit Only, Cover Plate
  • Product Group: Exit Devices and Trim
  • Product Model: 1001C
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Series: 10 Series
  • Stile: Wide
  • Stile Type: Wide Stile
  • Subcategory: Advantex Series
  • Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex exit devices deliver professional-grade reliability with stainless steel construction and PVD finishing rated for over 1,000,000 life cycles. The 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty provides comprehensive coverage for demanding commercial applications. Engineered for high-use, high-abuse environments where dependable panic hardware performance is essential for life safety compliance.



Resources

Installation Instructions
Parts List
Door Templates
Maintenance Manual
Installation Video
Specifications

Product Specs

Series:
10 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Advantex Series
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Grade:
Grade 1
Stile:
Wide
Stile Type:
Wide Stile
Wood Door Compatible:
No
Product Model:
1001C
Product Function:
Exit Only, Cover Plate
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex 1001C-630-36 – Frequently Asked Questions

1) Do I have to specify handing when ordering the Detex Advantex 10 Series exit device?
Yes, handing is a required selection: right hand reverse or left hand reverse. The device mechanism itself is non-handed, but the order is placed against one of those two hands, so identify the door before you order. Strike type is also a required pick, 99 surface or 98 semi-mortise, and so is the dogging choice.
2) Can I dog the Detex Advantex 1001C open during business hours?
Yes, on the non-fire-rated versions. Dogging is a required order choice: 1/8 turn hex dogging, cylinder dogging, or less/no dogging. Hex is the standard maintenance option, cylinder dogging lets staff dog it down with a key so no allen wrench walks off, and less dogging is what you order when the opening is fire rated (a fire exit device cannot be dogged).
3) Is there a fire rated version of the Detex 10 Series rim exit device?
Fire rated, hurricane rated, hurricane and fire rated, and non-rated are all orderable configurations of the Advantex 1001C. The hurricane option is the one that separates this family from most rim devices, and it matters on coastal and impact-zone openings. Order the rating that matches the door label; a fire rated opening also means ordering it less dogging.
4) What electrified options can I get on the Detex Advantex 10 Series?
Five configurations: none, delayed egress, electric dogging, hardwired electric alarm, and a request-to-exit signal switch. Delayed egress is the one for a door you want alarmed and held for the code delay before release. Electric dogging lets access control unlock and relock the push bar on a schedule instead of somebody walking the building with a hex key. RX is what you tie into an access control panel so it knows the bar was pushed.
5) Can I use a rim exit device like the Detex 1001C on a pair of doors with no mullion?
No. A rim device latches into a strike on the frame or on a mullion, so a pair without a center mullion needs vertical rod hardware instead. On that opening, look at a concealed vertical rod device such as the Hager 4501 Series wide stile pushpad CVR. If you can put a removable mullion in the pair, the 1001C works on each leaf.
6) What can I put on a wood door if the Detex 1001C will not work?
The Detex 1001C is not wood door compatible. Among rim exit devices that are, the Adams Rite 3700 Series 30 inch is Grade 1, fire rated, and wood door compatible, and the Adams Rite 8700 Series 30 inch is Grade 1 and wood door compatible without a fire rating. Both are narrow stile devices, so confirm the stile on the wood leaf before ordering.
7) The door has a narrow stile aluminum frame - what rim exit device fits instead of the Detex 1001C?
The Detex 1001C is built for wide stile doors, so a narrow stile aluminum leaf needs a different device. Grade 1 narrow stile rim options include the Corbin Russwin ED4200 in 36 inch for 1-3/4 inch doors, the Falcon 19-R exit only in 36 inch narrow stile for 1-3/4 inch doors, the TownSteel ED3700 in 36 inch, and the Adams Rite 8800 in 30 inch for 1-3/4 inch to 2-1/4 inch doors. Measure the stile width before ordering, since the wide stile pushpad case will not land on a narrow stile.
8) Which rim exit devices accept lever or knob trim if the Detex 1001C exit only build does not?
The Detex Advantex 1001C is an exit only device with a cover plate, so there is no outside operating trim on it. If the opening needs outside entry, the Corbin Russwin ED4200 in narrow stile and the Corbin Russwin ED5200 in wide stile are both Grade 1 rim devices listed as exit only, accepts trim, for 1-3/4 inch doors. Choose by stile: the ED5200 is the wide stile match to the Detex, the ED4200 is narrow stile.
9) What is the closest wide stile Grade 1 rim exit device to the Detex Advantex 1001C?
The Von Duprin 22-3FT is the nearest straight equivalent: a Grade 1 wide stile pushpad rim exit device, non-handed, in a 36 inch size for 1-3/4 inch doors, non-fire-rated. The Detex 1001C is also Grade 1 wide stile and non-handed, and it comes in 36 inch and 48 inch sizes with fire rated, hurricane rated, and hurricane and fire rated options as well as non-rated. If the opening is a 48 inch leaf or needs a hurricane rating, the Detex covers it and the 22-3FT is a 36 inch non-rated device.
10) Is a Cal-Royal 5000 or 5500 an equivalent swap for a Detex Advantex 1001C?
They are not equivalent on grade. The Cal-Royal 5000 is a 36 inch wide rim exit device with a touch bar and a Grade 2 chassis, and the Cal-Royal 5500 is a 48 inch wide rim device with a push bar, also Grade 2; both are heavy duty and non-fire-rated. The Detex 1001C is Grade 1 and offered in fire rated and hurricane rated builds. If a drawing calls for Grade 1 panic hardware, the Cal-Royal Grade 2 chassis will not satisfy it.
11) I need a fire rated wide stile rim exit device - what are the alternatives to the Detex 1001C?
The Detex 1001C is available in a fire rated build. Other fire rated rim devices include the Sargent 12-8810-LTRIM, a Grade 1 fire rated wide stile rim exit device with RX and MELR, the Marks USA M9900F in 36 inch and 48 inch exit only with a panic protector end cap, the Dexter ED1000 Series Grade 1 fire rated rim device, and the Orca Hardware OED85 Series 36 inch fire rated rim device. The Detex fire rated option is on a wide stile device that also offers a hurricane and fire rated combination.
12) Is an SDC pressure sense bar or switch bar a substitute for a Detex 1001C rim exit device?
No - they solve a different problem. The SDC SureExit PSB560 Series 36 inch is a pressure sense bar with tri-failsafe technology and the SDC MSB550 Series 36 inch is a mechanical switch bar with electromagnetic lock release; both fit narrow or wide stile doors and release a maglock rather than throwing their own bolt. The Detex 1001C is a rim exit device with a stainless steel deadlocking Pullman-type latch bolt and a strike, ordered with a 99 surface or 98 semi-mortise strike. If the opening is latched by the device itself, the SDC bars will not replace it; if the opening is held by an electromagnetic lock, the SDC bars are the release hardware.
13) I need a nightlatch function - will the Detex 1001C do that?
The Detex Advantex 1001C is built as exit only with a cover plate, which means no outside key retraction. For a nightlatch opening, the Sargent 8504 is a Grade 1 narrow design rim exit device with night latch function. Note the stile difference: the 8504 is narrow stile while the Detex is a wide stile device.
14) For an access controlled opening, how does the Detex 1001C compare to the SDC S6136 or Securitron EMB?
All three tie into access control differently. The SDC S6136 Spectra S6000 Series 36 inch is an electrified architectural rim exit device with a 4 inch wide stile for 1-3/4 inch to 2 inch doors, and the Securitron EMB is an electromechanical exit bar for 2-1/4 inch doors. The Detex Advantex 1001C is a mechanical Grade 1 wide stile rim device ordered with an electrified option of delayed egress, electric dogging, hardwired electric alarm, or a request to exit signal switch, plus cylinder dogging if the bar needs to be held down by key. Match the choice to the door thickness and to whether the opening needs delayed egress.
15) What size Detex 1001C do I need for a 36 inch door versus a 48 inch door?
The Advantex 1001C comes in 36 inch and 48 inch device lengths, and it is field sizeable, so the bar can be cut to suit the leaf rather than only matching a stock width exactly. Pick the length that covers the door width you are working with.
16) Which strike do I order for a Detex 1001C, the 99 surface or the 98 semi-mortise?
Both are offered, and the frame decides. The 99 surface strike mounts on the face of the stop and is the simpler retrofit when you do not want to cut the frame. The 98 semi-mortise sets into the frame for a flatter, cleaner look and less protrusion into the opening. Detex ships a patented mounting plate and strike locator with the device instead of a paper template, which is what keeps the strike aligned to the Pullman latch on install.
17) Is the Detex Advantex 1001C durable enough for a high traffic school or apartment entrance?
It is a Grade 1 commercial device tested beyond 1,000,000 cycles, twice the cycling required for Grade 1 UL testing. The latch is a stainless steel deadlocking Pullman bolt and the exposed surfaces are PVD finished over stainless, which is what holds up outdoors and in salt air. The angled end cap is there to take the hit from carts and shoulders and deflect it off the device.
18) Is there a cheaper wide rim exit device than the Detex Advantex if my opening is low traffic?
If the door does not need Grade 1, the Cal-Royal 5000 (36 inch) and 5500 (48 inch) are heavy duty Grade 2 rim devices, and the Design Hardware 2000R is a standard duty wide stile rim device with hex key dogging. Those are the step down from the Advantex 1001C, which is a Grade 1 device tested past 1,000,000 cycles. Use the Grade 1 device where the traffic and abuse justify it.
19) I need a delayed egress exit bar on a stair door. Is the Detex 1001C the right one or should I look at a different product?
The Advantex 1001C can be ordered with delayed egress built into the device, so you get panic hardware and the delay in one piece rather than adding a separate bar. Where that does not fit, the SDC MSB550 mechanical switch bar releases an electromagnetic lock and mounts on narrow or wide stile, and the SDC SureExit PSB560 pressure sense bar is the tri-failsafe option. Those are switch bars, not latching rim devices, so they rely on the maglock for security while the Advantex latches on its own.
20) What is a simpler wide stile rim exit device than the Detex 1001C for a low-traffic exit only door?
For a plain exit only opening with no electrified function, the BEST Precision 2101 Series 36 inch is a wide stile rim exit device, non-fire-rated, and the Design Hardware 2000R is a 33 inch standard duty wide stile rim device with hex key dogging. The Detex 1001C carries a Grade 1 rating, hex or cylinder dogging, and electrified builds including delayed egress, electric dogging, hardwired electric alarm, and a request to exit switch, so it is the choice when any of those are needed on the door.
21) Can I use a Hager 4501 or 4601 concealed vertical rod device in place of the Detex 1001C?
Only if the door is prepped for vertical rods. The Hager 4501 Series 36 inch is a Grade 1 concealed vertical rod exit device with a wide stile pushpad and the Hager 4601 Series 36 inch is a Grade 1 concealed vertical rod narrow stile device - both latch top and bottom through rods concealed in the door. The Detex 1001C is a rim device that latches into a surface or semi-mortise strike on the frame, so swapping between the two families changes both the door prep and the strike work.
22) What is the difference between a crossbar rim device like the Corbin Russwin ED3200 or CRL Jackson 1095 and the Detex 1001C?
They differ in what the user pushes. The Corbin Russwin ED3200 is a Grade 1 48 inch crossbar rim exit device for 1-3/4 inch wide stile doors and the CRL Jackson 1095 Series 48 inch is a crossbar rim panic exit device, exit only, wide stile. The Detex 1001C is a pushpad style wide stile device with a heavy duty angled end cap that deflects damage away from the device and a vandal resistant build for high-abuse openings. Crossbar hardware is often kept to match existing doors in a building; the pushpad style is the different look.
23) Which wide stile Grade 1 rim exit devices should I look at alongside the Detex Advantex 1001C for a school or hospital corridor?
Wide stile Grade 1 rim devices in the same class include the DORMA 8300 Series, the DORMA 9300 Series 48 inch heavy duty device for 1-3/4 inch to 2-1/4 inch doors, the Corbin Russwin ED2200 36 inch exit only, the TownSteel ED1100 36 inch heavy duty, and the TownSteel ED9700 36 inch heavy duty - all Grade 1, wide stile, non-fire-rated. The Detex 1001C is Grade 1 wide stile and is offered in fire rated and hurricane rated builds, which matters if the corridor door is on a rated wall.
24) Do I get templates and install documentation with the Detex Advantex 10 Series device?
The 1001C ships with a patented mounting plate and strike locator system in place of paper templates, which is what makes the door prep repeatable across a run of openings. Detex also publishes installation instructions, a parts list covering the Advantex 10 and 40 families, and a maintenance manual, all available as PDFs alongside the device.
25) What rim exit devices come in finishes to match a Detex Advantex 1001C on adjacent doors?
The Detex 1001C is offered in 605 polished brass, 606 brushed brass, 611 polished bronze, 612 brushed bronze, 613 oil rubbed bronze, 628 brushed aluminum, 629 polished stainless steel, 630 brushed stainless steel, 693 black painted, and 695 dark bronze painted, with all exposed surfaces finished over stainless steel with PVD coating. If a run of doors is being standardized, keeping the same Detex 10 Series device across the 36 inch and 48 inch leaves keeps the finish and the pushpad profile consistent rather than mixing in a device from another maker.
