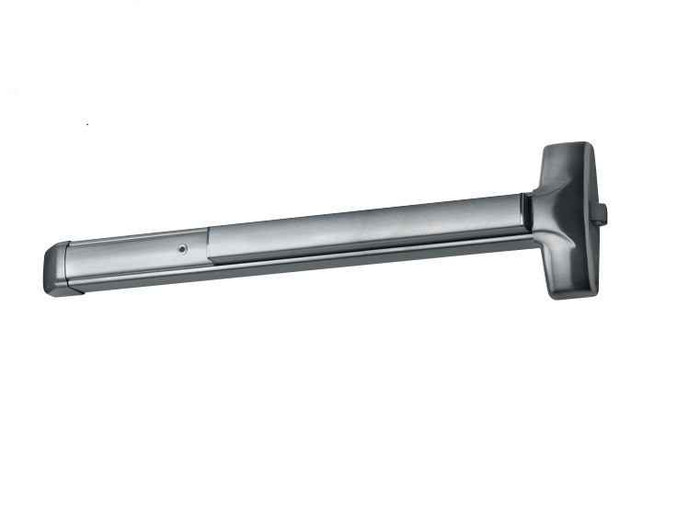

Detex Advantex 10 Series Super-Heavy-Duty Wide Stile Rim Exit Device with Blank Escutcheon

Detex Advantex 10 Series Super-Heavy-Duty Wide Stile Rim Exit Device with Blank Escutcheon

(No reviews yet) Write a Review

Model: 1001D-628-36
$2,359.00
$2,338.33
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,359.00
$2,338.33
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex Advantex 10 Series Super-Heavy-Duty Wide Stile Rim Exit Device with Blank Escutcheon

Professional Grade Panic Hardware for High-Traffic Commercial Applications

The Detex Advantex 10 Series rim exit device delivers super-heavy-duty panic and fire exit hardware engineered for demanding commercial environments. This Grade 1 certified device features wide stile compatibility and has been tested beyond 1,000,000 cycles - twice the cycling required for Grade 1 UL testing. The patented mounting plate and strike locator system ensures precise installation while the stainless steel deadlocking Pullman-type latch bolt provides reliable security for single and double doors with mullions.

Professional Features & Benefits

  • Super-Heavy-Duty Durability: Tested beyond 1,000,000 cycles - twice the cycling required for Grade 1 UL testing for exceptional longevity in high-use, high-abuse environments.
  • Wide Stile Compatibility: Designed specifically for wide stile door applications with field sizeable capability for versatile installation options.
  • Patented Installation System: Mounting plate and strike locator system replaces paper templates for the easiest and most accurate installation of panic hardware available.
  • Premium Finish Construction: All exposed surfaces finished over stainless steel with PVD, an environmentally-friendly finishing process for superior durability and appearance.
  • Heavy-Duty Protection: Angled end cap design deflects damage away from device while stainless steel deadlocking Pullman-type latch bolt ensures reliable operation.
  • Flexible Configuration: Non-handed design with 1/8 turn hex or cylinder dogging options and outside trims easily changed or re-keyed without removing device from door.
  • Grade 1 Certification: UL listed Grade 1 performance meets the highest standards for commercial panic hardware applications.
  • Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Function: Blank Escutcheon
  • Product Group: Exit Devices and Trim
  • Product Model: 1001D
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Series: 10 Series
  • Stile: Wide
  • Stile Type: Wide Stile
  • Subcategory: Advantex Series
  • Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex Advantex 10 Series exit devices deliver professional-grade reliability with stainless steel construction and PVD finishing rated for over 1,000,000 life cycles. The 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty provides comprehensive coverage for demanding commercial applications. Engineered for high-use, high-abuse environments where dependable panic hardware performance is essential.



Resources

Installation Instructions
Parts List
Door Templates
Maintenance Manual
Installation Video
Specifications
Catalog Page

Product Specs

Series:
10 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Advantex Series
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Grade:
Grade 1
Stile:
Wide
Stile Type:
Wide Stile
Wood Door Compatible:
No
Product Model:
1001D
Product Function:
Blank Escutcheon
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex 1001D-628-36 – Frequently Asked Questions

1) Can the Detex Advantex 10 Series rim device be used on a pair of doors?
Yes, on single doors and on pairs, but a pair needs a mullion. A rim device latches into a strike on the frame or mullion rather than at the head and sill, so with no center mullion there is nothing for the latch to catch. If you cannot use a mullion on your pair, move to a vertical rod device such as the Hager 4501 concealed vertical rod with wide stile pushpad.
2) What size door does the Detex 1001D cover, 36 inch or 48 inch?
Both. The Advantex 1001D is offered in 36 inch and 48 inch device lengths, and the device is field sizeable, so you cut it to the leaf rather than ordering a custom length. Pick the length band that matches your door width.
3) Do I have to specify handing on the Detex Advantex 1001D?
The device chassis itself is non-handed, but the order asks for Right Hand Reverse or Left Hand Reverse so the escutcheon and trim side are set up correctly. Stand outside the opening: if the door swings out toward you and the hinges are on your right it is right hand reverse. Dogging (1/8 turn hex, cylinder, or none) and strike type (99 surface or 98 semi-mortise) are the other two required choices.
4) Can I get the Detex Advantex 1001D fire rated?
Yes. Rating is a selection: fire rated, hurricane rated, hurricane and fire rated, or non-rated. If you order fire rated, specify less dogging, since mechanical dogging is not permitted on a fire door. The device carries Grade 1 certification and has been cycle tested beyond 1,000,000 cycles, twice the cycling required for Grade 1 UL testing.
5) What does the blank escutcheon version of the Detex 1001D mean for outside trim?
Blank escutcheon means the outside plate has no cylinder or lever, so the opening is exit only from the inside with no key or handle entry from outside. Outside trims on the Advantex can be changed or re-keyed later without pulling the device off the door, so you are not locked into exit only forever.
6) Can I use the Detex Advantex 1001D on a wood door, and what works if I cannot?
The Detex Advantex 1001D is not wood door compatible. For a wood door opening, the Adams Rite 3700 Series 30 inch narrow stile rim device is fire rated, Grade 1 and wood door compatible, and the Adams Rite 8700 Series 30 inch narrow stile Grade 1 device is wood door compatible in a non fire rated form. Both are narrow stile devices, so confirm the stile width on the door before ordering.
7) What rim exit device should I use on a narrow stile aluminum storefront door instead of the Detex 1001D?
The Detex Advantex 1001D is built for wide stile doors, so a narrow stile aluminum storefront opening needs a narrow stile device. Grade 1 narrow stile rim options include the Adams Rite 8800 Series 30 inch, which covers 1-3/4 inch to 2-1/4 inch doors; the Adams Rite 8700 Series 30 inch; the Corbin Russwin ED4200 36 inch narrow stile for 1-3/4 inch doors; the Falcon 19-R 36 inch narrow stile exit only; and the TownSteel ED3700 and ED8900, both 36 inch heavy duty Grade 1 narrow stile devices.
8) What is the closest Grade 1 wide stile rim exit device to the Detex Advantex 1001D from another manufacturer?
The Detex Advantex 1001D is a Grade 1 wide stile rim exit device offered in 36 inch and 48 inch sizes. The closest cross-brand equivalents are the Von Duprin 22-3FT, a 36 inch non-handed Grade 1 wide stile pushpad rim device for 1-3/4 inch doors; the Corbin Russwin ED5200, a Grade 1 36 inch wide stile rim device; the DORMA 9300 Series 48 inch Grade 1 wide stile panic rim device, which covers doors 1-3/4 inch to 2-1/4 inch; and the TownSteel ED9700, a 36 inch heavy duty Grade 1 wide stile rim device. All four are hollow metal door devices rather than wood door devices, matching the 1001D.
9) If I need a fire rated rim exit device, how does the Detex 1001D compare to other fire rated devices?
The Detex Advantex 1001D is configurable as fire rated, hurricane rated, both, or non-rated, so one model line covers a labeled opening and an unlabeled one. If you are sourcing fire rated devices from other brands, the Marks USA M9900F is offered in 36 inch and 48 inch fire rated exit only versions with a panic protector end cap, the Dexter ED1000 Series has a Grade 1 fire rated rim version, the Orca OED85 Series is a 36 inch fire rated rim device, the Arrow FS1250 is a 32 inch fire rated rim device for 1-3/4 inch doors, and the Sargent 12-8810 is a fire rated Grade 1 wide stile rim device.
10) I need an electrified rim exit device with request to exit signaling. What are my options besides the Detex 1001D?
The Detex Advantex 1001D can be configured with delayed egress, electric dogging, a hardwired electric alarm, or a request to exit signal switch. Cross-brand electrified options include the Sargent 12-8810, a fire rated Grade 1 wide stile rim device with RX and motorized electric latch retraction; the SDC S6136 Spectra, a 36 inch electrified wide stile rim device with a 4 inch stile for doors 1-3/4 inch to 2 inch; the Dormakaba E2103 36 inch electrified rim device with 4908A classroom function trim; and the Securitron EMB electromechanical exit bar for 2-1/4 inch doors.
11) Are SDC switch bars and pressure sense bars an alternative to the Detex Advantex 1001D?
No. The Detex Advantex 1001D is a mechanical rim exit device with a stainless steel deadlocking Pullman-type latch bolt that latches the door. The SDC MSB550 is a 36 inch mechanical switch bar that releases an electromagnetic lock, and the SDC SureExit PSB560 is a 36 inch pressure sense bar with tri-failsafe technology; both fit narrow or wide stile doors but signal a separate locking device rather than carrying a latch themselves. Use them with a mag lock or electric strike, not as a replacement for a latching panic device.
12) For a 48 inch wide door, what Grade 1 rim exit devices compare to the Detex Advantex 1001D?
The Detex Advantex 1001D is offered in a 48 inch size as well as 36 inch. Other Grade 1 devices sized for the wider leaf include the DORMA 9300 Series 48 inch wide stile panic rim device, exit only, for doors 1-3/4 inch to 2-1/4 inch; the Corbin Russwin ED3200 48 inch crossbar wide stile device; the Sargent 2828 and 3828, both Grade 1 reversible wide stile rim devices for a 48 inch minimum door width, the 3828 with a standard push bar; and the Dexter ED1000 Series 4FT Grade 1 rim device.
13) What electrified options come on the Detex 10 Series exit device?
Four electric configurations plus a straight mechanical version: delayed egress, electric dogging, hardwired electric alarm, request to exit (signal) switch, or none. Delayed egress is what you order for a controlled exit that holds a user for a timed delay; request to exit gives an access control panel a signal when the pushpad is pressed; electric dogging lets you free the latch remotely for business hours instead of hex keying it.
14) Which strike do I order for the Detex Advantex 1001D, 99 surface or 98 semi-mortise?
The 99 surface strike screws onto the face of the frame stop and is the simpler retrofit when you do not want to cut the frame. The 98 semi-mortise recesses into the frame for a cleaner look and less projection into the opening, but it needs frame prep. Detex includes a patented mounting plate and strike locator system in place of paper templates, which sets the strike position off the device.
15) What finishes does the Detex Advantex 10 Series come in for matching other doors in a building?
Ten finishes: 605 polished brass, 606 brushed brass, 611 polished bronze, 612 brushed bronze, 613 oil rubbed bronze, 628 brushed aluminum, 629 polished stainless steel, 630 brushed stainless steel, 693 black painted, and 695 dark bronze painted. Exposed surfaces are finished over stainless steel using PVD, so the plated finishes hold up better than lacquered brass on a high traffic opening.
16) What keeps the Detex Advantex latch from being jimmied back on an exterior door?
The latch is a stainless steel deadlocking Pullman-type latch bolt, so once the door closes the bolt resists being pushed back with a shim or card. The end cap is angled to deflect impact away from the device, which matters on loading dock and service doors that get hit by carts.
17) What is a lighter duty alternative to the Detex Advantex 1001D for a low traffic exit door?
The Advantex 1001D is a super-heavy-duty Grade 1 device tested beyond 1,000,000 cycles. Where that level of cycling is more than the opening needs, Grade 2 alternatives include the Cal-Royal 5000, a 36 inch wide rim exit device with a touch bar, and the Cal-Royal 5500, a 48 inch wide rim exit device with a push bar; both are rated heavy duty at Grade 2. The Design Hardware 2000R is a 33 inch standard duty wide stile rim device with hex key dogging, and the Hager 4701 Series 36 inch is a standard duty rim device carrying Grade 1 BHMA certification.
18) Is a crossbar rim device like the CRL Jackson 1095 or Corbin Russwin ED3200 a substitute for the Detex 1001D?
They serve the same opening but present a different actuator. The Detex Advantex 1001D is a push pad style rim device with an angled end cap and blank escutcheon trim. The CRL Jackson 1095 Series 48 inch is a crossbar wide stile rim panic device, exit only, and the Corbin Russwin ED3200 is a Grade 1 48 inch crossbar wide stile rim device for 1-3/4 inch doors. If the building standard is a touch pad, or you need the cylinder dogging and electrified options the 1001D offers, the crossbar devices are not a like for like swap.
19) What should I use instead of the Detex 1001D if the opening needs a concealed vertical rod device?
The Detex Advantex 1001D is a rim device, latching to a surface or semi-mortise strike on the frame. A pair of doors or an opening detailed for top and bottom latching instead calls for a concealed vertical rod device, such as the Hager 4501 Series 36 inch Grade 1 concealed vertical rod device with a wide stile pushpad, or the Hager 4601 Series 36 inch Grade 1 concealed vertical rod device in narrow stile. Note that the 1001D itself handles double doors when a mullion is used.
20) The Detex 1001D has a blank escutcheon. What rim devices should I look at if I need outside key access instead?
The 1001D is the blank escutcheon configuration, which is trim without an outside cylinder, though its outside trims can be changed or re-keyed without taking the device off the door. If you want a device catalogued with keyed outside function, the Sargent 8504 is a Grade 1 narrow stile rim device in night latch function, the Corbin Russwin ED4200 and ED5200 are Grade 1 devices listed as exit only and accepting trim, and the Dormakaba E2103 36 inch electrified rim device comes with 4908A classroom function trim.
21) The Detex 1001D requires handing selection. Which comparable rim devices are non-handed?
The Detex Advantex 1001D is a non-handed design, though it is ordered as right hand reverse or left hand reverse along with the dogging and strike choice. If you want a device stocked without a handing decision, the Von Duprin 22-3FT is a 36 inch non-handed Grade 1 wide stile pushpad device, the BEST 2401 Series is a narrow stile rim device described as exit only and non-handed, the BEST Precision 5101 Series is a non-handed universal design rim device, and the CRL Jackson 1295 Series is a non-handed push pad wide stile rim device for 1-3/4 inch doors.
22) Is the Detex 1001D overkill for a low traffic back door?
For a low use opening it may be more device than you need. The Advantex 1001D is a super-heavy-duty Grade 1 device aimed at high-use, high-abuse traffic in schools, hospitals, retail and warehouses. If the opening is quiet and non-rated, a lighter wide stile rim device such as the Design Hardware 2000R standard duty or the Cal-Royal 5000 Grade 2 covers it.
