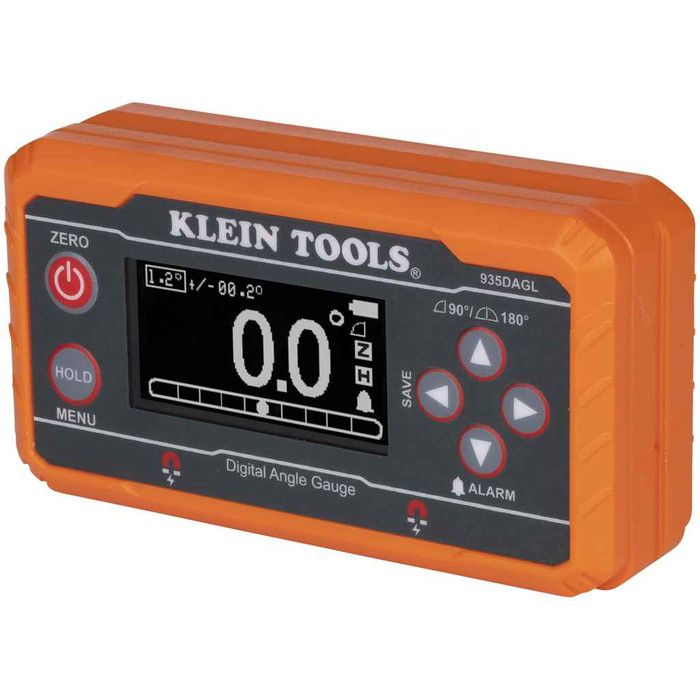

Digital Level with Programmable Angles
935DAGL - spec sheet
Features
- Pre-programmed commonly used target pitches for efficiency and ease-of use - 1/8-Inch, 1/4-Inch, 3/8-Inch and 1/2-Inch per foot
- Optional Plumber's Kit (Cat. No. 69346) allows the level to be used with PVC and other non-magnetic pipes and Conduit, up to 6 inches of outer diameter
- Strong magnetic base attaches to ferromagnetic surfaces
- Language selectable menu for English, Spanish, and French
- Soft carrying case and 2 x AA batteries included
- Easily achieve target angle by setting an audible alarm; LCD will change color as a visual indicator of reaching the set target angle
- Use in bullseye orientation to accurately determine X- and Y-axis
- Audible Alarm, Magnetic Base, V-Grooves on Top and Bottom
- V-Groove edges enable optimal alignment on conduit and pipes for bending and alignment
- Digital level measures 0 to 90-Degree, 0 to 180-Degree, or dual axis bullseye ranges
- Display auto-rotates when used in horizontal or vertical orientation
- High visibility reverse contrast display improves visibility in dimly lit work environments
Warnings
- See instruction manual for additional warnings
- Read, understand, and follow instructions to ensure safe operation
- Always wear approved eye protection
935DAGL - spec sheet
Manufacturer Resources
Spec Sheet
Product Specs
- Batteries:
- 2 x AA
- Drop Protection:
- 6.6' (2 m)
- Ingress Protection:
- IP42 Dust and Water Resistant
- Magnet Type:
- Permanent Rare Earth
- Overall Height:
- 2.48" (6.3 cm)
- Overall Length:
- 4.57" (11.6 cm)
- Overall Width:
- 1.36" (3.5 cm)
- Department:
- Electrical
- Product Group:
- Hand Tools
- Product Subgroup:
- Measuring Tools
- Product Type:
- Level
- Product Details:
- Digital Level
- Product Height:
- 2.4800 in
- Product Material:
- ABS Plastic Housing and Electronic Components
- Product Weight:
- 7 oz (200 g)
- Product Width:
- 1.3600 in
- Product Depth:
- 4.5500 in
Klein Tools 935DAGL – Frequently Asked Questions
1) Can the Klein Tools 935DAGL digital level be used on PVC pipe or does it only stick to metal?
On its own the 935DAGL holds with a permanent rare earth magnetic base, so it attaches to ferromagnetic surfaces only (black iron, steel conduit, cast iron). For PVC, copper, or other non-magnetic pipe and conduit, you need the optional Plumber's Kit, Cat. No. 69346, which carries it on pipe up to 6 inches outer diameter. Plan on ordering that kit if the job is plastic DWV or water line work.
2) Does the 935DAGL have the drain pitches already set, or do I have to dial in 1/4 inch per foot every time?
The pitches are pre-programmed. The 935DAGL comes loaded with the common target slopes of 1/8, 1/4, 3/8 and 1/2 inch per foot, so you pick the one you need instead of entering an angle. Set the audible alarm and the LCD changes color when you hit the target, which means you can watch the pipe instead of the screen while you shim.
3) Will the 935DAGL sit on EMT conduit without rolling off while I set a bend?
Yes. There are V-grooves machined into both the top and bottom faces, so the level seats on round stock for conduit bending and pipe alignment rather than teetering on a flat edge. On steel EMT the rare earth magnet holds it in place; on aluminum or PVC conduit you would need the 69346 Plumber's Kit to secure it.
4) Can I level something on two axes at once with this, like a pad or a cabinet base?
Yes. The 935DAGL reads 0 to 90 degrees, 0 to 180 degrees, or a dual-axis bullseye mode that gives you X and Y at the same time, so you can set a mount or base plate flat in both directions without repositioning. The display also auto-rotates between horizontal and vertical use.
5) Is this digital level small enough to carry in a pouch, and what does it weigh?
It is a torpedo-size tool, 4.57 inches long by 2.48 inches high by 1.36 inches wide, and 7 oz (200 g) with batteries. That fits a tool pouch or bag easily. A soft carrying case comes with it.
6) What batteries does the Klein 935DAGL take, and are they included?
Two AA batteries, and they ship with the level. No proprietary pack or charger to track, which is the practical reason a lot of crews standardize on it for truck stock.
7) Can the 935DAGL be read in a dark mechanical room or crawlspace?
The screen is a high visibility reverse contrast display intended for dimly lit work areas, and the audible alarm plus color change on the LCD tell you when you have hit the target pitch even if you are at an awkward angle to the face.
8) Does the Klein 935DAGL display in Spanish or French for my crew?
Yes, the menu is language selectable between English, Spanish and French.
